MAXHUB MTR User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MAXHUB MTR User Guide
Note: All the pictures in this manual are for reference only, please refer to the actual product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MTR and is the answer not in the manual?

Questions and answers

Related Manuals for MAXHUB MTR

Summary of Contents for MAXHUB MTR

  • Page 1 MAXHUB MTR User Guide Note: All the pictures in this manual are for reference only, please refer to the actual product.
  • Page 2 TABLE OF CONTENTS Contents -—————————————————————————————————————————————————————— 1. Hardware and Diagram -————————————————————————————————————————— -———————————————————————————————————————————————— 1.1 Safety Warnings 1.2 Statement -———————————————————————————————————————————————————— 1.3 Package Includes -———————————————————————————————————————————————— 1.4 Appearance Introduction -——————————————————————————————————————————— 1.5 Connection Diagram -————————————————————————————————————————————— 2. Software Features -————————————————————————————————————————————— 2.1 Log In & Out Account -————————————————————————————————————————————— 2.2 Switch Account -————————————————————————————————————————————————...
  • Page 3 2.16 Content Sharing -——————————————————————————————————————————————— -—————————————————————————————————————————————————— 2.17 Whiteboard -————————————————————————————————————————————————— 2.18 Room Control 2.19 MAXHUB Pivot (cloud management software) -—————————————————————————————— 2.20 BYOD -—————————————————————————————————————————————————————— 2.21 CEC -——————————————————————————————————————————————————————— 3. Troubleshooting and Recovery -———————————————————————————————————— 47 3.1 Troubleshooting -———————————————————————————————————————————————— 48 -———————————————————————————————————————————————————— 56 3.2 More Help -—————————————————————————————————————————————————— 56...
  • Page 4 1. Hardware and Diagram...
  • Page 5 Safety Warnings ● Before using and operating this equipment, please read and observe the following precautions carefully to avoid dangerous or illegal operations. (1) Please carefully read the QSG before using the product. (2) Before moving the product, please unplug the AC power cord from power socket. (3) Before connecting or disconnecting any signal cables, make sure that all the power cords are unplugged in advance.
  • Page 6 XT10-WS Kit √ √ √ √ ① XC13T Mini-PC x1 MAXHUB XCore Kit for Microsoft Teams Rooms XCore Kit Mini PC×1 Quick Start Guide Note: All the pictures in this manual are for reference only, please refer to the actual product.
  • Page 7 ② TCP20T Touch Control Panel x1 MAXHUB XCore Kit for Microsoft Teams Rooms Touch Control Panel USB Type-C Cable×1 Quick Start Guide Note: All the pictures in this manual are for reference only, please refer to the actual product. HDMI Cable×1 Touch Control Panel×1...
  • Page 8 ④ UC BM35 Speakerphone x1 MAXHUB UC BM35 Quick Start Guide MAXHUB UC BM35 MAXHUB UC BM35 QSG USB TYPE-C Cable Bluetooth USB Dongle ⑤ UC W31 4K USB Camera x1 4K USB Camera x1 Quick Start Guidex1 Lens cover×1 Wall bracket×1...

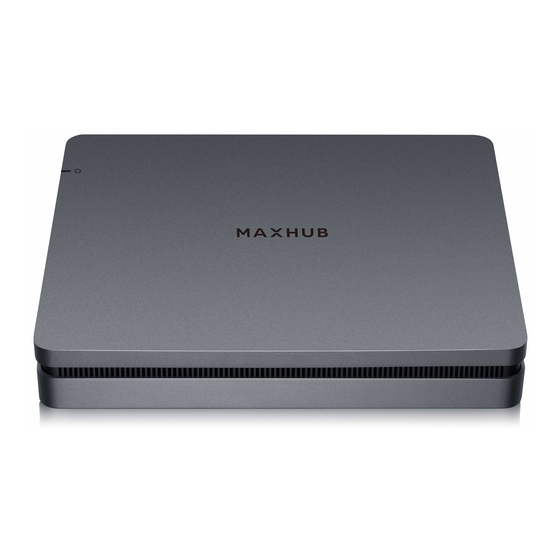

  • Page 9 Appearance Introduction ● XC13T Mini-PC HDMI OUT FOR CONSOLE FOR DISPLAY PERIPHERAL AC POWER Power button Power indicator light AUDIO OUT: Audio output to the external speaker 3.1 : Power delivery (MAX: 45W), USB3.0 data transmission, DP Out. HDMI OUT: Connected to the devices with HDMI input function(monitor). Kensington security lock 3.0: Connect USB3.0 devices such as USB disk, USB keyboard, USB mouse.
  • Page 10 TCP20T Touch Control Panel ① ② ③ ④ ⑤ ⑥ 10.1" Touch Screen PIR: The screen will light up automatically when a person is detected in front of the screen. 3.1 : Support DP IN, USB downstream (3.0: HDMI signal, 2.0: Touch signal); PD15V/1.5A. HDMI INGEST: Supports 4K@30Hz input.
  • Page 11 UC S07 VideoBar POWER (PD) AUDIO OUT Camera Indicator light The Passive Infrared (PIR) sensor: operates in power-on mode and will automatically enter standby state if no motion is detected within 3 meters for 30 minutes. In standby mode, the PIR sensor will automatically activate when motion is detected within 3 meters. Kensigton lock Power Button: In startup mode, press the power button to mute.
  • Page 12 UC BM35 Speakerphone x1 USB Type-C port Call/hang up Mute Microphone (8 array microphone) Volume down Bluetooth pairing Volume up Power on/o UC W31 4K USB Camera x1 Camera Indicator Light Camera Bracket USB Type-C...
  • Page 13 Connection Diagram ● Complete the device connection according to the illustration, as shown in Figure 1. ① ② Press the Mini PC power button to start up, as shown in Figure 2. XT10-VB Kit Network HDMI OUT FOR CONSOLE FOR DISPLAY PERIPHERAL AC POWER Power...
  • Page 14 2. Software features...
  • Page 15 Log In & Out Account ● Introduction Xcore device supports logging into the Skype/Teams account, and you can use related functions such as meetings after logging in. Log In to Account 1. Goto More > Settings to enter the administrator password (default: sfb). 2.
  • Page 16 Switch Account ● Introduction ・  By default, Xcore systems have two built-in Windows accounts (Skype user and administrator accounts). Skype for Business account: It is limited to running the Microsoft Teams Rooms and also the default recommended account when the system starts. You can use the Skype for Business account to login to the Microsoft Teams Rooms System automatically without a password, but it does not have administrator privileges.
  • Page 17 Switch to Skype for Business Account 1. In the Windows mode, select 2. Select 3. Select Login to switch to Skype for Business account. Change Admin Password The administrator password defaults to sfb, you can change the password as needed. 1.
  • Page 18 Windows Update ● Introduction Usually, the Windows version will be updated automatically, but you can also check for updates yourself. Howto Use Check System Version Before Updating 1. In the Microsoft Teams mode, goto More > Settings (default password: sfb). 2.
  • Page 19 Microsoft Teams Rooms App Update ● Introduction Normally, the Microsoft Teams Rooms application will be automatically updated with Windows updates, and automatic updates can also be set through the Microsoft Store. For the Microsoft Teams Rooms app release log, please refer to Release Notes for Microsoft Teams Rooms. Howto Use Check Software Version Before Updating 1.
  • Page 20 Meeting ● Instant Meeting Introduction After completing the Quick Setup in the XCore kits, you can login to your Skype account and use the Microsoft Teams Rooms System to start a meeting. How to Use You need to switch the system to Microsoft Teams mode. Start a Meeting Select Meet to start your meeting.
  • Page 21 Call Someone to Join Meeting 1. Select Call to type a name or number (Tip: You can call multiple people simultaneously). 2. Select Call and wait for the other person to enter the meeting.
  • Page 22 How do I check my email account? 1. Go to More > Settings. 2. After entering the administrator password (default: sfb), you can view it in Accounts. Does XCore kits support reserving a meeting? How to reverse a meeting? The XCore kits does not support scheduling a meeting but supports a instant meeting. If you want to reserve a Teams meeting, you can download the Teams client to reserve a meeting.
  • Page 23 Join Meeting ● Introduction You can use TCP20T Touch Control Panel to join meetings reserved by Microsoft Teams. How to Use Before you start: You need to switch the system to Microsoft Teams mode . Join Scheduled Meetings If you have been invited as a participant in a meeting, the homepage will display the meeting information, and you can directly select Join.
  • Page 24 Join with Meeting ID 1. Click Join with a Meeting ID . 2. Enter the corresponding meeting ID and password. 3. Select Join meeting.
  • Page 25 Join Third-party Meetings X core kits devices support joining Zoom/Cisco Webex meetings. 1. Go to More > Settings to enter the administrator password (default: sfb). 2. Select Meetings to set Third-party meetings. 3. Select Save and exit. (Please refer to Enable Teams Rooms devices to join third-party meetings for more information). 4.
  • Page 26 How to get the meeting ID and password in the meeting? You can view the meeting ID and password in Details. Why can’t the dual-screen display be used after the XCore kits device joins the Zoom meeting? The way to join a third-party Zoom meeting is through the web user interface, so dual-displays cannot be used in third-party meetings.
  • Page 27 Meeting Microphone ● I ntroduction You can adjust your microphone at anytime during the meeting. How to Use Mute/Unmute Microphone Select to mute or unmute the microphone. Meeting Speaker ● Introduction You can adjust your speaker at anytime during the meeting. How to Use Select to adjust the speaker volume.
  • Page 28 Local Meeting Camera ● Introduction You can adjust your camera at anytime during the meeting. How to Use Select the Camera Select the drop-down menu of 〉 to choose which camera to use. Enable/Disable the Camera Select to enable or disable it.
  • Page 29 Manage Participants ● Introduction As a meeting host, you can pin, spotlight, mute, invite or remove participants. The host can also spotlight up to 9 videos. Spotlight puts a participant as the primary active speaker for all participants. All participants will only see the selected speakers as the active speaker. This feature is often used to spotlight a keynote speaker.
  • Page 30 Spotlight for me 画中画 增强 画中画 增强 Allan DeYoung Carrie Murphy Allan DeYoung Carrie Murphy Hide for me Allan DeYoung...
  • Page 31 Pin for me 画中画 增强 Allan DeYoung Carrie Murphy ②. Set as Participant Select a participant and select Make an attendee in the meeting. After setting them as participants, you can restrict them from using the microphone, camera, etc.
  • Page 32 ③. Invite Participant 1. Select Invite someone or dial a number in the meeting. 2. Select Request to join. ④. Remove Participant Select Remove from meeting to remove the participant. Why the microphone/camera cannot be enabled during the meeting? You cannot use the microphone/camera if you are set as a participant (the microphone/camera is disabled). You can ask the meeting organizer to enable the microphone/camera.
  • Page 33 Meeting Layout ● Introduction During the meeting, you can set the meeting layout to Gallery Mode, Together Mode, etc. How to Use Gallery Mode Go to in the lower-left corner to select Gallery. Large Gallery Mode At least 10 people in the meeting enable the camera before setting the Large Gallery Mode. Go to in the lower-left corner to select Large Gallery.
  • Page 34 Together Mode At least 5 people enable the camera in the meeting. Goto in the lower-left corner to select Together Mode. It displays that you are in the same background as everyone in the meeting. Front Row Mode (preview) Goto in the lower-left corner to select Front Row.
  • Page 35 Raise Your Hand ● Introduction You can raise your hand to speak in the meeting. How to Use 1. Go to Reactionon the toolbar along the bottom or top of the screen to select Raise Handin meeting. 2. The host will be notified that you’ve raised your hand. 3.
  • Page 36 E ect Demonstration Meeting Control ● Introduction You can use more meeting control in the meeting. How to Use Select More to select the other meeting control.
  • Page 37 Feedback ● Introduction If you have any problems in the meeting, you can give feedback. How to Use 1. Goto More > Report a problem. 2. Select the problem type and describe it briefly. Were commend you select Include memory trace and heap snapshot . 3.
  • Page 38 ● Wired Content Sharing Introduction For MAXHUB MTR System series products, you can achieve content sharing by connecting the HDMI to TCP20T Touch Control Panel. How to Use 1. Complete the device connection according to the illustration, as shown in Figure 1.
  • Page 39 2. Start Sharing When you are not in a meeting: After connecting the HDMI cable, select Share/Stop Sharing. If you setup the automatic screen sharing, the screen will automatically start sharing when you connect HDMI cable to the PC. When you are in a meeting: After connecting the HDMI cable, you can select to share your screen.
  • Page 40 3. Select Save and exit. Whiteboard ● Introduction The MAXHUB MTR System (Microsoft Teams Room) supports connecting a touch-enabled display for whiteboard usage. How to Use For more information about how to operate this feature, please refer to Using Microsoft Teams Rooms with Front of Room Touchscreens.
  • Page 41 Room Control ● By selecting "Room Control" on the main interface of MTR, you can control and configure external audio and video devices. MAXHUB Plug-in is a plugin interface that supports the control of MAXHUB brand devices only. When using MAXHUB audio and camera devices, you can control these devices using the MAXHUB Plugin.
  • Page 42 Support control of the following camera functions. Function Name Function Description Device Name Displays the device name of the recognized peripheral on the Tab. Auto Frame When enabled, automatically focuses on faces. Zoom Adjustment When Auto Frame switch is turned o , manually adjusts the camera angle. For example, zoom in, zoom out, adjust angle vertically and horizontally.
  • Page 43 When a device with audio capability is detected, the Audio icon will be displayed. You can test the microphone or speaker functionality within the Audio section to ensure they are working properly. 3. The MAXHUB MTR System support any Teams certified content camera.
  • Page 44 MAXHUB Pivot (cloud management software) ● Account Register & Login 1. How to Sign up for a Pivot account? pivot.maxhub.com Open a website and click “Create Account” to go to the registration page. On the registration page, enter your Email, Username, Password, Confirm password, School/Company, Location and Data storage location, and click “Register”.
  • Page 45 Device enroll To manage devices, you should first enroll your devices in the Maxhub Pivot web console. Login to pivot.maxhub.com, click “Enroll” on the top bar to see enroll method. Method 1: Fill in the information on the Pivot Application running on Mini PC Access the "Administrator"...
  • Page 46 BYOD ● How to Use INOGENI is an technology partner of MAXHUB. Please refer to the relevant installation and connection diagrams below. MAXHUB Microsoft Teams Rooms + INOGENI TOGGLE For Microsoft Signature Room (Connectivity diagram) MAXHUB XC31T Teams Rooms-Windows compute...
  • Page 47 ● Introduction The CEC functionality in MAXHUB MTR System refers to the synchronized wake-up feature between the mini-PC and the display. The TCP20T Touch Control Panel device is equipped with a presence sensor, which automatically wakes up the TCP20T Touch Control Panel and synchronizes the wake-up of the display when someone enters the meeting room or approaches the TCP20T Touch Control Panel.
  • Page 48 3. Troubleshooting and Recovery...
  • Page 49 • Ensure that the XCore is connected to a wired network and is connected to your O ice 365 account or your Skype for Business server (depends on MTR cannot be logged in. your company's deployment). • If the XCore is connected to the O ice 365 account, ensure that the account is not running in China.
  • Page 50 • Keyboard not fully displayed • Keyboard letters not fully displayed. Sometimes, the display mode is The display mode is extend mode by default under the MTR account. duplicate mode after XCore enters If it is duplicate mode, restart XCore.
  • Page 51 • Ensure that it is turned on. MTR meeting. • Disconnect it from XCore and reconnect it to XCore. • Ensure that it is set as the audio device for conferencing from MTR Settings. The sound does not come from...
  • Page 52 Network problems Problem Solution • Connect the cable from the Ethernet connector to the RJ45 connector of XCore. • Enable the Ethernet LAN feature in UEFI BIOS. • Enable the Ethernet LAN adapter. 1. Go to Control Panel and view by large icons or small icons. 2.
  • Page 53 Problem Solution Note:It is not recommended that you connect a Bluetooth-enabled device to XCore. • Enable the Bluetooth feature in UEFI BIOS. • Enable all Bluetooth devices. 1. Right-click the Start button to open the Start context menu. 2. Click Device Manager. Type the administrator password or provide confirmation if prompted.
  • Page 54 USB device problems Problem Solution • Connect the USB cable from the USB connector to the USB device. If the USB device has its own power cord, connect the power cord to a grounded electrical outlet. • Turn on the USB device and keep the device online. •...
  • Page 55 With the recovery USB drive, you can troubleshoot and fix the problems even if the preinstalled Windows recovery programs are damaged. If you did not create a recovery USB drive as a precautionary measure, you can contact MAXHUB Customer Support Center and purchase one from MAXHUB.
  • Page 56 • From the MAXHUB Customer Support Center: www.maxhub.com • From Windows Update: Note: The device drivers provided by Windows Update might not be tested by MAXHUB. It is recommended that you get device drivers from MAXHUB. 1. Open the Start menu.
  • Page 57 More Help ● For the most updated informaton in regards to the MAXHUB Teams Rooms Devices, please refer to the following website support pages: https://www.maxhub.com/us/support/?#trigger-help-center North America -> Rest of the World -> https://www.maxhub.com/en/support/?#trigger-help-center * Navigate to "Microsoft Teams Rooms" -> "XT Series"...
