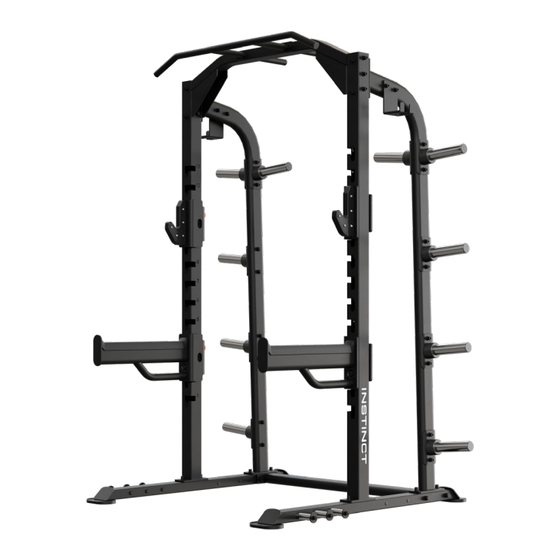

- Page 1 CORE HEALTH & FITNESS INSTINCT HALF RACK OWNER'S MANUAL CONTACT SUPPORT NOW...
- Page 2 TABLE OF CONTENTS TABLE OF CONTENTS ........................2 IMPORTANT SAFETY INSTRUCTIONS ........................3 IMPORTANT LABEL LOCATIONS ........................5 ASSEMBLY ........................7 PROCEDURE ..............9 MAINTENANCE ........................13 TOOLS ..............13 MAINTENANCE SCHEDULE ..............14 REPLACEMENT PARTS ........................15 9NN-R8303-XXXXX - INSTINCT HALF-RACK ..........15 Page 2...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS WARNING! Before using this product, it is essential to read the ENTIRE Owner’s Manual and ALL installation instructions. The Owner’s Manual describes equipment assembly and instructs members on how to use correctly and safely. Read all warnings posted on the machine. Health related injuries may result from incorrect or excessive use of exercise equipment.
- Page 4 This machine is not intended to be used by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless given instruction and under the personal supervision concerning use of the machine by a person responsible for their safety. Keep children away.
- Page 5 IMPORTANT LABEL LOCATIONS This page shows the location of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers missing or damaged the replacement numbers are shown on the support site and following pages.
- Page 6 050-5985 731-5103 731-0517 STICKER,WARNING,SAFETY STICKER,WARNING,MAXIMUM STICKER, WARNING, BOLT DOWN HOOK, SPORT LINE WEIGHT 050-5983 050-5984 STICKER, ADJ,CATCHES, SPORT STICKER,WARNING,ENGAGE LINE CATCHES, SPORT LINE Do not operate equipment without safety catch Ne pas faire fonctionner l'équipement sans barre de sécurité Das Gerät nicht ohne Sicherungsstangen benutzen 730-0384 731-4998 LOGO,INSTINCT...
- Page 7 ASSEMBLY REQUIRED TOOLS • 10mm Allen Key PACKAGING REMOVAL: Carefully remove all packaging materials that wrap the equipment. If parts are missing see Support & Service DO NOT USE A KNIFE OR BOX CUTTER AS YOU MAY DAMAGE THE EQUIPMENT. Remove any sub-components from the pallet and set aside for later assembly.
- Page 8 Fig. 4 Installation Hardware Description 290-0058 KEY, HEX ALLEN, 10mm, 120, ZP GB70M10x20DHS20NL SCREW, M12, 30 mm, SHC, HK, CS, BZ, FT, PT, Grd-8.8 GB70M12x100DHS20 SCREW, M12, 100 mm, SHC, HK, CS, BZ, PT, Grd-8.8 GB70M12x105DHS20 SCREW, M12, 105 mm, SHC, HK, CS, BZ, PT, Grd-8.8 GB9312DHS12 LOCK WASHER, M12, CS, BZ GB9512DHS2...
- Page 9 PROCEDURE NM12DHS2 GB9512DHS2 GB70M12x105DHS20 R830302ASSY R83030600 R830301ASSY Fig. 5 Assemble base consisting of left weldment (R830302ASSY), right weldment (R830301ASSY) and horizontal support (R83030600) using four M12x105mm bolts (GB70M12x105DHS20), eight washers (GB9512DHS2) and four hex nuts (NM12DHS2). Page 9...
- Page 10 NM12DHS2 R83030700 GB9512DHS2 GB9312DHS12 GB70M12x105DHS20 GB70M12x100DHS20 R83030300 R83030400 R83030500 GB70M12x30DHS20 GB9312DHS12 GB9512DHS2 Fig. 6 Attach left upright (R83030400) to assembled base using two M12x30mm bolts (GB70M12x30DHS20), two lock washers (GB9312DHS12), and two washers (GB9512DHS2). Do not fully tighten. Attach right upright (R83030300) to base using two M12x30mm bolts (GB70M12x30DHS20), two lock washers (GB9312DHS12), two washers (GB9512DHS2) and four hex nuts (NM12DHS2).
- Page 11 R830312ASSY NM12DHS2 GB9512DHS2 R830311ASSY R830313ASSY GB70M12x75DHS20 NM12DHS2 GB9512DHS2 GB70M12x80DHS20 GB70M12x75DHS20 Fig. 7 Connect left bar holder (R830313ASSY) to rear support using two M12x75mm bolts (GB70M12x75DHS20), four washers (GB9512DHS2) and two hex nuts (NM12DHS2) Connect right bar holder (R830312ASSY) to rear support using two M12x75mm bolts (GB70M12x75DHS20), four washers (GB9512DHS2) and two hex nuts (NM12DHS2) 10.
- Page 12 R830314ASSY 13. Attach left and right spotter bars R830315ASSY (R830309ASSY) to frame. 14. Attach left (R830315ASSY) and right (R830314ASSY) bar hooks to frame. R830309ASSY Fig. 8 15. Assembly is complete. Fig. 9 Page 12...
- Page 13 MAINTENANCE TOOLS Working on this product will require basic and/or sometimes specialty tools based on the type of service that will be performed at any time. To assist, we recommend having the tools listed available when performing maintenance. Tool Metric Allen Key Set Screwdriver Set, Phillips Metric Open-Ended Wrench Set Screwdriver Set, Flat...
- Page 14 MAINTENANCE SCHEDULE With durable, high performance components, this equipment is designed for heavy usage with minimal maintenance required. To keep it in top condition, perform regular daily, weekly and monthly preventive maintenance routines outlined below. The safety and integrity of this machine can only be maintained when the equipment is regularly examined for damage and wear and repaired.
- Page 15 REPLACEMENT PARTS Replacement parts for this unit are available through SUPPORT & SERVICE. Parts listed are shown on the following pages and interactive drawings available on Core Connect. Listed parts may change, please check Core Connect for latest versions and other SKU’s covered by this manual: 9NN-R8303-XXXXX - INSTINCT HALF-RACK Part Number Description...
- Page 16 R830315ASSY R830314ASSY 050-5983 050-5984 R830308ASSY GB70M12x100DHS20 BNH0573 R830312ASSY NM12DHS2 GB9512DHS2 GB70M12x75DHS20 R830313ASSY Page 16...
- Page 17 NM12DHS2 GB9512DHS2 GB70M12x75DHS20 GB70M10x20DHS20NL R830311ASSY GB70M12x105DHS20 ES20004900 GB9510DHS2 R83033000 SG-80120902 HD240012100B CHFPR1600 IT60031600V1 GB9512DHS2 NM12DHS2 CNLM10x35x35DHS20 R830309ASSY 050-5984 050-5985 PL3502900 050-5983 731-4998 Page 17...
- Page 18 R83030700 GB9312DHS12 GB70M12x105DHS20 NM12DHS2 GB9512DHS2 GB70M12x100DHS20 R83030500 R83030300 Page 18...
- Page 19 CORE CONNECT Core Connect is your portal to all things service! Whether you need to order parts or register your warranty, Core Connect is the most effective way to get what you need fast and keep your facility operating smoothly. OFFERS 24-HOUR SELF SERVICE ACCESS TO: •...
- Page 20 PART NUMBER 637-8989, REV A All rights reserved. Star Trac, the Star Trac logo and StairMaster are registered trademarks of Core Health & Fitness, LLC. Schwinn and Nautilus are registered trademarks of Nautilus Inc. used under license to Core Health & Fitness LLC. Throwdown is a registered trademark of Throwdown Industries, LLC.
