Sanyo VCC-HD5400 User Manual

Sanyo vcc-hd5400: user guide
Hide thumbs Also See for VCC-HD5400:

Advertisement

Quick Links

Download this manual See also: Service Manual, Setup Manual
VCC-HD5400/HD5400P
Features of This Camera
Specifications
Target size and recording time
Connection and setting of this camera

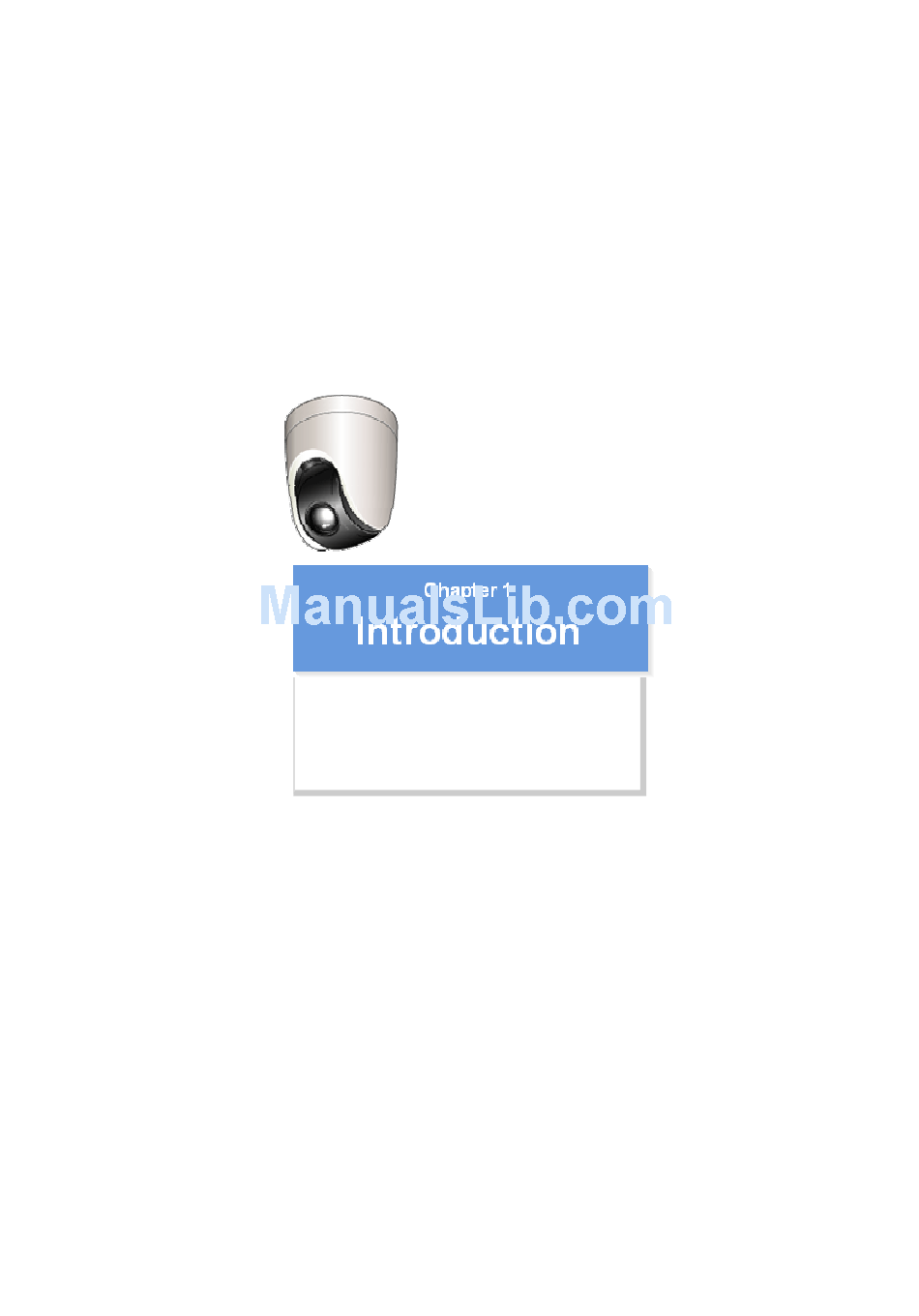

Introduction1/15

Advertisement

loading

Related Manuals for Sanyo VCC-HD5400

Summary of Contents for Sanyo VCC-HD5400

  • Page 1 VCC-HD5400/HD5400P Features of This Camera Specifications Target size and recording time Connection and setting of this camera Introduction1/15...
  • Page 2 The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you can operate the camera via the network in an easy-to-use manner. The camera supports bidirectional audio communications, enabling you to communicate with people at the camera from your PC while monitoring the surveillance video, instead of just hearing sounds from the camera.
  • Page 3 Auto (32× max) or Off boosting Electronic shutter VCC-HD5400P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 VCC-HD5400: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×) Iris AUTO/MANUAL (electronic iris: ON/OFF) Camera settings Up to 8 patterns of monitoring conditions are configurable.
  • Page 4 Protocol SSP, PELCO-D Baud Rate 2400, 4800, 9600, 19200 Address 1 - 255 (sanyo SSP: 1 to 127) SD memory card Normal recording, alarm recording, backup video recording in event of a network failure, log information External HDD Normal recording, alarm recording, backup video recording in event of a network...
  • Page 5 90% RH or less (no condensation) Power source VCC-HD5400P: 12 to 15 VDC 24 VAC±10%, 50 Hz VCC-HD5400: 12 to 15 VDC 24 VAC±10%, 60 Hz Power consumption 21 W (PoE: 12.3 W) Weight 1,350 g / 47.6 oz.
  • Page 6 This table is displayed using a browser-specific function and therefore not displayed on the PDF manual. Refer to the table “Target size and recording time” in the electronic manual. This table is displayed using a browser-specific function and therefore not displayed on the PDF manual.
  • Page 7 For the cable type, see the “cable label” attached to the cable bundle. For the detailed connection procedure, refer to the “Connections” section. Connect this terminal to the power supply. Alarm input cable: Connect an external switch, infrared sensor, or other device to detect alarm conditions such as the entry of an intruder.
  • Page 8 This jack supports 3.5-mm diameter monaural microphone plugs, or monaural line-level input plugs (the left channel only for stereo plugs). Connect this terminal to a monitor, etc. A live video will be displayed on the monitor once the camera is turned on. You cannot output the video simultaneously from HD video output terminal (HDMI) and from monitor output terminal (MONITOR OUT).
  • Page 9 The terminal outputs super-fine HD (High Definition) video signal. Use the terminal to connect a high-definition monitor with HDMI interface. To record live video on a SD memory card, open the cover as shown below and insert the card into the card slot until you hear a click.
  • Page 10 Connect the power terminals (24 VAC/12 VDC) of the camera to a power supply. Connection to 24 VAC power supply Although the power terminals have no polarity, the earth grounding wire must be connected to the GND (earth grounding) terminal. Connection to 12 VDC power supply Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.
  • Page 11 By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and operate it from the Web browser installed on your PC. Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher. Use a straight-type cable if connecting to LAN, and use a cross-type cable if directly connecting the camera to a PC.
  • Page 12 Use a thicker cable than 24AWG for connection. (Maximum length 600 m) Outputting alarm signals (ALARM OUT1-2) Connect a buzzer, lamp, or other alarm device to the alarm output cable. Alarm can be output via two channels. After connecting an alarm device, configure the output conditions for the corresponding alarm output cable via network operation on the ALARM SETTINGS screen.
  • Page 13 When recording live video on the camera, install an SD memory card or external hard disk on the camera. Always turn the power off when installing a recording medium. When you insert a new recording medium, format it on the SD/HDD screen. Inserting an SD Memory Card How to insert the SD card Open the cover on the side face of the camera, and insert an SD card into the card slot until it is locked with a...
  • Page 14 Protocol Switch 4 Corresponding Protocol SSP (SANYO) OFF Automatic switching between Sanyo SSP and high speed SSP PELCO Automatic switching between PELCO-D and PELCO-P Terminator If you connect multiple cameras, turn “ON” the terminator setting (switch 1) on the last device, and turn “OFF”...
  • Page 15 When protocol is “SSP (SANYO)”: Configurable addresses: 1 to 127 Switch 8 is configured to “OFF”. When protocol is “PELCO”: Configurable addresses: 1 to 255 To configure the address to a number between 128 and 255, set the switch 8 to “ON”.
  • Page 16 VCC-HD5400/HD5400P Preparing Your Computer for Network Operation Setting Up IP Addresses Automatically (Auto IP Setup) Check your operating environment Configue the network information on your PC Operation Privileges and Login Users Before You Begin Network Operation1/13...
  • Page 17 Follow the steps below to prepare your computer for network operation. For detailed procedure, refer to the linked information. Assign a unique IP address to each camera. If you have newly installed two or more cameras on your network, you can accomplish this by using the supplied “Auto IP Setup”...
  • Page 18 If you are installing two or more new cameras on the same local network, you need to change the factory default IP address of each camera to prevent IP address overlap. The supplied “Auto IP Setup” software frees you from this burden by automatically assigning a unique IP address to each camera on your network.
  • Page 19 Insert the supplied CD-ROM into the CD-ROM drive of your PC. The opening menu appears. Click [Auto IP Setup]. The utility window opens so that you can search cameras. If you encounter a firewall confirmation dialog box, disable the firewall so that your PC can communicate with the camera.
  • Page 20 Select the desired camera and click Manual setting The camera information dialog box opens. Make changes to the camera data and click EXECUTE This transmits your changes to the camera. You can see the problem of IP address overlap has been resolved in the [Status] row of the list, which has been changed from “CAUTION”...
  • Page 21 To operate the camera via network operation, you must meet the following operating requirements. IBM PC/AT compatible Operating system: Windows XP Professional/Windows Vista CPU: Core2Duo E6700 2.66 GHz or higher Windows XP: 1GB or more Memory: Windows Vista: 2GB or more Network interface: 10BASE-T/100BASE-TX (RJ-45 connector) 1920×1200 pixels or higher Display card:...
  • Page 22 In [Control Panel], click [Network and Internet Connections]. The [Network and Internet Connections] dialog box opens. Click [Network Connections]. The [Network Connections] dialog box opens. Under [LAN or High-Speed Internet], the icon representing your LAN interface (Ethernet adapter) configuration appears. Right-click on the LAN interface (Ethernet adapter) configuration icon and click [Properties] in the context menu.
  • Page 23 In the [This connection uses the following items:] list box, select the [Internet Protocol (TCP/IP)] check box. Confirm that the [Internet Protocol (TCP/IP)] check box is selected. If deselected, select the check box. Click [Properties]. The [Internet Protocol (TCP/IP) Properties] dialog box opens, with the [General] tab shown. Before You Begin Network Operation 8/13...
  • Page 24 Select the [Use the following IP address:] radio button and specify the IP address, the subnet mask, and the default gateway. Check the configured settings and click You are now done with the TCP/IP configuration. Close all the dialog boxes that are open. In [Control Panel], click [Network and Sharing Center].
  • Page 25 Click [Manage network connections]. The [Network Connections] dialog box opens. Double-click [Local Area Connection]. The [Local Area Connection Status] dialog box opens. Click [Properties] and, in the confirmation dialog box, click [Continue]. The [Local Area Connection Properties] dialog box opens. Select the [Internet Protocol Version 4 (TCP/IPv4)] check box.
  • Page 26 Click [Properties]. The [Internet Protocol Version 4 (TCP/IPv4) Properties] dialog box opens, with the [General] tab shown. Select the [Use the following IP address:] radio button and specify the IP address and the subnet mask. Check the configured settings and click You are now done with the TCP/IP configuration.
  • Page 27 The operation privileges of users who perform network operation are divided into 5 levels (admin, operator1, operator2, guest, and download). Each user who attempts to access the camera will be authenticated by the user name and password at login and granted an appropriate operation privilege. Operation Privileges Operation admin...
  • Page 28 Operation Privileges User Password (Default) admin admin admin operator1 operator1 operator1 operator2 operator2 operator2 guest guest guest download download download The factory default users cannot be deleted. Update your password periodically for security reasons. For details, refer to the “USER REGISTRATION” section. Client users (Max.
  • Page 29 VCC-HD5400/HD5400P Access the camera from your Web browser. Live Screen Components Control panel Tool panel Information bar Working with Live Screen1/18...
  • Page 30 Start Internet Explorer. The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet Explorer Ver.7.0. In the address bar, type the IP address of the camera and press [Enter] key. When you access the camera, the login screen appears. If this is the first access to the camera, in the Address bar, enter the default IP address as follows.
  • Page 31 <Available languages> English, French, German, Spanish, Japanese LANGUAGE You can display the language selection screen by using the button on the live screen control panel. If this is the first access to the camera, configure the system clock on the CLOCK SETTINGS screen. You can access only one camera at a time from your Web browser.
  • Page 32 When you access and log into the camera successfully, the live screen appears. For details, refer to the linked information. Video display area ( Control Panel ( Tool Panel ( Information Bar ( Current date and time Shows the current date and time based on the clock settings configured on the CLOCK SETTINGS screen. You may change the date-time format (month/day/year, year/month/day, or day/month/year), clock type, character size, and display position on the CLOCK SETTINGS screen.
  • Page 33 Image centering operation Clicking the video image changes the camera’s orientation so that the point where you click is located at the center of the image. Working with Live Screen 5/18...
  • Page 34 Click buttons according to your operation purpose. For details, refer to the linked information. PTZ operation section: You can use the controls on this section to perform operations such as pan, tilt, zoom and move to preset positions, etc. CLIENT SETTINGS : Click this to select the live stream and streaming protocol for each user.
  • Page 35 You can change zoom magnification by operating the slide bar and buttons. (WIDE): Zooms out. (TELE): Zooms in. Zooming continues if the button is kept depressed. In case electronic zoom is enabled, you can activate the electronic zoom by clicking the button after the maximum optical zoom magnification (10x) is exceeded.

  • Page 36: Preset Memory

    The pan/tilt speed accelerates as the cursor moves further from the center. Click Operation Drag the mouse to move the cursor on the screen, thereby changing the orientation of the camera lens. When the mouse button is released, the cursor returns to the middle of the screen. Clicking a button will start the corresponding auto mode operation.
  • Page 37 Shows the name of the user currently accessing the camera. Select the stream you want to display on the live screen. STREAM1, STREAM2, STREAM3, STREAM4 The pull-down menu shows a list of permitted streams that are configured in [LIVE STREAM] on the USER REGISTRATION screen (administrator configuration screen).
  • Page 38 In [AUDIO (CAMERA TO PC)], select “ON”, select the [DEFAULT ON] check box, and click This causes the client PC to start up with the audio output capability enabled when connected to the camera, so that the user can hear sounds from the camera. Setting [AUDIO (CAMERA to PC)] to “OFF”...
  • Page 39 Click the Send Audio button on the tool panel to send audio messages to the camera. : Sending of audio enabled : Sending of audio disabled You can change your own password. In the [PASSWORD CHANGE] field, type a new password. You can type 4 to 32 alphanumeric characters.
  • Page 40 Menu Selection Buttons Button Configuration Screen (Menu) Operation NETWORK NETWORK SETTINGS Configure the network settings of the camera. CLOCK CLOCK SETTINGS Configure the clock date/time, daylight saving mode, automatic clock adjustment, and other settings. USER USER REGISTRATION Register new login users, or change or delete existing user data.
  • Page 41 When the language selection screen appears, select the desired language within 10 seconds. Otherwise, you will be brought back to the live screen with the previous language setting. Click DISPLAY on the control panel to display the image size adjustment panel. : Panel is minimized.
  • Page 42 Shows the camera title you configured in [TITLE] on the CLOCK SETTINGS screen. The default camera title is “Network Camera”. The color of the camera title changes depending on the alarm state as follows: Black: Normal state Red: Alarm condition is being detected. When the camera title is shown in red, no other alarm signal will be received.
  • Page 43 For details, refer to the “Configuring audio” section. You can use these buttons to output an alarm signal from the camera. For details, refer to the “Sending a Remote Alarm Signal” section. Click the button if you find any suspicious person or entity during monitoring to record the video on the camera. For details, refer to “Manually Recording Surveillance Video”.
  • Page 44 Click Close The window showing the captured still image closes. Use the Remote Alarm buttons provided on the live screen to send alarm signals from the camera's alarm output terminals. Required operation privilege: admin, operator1, operator2 To use the remote alarm buttons, you must set in advance [ALARM OUT] to “REMOTE” and [ALARM OUT TIME] to the desired duration on the ALARM SETTINGS screen (administrator configuration menu).
  • Page 45 Manual Stop The manual stop method is applied if you have selected “CC” in [ALARM OUT TIME]. Click the remote alarm button (orange) to stop the alarm output. The button returns to grey. Video currently under surveillance can be recorded by operating the emergency recording button on the live screen.
  • Page 46 When an error, warning or alarm, etc. occurs, the corresponding status is displayed in red. INFO: Appears when an error or warning occurs. Clicking the indicator label causes system information to appear in a separate window. The INFO status indicator appears in orange until either of the following conditions is met: In case of an error: The error condition is resolved.
  • Page 47 VCC-HD5400/HD5400P NETWORK SETTINGS CLOCK SETTINGS USER REGISTRATION VIDEO & AUDIO SETTINGS CAMERA SETTINGS PAN/TILT ALARM SETTINGS RECORDING SD/HDD E-MAIL SETTINGS FTP SETTINGS SECURITY SETTINGS SCHEDULE SETTINGS OPTION SETTINGS Working with Administrator Configuration Screens1/79...
  • Page 48 Click NETWORK in the configuration menu to display the NETWORK SETTINGS screen. On this screen, configure the following settings as required. Configuring basic network settings (NETWORK) Configuring DDNS setting (DDNS) Configuring HTTP settings Configuring RTSP/RTP settings Configuring access name settings (ACCESS NAME) Multicast settings (MULTICAST) Required operation privilege: admin Before attempting to configure these network settings, contact your network administrator.
  • Page 49 After completing the above steps, click the Close button to once disconnect and then reconnect to the camera to apply the changes. Using SANYO's DDNS service, you can connect to the camera from your Internet Explorer by simply entering the registered domain name, instead of the IP address of the camera.
  • Page 50 This information is required to register your domain name. Click REGISTER to access the SANYO DDNS service site and register your domain name. Follow the steps below to register your domain name. On the LOG IN screen, enter the user name and password you wrote down and click Login The Domain Name registration/change screen appears.
  • Page 51 Return to the NETWORK SETTINGS screen ([DDNS]) and, in [DOMAIN NAME], type the domain name you just registered before “.user.ddns-sanyosecurity.com”. Then, click The [DDNS SERVER NAME] field is automatically filled (“members.ddns-sanyosecurity.com”), so you do not need to type it. The [INTERVAL TIME] setting (access interval to the server) is fixed to “10MIN”. In the [LOG] field, the DDNS update history log (one entry) is shown.
  • Page 52 The RTSP port number must be 554 or otherwise a number in the range of 1 to 65535. The RTP port (video and audio) numbers must be even numbers in the range of 1026 to 65534 (except for numbers between 3874 and 5000, between 9874 and 10000, between 38087 and 38214, and between 49026 and 49152).
  • Page 53 The multicast RTP port (video and audio) numbers must be even numbers in the range of 1026 to 65534 that do not overlap with the unicast RTP port numbers (except for numbers between 4000 and 5000, 10000, 10001, 38214, and 49152.) The multicast TTL must be specified in the range of 1 to 255.
  • Page 54 Click CLOCK in the configuration menu to display the CLOCK SETTINGS screen. Before you start network operation, you need to configure the clock settings on this screen. Configuring camera title Configuring clock date/time and display style Configuring time zone and daylight saving mode Configuring automatic clock adjustment Required operation privilege: admin, operator1 Configure the camera title that will be displayed on the live screen and in e-mails, image files, and so on.
  • Page 55 In [DATE/TIME FORMAT], select the date/time display format and click M/D/Y, Y/M/D, D/M/Y In [TIME ZONE], select the region where the camera is used. In [DAYLIGHT SAVING MODE], select whether or not to use the daylight saving mode. Although an appropriate setting is automatically selected according to the [TIME ZONE] setting, you can change it manually.
  • Page 56 In [CLOCK ADJUST], select “ON (NTP)”. Configure the required settings shown below and click To automatically adjust the clock time every day, in [TIME TO SYNCHRONIZE], select the 24-hour time to which you want to adjust the clock (for example, “10:30”). REFRESH To adjust the clock to the current time, click In [NTP SERVER ADDRESS], type the IP address or domain name of the NTP server from which you...
  • Page 57 Click USER in the configuration menu to display the USER REGISTRATION screen. On this screen, you can register new login users, or change or delete existing user data. Registering a new user (ADD) Changing existing stream data (CHANGE) Deleting an existing stream (DELETE) Required operation privilege: admin, operator1 Besides the factory default users (admin, operator1, operator2, download, and guest), you can register up to 20 client users.
  • Page 58 In this case, all login users are regarded as guest users. This means that users will be presented with an authentication check dialog box if they attempt to perform any operation beyond the guest user privilege and must enter an adequate user name and password to proceed.
  • Page 59 Select the check box next to the user whose data you want to change and click CHANGE The user registration screen for the selected user appears in a separate window. Change the desired settings and click Your changes are saved and reflected in the user list. Select the check box next to the user you want to delete and click DELETE The selected user is deleted from the user list.
  • Page 60 Click VIDEO/AUDIO in the configuration menu to display the VIDEO & AUDIO SETTINGS screen. On this screen, configure the conditions of each video stream and the audio you receive from the camera. Configuring Aspect Ratio and Recording Configuring Video Configuring the audio Configuring TV output Required operation privilege: admin, operator1 Click a radio button under [ASPECT RATIO] to select the aspect ratio (width-to-height ratio)
  • Page 61 When you have added, changed, or deleted registered information, be sure to click in the stream list. Otherwise, changes you made won't be saved and reflected in the stream settings. Clicking reboots the camera. Note that the number of registerable streams and configurable settings may be affected by other stream settings.
  • Page 62 In [FRAME RATE], select the frame rate of the stream. The available options vary depending on your selection in [CODEC] and your camera model. JPEG: VCC-HD5400: 0.1ips, 0.2ips, 0.5ips, 1ips, 3ips, 5ips, 10ips, 15ips, 30ips VCC-HD5400P: 0.1ips, 0.2ips, 0.5ips, 1ips, 2.5ips, 5ips, 8ips, 12.5ips, 25ips H.264: VCC-HD5400: 5ips, 10ips, 15ips, 30ips...
  • Page 63 Select the check box next to the stream for which you want to change data and click CHANGE The stream registration screen for the selected stream appears in a separate window. Change the desired settings and click Your changes are saved and reflected in the stream list. Click in the stream list.
  • Page 64 Set [AUDIO] to “ON” in order to enable audio communication. In [MIC SENSITIVITY], specify the microphone sensitivity. Select the sensitivity of the microphone connected to the camera from 8 levels. +4, +3, +2, +1, 0, –1, –2, –3 In [FILTER(500Hz)], enable or disable the audio filter. The audio filter reduces the 500 Hz or less frequency components of the audio.
  • Page 65 In [SIGNAL FORMAT], select the video size. VCC-HD5400: 1080i, 720p, 480p VCC-HD5400P: 1080i, 720p, 576p You can select [SIGNAL FORMAT] when [TERMINAL] is set to “HDMI”. In [OSD], select either “ON” or “OFF” for the OSD display. If you select “ON”, the current pan/tilt angle, zoom magnification and preset position name, etc. are displayed on the monitor and the live screen via the network.
  • Page 66 Click CAMERA in the configuration menu to display the CAMERA SETTINGS screen. The CAMERA SETTINGS screen includes a sub menu from which you can access 16 camera settings to configure the monitoring and other conditions of the camera. Required operation privilege: admin, operator1 The CAMERA SETTINGS sub menu offers a list of camera settings.
  • Page 67 Click this button when finished configuring the camera settings you accessed by clicking each sub menu item. CANCEL Click this button before clicking to restore the previous settings. DEFAULT : Click this button to reset the settings on the camera configuration screen to the defaults (factory settings).
  • Page 68 Configuring Monitoring Conditions In [VIEW], select any from among “CAM1” through “CAM8” and then configure the monitoring conditions by clicking each menu item in the sub menu. Switching between Monitoring Conditions In this screen select any from among “CAM1” through “CAM8”. The monitoring conditions configured for the selected view setting are now applied to the camera.
  • Page 69 Enabling the electronic sensitivity boosting function causes the following: The exposure time of the camera's image sensing device will be increased automatically in dark situations. This may result in conspicuous afterimages, blurs, and white spots if the subject includes any moving object. If [DAY/NIGHT] is set to “AUTO”, the electronic sensitivity boosting function will work only for black/white video images.
  • Page 70 Select and configure the white balance adjustment mode. ATW: Auto trace white balance AWC: Auto white balance control 3200: Fixed white balance (for indoors) Fixed white balance (for outdoors) 5600: FLUORESCENT: Selects the Fixed white balance mode (for fluorescent lighting). MWB: Manual white balance The configured settings are applied only to the camera views that were specified in [VIEW].
  • Page 71 Drag the mouse over the live video image to select the area you want to mask. The masked area is indicated by blue-bordered grid cells each containing the letter “M”. You can mask more than one portion of the live image. You can click one grid cell after another to set or cancel the masked area cell by cell.
  • Page 72 In [WHITE BALANCE], select the desired fixed white balance mode and click 3200: For indoors (Fixes the color temperature to 3200K.) For outdoors (Fixes the color temperature to 5600K.) 5600: FLUORESCENT: For fluorescent lighting (Fixes the color temperature to 4200K.) Use the following procedure to manually adjust the gain values for the red and blue signals.
  • Page 73 In [BLC], select “MULTI”. In [BLC WEIGHT], select the backlight sensitivity. 0 (low sensitivity) to 15 (high sensitivity) In [BRIGHT], select the compensation level for the brightness of the backlighting and click 0 (low brightness compensation) to 15 (high brightness compensation) Center-weighted average metering compensates for the backlighting problem by measuring the photometry of the specified area intensively.
  • Page 74 Configure the metering weight values for the four surrounding metering areas (TOP, BOTTOM, LEFT, and RIGHT). Select a weight value for each of these metering areas depending on the installation environment. 0 (minimum) to 7 (maximum) The weight value for the center metering area ([CENTER]) is fixed to “7”. You cannot change this value.
  • Page 75 You can click one grid cell after another to set or cancel the masked area cell by cell. To deselect a block of grid cells in the masked area, right-click one of grid cell and drag the mouse. Click and then BACK The settings are saved and you return to the sub menu.
  • Page 76 In [SHUTTER SPEED], select the desired shutter speed and click VCC-HD5400P: 25, 50, 120, 250, 500, 1000, 2000, 4000, 10000 VCC-HD5400: 30, 60, 100, 250, 500, 1000, 2000, 4000, 10000 Each of the above shutter speed values represents the denominator “n” of the fraction 1/n. For example, selecting “500”...
  • Page 77 In [AGC], select “ON”. In [MAX GAIN], select the maximum gain level for AGC and click Selecting a higher gain level will improve the camera sensitivity in a dark condition, but increase the noise as well. NORMAL: For normal subject For slightly dark subject MIDDLE: For dark subject...
  • Page 78 Fixing camera to color or black-and-white video mode The configured settings are applied only to the camera views that were specified in [VIEW]. In AUTO mode, turning off the camera in the black-and-white mode and then turning it back on again switches it to the color mode.
  • Page 79 Select the luminance level at which switching occurs from the black-and-white mode to the color mode. Changing one of these settings also changes the other setting based on the difference. To prevent hunting in infrared (IR) lighting, set these luminance levels to widely different values. In [INFRARED COMPENSATION], configure the focus compensation mode and then click Normally, select “VISIBLE”.
  • Page 80 Fixing Camera to Black-and-White Video Mode In [DAY/NIGHT], select “B/W”. In [INFRARED COMPENSATION], configure the focus compensation mode and then click Normally, select “INFRARED”. However, if the target gets out of focus, select “VISIBLE”. For natural sunlight or normal lighting VISIBLE: INFRARED: For near-infrared lighting You can use the contour compensation function to make the whole video image clearer.
  • Page 81 Set the gamma correction level to adjust the contrast or brightness level. In [GAMMA], select the gamma correction level and click 0.45: Gamma correction level = 0.45 Gamma correction level = 1 MODE1: Increases the contrast of the whole subject. MODE2: Increases the contrast in dark areas further.
  • Page 82 In [FOCUS], select “AUTO”. In [LIMIT NEAR], select the nearest focusing distance to the object. 10cm, 30cm, 50cm, 1m, 3m, 5m When the distance to the object is less than or equal to 1m, focusing may become difficult. In [SENSITIVITY], select the focusing sensitivity. HIGH: Selects the high sensitivity mode.
  • Page 83 In [FOCUS], select “MANUAL”. In [LIMIT NEAR], select the nearest focusing distance to the object. 10cm, 30cm, 50cm, 1m, 3m, 5m When the distance to the object is less than or equal to 1m, focusing may become difficult. In [SPEED], specify the speed at which the focus is set, and then click Available settings: 1, 2, 3, and 4 (fastest) Configure the optical zoom speed, electronic zoom magnification, and other zoom settings.
  • Page 84 OFF: Does not increase vertical resolution while using the electronic zoom. Use the mirror function to electronically flip the displayed subject. If you installed the camera upside down or intend to monitor the subject in the mirror, configure the following settings according to the installation environment of the camera.
  • Page 85 The configured settings are applied in common to all the camera views. Click [PRIVACY MASK] in the sub menu. The PRIVACY MASK SETTINGS screen appears. Click to view the PTZ controller. Use the controller to adjust the orientation of the camera lens while monitoring live video displayed on the monitor.
  • Page 86 Check the boxes you want to configure. Select a mask number check box by clicking the corresponding mask number button to activate the corresponding mask pattern and display it on the live screen. You may select two or more check boxes. In [COLOR], select the color of the mask pattern(s).

  • Page 87: Preset Position Settings

    Click PAN/TILT button in the configuration menu to display the PAN/TILT screen. On this screen, you can configure the detailed settings of the preset positions or the auto mode, as well as the optional functions for panning/tilting. Live video: You can confirm the orientation of the camera lens and the zoom conditions or other functions. button: Click this button to display the PTZ controller.

  • Page 88: Auto Mode Settings

    AUTO MODE SETTINGS You can configure four automatic mode operations: sequence, automatic panning, tour and automatic return. Configure the following functions as needed When set to “ON”, the manual panning/tilting speed may vary depending on the zoom factor selected, thus the image scroll speed can be kept constant on the screen.
  • Page 89 Corrects automatically blurring images from a camera installed on a pillar, pole, wall or the like that is subject to shake. Select “ON” and specify a correction level for the sway of the camera in [LEVEL]. Correction may not work for greater or smaller shakes than a given range of magnitude. The sway correction function is temporarily disabled in the following conditions: The camera is panning or tilting.
  • Page 90 Click to view the PTZ controller. Use the controller to adjust the orientation of the camera lens and the condition of focus or zoom, while monitoring live video displayed on the monitor. Specify each item for [PRESET NUMBER.1] and click The orientation of camera lens, the conditions of focus and zoom, and other settings are saved as “PRESET NUMBER.1”.
  • Page 91 (Group 1) (Group 2) Perform the same steps to configure preset positions for “PRESET NUMBER.2” onwards. You can save up to 255 preset positions. In [GROUP NUMBER], select a group number for batch assignment, and then click The specified group number is assigned to up to 20 preset positions in the same page. You can specify up to 20 preset positions in a page.
  • Page 92 To use this function, on the PRESET POSITION SETTINGS screen, register preset positions which you want to monitor in sequence in the same groupe. In [SEQUENCE], select “1”. Configure the monitoring sequence STEP: Moves in the numerical order of preset positions. RANDOM: Moves in a random manner among the preset positions in the group.
  • Page 93 Click to view the PTZ controller. Select “1” for [AUTO PAN]. Use the controller to specify the start position while monitoring live video displayed on the monitor, and click START The start point has been specified. Specify the end point in the same manner, and click The end point has been specified.
  • Page 94 Use the controller while monitoring live video displayed on the monitor. The sequential operations such as panning, tilting and zooming are recorded one after another. Recordable operations are as follows: Panning, tilting, move to preset positions, zooming, auto focusing (AF) Recording capacity is limited for each setting.
  • Page 95 Click ALARM in the configuration menu to display the ALARM SETTINGS screen. If you want the camera to record surveillance video or transmit a warning signal by detecting an alarm condition, configure the following settings on this screen. Detecting an alarm condition via alarm input terminal Detecting an alarm condition via built-in motion sensor Outputting an alarm signal from alarm output terminal Required operation privilege: admin, operator1...
  • Page 96 Select how you want the camera to behave upon receiving alarm input (ACTION). OFF: Disables the camera action when an alarm signal is input. PRESET: Upon receiving an alarm input, the camera moves to the preset position that has the same number as the alarm number.
  • Page 97 You cannot configure the motion sensor function if the electronic sensitivity boosting (SENSE UP) or the long exposure shutter mode (LONG) is enabled. When the automatic pursuit function is set on the PAN/TILT screen, you cannot configure the motion sensor. If you configure the automatic pursuit function after enabling the motion sensor, the motion sensor will be forcibly disabled.
  • Page 98 Click to view the PTZ controller. Use the controller to adjust the orientation of the camera lens while monitoring live video displayed on the monitor. The displayed image is fixed at the WIDE end. Click the desired detection area number button. The selected button is displayed in orange.
  • Page 99 In [SENSITIVITY], select the detection sensitivity. You can adjust the detection sensitivity to prevent unwanted detection. The higher the value, the lower the sensitivity. 1 (HIGH) to 9 (LOW) In [FACE DETECTION], select “ON” to use the face detection function. The face detection function judges whether or not the subject includes any intruder by detecting his/her face.
  • Page 100 On the ALARM SETTINGS screen, in [MOTION], select “ANALYTICS”. In [DURATION], select how long you want the alarm state to be retained when the motion sensor detects motion and click DETAIL The ANALYTICS screen appears. 5SEC, 10SEC, 15SEC, 20SEC, 30SEC, 45SEC, 1MIN, 2MIN, 3MIN, 4MIN, 5MIN CC (Retains the alarm state as long as the motion alarm persists.) The terminal will not accept subsequent alarm signals until the set duration expires.
  • Page 101 You can draw up to eight detection lines. Each detection line has a serial number (1 to 8) and area designations (A and B). Setting detection areas Select the radio button next to [AREA] and drag the mouse to draw detection areas. You can draw up to four detection areas.
  • Page 102 A TO B: Detects object movement from A to B. B TO A: Detects object movement from B to A. A TO B, B TO A: Detects object movement between A and B, in both directions. (Ex. Appearance of detection (Ex.
  • Page 103 Select “ON” for [ALARM OUT1] . In [POLARITY], select the signal polarity of the alarm output terminal. NO (Normally Open): The terminal is normally open and closes when an alarm signal is output. NC (Normally Closed): The terminal is normally closed and opens when an alarm signal is output. In [ALARM OUT TIME], select how long you want the terminal to output an alarm signal.
  • Page 104 In [ALARM OUT TIME], select how long you want the terminal to output the alarm signal and click The terminal will stop outputting the alarm signal when the set alarm output time expires. 2SEC, 5SEC, 10SEC, 15SEC, 30SEC, 45SEC, 1MIN, 2MIN, 3MIN, 4MIN, 5MIN CC (Stops outputting the alarm signal when the corresponding Remote Alarm button is clicked on the live screen.) To configure the ALARM OUT 2 to output an alarm signal when a Remote Alarm button is...

  • Page 105: Network Failure

    Click RECORDING in the configuration menu to display the RECORDING screen. Configure the recording conditions on this screen if you intend to record video on a SD memory card installed in the camera or an external hard disk drives. Required operation privilege: admin, operator1 In [RECORD STREAM], select the stream you want to record for each recording mode.
  • Page 106 SETTINGS screen (ALARM OUT). In [FRAME RATE], set the frame rate of the post-alarm video stream. VCC-HD5400: 0.1ips, 0.2ips, 0.5ips, 1ips, 3ips, 5ips, 10ips, 15ips, 30ips VCC-HD5400P: 0.1ips, 0.2ips, 0.5ips, 1ips, 2.5ips, 5ips, 8ips, 12.5, 25ips Here, you can select a frame rate slower than that set for the stream.
  • Page 107 In [FRAME RATE], set the frame rate of the pre-alarm video stream. VCC-HD5400: 0.1ips, 0.2ips, 0.5ips, 1ips, 3ips, 5ips, 10ips, 15ips, 30ips VCC-HD5400P: 0.1ips, 0.2ips, 0.5ips, 1ips, 2.5ips, 5ips, 8ips, 12.5, 25ips Here, you can select a frame rate slower than that set for the stream.
  • Page 108 This button is labeled “SCHEDULE ON” if the recording schedule has been configured. Working with Administrator Configuration Screens 62/79...
  • Page 109 Click SD/HDD button in the configuration menu to display the SD/HDD screen. If you install a recording medium such as SD memory card or external hard disk drive on the camera, you can record video images and store log information in it. To do so, install a recording medium on the camera and format it through this screen.
  • Page 110 When the format process is completed, you will notice that, in [SIZE/FORMAT], the label of the [FORMAT] button has been changed to“FORMATTED”. Do not remove the recording medium while it is being formatted. In [OVERWRITE], enable or disable the overwrite recording function. ON: Enables overwrite recording, in which the camera continues recording by sequentially overwriting the oldest recorded data if the recording area becomes full.
  • Page 111 Click E-MAIL in the configuration menu to display the E-MAIL SETTINGS screen. Using the automatic e-mail transmission function, you can send an e-mail attached with an image if an alarm is detected, or after a fixed interval. Configuring basic e-mail transmission settings Configuring recipient e-mail addresses (RECIPIENT MAIL ADDRESS) Configuring authentication conditions (AUTHENTICATION) Configuring transmission conditions...
  • Page 112 In [MAIL ADDRESS], type the recipient e-mail addresses. Here, you can type up to five e-mail addresses (up to 64 alphanumeric characters for each). Select the check box for each e-mail address to which you want to send e-mails. You can send e-mails to the selected e-mail address(es). Select the [IMAGE] check box for the recipient address if you want to attach an image file to each e-mail.
  • Page 113 In [AUTHENTICATION], select the authentication method. NO USE, POP3, SMTP In [USER ID] and [PASSWORD], type the user ID and password, respectively. Type the user ID (up to 48 alphanumeric characters) and password for authentication (up to 20 alphanumeric characters). In [POP3 SERVER ADDRESS], type your POP3 server address and click If you selected “POP3”...
  • Page 114 OFF (No attachment), STREAM1, STREAM2, STREAM3, STREAM4 The pull-down menu shows a list of streams for which you selected “JPEG” in [CODEC] on the VIDEO & AUDIO SETTINGS screen. A warning message will appear if there is no JPEG stream available.
  • Page 115 Click in the configuration menu to display the FTP SETTINGS screen. If you want to record images from the camera to an FTP server via the network, configure the FTP server settings and the image transmission conditions on this screen. Configuring FTP server settings Configuring transmission conditions Required operation privilege: admin, operator1...
  • Page 116 (if [TRIGGER] is set to other than “INTERVAL”): [FILE NAME] + [yy_mm_dd_hh_mm_ss] + [alarm_factor] + [0001 (Serial No.).jpg] If no file name is specified, the system will enter “sanyo” for the [FILE NAME]. * To use a temporary file, set [TEMPORARY FILE] to “USE”.
  • Page 117 [DURATION] setting in case you selected “ALARM IN1-4”, “MOTION”, “ALARM OUT1/2” or “NETWORK FAILURE” In [DURATION], select the image transmission duration. 5SEC, 10SEC, 20SEC, 40SEC, 1MIN, 2MIN, 3MIN, 4MIN, 5MIN, 10MIN, 15MIN Common setting (INTERVAL) In [INTERVAL], select the interval between e-mail transmissions. 1SEC, 2SEC, 3SEC, 5SEC, 10SEC, 30SEC, 1MIN, 3MIN, 5MIN, 10MIN, 15MIN, 30MIN, 1HOUR, 2HOUR, 3HOUR, 4HOUR, 5HOUR, 6HOUR, 8HOUR, 12HOUR, 24HOUR If you selected “ALARM IN1-4”, “MOTION”, “ALARM OUT1/2”...
  • Page 118 Click SECURITY in the configuration menu to display the SECURITY SETTINGS screen. Configuring the security function on this screen enables you to restrict the PCs that can access the camera. Required operation privilege: admin, operator1 In [SECURITY FUNCTION], select “ON”. In [DEFAULT POLICY], select the global access policy.
  • Page 119 Click The settings are saved. Working with Administrator Configuration Screens 73/79...
  • Page 120 Click SCHEDULE in the configuration menu to display the SCHEDULE SETTINGS screen. If you intend to record video on the SD memory card installed in the camera or on the external hard disk drive connected to it, on this screen you can schedule the time periods during which recording is activated. Configuring a Recording Schedule Defining Your Holidays Required operation privilege: admin, operator1...
  • Page 121 <Example 3> Configuring the camera to start recording at 13:00 and end recording at 23:30 every day (10 hours 30 minutes every day) Select the check box next to the recording period (day) you want to apply and click The schedule map appears, showing the recording period you configured for each day of the week and enabled by selecting the check box.
  • Page 122 You can define up to 20 annual holidays. Example: Defining July 18 as an annual holiday, in addition to weekly holidays (Mondays) defined in [HOLIDAY] Click and then BACK The setting is saved and the HOLIDAY SETTINGS section disappears. Working with Administrator Configuration Screens 76/79...
  • Page 123 Click OPTION in the configuration menu to display the OPTION SETTINGS screen. On this screen, you can perform system-related operations and log checks. Click to execute or start the intended operation. Required operation privilege: admin, operator1 If the camera stops functioning for some reason or other, in [CAMERA REBOOT], click to reboot the camera system.
  • Page 124 Do not perform any operations on the screen or turn off the camera until the firmware update process is completed. While the firmware is being updated, all camera functions stop working temporarily. You cannot update the firmware while the camera is recording. In this case, an operation confirmation dialog box will open.

  • Page 125: Access Log

    Under [LOG], you can view the access and system logs. You can click OUTPUT to output the content of each log into a text file. The log information will be cleared when the camera is turned off. If you want to save the log information, record it onto the SD memory card or external hard disk drive.
  • Page 126 VCC-HD5400/HD5400P Accessing the Camera Control Panel/Tool Panel CAMERA SETTINGS Displaying LIVE video Transmitting Image Data Recording Pan/Tilt Others Q&A1/12...
  • Page 127 I cannot access the camera. The camera IP address you entered is wrong. Enter the correct IP address (URL) in the Web browser (Internet Explorer). The camera port number you entered is wrong. If you are using a port number other than 80, enter the correct port number in the Web browser (Internet Explorer).
  • Page 128 Configure the default gateway correctly. When using the dynamic DNS service, check whether the entered DNS server address and domain name registered with the dynamic DNS service are correct. Registration to the dynamic DNS service is yet to be done. (When using the dynamic DNS service) Go to the dynamic DNS service site and check that the address for your camera is correctly registered.
  • Page 129 Buttons on the control panel/tool panel do not respond. You do not have the required operation privilege. Some buttons on the control panel/tool panel are operable only when you have an adequate operation privilege. Log in as a user with an adequate operation privilege. You have not configured the required operation settings.
  • Page 130 I cannot set [SHUTTER] to “SHORT” or “LONG”. You cannot configure the electronic shutter settings if you have set [SENSE UP] in [IRIS]. Set [SENSE UP] in [IRIS] to “OFF”. I cannot turn off the AGC. You cannot set [AGC] to “OFF” when [DAY/NIGHT] is set to “AUTO”. Set [DAY/NIGHT] to “COLOR”...
  • Page 131 When another plug-in for network cameras is installed, video may not be displayed due to compatibility issues between the different versions. Install the H.264 Plug-In included in the supplied CD-ROM or the latest H.264 Plug-In you can download from SANYO CCTV System Web page.
  • Page 132 The video image is distorted and cannot be displayed correctly. The maximum bit rate for video streaming is configured with a value higher than the network bandwidth. Lower the resolution and/or image quality. The performance of the PC is low. Make sure that your PC meets the operation requirements specified in the “Operating Environment”...
  • Page 133 Move away the object from the camera. Dust, spots or fingerprints may be left on the lens. Or the lens is foggy. Wipe away the dust, etc. with a dry cloth. The live video display is entirely discolored (A white subject appears to be colored.) Adjust the white balance.
  • Page 134 The e-mail transmission function does not work. On the E-MAIL SETTING screen, incorrect user ID/password information is specified in the AUTHENTICATION section. Set the correct login ID and password. The server address is wrong. Or connection to the server is down. Check the server address settings.
  • Page 135 The camera does not record. A recording medium is not inserted or installed in the camera. Insert an SD memory card or install an external hard disk drive on the camera. The recording medium is not formatted. Go to the SD/HDD screen, and format the recording medium. Time elapsed from turning on the camera is less than 5 minutes.
  • Page 136 An error code “W12 PAN/TILT ERROR” appeared. The orientation of the camera lens was likely to be changed forcibly. An error code “W13 PT INITIALIZING” appeared and the system started automatically initializing the lens. If the orientation of the camera lens is forcibly changed, the system starts automatically the initializing operation to correct position offset.
  • Page 137 Upgrade has been terminated. Upgrade has been interrupted due to power off, network fault, or other problem during the process. Redo the upgrade by proceeding as follows. Turn on the camera again. Access the camera again. Check the firmware version on [FIRMWARE UPDATE] in OPTION SETTINGS screen.
  • Page 138 VCC-HD5400/HD5400P Copyright Notice How to use this manual. Others1/8...
  • Page 139 This instruction manual is copyrighted by SANYO Electric Co., Ltd. No materials contained in this manual may be reproduced in any format without the prior permission of the copyright holder. Microsoft, Windows, ActiveX and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
  • Page 140 * distribution. * 3. All advertising materials mentioning features or use of this * software must display the following acknowledgment: * "This product includes software developed by the OpenSSL Project * for use in the OpenSSL Toolkit. (http://www.openssl.org/)" * 4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to * endorse or promote products derived from this software without * prior written permission.
  • Page 141 * Copyright remains Eric Young's, and as such any Copyright notices in * the code are not to be removed. * If this package is used in a product, Eric Young should be given attribution * as the author of the parts of the library used. * This can be in the form of a textual message at program startup or * in documentation (online or textual) provided with the package.
  • Page 142 This manual consists of three resident windows: INDEX window This window shows a table of contents. The headline of the topic currently opened at the main window is highlighted, so the current location among the manual can be easily confirmed. TITLE window This window shows the headline of the current topic.
  • Page 143 Previous/Next Clicking on the top right of the TITLE window will display the previous page or the next page, respectively. Page end is located at the end of the page. This mark is also linked to the top of the page. Click on this mark to jump to the top of the page. Others 6/8...
  • Page 144 123... Boxed numbers indicate procedural instructions. Circled numbers or circled alphabetic letters are used in sections that describe screen component names or other information. This manual uses the following three kinds of symbols depending on the content of the provided information. Memo: Indicates supplementary or related information.
  • Page 145 The options or values that you select in a pull-down menu or using radio buttons are enclosed in double quotes “ ” (Example: “ON”, “80”). Each section describing a configuration procedure begins with a screenshot of the corresponding initial configuration screen. The purpose of this screenshot is to show you the factory default value for each setting item provided on the screen.
