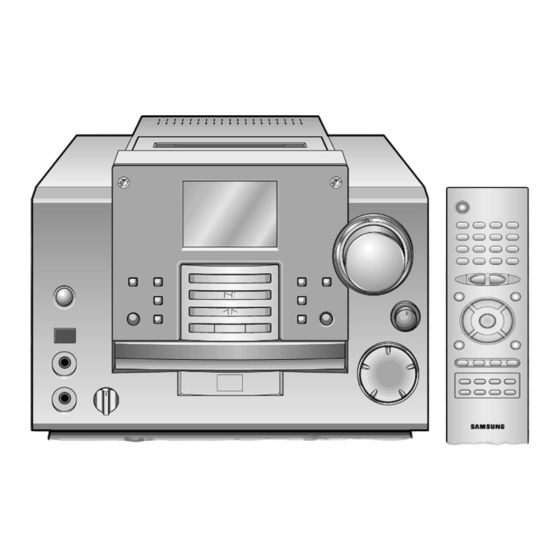

- Page 1 MICRO COMPONENT AUDIO SYSTEM VCD/MP3-CD/CD-R/RW PLAYBACK MM-VB9 Instruction Manual...
-
Page 2: Safety Warnings
Safety Warnings CLASS 1 LASER PRODUCT CLASS 1 LASER PRODUCT This Compact Disc player is classified as a KLASSE 1 LASER PRODUKT CLASS 1 LASER product. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 Use of controls adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. -
Page 3: Table Of Contents
Thank you for buying this Contents SAMSUNG mini-compact system. Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features....................................2 AFETY ARNINGS NSTALLING OMPACT YSTEM Front Panel View ......................................4... -
Page 4: Front Panel View
Front Panel View Volume Power Sound Color Display TUNER /Band REC/Pause Surround Mode /Demo On/Standby VCD/CD CD Synchro Sleep TAPE Open/Close CD Repeat Mono/ST S.Bass Level Tuning Mode Multi Jog Phones MIC Mixing 9 10 11 Function (TUNER,VCD/CD,TAPE) Disc Tray REC/Pause Skip or Search Demo... -
Page 5: Remote Control
Remote Control 1. On/Standby 17. Key Control 2. Digit Buttons/Direction Buttons 18. Key Control 3. FM Mono/Stereo / VCD Zoom 19. Return 4. +10/0 20. Time Search (Last Memory) 5. Track Previous 21. TAPE Stop 6. VCD/CD Stop 22. TAPE Play 7. -
Page 6: Rear Panel View
Rear Panel View VIDEO OUT 1. SW Aerial(option) 2. AUX-Input 3. AM Aerial Connector Terminal 4. FM Aerial Connector Terminal 5. SUBWOOFER Speaker Connector Terminal 6. Loudspeakers Connector Terminal 7. Voltage Selector(option) -
Page 7: Where To Install Your Mini-Compact System
Where to Install Your Inserting Remote Control Batteries Mini-Compact System To take full advantage of your new mini-compact system, follow Insert or replace remote control batteries when you: these installation instructions before connecting the unit. Purchase the mini-compact system Find that the remote control is no longer operating correctly Install the system on a flat, stable surface. -
Page 8: Connecting To An External Source
Connecting to an External Source Speaker Connection The auxiliary input can be used to take advantage of the The System has Main Speaker jacks and Subwoofer Speaker sound quality of your mini-compact system when listening to jacks. other sources. Main Speaker Connection: Connect the Main Speaker cords Examples: A television (red/black) to the Main Speaker jacks of... -
Page 9: Connecting The Am (Mw)/Lw Aerial
Connecting the AM (MW)/LW Connecting the SW Aerial (option) Aerial How to connect a WIRE TYPE aerial. The AM aerial (for long and medium waves) can be: Spread the SW aerial out and attach the ends to a wall, in the position Placed on a stable surface providing the best reception. -
Page 10: 7-Color Display Function
7-Color Display Function Setting the Clock The System allows you to choose your favorite color to Your system is equipped with a clock which allows you to produce your own personal atmosphere. turn your system on and off automatically. You should set the clock: When you first purchase the mini-compact system Switch the system on by pressing on/standby ( After a power failure... -
Page 11: To Replay The Cd/Mp3-Cd
MP3-CD P layback To replay the CD/MP3-CD This unit has been designed to playback the CDs: Audio CD, HOW TO PLAYBACK MP3-CD directly VCD, CD-R, CD-RW and MP3-CD. Continued use of irregular shape CDs (heart-shape, octagonal, Press the VCD/CD( ) button or Digit button after Reading. etc.) can damage the unit. -
Page 12: Selecting A Track
Searching for a Specific Music Selecting a Track Passage on a CD You can select the track you wish to listen to, either when the When listening to a compact disc, you can quickly search for a compact disc player is stopped or when a disc is playing. specific music passage on a track. -
Page 13: Function To Skip Through 10 Tracks At A Time
Function to skip through 10 Shuffle Play Function tracks at a time Press the +10/0 button briefly while playing back a You can listen to the tracks on a compact disc in a different order CD or VCD. The track 10 tracks after the current one each time, as the various tracks will be selected will then be played back. -
Page 14: Programming The Order Of Playback
Checking or Changing Programmed Programming the Order of Playback Tracks You can decide: You can check or change your selection of tracks at any time. The order of the track desired to listen The track not desired to listen Press once if you have started listening to the selection. -
Page 15: Video Cd Player Playback
Video CD Player Playback Search Functions In order to play back video CD, make sure that your unit is connected You can find a certain passage faster during playback. to your TV set. This function is possible in CD or VCD Ver 1.1 or Ver 2.0 menu off mode. This unit is designed for playback of video CD, version 1.1 and 2.0. -
Page 16: When Adjusting Play Speed (Only Vcd)
When adjusting play speed Sound Select Function (only VCD) Turn on the TV and set video mode. With this function, you can playback video CD that provide 2-channel tone(bilingual) in the original language. Similarly, with karaoke video CD, you can select between the channel for music without vocals for Slow sing-along purpose, or the channel complete with music and vocals. -
Page 17: Vcd View Function
VCD View function ZOOM Function This function can be used conveniently to search a desired track in a VCD. Press Zoom button during VCD playback. This function is possible in VCD Ver 1.1 and Ver 2.0 menu off mode. Result: The picture being reproduced will be enlarged twice as large When you want to select a track as the previous one. -
Page 18: Tuner
Searching for and Storing the Radio Selecting a Stored Station Stations You can store up to: You can listen to a stored radio station as follows: 15 FM stations (option) 15 AM stations Switch the system on by pressing on/standby ( 15 FM stations (option) 8 MW stations... -
Page 19: Listening To A Cassette
Selecting the Cassette Listening to a Cassette Playback Mode Always treat your cassettes with care; refer, if necessary, to Your mini-compact system has three cassette playback modes the section entitled “Precautions When Using Audio Cassettes” which enable you to listen to both sides of a cassette on page 25. -
Page 20: Recording A Compact Disc
Recording a Compact Disc Recording a Radio Program You can record a compact disc on a cassette in two different ways: You can record a radio program of your choice. Synchronised recording You do not need to adjust the volume, as it has no effect on Direct recording the recording. -
Page 21: Timer Function
Timer Function The timer enables you to switch the system on or off at specific times. Example: You wish to wake up to music every morning. If you no longer want the system to be switched on or off automatically, you must cancel the timer. Before setting the timer, check that the current time is correct. -
Page 22: Mute Function
Mute Function S. Bass Function You can turn the sound off temporarily on your system. S.Bass function emphasizes the bass sound to produce the Example: You wish to answer a telephone call. effect of explosion or booms. Turn the S.Bass Level knob. Press Mute. -
Page 23: Setting The System To Switch Off Automatically
Setting the System to Switch off Connecting Headphones Automatically While listening to a compact disc or a cassette, you can You can connect a set of headphones to your mini-compact system so that you can listen to music or radio programmers set the system to switch off automatically without disturbing other people in the room. -
Page 24: Safety Precautions
Cleaning Your Mini-Compact Safety Precautions System The following diagrams illustrate the precautions to be taken To obtain the best possible results from your mini-compact when using or moving your mini-compact system. system, you must clean the following elements regularly: The outer casing The compact disc player The cassette players (heads, rollers and drive capstans) Always unplug the system from the wall outlet:... -
Page 25: Precautions When Using Compact Discs
If the above guidelines do not allow you to solve the problem, take a note of: The model and serial numbers, normally printed on the rear of the system Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service. -
Page 26: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO LW(option) Usable sensitivity 60 dB SW(option) Usable sensitivity 40 dB AM (MW) Signal/noise ratio... - Page 27 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS AH68-01161B...
