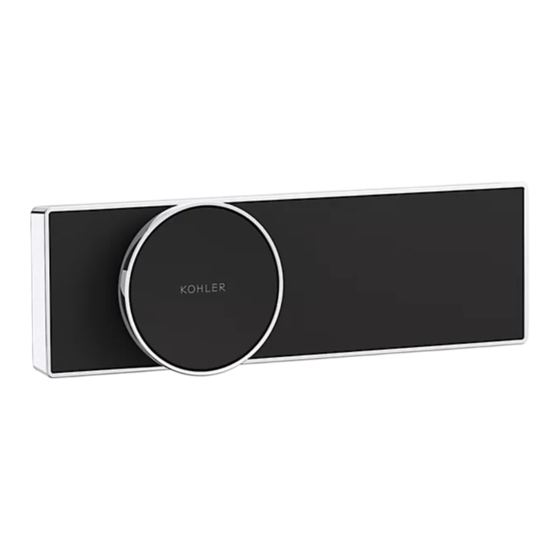

Kohler Anthem+ K-28214-ASC Homeowner's Manual

Kohler Anthem+ K-28214-ASC Homeowner's Manual

System controller
Hide thumbs

Advertisement

Quick Links

Download this manual
Homeowners Guide
System Controller
Record your model number:
1564943-K5-B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Anthem+ K-28214-ASC and is the answer not in the manual?

Questions and answers

Related Manuals for Kohler Anthem+ K-28214-ASC

Summary of Contents for Kohler Anthem+ K-28214-ASC

  • Page 1 Homeowners Guide System Controller Record your model number: 1564943-K5-B...

  • Page 2: Customer Support

    Customer Support Thank you for choosing KOHLER. Need help? Contact our Customer Care Center. North America • USA/Canada: 1-800-4KOHLER (1-800-456-4537) Mexico: 001-800-456-4537 • Service parts: kohler.com/serviceparts • Care and cleaning: kohler.com/clean • Patents: kohlercompany.com/patents India • E-mail: indiacustomercare@kohler.com • 1800-103-2244 Mainland China •...
  • Page 3 System Layout - Digital Control Connections Optional (9.8 m) Your system controller will need at least one wired digital control to operate. You can connect up to four wired digital controls. 1564943-K5-B Kohler Co.
  • Page 4 • Each zone can have a different flow and temperature setpoint. All outlets in the same zone will share the same temperature and overall flow rate. • To access the additional shower icons for valve setups with seven or more port connections, press the arrow on the bottom-right corner of the digital control. 1564943-K5-B Kohler Co.
  • Page 5 For example, if one valve outlet supplies water to two body sprays, the total flow rate of both body sprays must equal the flow rate of a single fitting supplied by a different outlet. 1564943-K5-B Kohler Co.
  • Page 6 For the [spa] icon to be displayed on the interface home screen, spa must be enabled on the system controller setup page. To enable the spa feature, refer to the ″System Controller Setup Page - Complete Setup″ section. Use of configurations other than the preprogrammed options will LIMIT preprogrammed spa and massage features. 1564943-K5-B Kohler Co.
  • Page 7 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 24.2 gal/min (91.6 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 27.5 gal/min (104.1 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 8 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 24.2 gal/min (91.6 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 27.5 gal/min (104.1 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 9 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 24.2 gal/min (91.6 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 27.5 gal/min (104.1 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 10 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 22 gal/min (83.3 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 25 gal/min (94.6 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 11 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 22 gal/min (83.3 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 25 gal/min (94.6 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 12 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 22 gal/min (83.3 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 25 gal/min (94.6 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 13 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 22 gal/min (83.3 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 25 gal/min (94.6 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 14 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 22 gal/min (83.3 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 25 gal/min (94.6 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 15 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 22 gal/min (83.3 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 25 gal/min (94.6 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 16 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 22 gal/min (83.3 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 25 gal/min (94.6 l/min) Spa Compatibility [warm up] [cool down] [relax] [focus] [restore] [breathe] [flex] [headaid] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 17 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 19.8 gal/min (74.9 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 22.5 gal/min (85.2 l/min) Spa Compatibility [warm up] [cool down] [focus] [restore] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 18 • Total, with 2.2 gal/min (8.3 l/min) per outlet = 6.6 gal/min (24.9 l/min) • Maximum total, with 2.5 gal/min (9.5 l/min) per outlet = 7.5 gal/min (28.4 l/min) Spa Compatibility [warm up] [cool down] [focus] [restore] Steam Compatibility [steam coach] [detox] [repair] 1564943-K5-B Kohler Co.
  • Page 19 The installer must determine the water outlet cycling order for the ″Single″ massage feature and plumb each water outlet accordingly. Use the diagram above to draw in the components for your custom shower. Draw lines from the valve to each component as your shower is plumbed. Massage Options Single Wave 1564943-K5-B Kohler Co.
  • Page 20 Continue to Next Screen Rotate Control Dial Rotate Control Dial NOTE: Your digital shower will function directly out of the box. Download and connect the KOHLER Konnect app to update your firmware. Download the KOHLER Konnect App Using your mobile device, download the KOHLER Konnect app from your app store. Follow the onscreen prompts on your mobile device to install and set up the KOHLER Konnect app.
  • Page 21 B. Access the home screen. Simple Start Button A. Wake (from standby). B. Turn ON the default water outlets. C. Turn OFF water outlets and steam. Touchscreen A. Wake (from standby). B. Select menu items. C. Navigate between screens. 1564943-K5-B Kohler Co.
  • Page 22 Icons Home Screen Shower Favorites Experiences Steam Settings General/ Indicators Home Error Flow Control Actions Back Confirm Continue/Skip Next Page Previous Page Cancel Become familiar with the above icons in the digital control. 1564943-K5-B Kohler Co.
  • Page 23 Shower Icon Status READY/PAUSED ERROR (Active) (Inactive) (To Be Active) (Dimmed) (Inverted) (Outlined) (Grayed Out) See the icons above for the various shower icon status states. 1564943-K5-B Kohler Co.
  • Page 24 Verify that each digital control is connected to the system controller. Verify that each digital valve power supply is plugged into an electrical outlet. Verify that the system controller power supply is plugged into an electrical outlet. 1564943-K5-B Kohler Co.
  • Page 25 Press the arrow in the bottom-right corner. For a digital version of the system controller quickstart guide, scan the QR code. To proceed with the setup, press the arrow in the bottom-right corner. 1564943-K5-B Kohler Co.
  • Page 26 NOTE: If your device cannot connect by Wi-Fi, an ethernet connection can be used. If connecting by ethernet, proceed to the "System Controller Setup Page - Enter Unique PIN" section. Go to your device's Wi-Fi settings. Choose the network name starting with “hub”. Once connected, press the arrow to proceed. 1564943-K5-B Kohler Co.
  • Page 27 Scan the QR code to be brought to the system controller setup page. Verify that the system controller LED is flashing white. This indicates that the system controller is ready to pair. 1564943-K5-B Kohler Co.
  • Page 28 NOTE: If you connected to the system controller setup page using the QR code, proceed to the "System Controller Setup Page - Enter Unique PIN" section. Go to http://kohler-myshower.local to access the system controller setup page. NOTE: If the DNS name does not work, please enter the IP address for the system controller.
  • Page 29 System Controller Setup Page - Enter Unique PIN Click on "Generate New PIN". The unique PIN is found on the digital control. Enter the unique PIN in the input field and click "Submit". 1564943-K5-B Kohler Co.
  • Page 30 Default Flow Percentage - The percentage of maximum water flow allowed when starting default outlets. Outlet Configuration - Shower Icons - Select which icons correspond with which outlets. Outlet Configuration - Default Outlets - Select which outlets turn on by default. 1564943-K5-B Kohler Co.
  • Page 31 Pick Your Deluge Outlet - Select which outlet will turn ON when the deluge button is pressed during a steam session. Power Clean - Allows the user to start the power clean feature. Shows the time remaining until the next power clean must be performed. 1564943-K5-B Kohler Co.
  • Page 32 • Experiences - Shower • Experiences - Steam • Using the KOHLER Konnect app. Pausing Your Shower Pause allows you to stop your shower for up to 2 minutes to carry out tasks such as lathering up and then restart the shower using the same temperature, outlets, and flow.
  • Page 33 • Your flow will stop and the paused outlets will be shown as 50% brightness. • To restart the shower using the same outlet, press the Simple Start Button. To restart the shower using a different outlet, press the individual outlet. 1564943-K5-B Kohler Co.
  • Page 34 The shower cannot deliver water colder than your cold water supply. NOTE: If you have a ganged valve or dual valve setup, you will have independent control over zone 1 and zone 2. 1564943-K5-B Kohler Co.
  • Page 35 Rotate the control dial clockwise to increase the value of the individual zone or rotate the control dial counterclockwise to decrease the value of the individual zone. Press the back button to return to the screen with both zones. NOTE: When the two zones are different values, the difference between the two zones is maintained. 1564943-K5-B Kohler Co.
  • Page 36 Navigate to the top of the list by rotating the control dial and then press the check mark to select [Add Favorite]. You can then choose to add a [New Favorite] or [Replace Favorite] to overwrite an existing favorite. NOTE: You can use the KOHLER Konnect app to rename, edit, delete, or create new favorites. 1564943-K5-B...
  • Page 37 Evening Shower To start a favorite, press the home icon and then select the user favorites icon. Rotate the control dial to select your chosen favorite and then either press the favorite name or confirm icon to activate. 1564943-K5-B Kohler Co.
  • Page 38 Rotate the control dial clockwise to increase the flow for the selected zone or rotate the control dial counterclockwise to decrease the flow for the selected zone. Press the back button to navigate to both zones. Adjust the other zone by pressing the zone on the touchscreen and then rotating the control dial. 1564943-K5-B Kohler Co.
  • Page 39 Rotate the control dial to adjust the screen brightness up or down. When the desired screen brightness is reached, press the confirm icon to save or press the back icon to revert to the previous setting. 1564943-K5-B Kohler Co.
  • Page 40 [Connect to App] and [Remove from App] Removing from the app or adding to the app allows you to connect or disconnect your product from the KOHLER Konnect app service. [Wi-Fi Mode] [Wi-Fi Mode] allows the user to change Wi-Fi networks. There are up to three network settings to choose from.
  • Page 41 Rotate the control dial to select your chosen experience and then either press the experience name or the confirm icon to activate. The name of the experience will be shown along with the words "Experience is running". Press the stop icon to stop the experience. 1564943-K5-B Kohler Co.
  • Page 42 Once the desired time and temperature are set, press the play icon to start the experience. The name of the experience will be shown along with the experience description. Press the stop icon to stop the experience. 1564943-K5-B Kohler Co.
  • Page 43 NOTE: The steam function has an additional deluge function. During the deluge function, the selected water outlet will run for 10 seconds and then shut off. Press the deluge icon to start the deluge function. Press the deluge icon again to stop the deluge function before the 10 seconds have transpired. 1564943-K5-B Kohler Co.
  • Page 44 The power clean feature will begin 30 seconds after pressing the confirm icon. The power clean will run for 60 minutes. Press the cancel button before 30 seconds elapse to cancel the power clean. Press the confirm icon to return to the home screen after the power clean has been completed. 1564943-K5-B Kohler Co.

  • Page 45: Troubleshooting

    Find information about the connection status of systems and devices. Error Logs Find details of errors or functionality problems with the Anthem System. System File Reports Export Anthem System information including connectivity and error logs to be used for troubleshooting. 1564943-K5-B Kohler Co.
  • Page 46 The controller includes several open source packages under different open source licenses as listed below. Source codes for the GPL and LGPL packages are available directly from Kohler Company. Contact Kohler Co. at 1-800-4KOHLER for more information or to obtain a copy.
  • Page 47 Non-Free logrotate 3.15.0 GPLv2 lrzsz 0.12.20 GPLv2 lvm2 2.2.03.02 GPLv2 module-init-tools 3.16 GPLv2 ncurses nss-mdns 0.14.1 LGPLv2.1 openssh 8.8p1 openssl 1.0.2u OpenSSL pcre 8.44 pcre2 10.3 popt 1.18 pycparser 2.19 BSD3 pycrypto 2.6.1 Public Domain python-cffi 1.13.2 1564943-K5-B Kohler Co.
  • Page 48 0.51.0 GPLv2 aniso8601 9.0.1 BSD 3 bidict 0.22.0 Mozilla Public License 2.0 cachelib 0.8.0 certifi 2022.5.18.1 Mozilla Public License 2.0 cffi 1.13.2 chardet 3.0.4 GPLv2 charset-normalizer 2.0.12 click 8.1.3 commonmark 0.9.1 BSD3 constantly 15.1.0 Deprecated 1.2.13 1564943-K5-B Kohler Co.
  • Page 49 License (zlib) pycparser 2.19 BSD3 pycrypto 2.6.1 Public Domain Pygments 2.12.0 BSD2 PyJWT 2.6.0 pyparsing 3.0.9 pyserial python-dateutil 2.8.2 Apache Software License, BSD License python-engineio 4.3.2 python-socketio 5.6.0 pytz 2022.1 requests 2.28.0 Apache-2.0 rich 12.4.4 sdnotify 0.3.2 1564943-K5-B Kohler Co.
  • Page 50 This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s): (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-3(B)/NMB-3(B) 1564943-K5-B Kohler Co.
  • Page 51 1564943-K5-B Kohler Co.
  • Page 52 ©2024 Kohler Co. 1564943-K5-B 1564943-K5...
