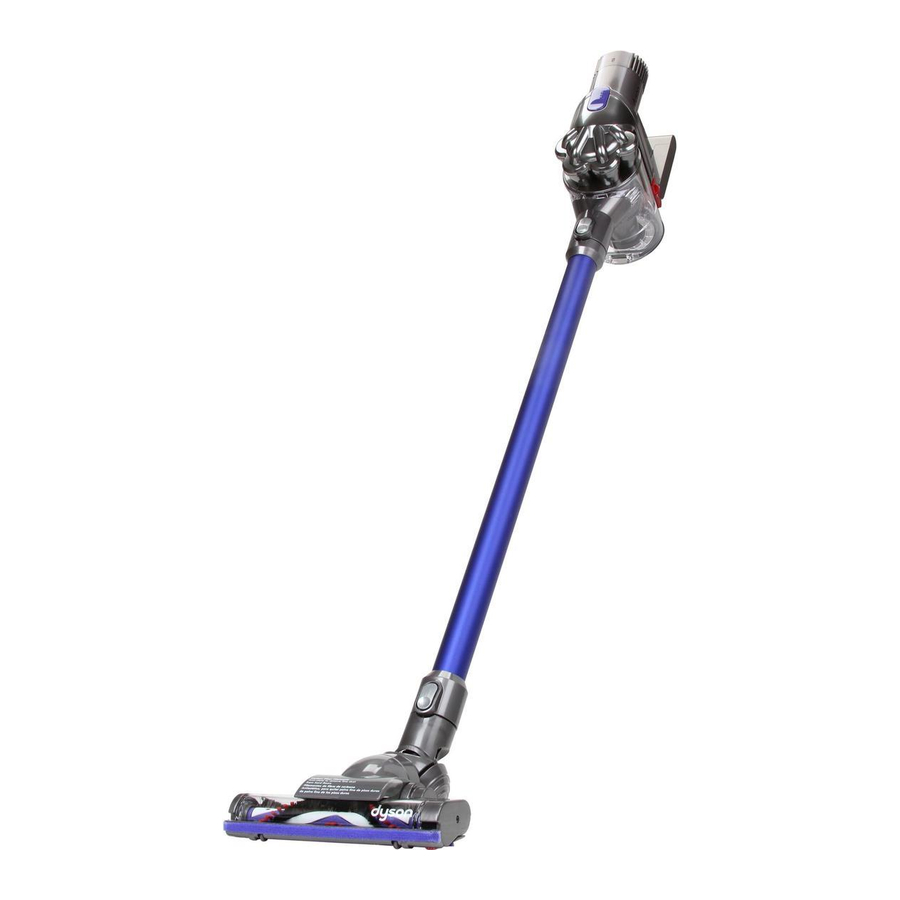

Dyson DC44 Manual

ASSEMBLY

CHARGING

POWER

OPERATION

• Ensure the appliance remains upright in use. Dirt and debris may be released if it is turned upside down.
• Do not operate while checking for blockages.
• For domestic indoor and car use only. Do not use it whilst the car is in motion or while driving.
• Take care if coming into contact with the carbon fibre brushes, as they may cause minor skin irritation. Wash your hands after handling the brushes.
• To watch a short online video visit:
  UK – www.dyson.co.uk/dc44gettingstarted
  ROI – www.dyson.ie/dc44gettingstarted

DOCKING STATION INSTALLATION

Use appropriate mounting hardware for your wall type and ensure that the docking station is mounted securely. Ensure no pipe work (gas, water, air) or electrical cables, wires or ductwork are located directly behind the mounting area. The docking station must be mounted in accordance with regulations and applicable codes/standards (state and local laws may apply). Dyson recommends the use of protective clothing, eyeware and materials as necessary.

CARPETS OR HARD FLOORS

• Before vacuuming your flooring, rugs and carpets, check the manufacturer's recommended cleaning instructions.
• The brush bar on the appliance can damage certain carpet types and floors. Some carpets will fuzz if a rotating brush bar is used when vacuuming. If this happens, we recommend vacuuming without the motorised floor tool and consulting with your flooring manufacturer.
• Before vacuuming highly polished floors, such as wood or lino, first check that the underside of the floor tool and its brushes are free from foreign objects that could cause marking.

LOOKING AFTER YOUR DYSON APPLIANCE

• Do not carry out any maintenance or repair work other than that shown in this Dyson Operating Manual, or advised by the Dyson Helpline.
• Only use parts recommended by Dyson. If you do not this could invalidate your guarantee.
• Store the appliance indoors. Do not use or store it below 3°C (37°F). Ensure the appliance is at room temperature before operating.
• Clean the appliance only with a dry cloth. Do not use any lubricants, cleaning agents, polishes or air fresheners on any part of the appliance.

VACUUMING

• Do not use without the clear bin and filter in place.
• Fine dirt such as plaster dust or flour should only be vacuumed in very small amounts.
• Do not use the appliance to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the appliance.
• When vacuuming, certain carpets may generate small static charges in the clear bin or nozzle. These are harmless and are not associated with the mains electricity supply. To minimise any effect from this, do not put your hand or insert any object into the clear bin unless you have first emptied it and cleaned it with a damp cloth (see 'Cleaning the clear bin').
• Use extra care when cleaning on stairs.
• Do not rest the appliance on chairs, tables, etc.
• Do not press down on the nozzle with excessive force when using the appliance as this may cause damage.
• Do not leave the cleaner head in one place on delicate floors.
• On waxed floors the movement of the cleaner head may create an uneven lustre. If this happens, wipe with a damp cloth, polish the area with wax, and wait for it to dry.

DIAGNOSTICS – APPLIANCE

Less than one minute of charge remaining/fully discharged.

Too cold/too hot - do not use.

EMPTYING THE CLEAR BIN

• Empty as soon as the dirt reaches the level of the MAX mark – do not overfill.
• Ensure the appliance is disconnected from the charger before emptying the clear bin.
• To release the dirt, push the red button at the side of the clear bin as shown.
• To minimise dust/allergen contact when emptying, encase the clear bin tightly in a plastic bag and empty.
• Seal the bag tightly, dispose as normal.
• To make emptying the clear bin easier, it is advisable to remove the wand and floor tool.
• For a free fact sheet visit: www.dyson.co.uk/technology/allergy
• The British Allergy Foundation is a UK national charity with the aim of improving awareness, prevention and treatment of allergies. The British Allergy Foundation Seal of Approval is a UK registered trademark.

CLEANING THE CLEAR BIN

• Ensure the appliance is disconnected from the charger before removing the clear bin.
• Be careful not to pull the 'ON' trigger.
• Remove the wand and floor tool.
• To remove the clear bin, push the red button at the side of the clear bin as you would when emptying the clear bin. This will expose the red release button on the underside of the handle. Press this to release the clear bin.
• Remove the clear bin carefully.
• Clean the clear bin with a damp cloth only.
• Ensure the clear bin is completely dry before replacing.
• Do not use detergents, polishes or air fresheners to clean the clear bin.
• Do not put the clear bin in a dishwasher.
• Clean the cyclone shroud with a dry cloth or dry brush to remove lint and dust.
• To replace the clear bin, fit the tab on the rim of the cyclone shroud into the aperture on the inside of the top of the clear bin. Push the clean bin up and in. It will click into place.
• Close the base of the clear bin.

WASHING YOUR FILTER

• Ensure the appliance is disconnected from the charger before removing the filter.
• Your appliance has one washable filter, located as shown.
• Press the 'Filter' button so you can remove the cyclone and clear bin unit.
• Check and wash the filter regularly according to instructions to maintain performance.
• The filter may require more frequent washing if vacuuming fine dust or if used mainly in 'HIGH CONSTANT SUCTION' mode.
• Wash the filter with cold water only. Do not use detergents.
• Do not put the filter in a dishwasher, washing machine, tumble dryer, oven, microwave or near a naked flame.
•
  After washing please leave at least 12 hours to dry completely before refitting.
• Place the dry filter into the recess of the handle.
• Fit the base of the handle into the aperture on the base of the cyclone and clear bin unit. Push both halves together until the 'Filter' button engages and locks into place.
• To watch a short online video visit:
  UK – www.dyson.co.uk/dc44filterwash
  ROI – www.dyson.ie/dc44filterwash

LOOKING FOR BLOCKAGES

• Ensure the appliance is disconnected from the charger before looking for blockages.
• Do not operate while checking for blockages. Failure to do so could result in personal injury.
• Beware of sharp objects when checking for blockages.
• Refit all parts securely before using.
• Clearing blockages is not covered by your guarantee.
• If you cannot clear an obstruction you may need to remove the brush bar. Use a coin to unlock the fastener marked with a padlock. Remove the obstruction. Replace the brush bar and secure it by locking the fastener. Ensure it is fixed firmly before operating the appliance.
• Take care if coming into contact with the carbon fibre brushes, as they may cause minor skin irritation. Wash your hands after handling the brushes.

Clearing brush bar obstructions

CLEARING BLOCKAGES – THERMAL CUT-OUT

• This appliance is fitted with an automatically resetting thermal cut-out.
• Large items may block the tools or nozzle. If any part becomes blocked the appliance may overheat and automatically cut-out.
• Leave to cool down for 1-2 hours before checking the filter or for blockages.
• Ensure the appliance is disconnected from the charger before looking for blockages. Failure to do so could result in personal injury.
• Clear any blockage before restarting.
• Refit all parts of the appliance securely before using.
• Clearing blockages is not covered by your guarantee.

CHARGING AND STORING

• This appliance will switch 'OFF' if the battery temperature is below 3°C (37.4°F). This is designed to protect the motor and battery. Do not charge the appliance and then move it to an area with a temperature below 3°C (37.4°F) for storage purposes.
• To help prolong battery life, avoid recharging immediately after a full discharge. Allow to cool for a few minutes.
• Avoid using the appliance with the battery flush to a surface. This will help it run cooler and prolong battery run time and life.
• If mounting the docking station on a wall, follow the instructions supplied with this appliance. Ensure the docking station is fitted correctly and the right way up, so the motor of the appliance is at the top when in place. Take all necessary safety precautions. Use appropriate fixings, tools and safety equipment.

DIAGNOSTICS – CHARGER

Charging.

Fully charged.

Not charging - check battery.

Not charging - too cold/too hot.

BATTERY SAFETY INSTRUCTIONS

• Use only Dyson batteries and Dyson charging unit.
• The battery is a sealed unit and under normal circumstances poses no safety concerns. In the unlikely event that liquid leaks from the battery do not touch the liquid and observe the following precautions:
• Skin contact – can cause irritation. Wash with soap and water.
• Inhalation – can cause respiratory irritation. Expose to fresh air and seek medical advice.
• Eye contact – can cause irritation. Immediately flush eyes thoroughly with water for at least 15 minutes. Seek medical attention.
• Disposal – wear gloves to handle the battery and dispose of immediately, following local ordinances or regulations.

The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, short contacts, heat above 60°C (140°F), or incinerate. Replace battery with a Dyson battery only: use of any other battery may present a risk of fire or explosion. Dispose of used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire.

DYSON CUSTOMER CARE

PLEASE REGISTER AS A DYSON APPLIANCE OWNER
To help us ensure you receive prompt and efficient service, please register as a Dyson appliance owner. There are three ways to do this:

• Online at www.dyson.co.uk/register (UK) or www.dyson.ie/support (ROI).
• Telephone the Dyson Helpline.
• Complete the enclosed form and post it to us.

This will confirm ownership of your Dyson appliance in the event of an insurance loss, and enable us to contact you if necessary.

If you have any questions about your Dyson appliance, call the Dyson Helpline with your serial number and details of where/when you bought the appliance.

Most questions can be solved over the phone by one of our trained Dyson Helpline staff.

Alternatively, visit www.dyson.co.uk/support (UK) or www.dyson.ie/support (ROI) for online help, general tips and useful information about Dyson.

ABOUT YOUR PRIVACY

• Your information will be held by Dyson Limited and its agents for promotional, marketing and servicing purposes.
• If your personal details change, if you change your mind about any of your marketing preferences or if you have any queries about how we use your information, please contact Dyson Limited.
• For more information on how we protect your privacy, please see our privacy policy on the Dyson website.

WASH FILTER Wash filter with cold water at least every month.
