Huawei SNE-LX1 - Cell Phone Manual

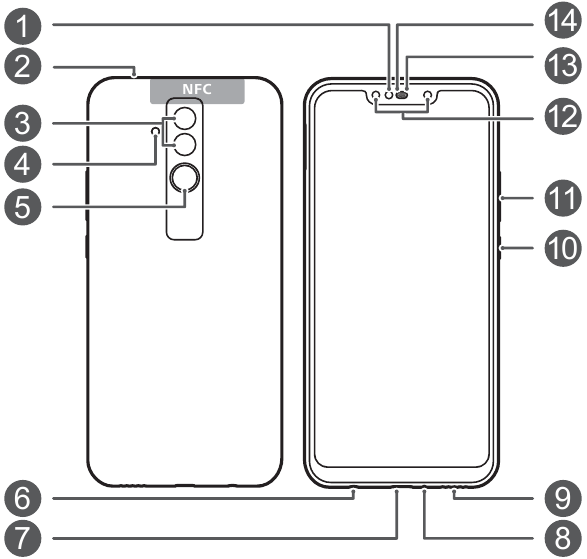

Your Device at a Glance

Before you start, let's take a look at your new device.

• To power on your device, press and hold the power button until the screen turns on.
• To power off your device, press and hold the power button, and then touch .
• To restart your device, press and hold the power button, and then touch .
• Press and hold the power button for 10 or more seconds to forcibly restart your device.

1. Light sensor
2. Secondary microphone
3. Rear camera
4. Flash
5. Fingerprint scanner
6. Headset jack
7. USB-C port
8. Primary microphone
9. Speaker
10. Power button
11. Volume button
12. Front camera
13. Status indicator
14. Earpiece

Please keep the NFC area close to other devices or objects while using the NFC function.

Getting Started

• Do not insert or remove the SIM card when your device is powered on.
• Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device.

• Be careful not to scratch your device or hurt yourself when using the eject pin.
• Store the eject pin out of the reach of children to prevent accidental swallowing or injury.

• Do not use cut or modified SIM or microSD cards with your device as these may not be recognised and could damage the card tray (slot).
• If your SIM card does not match your device, please contact your carrier.

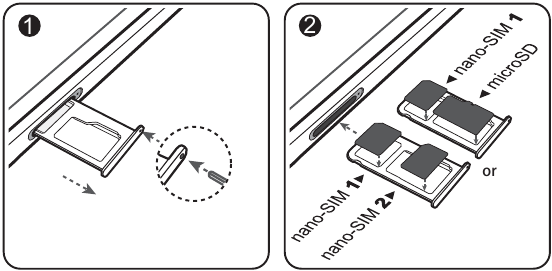

Follow the instructions in the following figures to set up your device. Please use the eject pin included.

Dual-SIM:

Dual Card Dual Standby Single Pass

(dual-SIM devices only)
Your device supports only dual card dual standby single pass, which means you cannot use both SIM cards for calls or data services simultaneously.

• When you are on a call using SIM card 1, SIM card 2 cannot be used to make or answer calls. If someone calls SIM card 2, the caller will hear a voice message similar to "The subscriber you dialled is out of the service area" or "The subscriber you dialled cannot be connected for the moment, please try again later." The actual message will vary by service provider.
• When you are using SIM card 1's data service, SIM card 2's data service will be disabled.

Your device's single pass feature helps reduce power consumption and increase your device's standby time. It is not related to your service provider's network conditions. You can go to Settings > Wireless & networks > Dual SIM settings, and enable Enable call forwarding between SIMs to avoid the conflicts mentioned above.

For More Information

If you encounter any problems whilst using your device, you can get help from the following resources:

• Go to Tips for function details and usage tips.
• Visit http://consumer.huawei.com/en to view device information, frequently asked questions and other information.
• Visit http://consumer.huawei.com/en/support for the most up-to-date contact information for your country or region.
• You can find service hotlines, retailer addresses, service policies and more information for your local region in HiCare.

Go to Settings and touch System > About phone > Legal to view legal information for your product.
Go to Settings and touch System > About phone > Legal > Safety information to view safety information for your product.
Go to Settings and touch System > About phone > Authentication info to view regulatory information for your product.
Go to Settings and touch System > Certification logos to view more information on certification logos for your product.
All pictures and illustrations in this guide, including but not limited to the device colour, size, and display content, are for your reference only. The actual device may vary. Nothing in this guide constitutes a warranty of any kind, express or implied.

Safety Information

Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.

Operation and Safety

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Using an unapproved or incompatible power adapter, charger or battery may damage your device, shorten its lifespan or cause a fire, explosion or other hazards. l Ideal operating temperatures are 0°C to 35°C. Ideal storage temperatures are -20°C to +45°C.
• Pacemaker manufacturers recommend maintaining a minimum distance of 15 cm between a pacemaker and a wireless device to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.
• Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves or radiators.
• Adhere to local laws and regulations while using the device. To reduce the risk of accidents, do not use your device while driving.
• While flying in an aircraft or immediately before boarding, ensure that you use your device according to the instructions provided. Using a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operations or be illegal under law.
• To prevent damage to your device's parts or internal circuits, do not use it in dusty, smoky, damp or dirty environments or near magnetic fields.
• When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.
• Unplug the charger from the electric socket and from the device when not in use.
• Do not use, store or transport the device where flammables or explosives are stored (e.g. in a petrol station, oil depot or chemical plant). Using your device in these environments increases the risk of explosion or fire.
• Dispose of this device, the battery and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion or other hazards.
• Please consult your doctor and the device manufacturer to determine if operation of your device may interfere with the operation of your medical device.
• Adhere to any rules or regulations set forth by hospitals and health care facilities.
• If you must make or answer a call, stop your vehicle at a safe location first.
• Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle.

Potentially Explosive Atmosphere

Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power on your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity.
