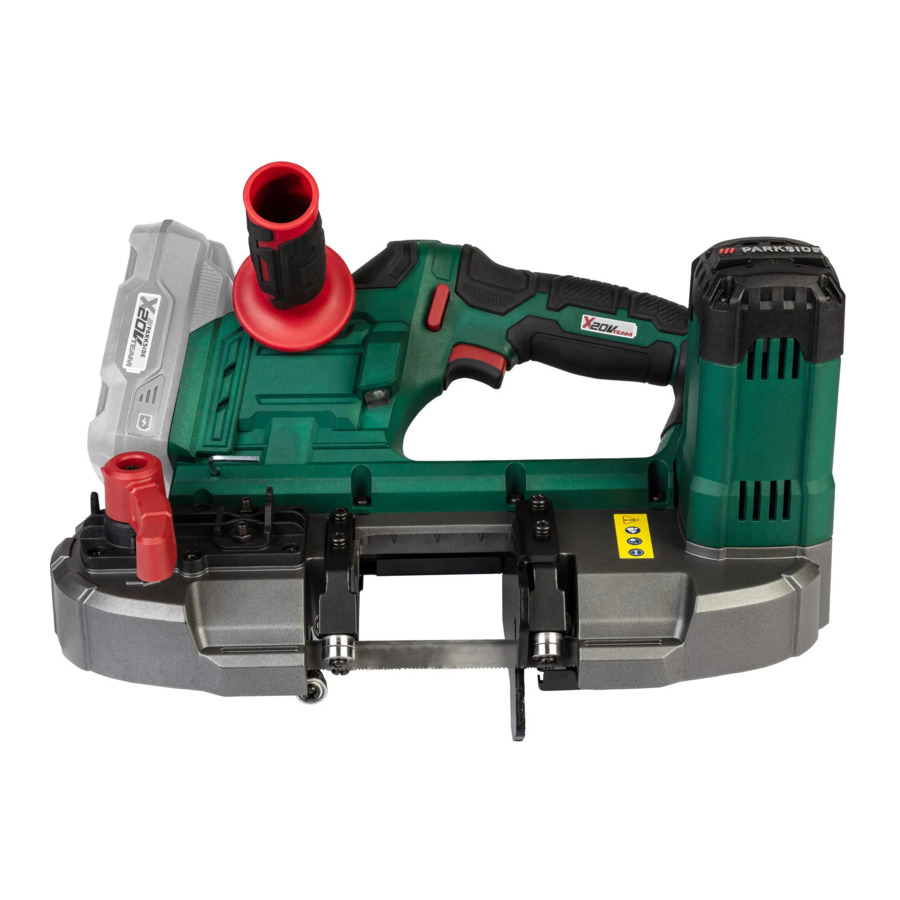

Parkside PMBA 20-Li B2 - Bandsaw Manual

Introduction

Intended use

The appliance is primarily intended for sawing metal pipes or profiles.
Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents.
The appliance should not be used for industrial purposes.

Features

1. Speed adjustment wheel
2. Safety lock-out
3. ON/OFF switch
4. Handle (insulated grip)
5. Workpiece stop
6. Saw blade
7. Guide rollers (saw blade)
8. Saw blade clamping lever
9. Additional handle
10. Battery charge level button
11. Battery display LED
12. Battery pack
13. Release button for the battery pack
14. Cylinder head screws with hex socket
15. Protective cap
16. Hex key
17. Rubber wheels
18. High-speed charger*
19. Red control LED
20. Green control LED
21. LED work light

* BATTERY AND CHARGER ARE NOT SUPPLIED

Package contents

1 cordless metal band saw
1 hex key (3 mm)
1 additional handle
1 set of operating instructions

Technical data

Cordless band saw PMBA 20-Li B2
Rated voltage	20 V ⎓ (DC)
Max. cutting depth	63.5 mm
Rated idle speed	n0 370–670 rpm
Saw band speed	1.5–2.7 m/s
Battery PAP 20 B3*
Type	LITHIUM ION
Rated voltage	20 V ⎓ (DC)
Capacity	4000 mAh/80 Wh
Cells	10
High-speed battery charger PLG 20 C3*
INPUT
Rated voltage	230–240 V ~ 50 Hz (AC)
Rated power consumption	120 W
Fuse (internal)	3.15 A
OUTPUT
Rated voltage	21.5 V ⎓ (DC)
Rated current	4.5 A
Charging time	approx. 60 minutes
Protection class	II/ (double insulation)

Noise emission value
Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically:

Wear ear muffs!

Wear a dust mask!

Wear protective goggles!

Read the operating instructions before use!

Total vibration value
(vector total of three directions) determined in accordance with EN 60745:

NOTE

• The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
• The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

• Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
• It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (wherein all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

• Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

Work area safety

1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

1. Power tool plugs must match the outlet. Never modify the plug in any way.
   Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5. When working outdoors with an electrical power tool always use extension cords that are also suitable for use outdoors. Use of a cord suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a power tool may result in serious personal injury.
2. Use personal protective equipment. Always wear safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
   Use of dust collection can reduce dust-related hazards.
8. Do not allow yourself to get lulled into a false sense of security and do not ignore the safety regulations for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children, and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.
   Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Use and handling of the cordless electrical power tool

1. Only charge rechargeable batteries using the chargers that are recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is a risk of fire if other types of rechargeable battery units are used.
2. Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
3. When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
4. Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
5. Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.
6. Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130°C (265°F) can cause an explosion.
7. Follow all instructions regarding charging and never charge the battery or the cordless tool outside the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.

RISK OF EXPLOSION!
Never charge non-rechargeable batteries.
Protect the rechargeable battery from heat (for example, from continuous exposure to sunlight), fire, water and moisture.

There is a risk of explosion.

Service

1. Have your power tool serviced by a qualified technician using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
2. Never try to repair damaged batteries. Batteries should only be maintained by the manufacturer or an approved customer service centre.

Additional safety instructions for band saws

• Hold the appliance by the insulated gripping surfaces when performing work where the cutting tool may come into contact with hidden cables or its connecting cable. If the cutting tool comes into contact with a live wire, this may make exposed metal parts of the power tool live and could give the operator an electric shock.
• Keep your hands out of the sawing area and away from the saw blade.
• Always make sure that the portable band saw is clean before use.
• Always stop working immediately if you notice anything unusual.
• Before using the tool, always ensure that all components are properly and safely assembled.
• Always be careful when attaching or removing the band saw blade.
• Always keep your hands away from the cutting path of the band saw blade.
• Always wait until the motor has reached full speed before sawing.
• Keep the handles dry, clean and free from oil and grease. Hold the tool firmly while working.
• Always be vigilant, especially during repetitive, monotonous operations. Always make sure that your hands are in the correct position in relation to the saw blade.
• Never remove the workpiece stop.
• Keep away from end pieces that fall down after sawing. They can be hot, sharp and/or heavy. This could result in serious injury.
• Ventilation openings often cover moving parts and should be kept free. Loose clothing, jewellery or long hair can get caught in the moving parts.

• The power tool creates an electromagnetic field during operation. Under certain circumstances, this field can impair active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend that individuals with medical implants consult their physician and the manufacturer of the medical implant before operating the power tool.

Original accessories/attachments

Use only the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.

Safety guidelines for battery chargers

• This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
• To avoid potential risks, a damaged mains cable should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.

The charger is suitable for indoor use only.

• To avoid potential risks, a damaged mains cable should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.

ATTENTION!

• This charger can only charge the following batteries: PAP 20 A1/PAP 20 A2/PAP 20 A3/PAP 20 B1/PAP 20 B3/PAPS 204 A1/ PAPS 208 A1.
• A current list of battery compatibility can be found at www.Lidl.de/Akku.

Before use

Charging the battery pack

• Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.

NOTE
Never charge the battery pack at an ambient temperature of below 10°C or above 40°C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0°C and 50°C.

• Connect the battery pack to the high-speed charger .

• Plug the mains plug into the mains power socket. The green charge control LED lights up briefly; then the red control LED lights up.
• The green control LED indicates that the charging process is complete and the battery pack is ready for use.
  ATTENTION!
  • If the red control LED flashes, this means that the battery pack has overheated and cannot be charged.
  • If the red and green control LEDs both flash, this means that the battery pack is defective.
• Push the battery pack back into the appliance.
• Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.

Inserting/removing the battery pack

Attaching the battery pack:

• Push the battery pack into the handle until it clicks into place.

Removing the battery pack:

• Press the release button and remove the battery pack .

Checking the battery charge level

• Press the battery charge level button to check the status of the battery (see also main diagram or fig. D).
  The status/remaining charge will be shown on the battery display LED as follows:
• RED/ORANGE/GREEN = maximum charge
  RED/ORANGE = medium charge
  RED = low charge – charge the battery

Fitting the additional handle

• Screw the additional handle onto the left or right of the appliance depending on how you work.


Changing the saw blade

RISK OF INJURY!

• Wear protective gloves to avoid injury.

NOTE
You can order replacement saw blades via our Service hotline.

• Release the saw blade clamping lever by turning it clockwise .

• Undo the two cylinder head screws using the hex key .

• Flip up the protective cap .
• Carefully remove the saw blade . Start at the guide rollers (see fig. C).
• Remove any sawdust with a brush or compressed air.
• Slide the saw blade into the guide rollers with the saw teeth pointing upwards. Make sure that the guide rollers firmly grip the saw blade .
  NOTE
  Make sure that the direction arrow on the saw blade (if any) is the same as the one on the rubber wheels .
• Place the saw blade around the two rubber wheels.
• Retighten the saw blade clamping lever by turning it anticlockwise again.
• Replace the protective cap .

  RISK OF INJURY!
  • Do not operate the appliance without the protective cap fitted!
• Perform a test run by briefly switching the appliance on and off a few times to determine whether the saw blade is correctly seated.

  RISK OF INJURY!
  • Keep your body away from the sawing area during the test run!

Getting started

Switching the appliance on/off

Switching on:

• Press the safety lock-out and keep it pressed and then press the ON/OFF switch .
• After starting, the safety lock-out can be released again.
• The LED work light lights up when the ON/ OFF switch is pressed lightly or fully. This provides illumination of the work area in poor lighting conditions.

Switching off:

• Release the ON/OFF switch .

Setting the rotational speed

• Adjust the speed adjustment wheel to a position between 1 and 6.

Working procedures

• Secure the workpiece against slipping, e.g. with a vice.
• Use the weight of the saw when sawing. Do not exert any additional pressure.
• Wait until the saw has reached its full speed before carefully bringing it into contact with the workpiece.
• If the saw blade blocks, switch off the appliance immediately.
• Do not twist the saw blade while making the cut.

RISK OF INJURY!

• Do not remove the workpiece until the saw has come to a standstill.

Maintenance and cleaning

RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.

• Store the appliance and the saw blades in a dry and dust-free location.
• The appliance must be kept clean and free of oil or grease.
• Use a dry cloth to clean the housing.
• Never obstruct the ventilation openings.
• Use a brush to remove any sawdust that has stuck to the appliance.

NOTE

• Replacement parts not listed (such as switches or saw blades) can be ordered via our Service Hotline.

Ordering a replacement battery and charger

You can easily order a replacement battery or charger on the Internet at www.kompernass.com.

• Scan the QR code with your smartphone/tablet.
  You can use this QR code to go directly to our website to view and order the available replacement parts.

NOTE

• If you have problems with your online order, you can contact our service centre by phone or email.
• Always quote the article number (IAN) 436793_2304 in your order.
• Please note that online ordering of replacement parts is not possible for all countries.

Service

Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk

Service Cyprus
Tel.: 8009 4241
E-Mail: kompernass@lidl.com.cy
IAN 436793_2304
www.kompernass.com
