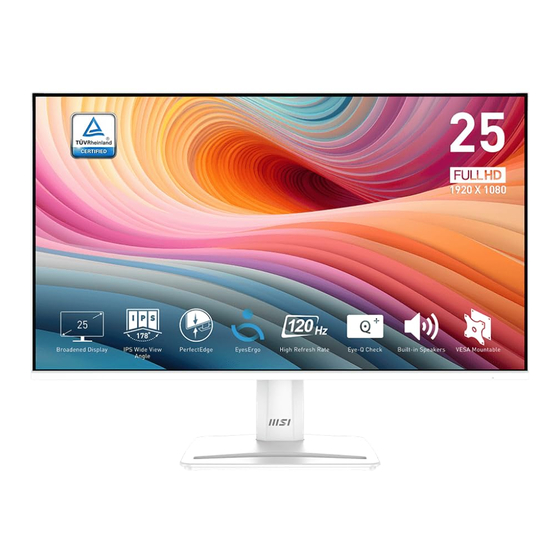

- Page 1 PRO Series LCD Monitor PRO MP251 E2 (3PD2) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 Navi Key ........................9 Hot Key ........................9 OSD Menus........................ -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor PRO MP251 E2 Documentation Quick Start Guide Accessories Stand with Screw(s) Stand Base with Screw(s) -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place. 2. Align and gently push the cable organizer towards the stand until it locks in place. 3. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. -5° 20°... -
Page 6: Monitor Overview
Monitor Overview... - Page 7 Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Power Button/ Navi Key Cable Organizer Kensington Lock Power Jack DisplayPort Supports 1920x1080@120Hz as specified in DisplayPort 1.4a.
-
Page 8: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5. -
Page 9: Osd Setup
OSD Setup ⚠ This chapter provides you with essential information on OSD Setup. Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/ Down/ Left/ Right: ∙... -
Page 10: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: ∙ MPRT ∙ Brightness ∙ Low Blue Light ∙ Contrast ∙ HDCR ∙ Color Temperature Professional 1st Level Menu 2nd/3rd Level Menu Description Mode ∙... - Page 11 1st Level Menu 2nd/3rd Level Menu Description MPRT ∙ MPRT is available when the refresh rate is over 85 Hz. ∙ Activating MPRT will affect: Affected Function Function Status » Brightness Unable to select » Response Time » HDCR Set to OFF »...
-
Page 12: Image
1st Level Menu 2nd/3rd Level Menu Description Screen Assistance None ∙ Users can adjust Screen Assistance in any mode. Screen Size Auto ∙ Users can adjust Screen Size in any mode, any resolution and any screen refresh rate. 16:9 Adaptive-Sync ∙... -
Page 13: Input Source
1st Level Menu 2nd/3rd Level Menu Description HDCR ∙ HDCR enhances image quality by increasing the contrast of images. ∙ Activating HDCR will affect: Affected Function Function Status » Brightness Unable to select Color Temperature Cool ∙ Use Up or Down Button to select and preview mode effects. -
Page 14: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description ∙ All Navi Key items can be adjusted via OSD Menus. Down Brightness Left Mode Right Alarm Clock Input Source Refresh Rate Info. On Screen Audio Volume Settings 1st Level Menu 2nd Level Menu Description Language... - Page 15 1st Level Menu 2nd Level Menu Description HDMI™ CEC ∙ HDMI™ CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, Xbox Series X|S consoles and various audio-visual devices that are CEC-capable. ∙ If HDMI™ CEC is set to ON: • The monitor will automatically power on when the CEC device is turned on.
-
Page 16: Specifications
Specifications Monitor PRO MP251 E2 Size 24.5 inch Curvature Flat Panel Type Resolution 1920x1080 (FHD) Aspect Ratio 16:9 Brightness Typical SDR 300 nits Contrast Ratio 1500:1 Refresh Rate 120Hz Response Time 1ms (MPRT) ∙ 1 x D-Sub Port ∙ 1 x DisplayPort ∙... - Page 17 Monitor PRO MP251 E2 Environment Operating ∙ Temperature: 0℃ to 40℃ ∙ Humidity: 20% to 90%, non-condensing ∙ Altitude: 0 ~ 5000m Storage ∙ Temperature: -20℃ to 60℃ ∙ Humidity: 10% to 90%, non-condensing * Based on CIE1976 test standards. ** External Power Supply may vary by country.
-
Page 18: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Default Mode Standard Resolution HDMI™ D-Sub 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024... -
Page 19: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 20: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 21 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
-
Page 22: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 23: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... -
Page 24: Weee Statement
Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products. -
Page 25: Environmental Policy
Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
