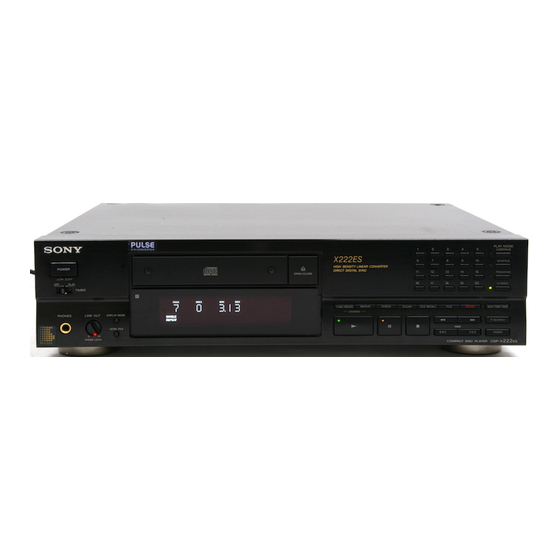

Sony CDP-X222ES Service Manual

US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
NEW
Model Name Using Similar Mechanism
CD Mechanism Type
Optical Pick-Up Block Type
CDM-11J-5BD3
BU-5BD3
SPECIFICATIONS
Compact disc player
Outputs
LINE OUT
(FIXED)
(phono jacks)
LINE OUT
(VARIABLE)
(phone jacks)
DIGITAL OUT
(OPTICAL) (optical
output connector)
HEADPHONES
(Stereo phone
jack)
Output level 2 V (at 50 kiloohms)
Load impedance over 10 kiloohms
Output level max. 2 V (at 50 kiloohms)
Load impedance over 50 kiloohms
Wave length 660 nm
Output level —18 dBm
Output level max. 28 mW
Load impedance 32 ohms
General
Power
requirements
AEP model
220-230V AC, 50/60Hz
UK, Australian model
240V AC, 50/60Hz
US, Canadian model
120V AC, 60Hz
E model
110-120, 220-240V AC
adjustable, 50/60Hz
Power 17 W
consumption
Dimensions 430110340 mm (w/h/d)
(approx., including | (174 9/,x13 '/, inches)
projections)
Weight (approx.) 6.2 kg (13 Ibs 11 02)
—continued on next page—
For the United Kingdom and European
countries
This Compact Disc player
is classified as a CLASS 1
LASER product.
The CLASS 1 LASER
PRODUCT label is located
on the rear exterior.
COMPACT DISC. PLAYER
& CLASS 1 LASER PRODUCT
f LUOKAN 1 LASERLAITE
F KLASS 1 LASERAPPARAT §
