Sig Sauer BDX KILO2400BDX Owner's Manual

7x25 mm laser rangefinder
Hide thumbs

Advertisement

Quick Links

Download this manual
2.0
KILO
®
2.0

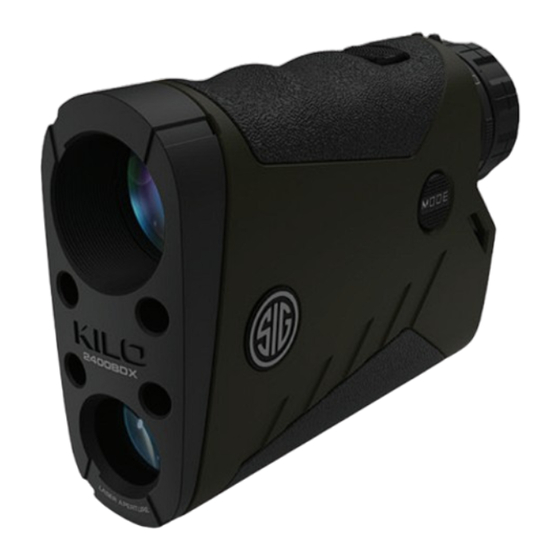

KILO2400BDX™ 7x25 mm LASER RANGEFINDER
WITH BALLISTIC DATA XCHANGE™
OWNERS MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the BDX KILO2400BDX and is the answer not in the manual?

Questions and answers

Related Manuals for Sig Sauer BDX KILO2400BDX

Summary of Contents for Sig Sauer BDX KILO2400BDX

  • Page 1 KILO ® KILO2400BDX™ 7x25 mm LASER RANGEFINDER WITH BALLISTIC DATA XCHANGE™ OWNERS MANUAL...
  • Page 2 Specifications ......... . . 44 SIG SAUER Electro-Optics Infinite Guarantee™...
  • Page 3 Congratulations on the purchase of your SIG SAUER Laser Rangefinder. The KILO2400BDX™ is part of a new, advanced family of rangefinders from SIG SAUER that feature Low Energy Bluetooth embedded Applied Ballistics Ultralight and supports Applied Ballistics External with the free downloadable SIG™...
  • Page 4 CONTENTS: • KILO2400BDX™ Digital Laser Rangefinder • CR2 Battery (1) • Premium Padded Ballistic Nylon Case • Lanyard • Quick Start Guide • Ballistic Group Card...
  • Page 5 KEY FEATURES: • SIG SAUER’S Patent Pending Ballistic Data Xchange™ Technology utilizes low energy Bluetooth with embedded Applied Ballistics Ultralight (ABU), supports Applied Ballistics External (ABE/ABX) and works with the free BDX™ App to sync custom gun profiles and environmental conditions to your KILO®...
  • Page 6 PRODUCT IDENTIFICATION: A - Power / Range Button B - Eyecup / Diopter Focus Adjustment C - Mode Button D - Lanyard Attachment Point E - Battery Compartment...
  • Page 7 LIGHTWAVE™ DSP TECHNOLOGY SIG SAUER’s proprietary Lightwave DSP engine leverages HyperScan – an advanced power management technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances up to a mile. Our DSP engine uses the latest generation field programmable gate array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets.
  • Page 8 When combined with one of SIG SAUER’s BDX enabled riflescopes, the user ranges a target and the firing solution is instantly shared with the BDX riflescope where the holdover dot is selectively illuminated.
  • Page 9 sigsauer.com ballistic groups through the normal rangefinder configuration process by turning on the KILO and holding down the MODE button to enter programming mode. QuickBOND™ allows you to quickly bond your KILO to a SIERRA riflescope. On the SIERRA riflescope, insert the batteries and turn on to illumination setting 1.
  • Page 10 GENERAL OPERATION Your rangefinder provides 4 modes of operation: AMR, LOS, ABU and ABE/ABX. AMR and LOS will be explained on the next page. When ABU is selected the user can pair the KILO with a nearby smartphone where the BDX App should already be installed. The user configures a bullet profile in the app, which is actively synced with a paired rangefinder.
  • Page 11 sigsauer.com MODES OF OPERATION - ANGLE MODIFIED RANGE (AMR) AND LINE OF SIGHT (LOS) Angle modified range is the equivalent horizontal range to the target and is comparable to the “horizontal leg” of a triangle. AMR is also known as “rifleman’s rule” and uses the LOS range and angle of incline to calculate the horizontal distance the projectile travels between shooter and target.
  • Page 12 ANGLE MODIFIED RANGE Example: LOS range of 500 yards at 30’ decline is equivalent to an AMR range of 433 yards...
  • Page 13 APPLIED BALLISTICS ULTRALIGHT (ABU) Your rangefinder has an embedded ballistics solver developed by Sig Sauer, Applied Ballistics and nVisti. By pairing your KILO with the free BDX App you can enter custom ballistics information for up to 25 bullet profiles and sync one at a time to your KILO. The active ballistic profile is now saved on your KILO, and when in ABU mode, will provide an accurate ballistic solution out to 800 yards maximum.
  • Page 14 Example: LOS range = 568.6 yards with 0.308 Barnes Elevation adjustment = 18.19 MOA Up Windage adjustment = 7.59 MOA Right...
  • Page 15 sigsauer.com PROJECTED, SEGMENTED ORGANIC LIGHT EMITTING DIODE (OLED) DISPLAY A – Circle center aiming feature B – 5 Character alphanumeric displays C – Range unit of measure D – Holdover unit of measure E – Angle of incline / decline F –...
  • Page 16 W WARNING Safety and Operation Procedures The KILO is classified as a Class 3R product. • Do not press the RANGE button while aiming at the human eye or while looking into the transmitting optics on the objective side. • Do not leave the KILO within reach of small children. •...
  • Page 17 sigsauer.com SET UP Installing the Battery Remove the battery cap by turning the cap in a counter-clockwise direction. Insert (1) CR2 Primary Lithium battery positive side first. The ( - ) terminal should be facing out. Place the cap onto the ( - ) battery terminal and reinstall the battery cap by turning the cap in the clockwise direction.
  • Page 18 After installation of the battery and depressing the RANGE button, the status of the rangefinder is displayed: Installing the Lanyard Install the lanyard loop through the lanyard attachment point. Pass the lanyard back through the loop for secure attachment.
  • Page 19 sigsauer.com DIOPTER ADJUSTMENT The diopter or focus adjustment is integral to the eyecup. The focus adjustment is used to bring the display into sharp focus along with the target image. The diopter adjustment can turn clockwise or counter- clockwise depending upon the user’s prescription EYECUP ADJUSTMENT The eyecup adjustment allows the user to adjust the eye relief for use with or without glasses.
  • Page 20 DISPLAY INFORMATION The display shows you the center aiming circle, the unit of measure (Y), Angle Modified Range mode (AMR) and the remaining battery status. The display will remain active for up to 30 seconds , or whatever timeout has been set within in the SIG BDX App. You can then press the RANGE button to determine range to target.
  • Page 21 sigsauer.com HyperScan MODE While the rangefinders support single button push ranging operation, it is highly recommended that you push and hold the RANGE button down to activate HyperScan mode. This mode allows you to scan targets at 4X/second which significantly improves ranging performance at extreme distances. As the ranging distances are updated very quickly in HyperScan mode, once you release the RANGE button the last acquired distance will be displayed.
  • Page 22 CHANGING MODES OF OPERATION The rangefinder ships with the most common modes already configured. However, you can access and change the following features: • Line of Sight (LOS), Angle Modified Range (AMR), Applied Ballistics Ultralight (ABU) or ABE/ABX • Best or Last Target •...
  • Page 23 sigsauer.com RANGEFINDER CONFIGURATION – PROGRAMMING SEQUENCE Note – the rangefinder can more easily be programmed and configured by using the free Sig BDX App. 1. Mode Selection (AMR, LOS, ABU or ABE/ABX) To enter programming mode, press and release the RANGE button to wakeup the rangefinder. Once the display is visible, press and hold the MODE button for 2 seconds –...
  • Page 24 2. Target Selection (BEST or LAST) BEST or LAST should be flashing (BEST is the default setting). You can toggle between BEST or LAST by pressing and releasing the RANGE button. Confirm your selection by pressing and releasing the MODE button which will save your setting and index to the next setting for configuration. If you do not press and release the MODE button the rangefinder will save your selection and turn off.
  • Page 25 sigsauer.com 4. Reticle Select After selecting and saving display brightness, the rangefinder will then index to the next programming mode which is Reticle Select. You can select between center aiming circle only, or add the horizontal milling grid or add both the horizontal and vertical milling grid. You can confirm your selection by pressing and releasing the MODE button –...
  • Page 26 the RANGE button. Confirm your selection by pressing and releasing the MODE button which will save your setting and index to the next setting for configuration. If you do not press and release the MODE button the rangefinder will save your selection and turn off. The programming sequence for selecting a custom ballistic profile or ballistic group is grP1 >...
  • Page 27 sigsauer.com DIGITAL BALLISTICS XCHANGE – DOWNLOADING AND CONFIGURING THE FREE BDX APP In this section you will download the BDX App, pair the App with your KILO and create a custom bullet profile. 1. Turn Bluetooth on Check in Settings on your Android or iOS device to make sure that Bluetooth is on. If Bluetooth is off, switch it on.
  • Page 28 2. Download the BDX App from the App Store / Google Play Store Go to the App Store or the Google Play store and download the SIG SAUER BDX App. Search for the word SIG SAUER or BDX.
  • Page 29 3. Launch the free SIG SAUER BDX App and Pair with your KILO (Enter your PIN code) On your smartphone, open the BDX App, click on PAIRING, turn on your KILO by pressing and releasing the RANGE button and then press “Scan for Devices” on the App. Your KILO should be listed below the KILO icon and “Select Device”.
  • Page 30 Make sure your KILO stays on during the pairing process by periodically pressing and releasing the RANGE button. You will be prompted to look through your KILO for a PIN number. Type this PIN number into the open dialogue box within the App. The PIN in your KILO and the PIN entered on your smartphone must match.
  • Page 31 You may be prompted to update the software on your KILO. These software updates are mandatory and allow Sig Sauer to ensure that your BDX App and KILO perform optimally. Most updates take less than 1 minute. Ensure that your KILO is turned on and that your smartphone has at least 25% battery life remaining before installing any software updates.
  • Page 32 4. Configure up to 25 custom bullet profiles The BDX App allows you to create and modify up to 25 profiles. From the home screen of the App touch PROFILES. Only one profile can be active at any time and is denoted by the BDX Icon in blue to the right of the screen.
  • Page 33 sigsauer.com After selecting a bullet manufacturer, select the actual bullet you intend to use. Once selected you will return to the Gun Profile page where you will need to click on the sync icon to the right to activate this profile. In this example the new profile is called “.223 Sierra” – be sure to activate this profile.
  • Page 34 RANGEFINDER HEADS-UP DISPLAY (HUD) From the home screen of your BDX App select RANGEFINDERS to display the HUD. The HUD displays all range, environmental and ballistic information and allows you to configure your KILO. KILO ID and Status Grey = disconnected / Blue = connected Help and Settings menu Back to Home Screen Elevation data...
  • Page 35 sigsauer.com KILO SETTINGS From the Settings menu you can fully configure the following: 1. Mode of Operation (LOS, AMR, ABU or ABE/ABX) 2. Target Mode (BEST or LAST) 3. Unit of Measure (Yards or Meters) 4. Sleep Timeout (30, 60, 120 or 180 seconds) 5.
  • Page 36 TEMPERATURE AND ALTITUDE Once your KILO is paired and actively synced with your smartphone, when you enter the RANGEFINDER HUD screen your smartphone will automatically pull the local temperature and altitude from the closest weather station. If you are not in cell range you can manually update both temperature and altitude by touching on the white numbers in each field and manually updating these environmental conditions.
  • Page 37 sigsauer.com MUZZLE VELOCITY (MV) CALIBRATION The most important input for calculating accurate Applied Ballistics solutions is getting your MV correct. You need to either chronograph your firearm or use the embedded MV Calibration routine built into the BDX App. To use the MV Calibration routine make sure your scope is zeroed (i.e.
  • Page 38 MUZZLE VELOCITY (MV) CALIBRATION (continued) Now enter the elevation offset between point of impact and point of aim and select CONFIRM. In this example the 3 shot group was 7 inches low. A new MV of 2477 fps was calculated. Select YES to confirm and this MV will now be used for ballistic solutions going forward.
  • Page 39 sigsauer.com CONFIGURING GLOBAL SETTINGS IN THE BDX APP From the Home Screen of the BDX App you can configure Global Settings. Any field that is in white can be changed by touching on the unit of measure and toggling between values. The help menu is available to assist you.
  • Page 40 PAIRING A KESTREL 5700 ELITE WITH THE KILO2400BDX Using the RANGE / MODE buttons or the BDX App, put the KILO in ABE/ABX mode. This allows the KILO to be seen by the Kestrel. ABE will be displayed in the KILO. AB External will be displayed in the App.
  • Page 41 KILO. Relaunch the App, turn on your KILO and repeat the Pairing instructions in this manual. Q: I can’t locate the BDX App on the Apple or Android Stores. A: Search for Sig Sauer or BDX at the store.
  • Page 42 Q: My battery drains too fast. A: Most rangefinders will provide over 4000 individual range calculations using a fresh CR2 primary lithium battery. Your KILO exceeds this specification. When heavily using SCAN mode the battery may appear to drain faster since your KILO is ranging 4x per second in HyperScan mode. This is normal operation but you should keep a spare CR2 battery when heading out to remote locations.
  • Page 43 sigsauer.com Q: When using AB External on my KILO I can no longer see the rangefinder information on the HUD in the BDX App. A: If your KILO and a Kestrel are actively paired (sending / receiving information) the BDX App cannot be connected and paired to your KILO at the same time.
  • Page 44 KILO2400BDX™ 7x25 mm SPECIFICATIONS Magnification Objective Clear Aperture 25 mm Exit Pupil 3.6 mm Eye Relief 15 mm Angular (FOV) 6.78° FOV @ 100yds 35.67 ft Laser Divergence 1.3 MRAD Range Response Time .25 sec Scanning Range Resolution Under 100 yds .1 yds Max Range (Class 3R) Reflective up to 3,400 yds Trees up to 1,800 yds Deer up to 1,400 yds...
  • Page 45 sigsauer.com A – 76 mm B – 112 mm C – 33 mm...
  • Page 46 W DANGER CLASS 3R LASER PRODUCT INVISIBLE LASER RADIATION - AVOID DIRECT EYE EXPOSURE This product complies with IEC 60825-1: 2014-05 Ed 3.0 and complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. 3R: FCC: 2AP8SK24 IC: 24032 -K24 λ...
  • Page 47 Use of controls or adjustments or performance of deviations pursuant to Laser Notice No.50,dated June 24,2007. procedures other than those specified herein may FCC ID:2AP8SK24 IC:24032 SIG SAUER Inc. result in hazardous radiation exposure. Changes 27100 SW Parkway Avenue Wilsonville, Oregon 97070...
  • Page 48 FCC STATEMENT: of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This equipment generates uses and can radiate radio frequency energy and, if not installed and used in •...
  • Page 49 sigsauer.com • Connect the equipment into an outlet on a circuit different Le present appareil est conforme aux CNR d’Industrie Canada from that to which the receiver is connected. applicable aux appareil radio exempts de licence. • Consult the dealer or an experienced radio/TV technician for help.
  • Page 50 Infinite Guarantee has your back, forever. Period. We will repair or replace your SIG SAUER product in the event it becomes damaged or defective, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition.
  • Page 51 Tritium component defects in materials or workmanship, SIG SAUER will repair your product, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical...
  • Page 52 NOTES:...
  • Page 53 sigsauer.com NOTES:...
  • Page 54 FOR PRODUCT SERVICE ON THIS MODEL, PLEASE CALL 603-610-3000 27100 SW Parkway Avenue, Wilsonville, Oregon 97070 USA sigsauer.com P/N 7401007-01 R03...
