Bosch SMV40C00GB User Manual

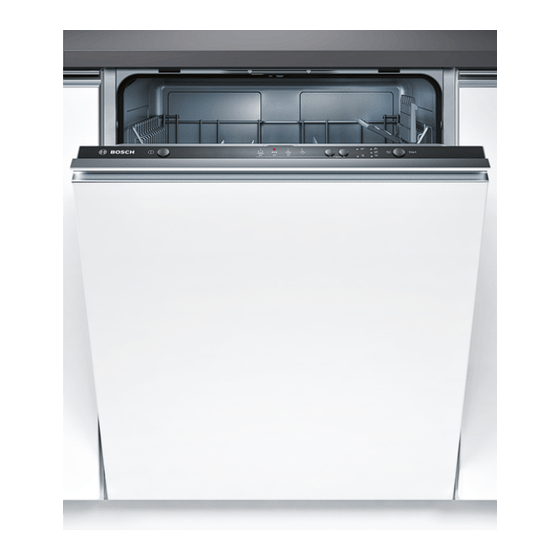

Fully-integrated dishwasher, 60 cm

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Serie | 2, fully-integrated dishwasher,

60 cm

SMV40C00GB

Optional accessories

SMZ2044 : Plinth casing and door, stainless steel

SMZ5002 : Silver polishing cassette

SMZ5003 : Retractable hinge f. high corpus dimens.

SMZ5006 : decorative strips 81cm st.steel

SMZ5025 : Decor conversion kit, stainless steel

The ActiveWater 60 with AquaStop: Oﬀers

you 100% protection against water damage

for the life of the appliance - guaranteed.

Technical Data

Water consumption (l) :

Built-in / Free-standing :

Height of removable worktop (mm) :

Dimensions of the product (HxWxD) :

Required niche size for installation (HxWxD) :

Depth with open door 90 degree (mm) :

Adjustable feet :

Maximum adjustability feet (mm) :

Net weight (kg) :

Gross weight (kg) :

Connection Rating (W) :

Current (A) :

Voltage (V) :

Frequency (Hz) :

Length electrical supply cord (cm) :

Plug type :

Length inlet hose (cm) :

Length outlet hose (cm) :

EAN code :

Number of place settings :

Energy eﬃciency rating :

Energy consumption annual (kWh/annum) - NEW (2010/30/EC) :

Energy consumption (kWh) :

Power consumption in left-on mode (W) - NEW (2010/30/EC) :

Power consumption in oﬀ-mode (W) - NEW (2010/30/EC) : 0.10

Water consumption annual (l/annum) - NEW (2010/30/EC) :

Drying performance :

Reference programme :

Total cycle time of reference programme (min) :

Noise level (dB(A) re 1 pW) :

Installation typology :

14.0

Built-in

815 x 598 x 550

815-875 x 600 x 550

1150

Yes - front only

28.302

30.6

2400

220-240

50; 60

175

GB plug

165

190

4242002862071

A+

290.00

1.02

0.10

3920

Eco

210

Full-integrated

'! 2 E 2 0 A C - i g c a h b !

1/3

Table of Contents

Need help?

Do you have a question about the SMV40C00GB and is the answer not in the manual?

Questions and answers

Summary of Contents for Bosch SMV40C00GB

Page 1 Serie | 2, fully-integrated dishwasher, The ActiveWater 60 with AquaStop: Oﬀers 60 cm you 100% protection against water damage SMV40C00GB for the life of the appliance - guaranteed. Technical Data Water consumption (l) : 14.0 Built-in / Free-standing : Built-in...
Page 2 Automatic detergent detection Load Sensor AquaMix - Glass protection system Large item spray head, steam protection plate AquaStop: Bosch warranty in case of water damage - for the lifetime of the appliance. Please ﬁnd warranty terms under https://www.bosch-home.co.uk/customer-service/care- protection-and-parts/additional-warranties Design features...
Page 3 Serie | 2, fully-integrated dishwasher, 60 cm SMV40C00GB...
Page 4 Dishwasher SM… SB… [en] User manual...
Page 5: Table Of Contents
Table of contents Safety .......... 4 Features......... 21 General information...... 4 Top basket ........ 22 Intended use........ 4 Bottom basket ........ 23 Restriction on user group.... 4 Cutlery basket ........ 23 Safe installation ........ 5 Cutlery drawer ........ 23 Safe use ........... 6 Etagere ........... 24 Damaged appliance ...... 8 Folding prongs ....... 25 Risk to children ........ 9 Small items holder ...... 25...
Page 6 Technical specifications.... 55 Switching on the appliance .... 35 Setting a programme ..... 36 Setting additional functions .... 36 Setting timer programming ... 36 Starting the programme .... 36 Interrupting programme .... 36 Terminate programme.... 37 Switching off appliance .... 37 Basic settings........ 38 Overview of basic settings ..... 38 Cleaning and servicing ....
Page 7: Safety
en Safety Safety Please read the safety information to ensure that you use the ap- pliance safely. General information You can find general information about this instruction manual here. ¡ Read this instruction manual carefully. Only this ensures you will use the appliance safely and efficiently. ¡...
Page 8: Safe Installation
Safety en Cleaning and user maintenance must not be performed by chil- dren unless they are being supervised. Keep children under the age of 8 years away from the appliance and power cable. Safe installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of injury! Improper installation may cause injury.
Page 9: Safe Use
en Safety WARNING ‒ Risk of electric shock! Cutting through the supply hose or immersing the Aqua-Stop valve in water is dangerous. ▶ Never immerse the plastic housing in water. The plastic housing on the supply hose contains an electric valve. ▶ Never cut through the supply hose. The supply hose con- tains electric power cables.
Page 10 Safety en WARNING ‒ Risk of explosion! ¡ Adding solvents to the interior of the appliance may cause ex- plosions. ▶ Never add solvents to the interior of the appliance. ¡ Highly caustic alkaline or highly acidic cleaning agents in con- junction with aluminium parts in the interior of the appliance may cause explosions.
Page 11: Damaged Appliance
en Safety ▶ Do not use steam- or high-pressure cleaners to clean the appliance. ¡ If the insulation of the power cord is damaged, this is danger- ous. ▶ Never let the power cord come into contact with hot appli- ance parts or heat sources. ▶...
Page 12: Risk To Children
Safety en Risk to children Follow the safety instructions if there are children in your home. WARNING ‒ Risk of suffocation! ¡ Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶...
Page 13: Safety Systems
en Safety WARNING ‒ Risk of injury! Children may get their fingers caught in the slots of the tablet collecting tray and injure themselves. ▶ Keep children away from the appliance when open. WARNING ‒ Risk of suffocation! Children may become trapped in the appliance and suffocate. ▶...
Page 14: Preventing Material Damage
Preventing material damage en ¡ Modified or damaged water hoses Preventing material damage Preventing material dam- may result in material damage and damage to the appliance. Never kink, crush, modify or cut ▶ through water hoses. Follow these instructions to prevent Only use the water hoses sup- material damage to your appliance, ▶...
Page 15: Childproof Lock
en Childproof lock ¡ Unsuitable cleaning agents may Pull the catch of the childproof damage the appliance. lock forwards and close the ap- Do not use a steam cleaner. pliance door ⁠ . ▶ So as not to scratch the finish ▶...
Page 16: Environmental Protection And Saving Energy
Environmental protection and saving energy en AquaSensor Environmental protection and saving energy Environmental protection The AquaSensor is an optical meas- and saving energy uring device (light barrier) which measures the turbidity of the washing Help protect the environment by us- water. You can save water with the ing your appliance in a way that con- AquaSensor.
Page 17: Installing And Connecting The Ap- Pliance
en Installation and connection ¡ Instruction manual Drainage connection ¡ Installation instructions Connect your appliance to drainage ¡ Warranty connection so dirty water is dis- ¡ Installation material charged via the wash cycle. ¡ Steam guard plate ¡ Rubber apron Installing the drainage ¡...
Page 18: Electrical Connection
Installation and connection en Electrical connection Connect your appliance to the power supply. Connecting the appliance to the electricity supply Notes ¡ Follow the Safety instructions → Page 5. ¡ Connect the appliance to alternat- ing current only, in the range of 220 - 240 V and 50 Hz or 60 Hz. ¡...
Page 19: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD number → Page 55.
Page 20: Controls
Familiarising yourself with your appliance en Detergent → Page 31 is added to the detergent dis- Detergent dispenser penser. Bottom basket → Page 23 Bottom basket Dispenser for special salt Add special salt for the Water softening system → Page 27 to the dispenser for special salt. Lower spray arm The lower spray arm washes the tableware in the bot- tom basket.
Page 21 en Familiarising yourself with your appliance 3 4 5 Switching on the appliance → Page 35 ON/OFF button Switching off the appliance → Page 37 Additional functions → Page 21 Additional functions Programme sequence display The programme sequence display shows the cur- rent cycle of the appliance, e.g. washing or dry- ing.
Page 22: Programmes
Programmes en Programmes Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
Page 23: Information For Test Institutes
en Programmes Programme Programme se- Additional functions quence Tableware: Most economical pro- → "Additional func- ¡ Cleaning mixed gramme: tableware and cut- ¡ Pre-Rinse tions", Page 21 Eco 50° lery. ¡ Cleaning 50 °C Level of soiling: ¡ Intermediate rinse ¡ Removing common ¡ Rinsing 66 °C household food rem- ¡...
Page 24: Additional Functions
Additional functions en Additional func- Additional functions Additional functions tion ¡ Switch on with mixed You can find an overview of the addi- loads containing table- tional functions that can be selected IntensiveZone ware with different soil- here. Different additional functions, ing levels, e.g.
Page 25: Top Basket
en Features The basket can then slip down Top basket slightly. Arrange cups and glasses in the top Raise or lower the basket evenly to basket. the right level. → "Basket heights", Page 26 Knife shelf Check that the basket is level on You can adjust the height of the top both sides.
Page 26: Bottom Basket
Features en Check that the basket is level on both sides. Cutlery basket Slide the basket back in. Arrange cutlery in the cutlery basket, always without sorting it and with the Bottom basket sharp points downwards. Arrange pans and plates in the bot- tom basket.
Page 27: Etagere
en Features Arrange cutlery with the points and sharp edges downwards. You can reorganise the cutlery drawer to make more space for longer/wider items of cutlery. Reorganising cutlery drawer You can fold down the side shelves and front prongs to make more space for longer/wider items of cut- lery.
Page 28: Folding Prongs
Features en Position the etagere at a slight To use the folding prongs again, angle and move to the right height fold them back up. ⁠ . a The folding prongs click in posi- Push the etagere down. tion. a The etagere clicks into position. Small items holder Folding prongs Use the small items holder to posi-...
Page 29: Knife Shelf
en Features Knife shelf Use the knife shelf for long, sharp ob- jects and long items of cutlery. Basket heights Set the baskets at the right height. Appliance height 81.5 cm with cutlery basket Level Top basket Bottom basket 1 max. ø 22 cm 31 cm 2 max.
Page 30: Before Using For The First Time
Before using for the first time en Set the water softening system. Before using for the first time Before using for the → Page 27 first time Set the amount of rinse aid to be dispensed. → Page 30 Configure the settings for initial start- Tip: You can change these settings and other Basic settings → Page 38 at any time.
Page 31: Adding Special Salt
en Water softening system Press and hold until On initial start-up: Fill the dispenser flash. right up with water. Release buttons. Note: Only use special salt for dishwashers. repeatedly until the required level Do not use salt tablets. has been selected. Do not use table salt. 0, 1, 2 or 3 LEDs will light up ac- Add the special salt to the dis- cordingly.
Page 32: Regeneration Of The Water Softening System
Water softening system en replacement substances can gen- Press to save the setting. erally only be used up to a water a The LEDs go out. hardness of 26 °E without adding a The water softening system is special salt. switched off and the salt refill indic- ¡...
Page 33: Rinse Aid System
en Rinse aid system Spilled rinse aid can cause ex- Rinse aid system Rinse aid system cessive frothing during the wash cycle. You can use the rinse aid system Close the lid of the dispenser for and rinse aid to get tableware and rinse aid.
Page 34: Detergent
Detergent en Press and hold until Detergent Description flash. Tabs Tabs are suitable for all Release buttons. cleaning functions and do Press repeatedly until flashes. not need to be measured Press repeatedly until no LED out. lights up (level 0). With shorter Programmes Press to save the setting.
Page 35: Unsuitable Detergents
en Detergent With powder and liquid detergent the Detergent Description dosage can be individually adjusted Detergent con- Chlorine residue on table- to the level of soiling of the table- taining chlorine ware may present a risk to ware. health. For better washing and drying results and to avoid damage to the appli- Information on detergents ance, please additionally use Special...
Page 36: Tableware
Tableware en Add the detergent to the dry deter- right dosage. In order to ensure gent dispenser. that tablets can dissolve evenly, do not place any other objects in the tablet collecting tray. 50 ml 25 ml 15 ml Tableware Tableware Only clean tableware that is suitable for dishwashers.
Page 37: Arrange Tableware
en Tableware ¡ For better washing and drying res- Cause Recommendation ults, position items with curves or The chemical com- Use a detergent recesses at an angle so the water position of the deter- marked as gentle on can run off. gent causes damage.
Page 38: Removing Tableware
Basic operation en If the childproof lock is activated, press the catch of the lock to the right and open the appliance door ⁠ . Removing tableware WARNING Risk of injury! Switching on the appliance Hot tableware can cause burns to the skin.
Page 39: Setting A Programme
en Basic operation a While the programme is running, a Setting a programme spot of light is projected onto the To adjust the wash cycle to the soil- floor below the appliance door. ing level of the tableware, select a This light will not be visible if the suitable programme.
Page 40: Terminate Programme
Basic operation en Press to resume the pro- gramme. Terminate programme To end a programme early or to switch from a programme that has already started, you will need to ter- minate it first. Open the appliance door. Press for approx. 3 seconds.
Page 41: Basic Settings
en Basic settings Basic settings Basic settings You can configure the appliance to meet your needs. Overview of basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Water hardness Scale with 4 levels Set the water hardness. → "Setting water softening sys- tem", Page 27 Rinse aid disp.
Page 42: Cleaning And Servicing
Cleaning and servicing en repeatedly until the required level briefly increased. Consumption val- has been selected. ues, e.g. water and electricity, may also increase. 0, 1, 2 or 3 LEDs will light up ac- If the interior is no longer self-cleaned cordingly.
Page 43: Filter System
en Cleaning and servicing Filter system The filter system removes coarse soiling from the dishwashing cycle. Press the locking catches gether and lift the coarse filter out ⁠ . Micro filter Fine filter Coarse filter Cleaning filters Soiling in the dishwashing water may block the filters.
Page 44: Cleaning Spray Arms
Cleaning and servicing en Cleaning spray arms Limescale and soiling in the dish- washing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly. Unscrew the upper spray arm and pull down to remove Pull up the lower spray arm to re- move.
Page 45: Troubleshooting
en Troubleshooting Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶...
Page 46 Troubleshooting en Fault Cause troubleshooting Display for water supply lights up Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back Check the water connection for leaks. Restore the power supply. Switch the appliance on. Filters are soiled or blocked. Clean the filters.
Page 47: Washing Results
en Troubleshooting Fault Cause troubleshooting Display "Check water sup- A technical fault is present. Press . ply" flashes Unplug the appliance or switch off the fuse. Wait at least 2 minutes. Insert the mains plug of the appli- ance in a socket or switch on the fuse.
Page 48 Troubleshooting en Fault Cause troubleshooting Tableware is not dry. The combined detergent Use rinse aid to improve drying per- used has a poor drying per- formance. formance. Use a different combined detergent with a better drying performance. Extra Dry not activated to im- Activate Extra Dry.
Page 49 en Troubleshooting Fault Cause troubleshooting Clean the Spray arms → Page 41. Remnants of food on table- Spray arm nozzles are ▶ ware. blocked. Filters are soiled. Clean the filters. ▶ → "Cleaning filters", Page 40 Filters are inserted incor- Insert the filters properly. → "Filter system", Page 40 rectly and/or not engaged.
Page 50 Troubleshooting en Fault Cause troubleshooting Change your detergent → Page 31. Detergent residue in the ap- Washing effect and dissolv- ▶ pliance ing performance are re- duced after a prolonged storage time or detergent is very lumpy. Water marks on plastic Due to laws of physics Select a more intensive pro- ▶...
Page 51 en Troubleshooting Fault Cause troubleshooting Stubborn white coatings are Washing programme selec- Select a more intensive washing ▶ present on tableware, inside ted too weak. programme. the appliance or the door. Adjust the sensitivity of the sensors. ▶ Tea residue or lipstick marks Washing temperature is too Select a programme with a higher ▶...
Page 52 Troubleshooting en Fault Cause troubleshooting Plastic parts inside the appli- Plastic parts inside the appli- Discolouration can come about and ▶ ance are discoloured. ance may become discol- will not impair functioning of the ap- oured during the life of the pliance.
Page 53: Information On Display Panel
en Troubleshooting Fault Cause troubleshooting Rust spots on cutlery. Cutlery is not sufficiently Use rust-resistant tableware. ▶ rust-resistant. Knife blades are often more severely af- fected. Cutlery may also rust if Do not wash rusting items. ▶ washed together with rust- ing items.
Page 54: Malfunctions
Troubleshooting en Malfunctions Fault Cause troubleshooting Clean the Filters → Page 40. Water is left in the appliance Filter system or area under at the end of the pro- the filters is blocked. Clean the Wastewater pump gramme. → Page 53. Programme has not yet Wait until the programme ends or ▶...
Page 55: Mechanical Damage
en Troubleshooting Mechanical damage Fault Cause troubleshooting Appliance door cannot be Door lock has been activ- Close the appliance door with ▶ closed. ated. greater force. Door cannot be closed due Check whether the appliance has ▶ to installation method. been installed properly. When closed, the appliance door, its decor or attached parts should not knock against adjacent cabin-...
Page 56: Clean Wastewater Pump
Transportation, storage and disposal en Clean wastewater pump Large remnants of food or foreign bodies can block the wastewater pump. As soon as the washing water no longer drains properly, the wastewater pump must be cleaned. WARNING Risk of injury! Sharp and pointed objects or frag- ments of glass may block the waste a The pump cover clicks into posi- water pump and cause injury.
Page 57: Transporting The Appliance
en Customer Service Unplug the appliance from the Transporting the appliance mains. To avoid damage to the appliance, Cut through the power cord. empty it before transporting. Dispose of the appliance in an en- Note: Always transport the dish- vironmentally friendly manner. washer upright to prevent residual This appliance is labelled in ac- water getting into the machine's con-...
Page 58: Product Number (E-Nr.) And Pro
Technical specifications en or accessory parts that were not AQUA-STOP guarantee genuine parts and then resulted in a In addition to warranty claims against defect. the seller under the purchase agree- Function-relevant genuine spare parts ment and in addition to our manufac- according to the corresponding Eco- turer's warranty, we will provide a re- design Order can be obtained from...
Page 59 en Technical specifications ternatively you can also find the Power rating 2000 - 2400 W model identifier in the first line of the Fuse 10 - 16 A EU energy label. Power consumption Off mode/standby mode: 0.10 W Left-on mode: 0.10 W Networked standby: - W Time in left-on mode: 0 min...
