- Page 1 USER GUIDE...
-
Page 2: Safety Instructions

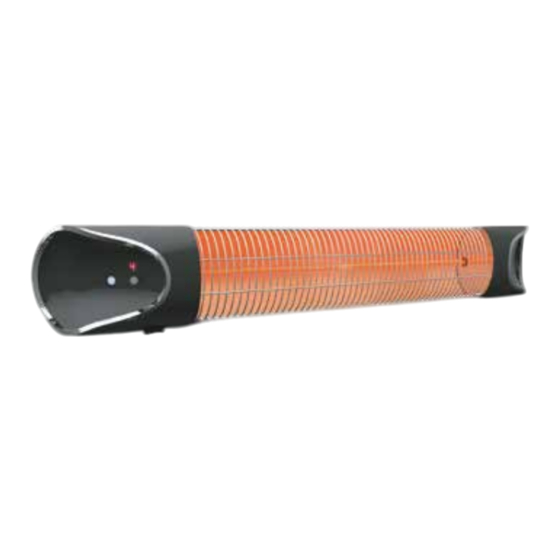

Thank you for purchasing Instant Heater from JML. Please read these instructions carefully before use and retain for future reference. IMPORTANT: The support tabs holding the heating element must be removed before use. Any damage caused by leaving these tabs in and using the heater is not covered under warranty and will incur a refurbishment fee to cover the cost of new parts and a servicing charge. - Page 3 • When used outdoors, always use a weatherproof power outlet and a residual current device (RCD). • The Instant Heater is protected from rain sprays. Do not direct water at the heater, e.g. splashing or from a garden hose.
- Page 4 Unlike conventional convection heating, the Instant Heater doesn’t heat the air. Rather, it transfers radiant heat from the Instant Heater lamp to an object, just like the warmth of the sun heating a rock, or the feeling of sunshine on your face.
-
Page 5: Wall Mounting Installation
WALL MOUNTING INSTALLATION • The Instant Heater must be mounted horizontally only. If using the standard plug, an electrician is not required for installation. A quali ed electrician is only required if the Instant Heater is being hard-wired into the wall. - Page 6 Side view Front view Ceiling Min: 300mm Wall Max: 90 Min: 300mm Min: 45 Wall Min: 1800mm Floor Towards Wall...
-
Page 7: Wall Mounting
PARTS & ASSEMBLY (drawings not to scale) 2x plasterboard 2x m5 2x m6 2x m8 2x m8 anchors tapping screws 4x mounting brackets coach bolts WALL MOUNTING Measure and secure 2 mounting brackets on a wall 530mm horizontally apart, measured from the hole centres. Ensure you use the correct wall anchors for your wall, plasterboard anchors are supplied. - Page 8 2. Secure the remaining 2 mounting brackets to the back of the heater with the supplied M6 nuts, tightening loosely. 3. Li the heater up to the wall-mounted brackets. Bolt the brackets together loosely using the supplied M8 coach bolts and nuts. 4.
-
Page 9: Heater Operation
HEATER OPERATION • To turn the heater on, switch the power switch on at the bottom of the unit, the display will show ‘0’. • To change heat settings, press the level button on the front of the unit and choose setting 0 or 4, or use the remote by pressing the level button on the remote and using the up or down arrow button to change between levels. -
Page 10: Replacing The Remote Control Battery
REPLACING THE REMOTE CONTROL BATTERY • Press the battery compartment release button and then slide out the battery tray. • Remove the old battery and put the new battery in, making sure that the battery’s positive side is facing up. Use only a CR2025 or CR2032 battery in this remote control. •... -
Page 11: Specifications
GUARANTEE This product is unconditionally guaranteed for one year against all defects of workmanship and materials. This guarantee does not a ect your statutory rights. If you have any problems or queries about this product please contact JML customer services. - Page 12 Distributed by: JML, Unit 1 Eastside, Port of Tyne, South Shields, UK, NE33 5SP. JML GmbH, Rheinstraße 3, 63225 Langen, Germany. Customer Services: UK: 0800 781 7831 (Freephone). ROI: 041-978 0003 (Local rate) Email: info@JMLgroup.co.uk. Web: www.JMLdirect.com ©JohnMillsLtd/CM/02.21/1087/B. Made in China.
