Summary of Contents for Labgear VSAT02

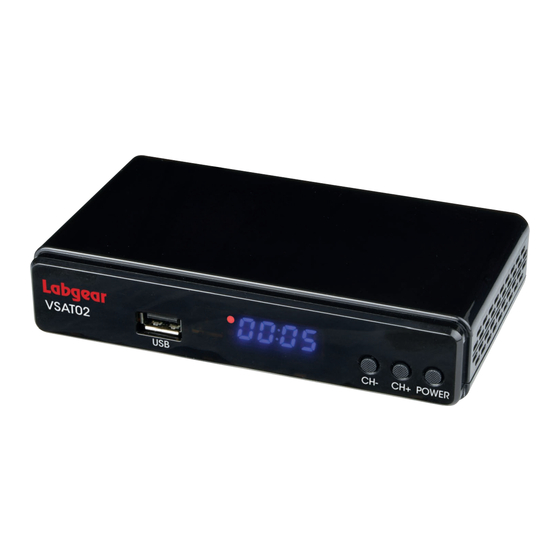

- Page 1 Quick Start Guide VSAT02 HD Free-to-Air Satellite Receiver...
- Page 2 Unbox CH+ POWER Satellite Receiver 2x AAA Alkaline Batteries Remote Control 1m HDMI Cable 1m 3.5mm Jack 12V-1A Power to 3 Phono Cable Adaptor Satellite Dish Requirements To receive Free-to-Air channels your receiver will need to be connected to a dish precisely aimed at the Astra 28.2 East satellite Professional installation is highly recommended to ensure your...
-
Page 3: Install Batteries In The Remote Control
Make Connections to your Receiver Unit SAT-In HDMI-Out DC-In Connect to Connect Connect the Power to Satellite to an HDMI Adaptor Downlead Socket on your TV Install Batteries in the Remote Control Insert the batteries supplied (2x AAA alkaline) into the remote taking care to observe the polarity indicated in the battery compartment. -
Page 4: Installation
Installation Because many Satellite TV channels change frequency often, we recommend that you now scan the Satellite to ensure all available Free-to-Air channels are included in the TV channel list. Press the MENU key to open the main menu. Use the left/right / keys on the remote to highlight Installation, press the OK key. - Page 5 Satellite Search Search, In the menu scroll down to press OK Blind Scan. to start When the scan finishes press OK and your TV will show the 1st Channel in your TV Channel List. technical@philex.com www.philex.com...
- Page 6 Watching TV To select other channels press OK and a list will appear To select a channel either scroll to it using the keys or enter the 4 digit number then press OK to watch the channel. You can also use the page Up/Down key to scroll through the channels page by page.
-
Page 7: Remote Control Keys
Remote Control Keys POWER Standby/Power On from standby MUTE Mute or Restore Audio Output 0 - 9 Numbers GOTO Enter real time TV play mode TV/RADIO Switch TV and Radio function FAV Turns on the Favourite menu VOL+ Increases the volume Pg+ Page Up VOL–... - Page 8 Waste electrical and electronic products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority for recycling advice. UK Distributor Labgear, Philex House, Kingfisher Wharf, London Road, Bedford, MK42 0NX, United Kingdom EU Distributor: Philex Electronic Ireland Ltd.,...
Need help?
Do you have a question about the VSAT02 and is the answer not in the manual?
Questions and answers
I have just tried to install the new box but the channels keep flicking through. Also the cursor doesn't stop rolling which makes it impossible to select anything
I connected a suitable hdd and can record live tv, when I try to record via epg it shows in the timer list and when I click on it it says playing, but it doesn't record? anything im missing?
The Labgear VSAT02 may not be recording scheduled programs from the EPG because it is connected to a Sky Q Wideband LNB, which is incompatible. It requires an older KU band LNB used with Legacy Sky Plus HD systems to receive all channels and transponders needed for full functionality.
This answer is automatically generated
@Mr. Anderson thanks for your answer, would it then still live record like mine does? I dont have a sky lnb but dont know what type mine is unfortunately, I used it with my techno mate receiver before
