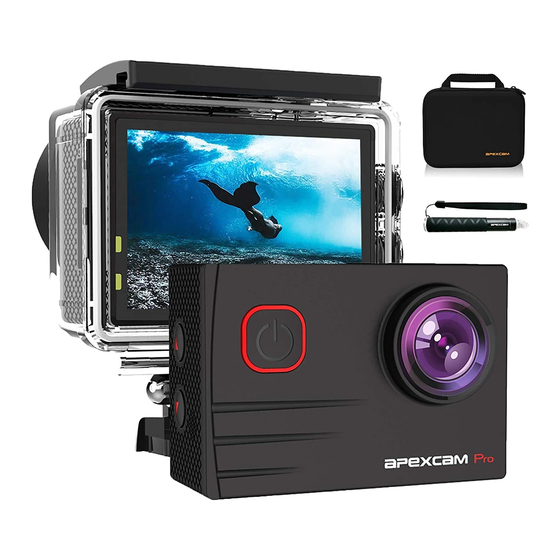

apexcam M90 Pro User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
M90 Pro
ACTION CAMERA

Advertisement

loading
Need help?

Need help?

Do you have a question about the M90 Pro and is the answer not in the manual?

Questions and answers

Related Manuals for apexcam M90 Pro

Summary of Contents for apexcam M90 Pro

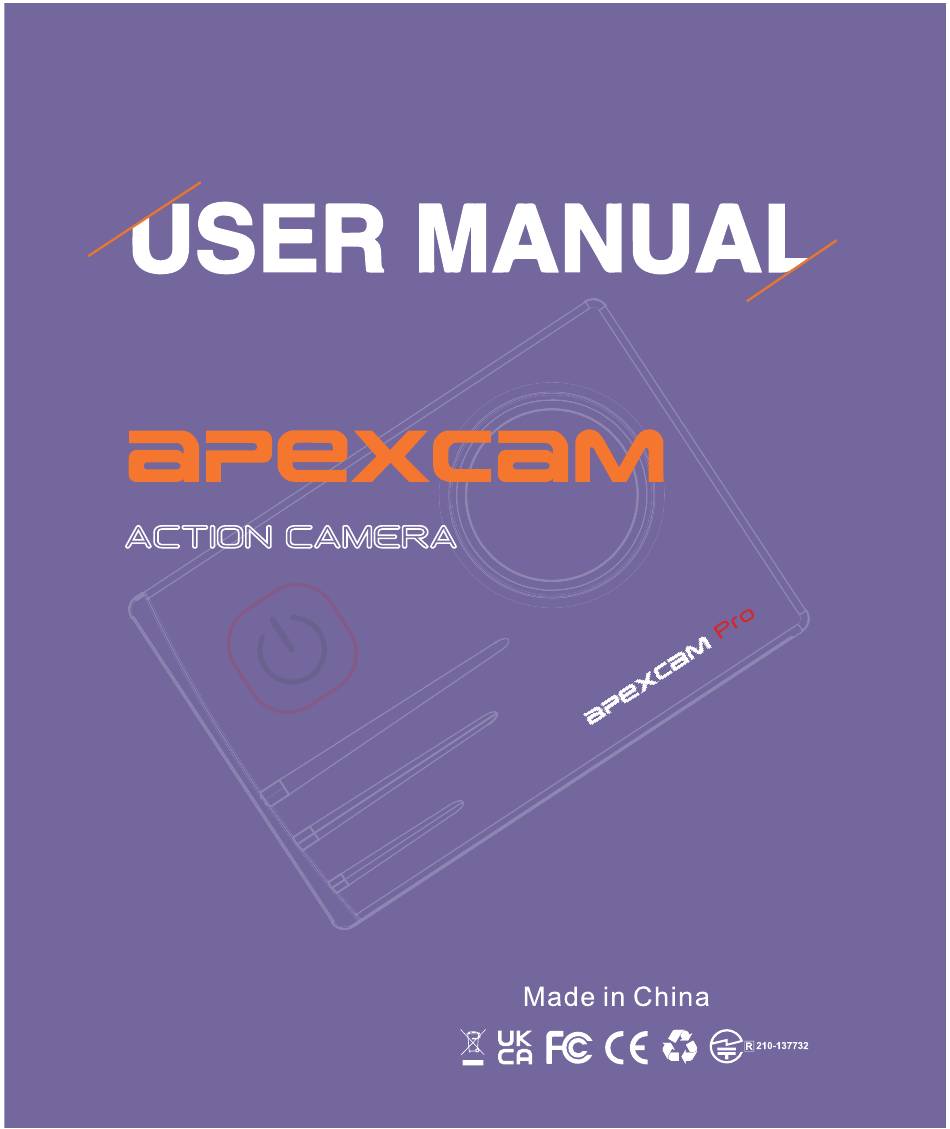

  • Page 1 M90 Pro ACTION CAMERA...
  • Page 2 This device complies with part 15 of the Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 - English: " This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device."...

  • Page 4: Table Of Contents

    Video Playback Mode...............14 Video Setting Mode..............15 Photo Mode................15 Photo Playback Mode..............16 Photo Setting Mode..............16 General Setting Mode..............17 System Setting Mode...............17 Customizing Your M90 Pro Video Setting................19 Photo Setting................20 General Setting................21 System Setting.................22 WIFI and Other Functions Connecting To The Live DV App.............26 Playing Back Your Content..............28...

  • Page 5: Introduction

    Introduction Dear customer, We really appreciate it that you choose apExcam among so many brands. apExcam has been attaching great importance to product qualiy and customer satisfaction.We sincerely hope you can make a few suggestions during your use to help us improve our products.

  • Page 6: Part Designations

    Part Designations Lens Micro USB Port MicroSD Slot Power / Mode / Exit Button Micro HDMI Port Micro Microphono Interface Shutter / Select Button Up / WiFi Button Screen Down Button...
  • Page 7 Part Designations Battery Door...

  • Page 8: Getting Started And Basic Camera Controls

    Getting Started and Basic Camera Controls This chapter describes preparatory steps for shooting and the quick start guide of the camera.

  • Page 9: Getting Started

    Getting Started Welcome to your new M90 pro. To capture video and photos, you need a micro SD card (sold separately). Micro SD Cards Use brand name memory cards that meet these requirements: micro SD, micro SDHC, or micro SDXC...

  • Page 10: Using The Waterproof Case

    Battery Note Charging time: 4-hours for 5V 1A power supply. ■ Please make sure the camera is shuttled down while charging. ■ Charge only with 5V 1A output charger. ■ Remove the battery before using as a dash camera and use 5V/1A ■...
  • Page 11 Using the Waterproof Case Open The Waterproof Case CloseThe Waterproof Case...
  • Page 12 Using the Waterproof Case Note In order to capture a clear video or photo, please tear off the lens ■ protection film of the waterproof shell before use, and protect well the lens window from scratch after use. Before sealing the waterproof case, keep the camera housing’s ■...

  • Page 13: Quick Guide

    Quick Guide POWERING ON + OFF To Power On: Press and hold the Mode button for three ■ seconds. The camera beeps while the camera status light is on. When information appears on the LCD display or the camera status screen, your camera is on.

  • Page 14: Overview Of Modes

    Overview Of Modes There are 8 modes: Video, Photo, Video Playback, Photo Playback, Video Setting,Photo Setting, General Setting and System Setting.

  • Page 15: Video Mode

    Video Mode Video Mode is the default mode when you turn on the camera. In Video Mode, Press Shutter button, the camera starts recording video. Press Shutterbutton to stop recording video. Video Playback Mode Press Mode button several times to switch to Video Playback Mode. In Video Playback Mode, press the Up / Down button to scroll through the video files.

  • Page 16: Video Setting Mode

    Video Setting Mode Press Mode button several times to switch to Video Setting Mode. Mode Photo Press Mode button once to switch to Photo Mode after you turn on camera. In Photo Mode, press Shutter button, the camera takes a photo.

  • Page 17: Photo Playback Mode

    Photo Playback Mode Press Mode button several times to switch to Photo Playback Mode. In Photo Playback Mode, press the Up / Down button to scroll through the Photo files. Press Shutter button to open photo in full-screen view. Press and hold the Up button for 3 seconds to delete the photo.

  • Page 18: General Setting Mode

    General Setting Mode Press Mode button several times to switch to General Setting Mode. System Setting Mode Press Mode button several times to switch to System Setting Mode.

  • Page 19: Customizing Your M90 Pro

    Customizing Your M90 Pro You can start setting up your M90pro. You can choose the appropriate language, video resolution, camera pixel size, etc.

  • Page 20: Video Setting

    Video Setting Video Resolution: 4K/30FPS, EIS 4K/30FPS, 2.7K/30FPS, 1080P/ 60FPS, 1080P/30FPS, 720P/120FPS Default setting is 4K/30FPS. Note When capturing video at high resolutions or high frame rates in ■ warm ambient temperatures, the camera may become warm and use more power. EIS: On / Off Default setting is off.

  • Page 21: Photo Setting

    Video Setting Time Lapse Video: Off / 1 Sec. / 5 Sec. / 10 Sec. / 30 Sec. / 60 Sec. Default setting is off. Time Lapse Video creates video from frames captured at specific intervals. This option lets you capture a time lapse event and immediately view or share it as a video.

  • Page 22: General Setting

    Beep: On / Off Default setting is on. Sets the volume of your M90 Pro's alerts. Exposure: 2 / 1.7 / 1.3 / 1 / 0.7 / 0.3 / 0 / -0.3 / -0.7 / --1 / -1.3 / -1.7 Default setting is 0.

  • Page 23: System Setting

    Power Off: Off / 1 Min. / 3 Min. / 5 Min. Default setting is 3 minutes. Powers off your M90 Pro after a period of inactivity to save battery life.
  • Page 24 System Setting Date & Time: MM / DD / YY, HH / MM / SS The date and time are automatically updated when you connect your camera to the Live DV app. However, you can manually change these settings, if needed. Note If the battery is removed from the camera for an extended period of ■...
  • Page 25 Reset: Yes / No This option resets all settings to their default values. FM Version: Brand / Model / Version / Updated You can check the brand, model, version and updated time of your M90 pro. H O L A...

  • Page 26: Wifi And Other Functions

    WIFI and Other Functions In this chapter, you will learn how to establish a WLAN connection. how to play back your content on the camera’s LCD display, your computer, TV, or smartphone / tablet.

  • Page 27: Connecting To The Live Dv App

    Connecting To The Live DV App The Live DV app lets you control your camera remotely using a smartphone or tablet. Features include full camera control, live preview, playback and sharing of content. Download Live DV app to your mobile device from the Apple App Store or Google Play.
  • Page 28 Connecting To The Live DV App Note If you cannot offload videos or photos to iPhone or iPad, please ■ enter Setting -> Privacy -> Photos , find "Live DV" and select "Read and Write". You cannot download 4K or 2.7K video to iPhone and iPad via Wi-Fi ■...

  • Page 29: Playing Back Your Content

    Viewing Videos And Photos On Your M90 Pro Enter Video or Photo playback mode. If your micro SD card contains a lot of content, itmight take a minute for it to load.

  • Page 30: External Mic

    Deleting Videos And Photos Press the Up / Down button to locate the file you want to delete. Press and hold the Up button for 3 seconds. The screen shows ‘Delete Selected File? YES / NO’. Press Shutter button, the selected file will be deleted. External Mic Insert the external MIC to DC2.5 MIC port, the camera Will automatically switch to record the sound from the external MIC.

  • Page 31: 2.4G Remote

    2.4G Remote Video To record Video, verify the camera is in Video mode. To start recording: ■ Press the Grey Video Button. The camera will emit one beep and the camera light will flash while recording. To stop recording: ■ Press the Grey Video Button again.
  • Page 32 2.4G Remote Lift the PCB board and slide out the battery, as shown in the picture. Note Do NOT rotate the PCB board to avoid reversing the camera and ■ video button functions. Install the new battery, keeping the “+” pole facing up. Install all 4 screws back onto the PCB board.
