Summary of Contents for Xiaomi mi 2S
- Page 1 Motion Sensor 2S User Manual •...
-
Page 2: Product Overview

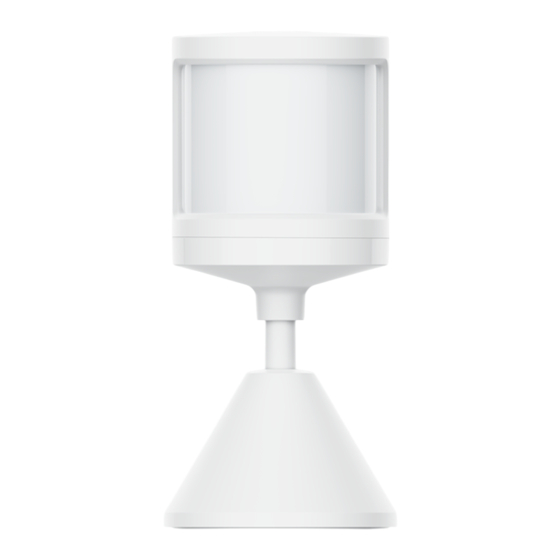

Product Overview Xiaomi Motion Sensor 2S can detect human motions and ambient light intensity, and send the detection results to the Xiaomi Home app through a nearby gateway for interaction with other products. Note: The motion sensor must be used with Bluetooth Mesh gateways, such as Xiaomi Home Hub 2. - Page 3 Or 171190D5 search for "Xiaomi Home" in the app store to download and install it. Open the Xiaomi Home app, tap "+" on the upper right, and then follow the instructions to add your device.
- Page 4 Bluetooth gateway properly at the desired location before installing and fastening the sensor. Open the Xiaomi Home app, and go to the plugin homepage of the motion sensor. You can start using the motion sensor after "Connected" is displayed below its name.
- Page 5 When the sensing signals of the motion sensor encounter glass, they cannot penetrate the glass but will be reflected. These signals are more easily captured in the high-sensitivity mode. Please take the above factors into consideration during installation. 130° Effective Detection Area (Top View) 25°...
-
Page 6: Replacing The Battery
Replacing the Battery Hold the motion sensor's body and press the battery cover lock. Rotate the motion sensor's body or the battery cover in the direction illustrated to open the battery compartment. Then, replace the CR2450 battery with a new one. Make sure that the positive side of the battery faces outwards. - Page 7 Sensing Settings Sensing sensitivity: The high-sensitivity detection mode can be enabled in the Xiaomi Home app for the motion sensor, which leads to higher power consumption and shorter battery life. In the high-sensitivity detection mode, the motion sensor can detect smaller motions than human movements, so that these motions will not be ignored in specific...
-
Page 8: Specifications
Specifications Model: XMPIR02SGXS Item Dimensions: Φ32.5 × 69.5 mm Net Weight: 19 g Rated Voltage: DC 3V Battery Type: CR2450 Detection Range: Approx. 7 m Detection Angle: Approx. 130° Operating Temperature: -10°C to 45°C Operating Humidity: ≤ 95% RH (non-condensing) Wireless Connectivity: Bluetooth 5.0 Operating Frequency: 2400MHz~2483.5MHz Maximum Power: <20dBm/(100mw)(e.i.r.p) - Page 9 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by [Xiaomi Inc.] is under license. Other trademarks and trade names are those of theirrespective owners.
-
Page 10: Weee Information
WEEE Information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. -
Page 11: Warranty Notice
Under the consumer warranty, to the fullest extent permitted by law, Xiaomi will, at its discretion, repair, replace or refund your product. Normal wear and tear, force majeure, abuse or damage caused by the user's negligence or fault are not warranted. - Page 12 The present warranties do not apply in Hong Kong and Taiwan. Products which were not duly imported and/or were not duly manufactured by Xiaomi and/or were not duly acquired from Xiaomi or a Xiaomi’s official seller are not covered by the present warranties. As per applicable law you may benefit from warranties from the non-official...
