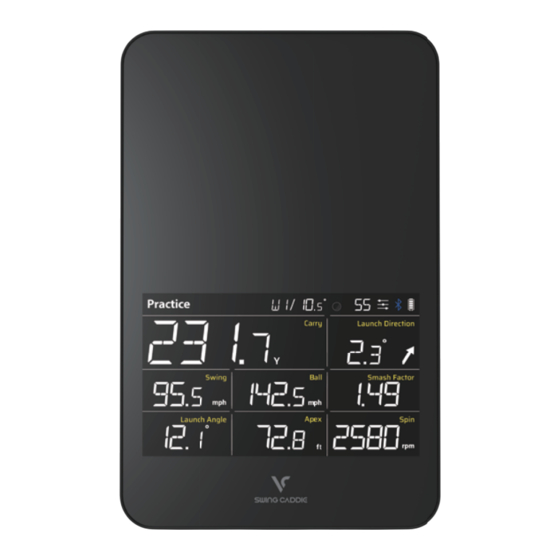

Voice Caddie SC 4 PRO User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
VOICECADDIE S App Download
Android
iOS
www.voicecaddie.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC 4 PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Voice Caddie SC 4 PRO

Summary of Contents for Voice Caddie SC 4 PRO

  • Page 1 User Manual VOICECADDIE S App Download Android www.voicecaddie.com...
  • Page 2 Perfect Spin 1. Provides Complete Ball and Club Launch Data Metrics � Device - Carry / Total Distance (Carry+Run) - Launch Angle - Swing Speed - Smash Factor - Ball Speed - Apex - Launch Direction - Spin � VOICECADDIE S ( APP ) - Side Spin - Spin Axis - Back Spin...

  • Page 3: Package Contents

    Package Contents - SC4 PRO, Remote Control, USB Cable, User Guide * Optional Accessories : Alignment Stand for SC4 PRO and Pouch are sold separately. Product Display and Aspects (Front Side) * Remove the LCD protective film on the front side prior to initial use 1.
  • Page 4 2. LED Indicators Device in Use LED Status Status Description Ready Green Sleep Mode Flashing Blue Bluetooth in Pairing Mode Unsuccessful Bluetooth Connection Blue Successful Bluetooth Connection Deleting Previous Shot Data Flashing Red Low Battery Warning Firmware is Updating Flashing Green Uploading Shot Data to the App Charging LED Status...
  • Page 5 Product Aspects (Back Side) Underneath The Stand Device Buttons and Output 1. Power/+ : Device turned on / off by pressing the [Power/+] button for 2 seconds. Press the [Power/+] button briefly to increase volume. 2. Settings/- : Change the setting by pressing the [Settings/-] button for 2 seconds. Press the [Settings/-] button briefly to decrease volume.

  • Page 6: Remote Control

    Remote Control Club Selection (Via Remote) - DRIVER : W1(DRIVER) Function/ - FAIRWAY WOOD : － W3 － W4 － W5 － W6 － W7 － Selection - UTILITY : － U3 － U4 － U5 － U6 － U7 － Buttons - IRON : －...

  • Page 7: Club Selection

    Basic Usage of Device Buttons Button One Click Press(2 seconds) Press(6 seconds) Increase Reset Power / + Power(On/Off) Volume Decrease Club Selection - Mode Selection - Settings / - Shot Count Reset Volume Set Target Distance Club Selection - SC4 PRO Unit : Press [Settings] button for 2 seconds to select club. When selected club is flashing, select club with [+/-] buttons [ ↔...
  • Page 8 Data Accuracy - Ball Speed : +/- 1 mph - Launch Angle : +/- 1° - Club Speed : +/- 3 mph - Launch Direction : +/- 1° Shot data effective measurement range Effective Measurement Range - W1: 54 yds < - Wood/Util : 49 yds <...

  • Page 9: Practice Mode

    Practice Mode - Displays immediate feedback: Carry/Total Distance, Launch Direction, Swing Speed, Ball Speed, Smash Factor, Launch Angle, Apex, Spin - Smash Factor Data will not be displayed if below 1.0 - Spin Data (Wedges): Displayed when using PW. Not displayed when using GW, SW, and LW.

  • Page 10: Target Mode

    Target Mode - Set Target Distance (15 - 195 yards) · SC4 Unit : In Target Mode, press [Settings] button 3 times. Set distance with [+/-] buttons · Remote Control : Set with [+/-] of [Target] button - (Note) Smash Factor is not displayed in Target Mode - (Note) Spin data is not displayed when using GW, SW, and LW Detailed Data Description (Based on Sample Above) - Target Distance : 75 yards...
  • Page 11 Swing Speed Practice / Training Mode - Swing Speed measured without ball strike...
  • Page 12 Positioning and Alignment 1. Unfold the stand and place on the ground 5ft behind ball and/or tee 2. Proper Angle Position: Adjust the stand of the product until 0 shows on the display 3. Alignment/Positioning: Align the ball/tee and the red alignment line on top of the unit (Incorrect alignment can reduce the accuracy of data) Proper Angle Placement Adjust Alignment Line...
  • Page 13 Alignment Tips - The SC4 PRO measures both the ball and club head from swing to impact to ball flight to provide precise measurements - Proper placement of the unit is necessary to provide the most accurate readings, which entails placing the unit : ·...
  • Page 14 VOCIECADDIE S(App) Key Features - Real-Time 3D Driving range - My Bag Customization - Shot list - Data and Analysis - Swing speed Mode Connect App(iPhone/iPad) * Android will be supported later 1. Install and run the [VOICECADDIE S] app from the smartphone app store. 2.
  • Page 15 Connect App (iPhone/iPad) 6. Tap the upper right corner of the main screen after logging in (PIN: 972354). 7. Enter the PIN in the app and tap the confirm button. 8. Bluetooth connection completed. ※ Once initial connection is completed, the device will automatically reconnect when the App is opened.
  • Page 16 Real-Time 3D Driving Range - Available when accessing the Main Menu > Practice menu - Real-time shot practice available for each club - Real-time shot data provided - Background, camera angle, and replay function available - Shot list displayed...
  • Page 17 Shot List - Tap the shot list button located at the top of the screen ① Choose the date ② Select the club to display ③ Show only bookmarked shots ④ Swipe left to delete shots...

  • Page 18: Screen Selection

    Screen Selection - Select the screen you want to view from the practice menu. - Nine practice screens are available, with the potential for more to be added. 1. Tap the menu button at the top left of the practice screen. 2.

  • Page 19: Split View

    Split View - You may switch between full-screen and split-screen modes. - You may configure up to 9 screens as per your preference. - To switch from full screen to split screen, tap the zoom-out button located in the upper right corner. - In split screen mode, tap the expand button in the upper right corner to switch back to full screen.
  • Page 20 Club Change and Target Mode - Tap the club button in the bottom right corner of the practice menu. - Select the desired club on the club selection screen. - Switch to target mode when selecting target ON. (this feature is only available for irons and wedges)
  • Page 21 Statistics - Available under Main Menu > Statistics - Provides statistical data - By period/club - With trend graphs and data tables.

  • Page 22: Firmware Update

    Firmware Update - Using the app 1. Connect SC4 PRO via Bluetooth. 2. Go to the Main Menu and select the Update Tab. 3. The update button will activate if there is a firmware update available. 4. Tap the Update button. 5.
  • Page 23 1. Download the VC Manager from the Voice Caddie website(Windows, Mac OS) 2. Run the VC Manager 3. Register for a Voice Caddie account or log in if already a member 4. Turn off the SC4 PRO and connect to a PC via USB 5.

  • Page 24: Specifications

    Specifications Frequency K Band 24 GHz Sensor Method Doppler Radar Sensor Battery Lithium-ion Rechargeable Battery 7,500 mAh Charging Time Approx. 6 hours (Full Charge) Power Approx. 10 hours Usage Time (Dependent Upon Usage Conditions) 4.9" (W) x 7.6" (H) x 1.1" (D) Dimension Approx.

  • Page 25: Warranty

    If a defect is deemed to exist, at its discretion, Voice Caddie could (1) Repair the product at no charge or (2) Exchange the product with a product that is new or refurbished. If Voice Caddie initially approves a return, it shall have no obligation to repair, replace or refund until the defective product is received , is evaluated, and determined to fall under the guidelines of repair/replacement.
  • Page 26 Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. ...
