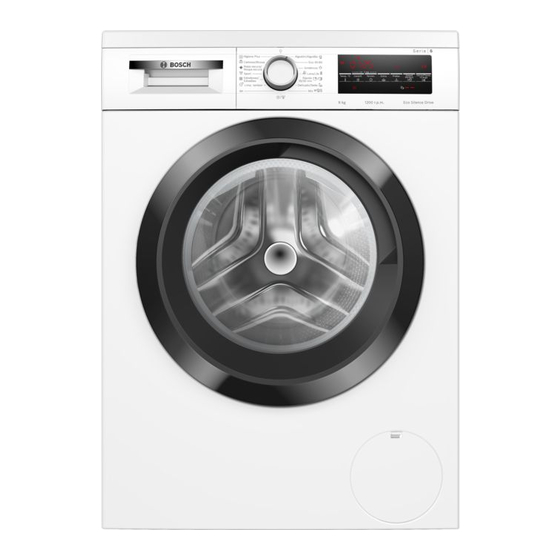

- Page 1 Washing machine WUU24T64ES [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Buttons ........ 21 1.1 General information.... 4 9 Programmes ...... 22 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 10 Accessories...... 26 1.4 Safe installation ...... 5 11 Laundry........ 26 1.5 Safe use ........ - Page 3 15 Basic settings...... 31 15.1 Overview of the basic set- tings........ 31 15.2 Changing the basic set- tings........ 31 16 Cleaning and servicing ... 31 16.1 Cleaning the drum.... 31 16.2 Cleaning the detergent drawer........ 32 16.3 Cleaning the drain pump.. 33 17 Troubleshooting...... 36 17.1 Emergency release ....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety WARNING ‒ Risk of injury! The heavy weight of the appliance may result in injury when lifted. ▶ Do not lift the appliance on your own. If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall. ▶...
-
Page 7: Safe Use
Safety en ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. - Page 8 en Safety WARNING ‒ Risk of poisoning! Detergents and care products may result in poisoning if con- sumed. ▶ If accidentally swallowed, seek medical advice. ▶ Keep detergents and care products out of the reach of children. WARNING ‒ Risk of explosion! Laundry that has been pretreated with flammable cleaning agents that contain solvents may cause an explosion in the appliance.
-
Page 9: Safe Cleaning And Maintenance
Safety en 1.6 Safe cleaning and maintenance WARNING ‒ Risk of electric shock! Improper repairs are dangerous. ▶ Never make any technical modifications to the appliance or its features. ▶ Repairs to the appliance should only be carried out by trained specialist staff. ▶ Only use genuine spare parts when repairing the appliance. ▶... -
Page 10: Preventing Material Damage
en Preventing material damage If the water pressure is too high or Preventing material damage 2 Preventing material too low, the appliance may not be able to operate properly. damage Ensure that the water pressure in ▶ the water supply system is at least Preventing material damage ATTENTION! 100 kPa (1 bar) and max. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Environmental protection and saving energy Installation and connection 3 Environmental protec- 4 Installation and con- tion and saving energy nection Environmental protection and saving energy Installation and connection 3.1 Disposing of packaging 4.1 Unpacking the appliance The packaging materials are environ- ATTENTION! mentally compatible and can be re- Objects remaining in the drum that... -
Page 12: Requirements For The Install- Ation Location
en Installation and connection Replace the accessories in ques- If the appliance is tilted at an angle ▶ tion before operating the appli- greater than 40°, residual water may ance. leak out of the appliance and cause → "Accessories", Page 26 material damage. Tilt the appliance carefully. -
Page 13: Removing The Transit Bolts
Installation and connection en Unscrew and remove all of Installation loca- Requirements the screws for the 4 transit bolts tion using a WAF 13 wrench. Against a wall Do not trap the power cord or the hoses between the wall and the appli- ance. -
Page 14: Connecting The Appliance
en Installation and connection Put on the 4 cover caps. Connect the water inlet hose to a tap (26.4 mm = 3/4"). Push the 4 cover caps downwards. Open the water tap carefully and check that the connection points are tight. Water outlet connection types This information is intended to help you to connect this appliance to the water outlet. -
Page 15: Aligning The Appliance
Installation and connection en 4.6 Aligning the appliance Sink Fix and secure the water outlet In order to reduce noise and vibra- hose with an el- tion and to prevent the appliance bow. from moving, align the appliance cor- → "Accessories", rectly. Page 26 Use a WAF 17 wrench to loosen the lock nuts in a clockwise direc- Plastic pipe with... -
Page 16: Before Using For The First Time
en Before using for the first time Use a WAF 17 wrench to tighten Pour approx. 1 litre of tap water the lock nuts against the housing into compartment II. until they are hand-tight. Add washing powder containing In doing so, hold the foot tight and oxygen bleach to compartment II. -
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en Familiarising yourself with your appliance 6 Familiarising yourself with your appliance Familiarising yourself with your appliance 6.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. -
Page 18: Control Panel
en Familiarising yourself with your appliance Measuring aid for liquid deter- gent → "Inserting the measuring aid", Page 28 Compartment II: Detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash 6.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. -
Page 19: Display
Display en Display 7 Display The display shows the current settings, options or relevant information. Display Depending on the programme status, the display shows some information in area, e.g. . Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. - Page 20 en Display Display Description Programme status: Spinning – – – – Programme status: Rinse hold Programme status: Programme end ¡ Lights up: The childproof lock is activated. ¡ Flashes: The childproof lock is activated and the appli- ance has been operated. → "Deactivating the childproof lock", Page 30 (Prelav.
-
Page 21: Buttons
Buttons en Buttons 8 Buttons The selection of programme settings depends on the programme that is set. Buttons Button Selection More information Inicio/Pausa + ¡ Start Start, cancel or pause the pro- Carga gramme. ¡ Cancel ¡ Pause SpeedPerfect ¡ Activate Activate or deactivate a shorter pro- gramme duration. -
Page 22: Programmes
en Programmes Programmes 9 Programmes Programmes Notes ¡ The laundry's care labels provide you with additional information about pro- gramme selection. ¡ The programme's temperature setting guarantees that the recommended temperature on the care label is not exceeded. The temperature that is reached in the appliance may differ from the set temperature. - Page 23 Programmes en Programme Description Max. load (kg) Delicado/ Wash delicate, washable items made from silk, vis- Seda cose and synthetic fabrics. Use a detergent that is suitable for delicates or silk. Note: Wash especially delicate items or items with hooks, eyelets or clips in a mesh laundry bag. Tip: Gently cleaning the laundry reduces abrasion of textile fibres and microplastic fibres.
- Page 24 en Programmes Programme Description Max. load (kg) Programme setting: ¡ Max. 60 °C ¡ Max. 800 rpm Sport Wash sports and leisure items made from synthetic fabrics. Use a detergent that is suitable for sports items. Do not use fabric softener. Tip: Use the Sintéticos programme to wash heavily soiled laundry.
-
Page 25: Laundry
Programmes en Programme Description Max. load (kg) Use washing powder containing oxygen bleach. Add the washing powder containing oxygen bleach to compartment II for the main wash. → Page 17 Halve the amount of detergent to avoid foaming. Do not use fabric softener. Do not use liquid detergent or detergent that is in- tended for woollens or delicates. -
Page 26: Preparing The Laundry
en Accessories Accessories 10 Accessories Use original accessories. These have Accessories been made especially for your appli- ance. Tip: Some accessories are available in other colours. Contact customer service. → Page 42 Order num- Water inlet hose ex- Extend the water inlet hose for cold water WMZ2381 tension or AquaStop (approx. -
Page 27: Detergents And Care Products
Detergents and care products en ¡ Wash large and small items of Basic operation 13 Basic operation laundry together ¡ Wash laundry with fresh stains im- Basic operation mediately 13.1 Switching on the appli- ¡ Pretreat laundry with dried stains ance and wash several times ¡... -
Page 28: Loading Laundry
en Basic operation Open the door. Press down on the insert and re- move the detergent drawer. 13.4 Loading laundry Insert the measuring aid. Note: To prevent creasing, note the maximum load for the programmes. → "Programmes", Page 22 Requirements ¡ The laundry is prepared and sor- ted. -
Page 29: Adding Detergent And Care Product
Basic operation en Slide the measuring aid forwards. a The drum rotates and load detec- tion takes place. This can take up to 2 minutes, after which water enters the drum. a The display shows the programme duration or the programme end time. -
Page 30: Cancelling The Pro- Gramme
en Childproof lock Wipe the rubber gasket dry and re- 13.11 Cancelling the pro- move any foreign objects. gramme Press Inicio/Pausa + Carga Open the door. → Page 27 The appliance door remains locked for safety reasons if the temperature and water levels are high. -
Page 31: Basic Settings
Basic settings en Press Inicio/Pausa + Carga Basic settings 15 Basic settings and, at the same time, turn the programme selector to position 2. You can configure the basic settings Basic settings a The display shows the current for your appliance to meet your value. -
Page 32: Cleaning The Detergent Drawer
en Cleaning and servicing gen bleach or a cleaning agent for Clean the detergent drawer and in- caring for the inside of the appli- sert with water and a brush, and ance. then dry them. → "Accessories", Page 26 16.2 Cleaning the detergent drawer Pull out the detergent drawer. -
Page 33: Cleaning The Drain Pump
Cleaning and servicing en Take the drain hose out of the 16.3 Cleaning the drain pump holder. Clean the drain pump regularly, at least once a year, as well as in the event of faults, e.g. blockages or rat- tling noises. Emptying the drain pump Turn off the tap. - Page 34 en Cleaning and servicing Once emptied, press firmly on the Since water may remain in the locking cap. drain pump, unscrew the pump cap carefully. The filter insert in the pump ‒ housing may become stuck due to coarse particles of dirt. Loosen the dirt and remove the filter insert.
- Page 35 Cleaning and servicing en Insert the pump cap. Switch on the appliance. Pour 1 litre of water into compart- Ensure that the parts of the ‒ ment II. pump cap are correctly as- sembled. Select a suitable programme for draining. → "Programmes", Page 22 Screw the pump cap as far as it will go.
-
Page 36: Troubleshooting
en Troubleshooting Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Improper repairs are dangerous. Never make any technical modifications to the appliance or its features. ▶... - Page 37 Troubleshooting en Fault Cause and troubleshooting E:30 -10 / The water inlet hose is kinked or jammed. Check the installation of the water inlet hose. ▶ → Page 14 The filters in the water inflow are blocked. Clean the filters in the water inflow. ▶...
- Page 38 en Troubleshooting Fault Cause and troubleshooting All other error codes. Malfunction Restart the appliance. If the fault occurs again, disconnect the appliance from the power supply for at least 30 seconds. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. If the fault persists, call customer service.
- Page 39 Troubleshooting en Fault Cause and troubleshooting Drum jerks after the Not a fault. An internal motor test is started. programme starts. No action required. Drum rotates, water Not a fault. Load detection is active for up to 2 does not flow in. minutes.
- Page 40 en Troubleshooting Fault Cause and troubleshooting Creasing. The selected programme is unsuitable for the type of fabric. Set a suitable programme. → Page 22 ▶ A high spin speed is selected. The next time you run a wash cycle, set a lower ▶ spin speed.
-
Page 41: Emergency Release
Transportation, storage and disposal en 17.1 Emergency release 18.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 33 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 42: Disposing Of Old Appliance
en Customer Service 18.4 Disposing of old appli- Customer Service 19 Customer Service ance Function-relevant genuine spare parts Customer Service Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health! -
Page 43: Consumption Values
Consumption values en Consumption values 20 Consumption values The following information is provided in accordance with the EU Ecodesign Consumption values Regulation. The values given for programs other than the Eco 40-60 are indicat- ive only and were determined in accordance with the applicable standard EN60456. -
Page 44: Technical Data
en Technical data Technical data 21 Technical data Technical data Appliance height 84.5 cm Appliance width 59.8 cm Appliance depth 59.0 cm Appliance depth 63.2 cm with door closed Appliance depth 106.3 cm with door open Weight 72.6 kg Maximum load 9.0 kg Mains voltage 220-240 V, 50 Hz Minimum in- 10 A stallation protec- tion... -
Page 48: Looking For Help? You'll Find It Here
Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
