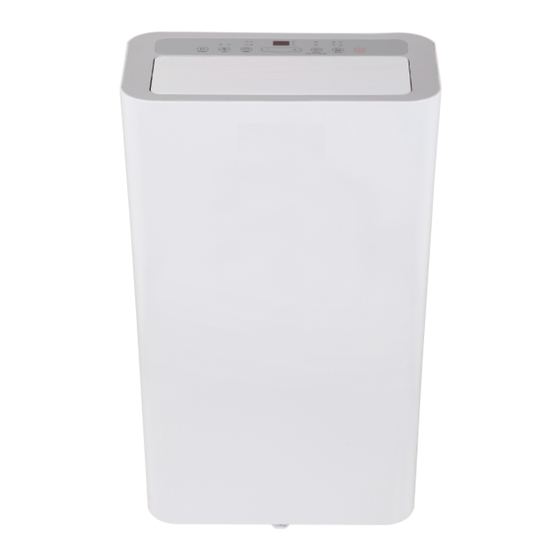

- Page 1 MODELS REFRIGERANT R290 PH26CWF PC35RWF PQ10CWF POLOCOOL Portable Room Air Conditioner Wireless Smart Kit Operation Manual...
-
Page 2: Important Note
IMPORTANT NOTE: Read the manual carefully before connecting your Wireless module. Make sure to save this manual for future reference. Illustrations in this manual are for explanatory purposes. The actual shape shall prevail. Company will not be liable for any issues and problems caused by internet, wireless router and Smart Devices. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATION ................... 4 DOWNLOAD AND INSTALL APP ............4 PREPARATION ..................4 CREATE ACCOUNT ................5 NETWORK CONFIGURATION............5 HOW TO USE APP ................10 SPECIAL FUNCTIONS ..............11 APP DECLARATION ................14... -
Page 4: Specification
1 SPECIFICATION Unit model:XXXXXX Wireless Module Model: EU-SK105, US-SK105 Antenna Type: Printed PCB Antenna Frequency Band: 2400-2483.5MHz Operation Temperature:0 C~45 C/32 F~113 F Operation Humidity: 10%~85% Power Input: DC 5V/300mA Maximum TX Power: <20dBm NOTE: Company will not be liable for any issues and problems caused by Internet, Wireless Router and Smart Devices. -
Page 5: Create Account
4 CREATE ACCOUNT Reminder : When you register to use app, you need read and agree the Data Privacy Notice. Android rgot password? Creat Acc Enter your email address Click “Create Account” and password, and then click “Register” 5 NETWORK CONFIGURATION Cautions It is necessary to forget any other around network and make sure the Android or iOS device just connect to the Wireless network you want to configure. - Page 6 Network configuration by Bluetooth scan Note: Make sure the bluetooth of your mobile device is working. Press “ + Add Device ” Press “Scan for nearby devices” Wait smart devices to find, Select home wireless Wait connecting to the then click to add it network,enter the network password...
- Page 7 Configuration Success,you can see the device on Bluetooth network the list, you can you can modify the default name. configuration is successful, now you can see the device in the list. Network configuration by select appliance type : For Portable AC For Window AC If the bluetooth network cofiguration is failure, please...
- Page 8 horizontal 9:41 Choose Method Scan QR code on the unit Note:Wait5-10 seconds while your device is in AP mode before scanning the QR code. Manual Setup For Window AC For Portable AC Choose the network configuration method. For Portable AC For Window AC Choose the “Scan the QR code”...
- Page 9 For Portable AC For Window AC For Window AC Network configuration is Please enter password successful. Configuration Success, For Portable AC you can see the device in the list. NOTE: When finishing network configuration, APP will display success cue words on the screen. Due to different internet environment, it is possible that the device status still display “offline”...
-
Page 10: How To Use App
6 HOW TO USE APP Please ensure both your mobile device and air conditioner are connected to the Internet before using app to control the air conditioner via internet, please follow the next steps: S I M! Click “Sign in” Choose the air conditioner. -
Page 11: Special Functions
7 SPECIAL FUNCTIONS Schedule Weekly, user can make an appointment to turn on or off AC on specific time. User also can choose circulation to keep the AC under schedule control every week. Sleep User can customize their own comfortable sleep by setting target temperature. -
Page 12: Share Device
Check User can simply check the AC running status with this function. When finishing this procedure, it can display the normal items, abnormal items, and detail information. Share Device The air conditioner can be controlled by multi-users at the same time by Share Device function. - Page 13 The other users must log Now the others can in “Nethome Plus” app add the shared device. first, then click “Add Share Device” on their own mobile, then ask them to scan the QR code.
-
Page 14: App Declaration
8 APP DECLARATION Applicable system:IOS,Android. APP can not support the latest software version of Android and IOS system. Due to special situation may be occurred,we explicitly claims below:Not all of the Android and IOS system are compatible with APP.We will not be responsible for any issue as a result of the incompatibility. -
Page 15: Declaration Of Conformity
Declaration of conformity CONTAINS FCC ID: 2ADQOMDNA21 CONTAINS IC : 12575A-MDNA21 This device complies with Part 15 of the FCC Rules and it contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference;and (2) This device must acceptany interference,including interference that may cause undesired operation of the device. - Page 16 *Cost of a local call may be higher from a mobile phone. (National calls from public phones in Australia are free.) www.mypolo.com.au For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au innai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your innai appliance.
