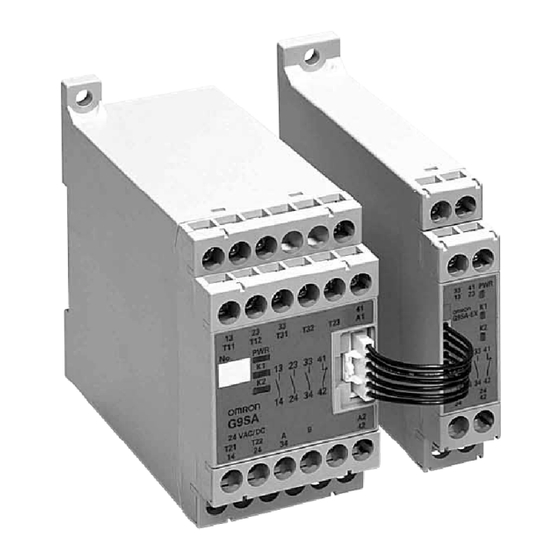

Safety Relay Unit
The G9SA Series Offers a Complete
Line-up of Compact Units.
Four kinds of 45-mm wide Units are available:
A 3-pole model, a 5-pole model, and models with 3
poles and 2 OFF-delay poles, as well as a
Two-hand Controller.
Also available are 17.5-mm wide Expansion Units
with 3 poles and 3 OFF-delay poles.
Simple expansion connection.
OFF-delay models have 15-step OFF-delay
settings.
Conforms to EN standards. (BG approval)
(Approval pending for G9SA-TH301 and AC power
supply models.)
Approved by UL and CSA.
Both DIN track mounting and screw mounting are
possible.
Note: Be sure to refer to the Precautions on page 13.
Ordering Information
Emergency-stop Units
Main contacts
3PST-NO
5PST-NO
Emergency-stop OFF-delay Units
Main
contacts
3PST-NO
Note: The following 15-step OFF-delay time settings are available:
T075: 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, and 7.5 s
T15: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, and 15 s
T30: 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, and 30 s
Two-hand Controller
Main contacts
3PST-NO
Expansion Unit
The Expansion Unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.
Main contacts
3PST-NO
Downloaded from
Elcodis.com
electronic components distributor
Auxiliary contact
Number of input channels
SPST-NC
1 channel or 2 channels
possible
ibl
SPST-NC
1 channel or 2 channels
possible
ibl
OFF-delay
Auxiliary
Number of
contacts
contact
channels
DPST-NO
SPST-NC
1 channel or
2 channels
2 h
possible
possible
Auxiliary contact
Number of input channels
SPST-NC
2 channels
Auxiliary contact
SPST-NC
Rated voltage
24 VAC/VDC
100 to 240 VAC
24 VAC/VDC
100 to 240 VAC
OFF-delay
Rated voltage
input
time
7.5 s
24 VAC/VDC
l
100 to 240 VAC
15 s
24 VAC/VDC
100 to 240 VAC
30 s
24 VAC/VDC
100 to 240 VAC
Rated voltage
24 VAC/VDC
100 to 240 VAC
Model
G9SA-EX301
G9SA
R C
Model
Category
G9SA-301
4
G9SA-501
Model
Category
G9SA-321-T075
Main
contacts:
4
4
G9SA-321-T15
OFF-delay
OFF delay
contacts:
3
3
G9SA-321-T30
Model
Category
G9SA-TH301
4
Category
4
1
