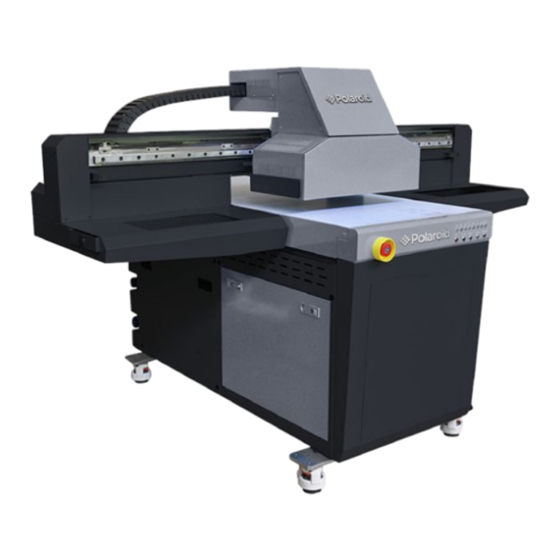

POLAROID MICRO
UV Flatbed Printer
USER MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MICRO and is the answer not in the manual?

Questions and answers

Related Manuals for Polaroid MICRO

Summary of Contents for Polaroid MICRO

  • Page 1 POLAROID MICRO UV Flatbed Printer USER MANUAL...

  • Page 2: Table Of Contents

    Contents Pre-installation requirements ....................3 1.1 The Other devices needed: ..................3 1.2 Working environment requirements …................. 3 1.3 The notes before switch the power on ................. 3 Installation ..........................4 2.1 How to Disable Driver Signature enforcement Windows 10/8 ........4 2.2 Software Installation .......................

  • Page 3: Pre-Installation Requirements

    Part 1: Pre-installation requirements 1.1 The Other devices needed: • A desktop PC-type personal computer Suggested configuration: OS: 64 bits, WINXP/WIN7/WIN8 ✓ Internal RAM memory 4GB or above ✓ HDD of 250GB or larger ✓ CPU: Intel(R) Core (TM) i5-2430M CPU @2.4GHz ✓...

  • Page 4: Installation

    Installation 2.1 How to Disable Driver Signature enforcement Windows 10/Windows8 Step 1: “Setting” Step 2: “Update & Security”...
  • Page 5 Step 3: “Recovery”-“ Restart now” Step 4: “Troubleshoot”...
  • Page 6 Step 5: “Advanced options” Some system needs to click “see more recovery options”...
  • Page 7 Step 6: “Startup settings” Step 7: “restart”...

  • Page 8: Software Installation

    Step 8: press the “F7” or “7” 2.2 Software Installation Open U Disk，Copy the USB drive contents to the computer's non-system disk， 2.2.1 Print software application Installation Open the Print software, find the RYPC application, and send it to the desktop shortcut Printer driver installation 1 The printer driver may be installed automatically once you insert our USB key 2 Right-click My computer →...

  • Page 10: Vc++ Installation

    2.2.2 VC++ Installation...

  • Page 11: Rip Software Installation

    2.2.3 RIP Software Installation Double-click the installer to install the RIP software on a non-system disk in accordance with guidelines.
  • Page 16 Drive settings...

  • Page 17: Rip Software Operation Instructions

    2.2.4 RIP Software operation instructions Open RIP Software，...
  • Page 19 ICC settings...
  • Page 20 Open the picture you want to print. Click on the Print canvas to select the precision pass curve as required。 720*1200 8pass 720*900 6pass 720*600 4pass Create files in PRN format, open （RYPC）print software for printing.

  • Page 21: Gen5 Head Installation

    2.2.5 GH2220 head Installation 1. Installation and fixing (1) Fixing head with Screws.
  • Page 22 (2) Insert the nozzle line into the card slot in the head control Panel...
  • Page 23 (3) Installation completes to open the level two ink stack switch. (4) The machine closes, will two level ink stack switch lay, closes two level ink stack, prevents the ink to flow out.

  • Page 24: Print Software Description

    (5) Pour the corresponding color of ink to Ink tank, please shake up each ink bottle before pour ink. 2.2.6 Print Software Description Waveform loading Open Software Turn off software...
  • Page 25 2. head Status 1. Turn on the machine power. 2. Machine and computer connect USB cable. 3. Open the Print software, normal initialization. 4. Wait for the machine to complete. 5. Press the Ink button. 6. Clean the ink on the head surface with dust-free cloth. 7.
  • Page 26 Anti-dust cloth Print Staus...

  • Page 27: Print Software Parameter Settings And Print Selection

    Print software parameter settings and print selection...

  • Page 29: Deviation Correction

    3 Deviation correction 3.1.1 Vertical correction of head The machine will print as picture above. You need to manually move the head to the printed test diagram as shown.

  • Page 30: Color Calibration Of Xy Direction

    3.1.2 Color calibration of XY direction After you change to the correct value, test again until two colors coincide in the position of the line number 0. 3.1.3 Bidirectional print calibration...

  • Page 31: Head Maintenance

    4. Maintenance After the completion of the daily work, remember to do maintenance. 4.1 Daily maintenance for color heads (CMYK+W) Step1. Close all subtanks; Step2. Clean the head surface by dust-free cotton swab with cleaning liquid. Step3. Down the printer carriage to the lowest position Step4.

  • Page 32: Daily Maintenance For Varnish Printing Head

    4.2 Daily maintenance for Varnish printing head This step is special for varnish printing head. If your printer set up without varnish, please ignore it. Please do following steps to clean the varnish printing head after every daily work. Step1: Close sub-tank, remove the black caps of sub-tank. Step 2: Connect a 10ml syringe with tube, pump air twice.
  • Page 33 Step 3: Pump 10ml clean liquid with syringe, pump once only. Then clean print head surface with anti-dust cloth. Step 4: repeat Step2.pump only air twice, then clean print head surface with anti-dust cloth. Step5: plug the black caps, cleaning process for varnish printing head is finished.

  • Page 34: Photoshop - White Spot Channel

    5. Photoshop - white spot channel Open the picture. Selected image to do a part for the white ink (ctrl+ The left mouse button)
  • Page 35 Make a new channel for white spot. Selected Areas.
  • Page 36 Fill the white spot channel (Alt+backspace)
  • Page 37 Save the picture with tiff type...

  • Page 38: Faq Technical Support

    FAQ Technical Support The Print software password: Engineer Password ：retc_000 User password：000000 6.1 If the carriage can be moved by hand once turn on the printer. Check the emergency stop button (stop), Check whether the server motors are powered on. Make carriage to the middle of the platform (Move X by hand pull the belt for Y asix) Check whether the collision system on both sides.
  • Page 39 6.4 Head Test Statas is not good. repeatedly press ink with cloth wipe clean and then check the test diagram. If the status is no improve by many times repeat (1) need to flush the head (Turn the ink off，Rinse the nozzle with the washing liquid). If a heavy blockage/clogging, requires a new head to be replaced.
  • Page 40 6.5 The head test chart has white ink, but no white ink when printing. When processing the picture without white ink spot color channel RIP software does not choose White. Print software does not choose White. 6.6 Print out the white ink anomaly, sparse. Press ink to print;...
  • Page 41 6.13 The nose cannot be reset to the original point. 1. Check whether the grating head and grating bar is normal, if the grating head crashed or damaged need to be replaced. 2. Check whether there is a foreign body in the grating bar, clean with alcohol. 3.

  • Page 42: How To Adjust Negative Pressure Value Of Positive And Negative Pressure Pump

    6.15 The belt will beep during printing. Rub a small amount of butter on the inside of the strap to evenly distribute the butter inside the belt. 6.16 Turn on the software does not show the connection device after power-on. 1.

  • Page 43: The Location For Main Parts Of The Machine

    Attention: if your machine size is bigger than 1x1.3m, you will see two same negative pump systems. The left one is for varnish and white, right one is for other colors. The location for main parts of the machine...
