Installation and Wiring Instructions

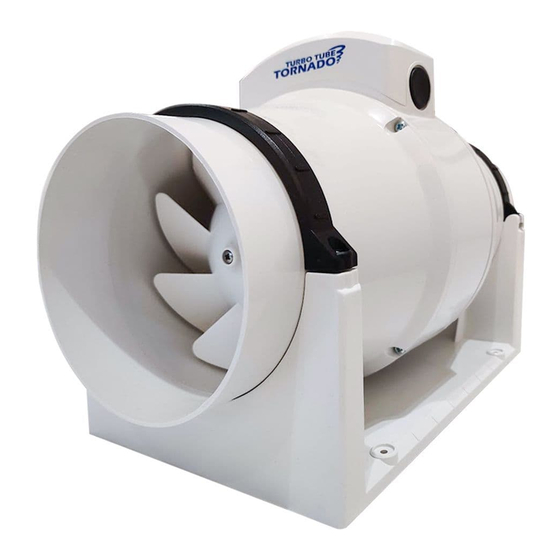

Mixed Flow In-Line Fan Range
TT100PROS - 100mm Standard Fan
TT100PROT - 100 mm Timer Fan
TT150PROS – 150m m Standard Fan
TT150PROT – 150 mm Timer Fan
220-240V~50Hz
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS
IP44
Advertisement
Related Manuals for Tornado TURBO TUBE PRO TT100PROS
Summary of Contents for Tornado TURBO TUBE PRO TT100PROS

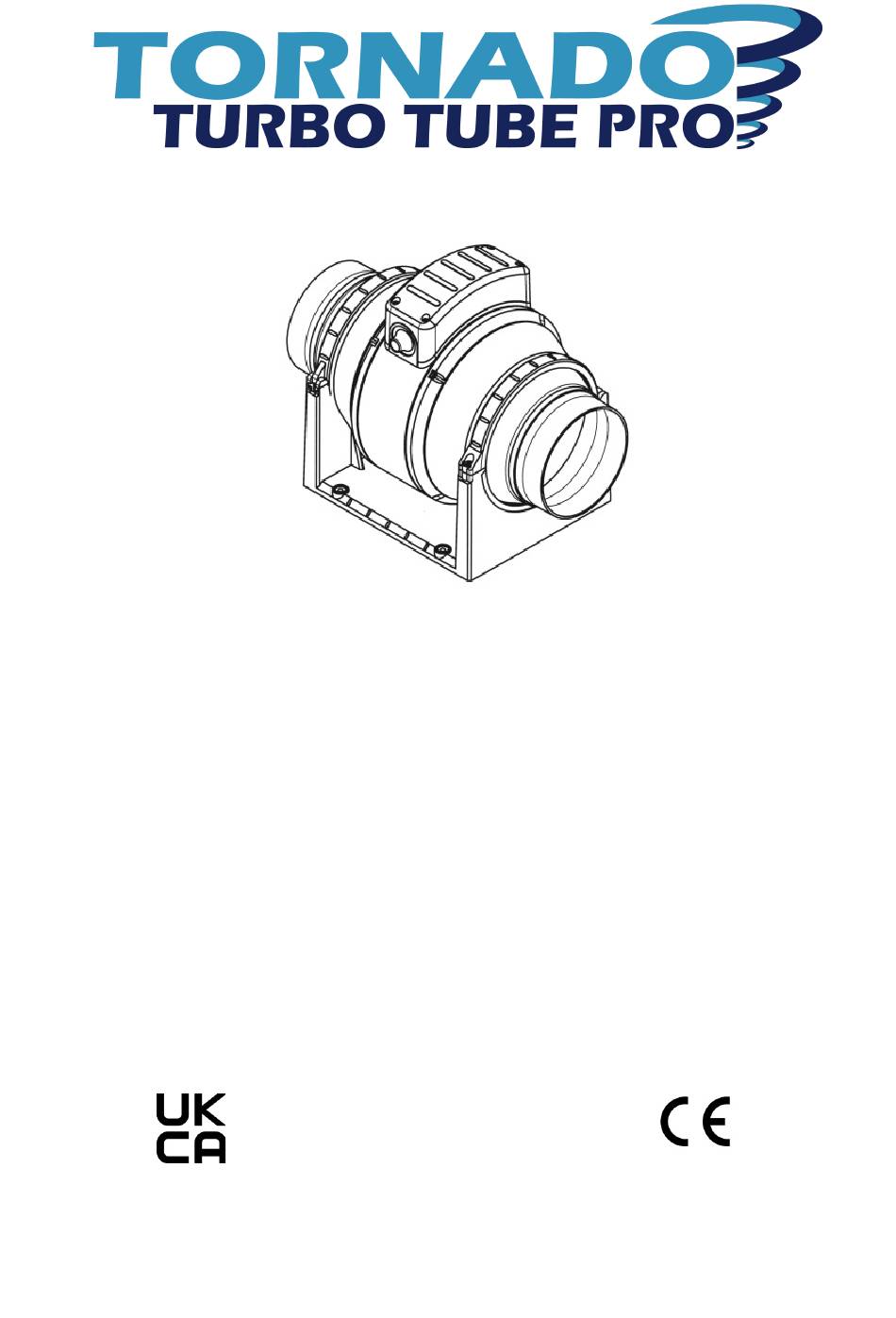

- Page 1 Installation and Wiring Instructions Mixed Flow In-Line Fan Range TT100PROS - 100mm Standard Fan TT100PROT - 100 mm Timer Fan TT150PROS – 150m m Standard Fan TT150PROT – 150 mm Timer Fan 220-240V~50Hz PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS IP44...
-
Page 2: Safety And Guidance Notes
C.Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label. D.The Fan should only be used in conjunction with the appropriate Tornado products. E. It is recommended that the connection to the fan connecter terminals is made with flexible cable. -
Page 3: Installation
INSTALLATION. The unit is designed as an in-line duct fan to be positioned between lengths of ducting. Short duct runs terminating close to the fan (i.e. within 1.5m) must incorporate suitable guards unless the fan is mounted higher than 2.1m above the floor. If flexible ducting is used it should be fully extended to obtain the best results. - Page 4 WIRING. WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE. THE FANS ARE DOUBLE INSULATED AND CARRY A MARK. THERE ARE NO EARTH TERMINALS AND THESE FANS MUST NOT BE EARTHED. 1.
- Page 5 Speed Adjustment The fan has three speeds which are selectable by changing the position of the jumper. The fan is factory set to Setting 3 - High speed. To change the speed setting, pull the jumper off the header pins and place back onto the desired position, see Fig14.
- Page 8 Unit 34, Chess Business Park, Moor Road, Chesham, Buckinghamshire, HP5 1SD 499204A 0422...
