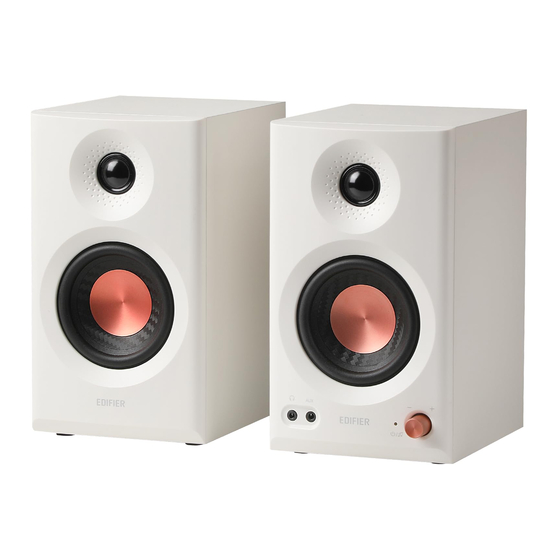

EDIFIER MR3 Manual

EN
1. EDIFIER ConneX app
With this app, you can
•control play from the Bluetooth
source device,
•control the master volume,
•select sound effects or customize EQs,
•perform acoustic tuning,
•upgrade the firmware, and
•more functions.
Download EDIFIER ConneX app
1. With your smart device, scan the QR code on the quick start guide or the
packaging.
•You can also search for "EDIFIER ConneX" in Apple App Store (iOS devices) or
Google Play (Android devices).
2. Download and install the app.
How to use this app
1. Connect your smart device with the speaker via Bluetooth.
2. In Bluetooth mode, open EDIFIER ConneX App on your smart device.
3. Tap the menu for settings and playback control.
2. What's in the box?
Speaker connecting cable
3.5mm to RCA audio cable
3.5mm to 3.5mm audio cable
Power cable
Note:
•Images are for illustrative purpose only and may differ from the actual product.
•For the need of technical improvement and system upgrade, information and
specifications contained herein may be slightly different from actual product. If
any difference is found, the actual product prevails.
3. Cable connection
Note:
•Power input: 100-240V~ 50/60Hz 300mA
•This plug type is meant for illustrative purpose only.
•All audio inputs including Bluetooth connection can be used in parallel.
•The speaker will be muted when you connect your headphone to the "
You can control the headphone volume with the volume knob on the speaker.
4. Mode switch
Press and hold the "
standby mode.
5. Control
Button/Knob
Note: Volume sync is not supported. To adjust the volume, adjust on the speaker
and your device separately.
6. Indicator status
Indicator status
Solid red
Solid green
Solid white
Blinking
Blinking and then in solid
Blinking in red and green
7. Bluetooth connection
1. Press the " " button on the speaker. The indicator will blink.
2. On your device, select "EDIFIER MR3" in its Bluetooth device list to connect.
The indicator will be steadily lit when the connection is established.
•The speaker will automatically reconnect to the last-connected Bluetooth
device after it is switched to work mode. If not, press the " " button on the
speaker to activate the re-connection.
•To disconnect from the current Bluetooth device, press and hold the " " button
on the speaker for 1.5 seconds.
Note:
•Pin code for connection is "0000" if needed.
•To enjoy all Bluetooth functions of this product, make sure that your audio
source device supports A2DP and AVRCP profiles.
•If no device is connected in 3 minutes, the speaker will switch to Bluetooth
hidden mode. In this mode, (1) new devices cannot find the speaker, but (2)
for a device that exists in the pairing record of this speaker, you can select
"EDIFIER MR3" from its Bluetooth device list to reconnect. To exit from
Bluetooth hidden mode, press the " " button on the speaker.
8. Multipoint connection
1 2
This speaker supports the simultaneous connection of two Bluetooth devices.
1. Connect the first Bluetooth device to the speaker.
2. Press and hold the " " button on the speaker for 1.5 seconds.
3. On the second Bluetooth device, select "EDIFIER MR3" in its Bluetooth device
list to connect.
4. On the first Bluetooth device, select "EDIFIER MR3" in its Bluetooth device list
to reconnect.
•Pause or stop playback on the current Bluetooth device before streaming audio
from the second one.
9. Acoustic tuning
By the speaker knobs
"High" knob: Turn the knob to boost or cut high frequencies above 10kHz by ±6dB.
"Low" knob: Turn the knob to boost or cut low frequencies around 125Hz by ±6dB.
By the EDIFIER ConneX App
Low cutoff: Attenuate frequencies lower than the specified frequency (20-100Hz)
at a selected slope (6, 12, 18, or 24dB/octave).
Acoustic space: Select a gain level to compensate for the bass boost, which varies
with speaker placement, 0dB for being in the middle of the room and -4dB for
being in the corner. The closer the speaker is to a wall or corner, the smaller the
value is to be set.
Desktop control: When the speaker is placed on a desktop or an object is placed
in front of it, there may be an apparent increase in the decibel level at certain
frequencies. Enable the feature to mitigate this effect.
10. Specifications
Total output power (RMS): 18W+18W (DRC on)
Frequency response: 52Hz-40kHz
Declaration for EU
Frequency Band: 2.402GHz ~ 2.480GHz
RF Power Output: ≤13 dBm (EIRP)
There is no restriction of use.
11. Troubleshooting
Cannot connect to your Bluetooth device
•Make sure that the distance between this product and your Bluetooth device
is less than 10 meters and there are no obstacles between them.
•Make sure that no device is connected to this product via Bluetooth.
•Make sure that this product is in Bluetooth pairing mode. If not, manually
switch it to this mode.
•Restart this product, enable Bluetooth function on your Bluetooth device,
and then try again.
•Reset this product to factory settings and try again.
No power
•Make sure that the power cable is properly connected.
•Make sure that the power supply is not disconnected.
No sound
•Make sure that this product and your device is properly connected.
•Make sure that the correct audio input source is selected.
•Make sure that the playback is not paused.
•Increase the volume of this product and your device.
Noise coming from speakers
EDIFIER speakers generate little noise, while the background noise of some
audio devices are too high. Please unplug audio cables and turn the volume
up. If no sound can be heard at 1 meter away from the speaker, there is no
problem with this product.
To learn more about EDIFIER, please visit www.edifier.com
For EDIFIER warranty queries, please visit the relevant country page on
www.edifier.com and review the section titled Warranty Terms.
USA and Canada: service@edifier.ca
South America: Please visit www.edifier.com (English) or
www.edifierla.com (Spanish/Portuguese) for local contact information.
Studio Monitor
Passive speaker
*
" knob to switch the speaker between work mode and
Mode
Work mode
Work mode
Work mode
Bluetooth device
connected
Bluetooth hidden
mode
Settings
Bluetooth
DEVICES
EDIFIER MR3
-6dB
-6dB
14:10
MR3
Manual
Press to switch sound effects.
Rotate clockwise to increase volume.
Rotate counterclockwise to decrease
volume.
Press and hold to disconnect the
current Bluetooth device and switch
the speaker to Bluetooth pairing
mode.
Press to exit Bluetooth hidden mode
and enter Bluetooth pairing mode.
Monitor sound effect
Music sound effect
Customized sound effect
Bluetooth pairing mode
Bluetooth device connected
Upgrading the firmware
2:12
Bluetooth
0
High
+6dB
0
Low
+6dB
EDIFIER ConneX app
Active speaker
Quick start guide
Important safety instructions
ON
Action
Speaker status
10kHz
-6dB
125Hz
-6dB
14:10
" port.
1.5s
OFF
1.5s
+6dB
+6dB
