Summary of Contents for IEI Technology AFL4-W07-RK3566
- Page 1 AFL4-W07-RK3566 Panel PC MODEL: MODEL: AFL4-W07-RK3566 7" Fanless Panel PC with RK3566, 2/4GB LPDDR4/4X, 16/32GB eMMC, 1xUSB2.0, 1xUSB3.0, 2xRS-232/422/485, HDMI, 1xRJ45, 12V DC IN, PCAP touch, Debian10/Android12, RoHS. User Manual User Manual Page i Rev. 1.00 - October 29, 2024...
- Page 2 AFL4-W07-RK3566 Panel PC Revision Date Version Changes October 29, 2024 1.00 Page ii...
-
Page 3: Safety Instructions
AFL4-W07-RK3566 Panel PC Safety Instructions Warning! Read the user manual before connecting the system to the power source. Vorsicht! Bitte lesen Sie die Bedienungsanleitung, bevor Sie das System an eine Stromquelle anschließen. Attention! Avant de brancher le système à la source d'alimentation, consultez le mode d'emploi. - Page 4 AFL4-W07-RK3566 Panel PC Warning! Use only the adapter and power cord approved for this system. Use of another type of adapter may risk fire or explosion. Please refer to the user manual for the power adapter specifications. Vorsicht! Nur zugelassene Netzteile und Netzkabel dürfen verwendet werden. Die Benutzung von anderen Netzteilen kann einen Brand oder eine Explosion zur Folge haben.
- Page 5 AFL4-W07-RK3566 Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
-
Page 6: Manual Conventions
AFL4-W07-RK3566 Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. -
Page 7: Table Of Contents
AFL4-W07-RK3566 Panel PC Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 M ....................2 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 F ......................3 RONT ANEL 1.5 R ......................3 ANEL 1.6 B ......................4... - Page 8 AFL4-W07-RK3566 Panel PC 3.12 R ....................31 ESET THE YSTEM 4 CONNECTORS ......................32 4.1 P ..............33 ERIPHERAL NTERFACE ONNECTORS 4.2 I ..............33 NTERNAL ERIPHERAL ONNECTORS Touch Panel Connector (CN3) ................. 34 Debug Port Connector (DEBUG_CN1) ............34 Speaker Connector (SPK1) ................
- Page 9 AFL4-W07-RK3566 Panel PC Cleaning Tools ....................54 7 HAZARDOUS MATERIALS DISCLOSURE ............55 RoHS II Directive (2015/863/EU) ..............56 China RoHS ..................... 57 Page ix...
- Page 10 AFL4-W07-RK3566 Panel PC List of Figures Figure 1-1: AFL4-W07-RK3566 Panel PC ..................2 Figure 1-2: Front View ........................3 Figure 1-3: Rear View ........................3 Figure 1-4: Front Bottom Panel ..................... 4 Figure 1-5: Left Bottom Panel ....................... 4 Figure 1-6: Right Bottom Panel ..................... 4 Figure 1-7: AFL4-W07-RK3566 Dimensions (mm) ...............
- Page 11 AFL4-W07-RK3566 Panel PC Figure 3-25: Drill Pilot Holes for V-Stand ...................29 Figure 3-26: Secure V-Stand to System ..................29 Figure 3-27: Secure V-Stand to Mounting Area .................30 Figure 3-28: Power Button ......................31 Figure 3-29: Reset Button Location ....................31 Figure 4-1: Main Board Layout Diagram (Front Side) ...............33 Figure 4-2: Main Board Layout Diagram (Solder Side) .............33...
- Page 12 AFL4-W07-RK3566 Panel PC List of Tables Table 1-1: Model Variation ......................2 Table 1-2: System Specifications ....................6 Table 2-1: Packing List .........................10 Table 2-2: Optional Items ......................11 Table 4-1: Peripheral Interface Connectors ................34 Table 4-2: Touch Panel Connector (CN3) Pinouts ..............34 Table 4-3: Debug Port Connector (DEBUG_CN1) Pinouts ............34...
-
Page 13: Introduction
AFL4-W07-RK3566 Panel PC Chapter Introduction Page 1... -
Page 14: Overview

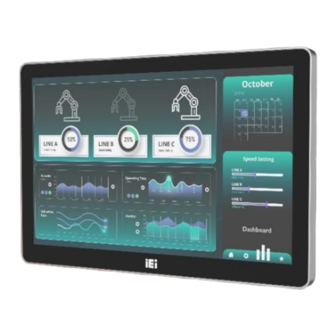

1.1 Overview Figure 1-1: AFL4-W07-RK3566 Panel PC The AFL4-W07-RK3566 is a 7-inch panel PC equipped with Rockchip RK3566 processor. The Rockchip RK3566 is an ARM processor featuring quad-core Cortex-A55, a Mali-G52 GPU, and a 1TOPS NPU. The system comes with options for 2GB or 4GB of onboard memory and 16GB or 32GB of eMMC storage, with the choice of running either Debian or Android as the operating system. -
Page 15: Features
Support gloved and wet Hand operation Support WiFi5/ 6 and Bluetooth®5.0 (optional) 1.4 Front Panel The front side of the AFL4-W07-RK3566 is a panel LCD touchscreen surrounded by an aluminum frame (Figure 1-2). Figure 1-2: Front View 1.5 Rear Panel The rear panel provides access to retention screw holes that support VESA 75 mounting. -
Page 16: Bottom Panel
AFL4-W07-RK3566 Panel PC 1.6 Bottom Panel The bottom panel of the AFL4-W07-RK3566 has the following connectors and switches. Figure 1-4: Front Bottom Panel Figure 1-5: Left Bottom Panel Figure 1-6: Right Bottom Panel Page 4... -
Page 17: System Specifications
AFL4-W07-RK3566 Panel PC 1.7 System Specifications The technical specifications for the AFL4-W07-RK3566 systems are listed in Table 1-2. Specification AFL4-W07-RK3566 AFL4-W07-RK3566-A AFL4-W07-RK3566-2/16GB LCD Size 7" (16:9) Max. Resolution 1024 x 600 Brightness (cd/m Contrast Ratio 800:1 Viewing Angle 170º / 170º... -
Page 18: Table 1-2: System Specifications
AFL4-W07-RK3566 Panel PC Multimedia 1 x Speaker (1W) Audio 1 x 3.5mm audio jack (line out/line in) Switch 1 x Power button with LED Switch 1 x Reset button 1 x USB OTG switch Physical Construction Aluminum die casting Mounting... -
Page 19: Dimensions
AFL4-W07-RK3566 Panel PC 1.8 Dimensions The AFL4-W07-RK3566 dimensions are shown below. Figure 1-7: AFL4-W07-RK3566 Dimensions (mm) Page 7... -
Page 20: Unpacking
AFL4-W07-RK3566 Panel PC Chapter Unpacking Page 8... -
Page 21: Npacking
AFL4-W07-RK3566 Panel PC 2.1 Unpacking To unpack the panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the panel PC has been properly installed. -
Page 22: Packing List
Contact the IEI reseller or vendor the AFL4-W07- RK3566 was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com. 32 6H378 H The AFL4-W07-RK3566 panel PC is shipped with the following components: Quantity Item Image AFL4-W07-RK3566 Panel PC 36W Power Adapter... -
Page 23: Optional Items
AFL4-W07-RK3566 Panel PC 2.3 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image VESA 75 wall mount kit (P/N: AFLWK-12) (P/N: ARM-11) Stand for VESA 75/100 (P/N: STAND-C12) LCD monitor stand with adjustable hinges... -
Page 24: Installation
AFL4-W07-RK3566 Panel PC Chapter Installation Page 12... -
Page 25: Anti-Static Precautions
RK3566 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL4-W07-RK3566. Dry climates are especially susceptible to ESD. It is therefore critical that whenever AFL4-W07-RK3566 is accessed internally, or any other electrical component is handled, the following anti-static precautions are strictly adhered ... -
Page 26: Removing The
Failing to turn off the system before opening it can cause permanent damage to the system and serious or fatal injury to the user. To access the AFL4-W07-RK3566 internally the back cover must be removed. To remove the back cover, please follow the steps below. -
Page 27: Patch Antenna Installation
AFL4-W07-RK3566 Panel PC Figure 3-2: Remove the Back Cover 3.4 Patch Antenna Installation The AFL4-W07-RK3566 provides WIFI and 4G/5G functions for communication, and has two built-in antenna positions where patch antennas can be installed. The installation steps are as follows. -
Page 28: 5G Module Installation
4G/5G or WIFI module. Figure 3-5: Route Antenna to the Module 3.5 M.2 4G/5G Module Installation To install a M.2 module into the AFL4-W07-RK3566, please follow the steps below: Step 1: Remove the back cover. See Section 3.3. Step 2: Locate the M.2 card slot. -
Page 29: Figure 3-6: M.2 Module Slot Location
AFL4-W07-RK3566 Panel PC Figure 3-6: M.2 Module Slot Location Step 3: Line up the notch on the M.2 module with the notch on the connector. Slide the M.2 module into the socket at an angle of about 20º. Step 4: Secure the M.2 module with the retention screw. -
Page 30: Iei Board To Board Wifi Module Installation
Replace the back cover and secure it using retention screws. See Section 3.9. 3.6 IEI board to board WIFI Module Installation To install a board to board WIFI Module into the AFL4-W07-RK3566, please follow the steps below: Step 1: Remove the back cover. See Section 3.3 above. -
Page 31: Otg Mode Selection
Replace the back cover and secure it using retention screws. 3.7 OTG Mode Selection The AFL4-W07-RK3566 features a USB OTG mode switch that allows you to change the USB to Device mode, enabling operating system updates by connecting to the computer via a USB cable. -
Page 32: Os Image Program Switch
Figure 3-12: USB OTG Switch Location 3.8 OS Image Program Switch The AFL4-W07-RK3566 can be powered on by holding down the IMAGE_SW1 button, which will enter the system burning mode. In this mode, you can use a USB cable to update the Android or Debian operating system. -
Page 33: Figure 3-14: Software Screen (1)
3-13). Step 4: The RKDevTool will find a maskrom device. Click Run to automatically burn the new operating system to the AFL4-W07-RK3566 product (Debian or Android). Figure 3-15: Software Screen (2) Step 5: After the burning is completed, the device will exit from the software, and the AFL4-W07-RK3566 product will automatically reboot into the new OS (Figure 3-16). -
Page 34: Install The
AFL4-W07-RK3566 Panel PC Figure 3-16: Software Screen (3) Step 6: Turn off the AFL4-W07-RK3566 device, install the back cover, and switch the USB-SW back to HOST mode. You can then use the device normally. 3.9 Install the Back Cover To install the back cover, follow the steps below. -
Page 35: Mounting The System
AFL4-W07-RK3566 Panel PC Figure 3-18: Install the Back Cover 3.10 Mounting the System The methods of mounting the AFL4-W07-RK3566 are listed below. Wall mounting Arm mounting Stand mounting V-Stand mounting The mounting methods are described below. -
Page 36: Figure 3-19: Wall-Mounting Bracket
AFL4-W07-RK3566 Panel PC Figure 3-19: Wall-mounting Bracket Step 6: Insert the four monitor mounting screws provided in the wall mount kit into the four screw holes on the real panel of the panel PC and tighten until the screw shank is secured against the rear panel (Figure 3-19). -
Page 37: Figure 3-20: Chassis Support Screws
(Figure 3-20). Ensure that all four of the mounting screws fit snugly into their respective slotted holes. Always keep the AFL4-W07-RK3566 in landscape orientation when mounting on the wall. NOTE: In the diagram below the bracket is already installed on the wall. -
Page 38: Arm Mounting
Figure 3-21: Secure the Panel PC Arm Mounting The AFL4-W07-RK3566 is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 75 mm interface pad. To mount the AFL4-W07-RK3566 on an arm, please follow the steps below. Step 1: The arm is a separately purchased item. -
Page 39: Stand Mounting
Secure the AFL4-W07-RK3566 to the interface pad by inserting four retention screws through the mounting arm interface pad and into the AFL4-W07- RK3566. Figure 3-23: Arm Mounting Stand Mounting To mount the AFL4-W07-RK3566 using the stand mounting kit, please follow the steps below. Page 27... -
Page 40: V-Stand Mounting
AFL4-W07-RK3566 Panel PC Step 1: Locate the screw holes on the rear of the AFL4-W07-RK3566. This is where the bracket will be attached. Step 2: Align the bracket with the screw holes. Step 3: To secure the bracket to the AFL4-W07-RK3566 insert the retention screws into the screw holes and tighten them. -
Page 41: Figure 3-25: Drill Pilot Holes For V-Stand
AFL4-W07-RK3566 Panel PC Figure 3-25: Drill Pilot Holes for V-Stand Step 2: Align the screw holes on the V-Stand with the VESA mount screw holes on the system rear panel. Step 3: Insert the four VESA mount screws into the four screw holes on the system rear panel. -
Page 42: Powering On The System
Ensure that the power cord is connected to a socket-outlet with earthing connection. Step 2: Connect the power adapter to the power connector of the AFL4-W07-RK3566. The power LED turns on in ORANGE. The device will automatically turn on and the switch light will turn blue... -
Page 43: Reset The System
AFL4-W07-RK3566 Panel PC Figure 3-28: Power Button 3.12 Reset the System The reset button enables user to reboot the system when the system is turned on. The reset button location is shown in Figure 3-29. Press the reset button to reboot the system. -
Page 44: Connectors
AFL4-W07-RK3566 Panel PC Chapter Connectors Page 32... -
Page 45: Peripheral Interface Connectors
AFL4-W07-RK3566 Panel PC 4.1 Peripheral Interface Connectors The AFL4-W07-RK3566 panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 4-1 and Figure 4-2. The connector pinouts for these connectors are listed in the following sections. -
Page 46: Touch Panel Connector (Cn3)
AFL4-W07-RK3566 Panel PC Connector Type Label Touch Panel Connector 4-pin wafer Debug Port Connector 4-pin connector DEBUG_CN1 Speaker Connector 2-pin connector SPK1 Board to Board Connector 40-pin connector OS Image Program Switch Switch IMAGE_SW1 Battery Connector 2-pin wafer BAT1 M.2 B-Key Slot... -
Page 47: Board To Board Connector (Cn2)
AFL4-W07-RK3566 Panel PC Board to Board Connector (CN2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION UART1_RTSn SDMMC1_D0 UART1_TX SDMMC1_D1 UART1_RX SDMMC1_D2 UART1_CTSn SDMMC1_D3 SDMMC1_CMD I2S2_LRCK WIFI2T2R_CLK I2S2_SDO I2S2_SDI WIFI_REG_ON_H I2S2_SCLK WIFI_WAKE_HOST BT_WAKE_HOST 32KOUT_WIFI HOST_WAKE_BT BT_REG_ON WLAN_PEN VCC 3V3 SDIO_INT VCC 3V3... -
Page 48: Battery Connector (Bat1)
AFL4-W07-RK3566 Panel PC Battery Connector (BAT1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION BAT + Table 4-7: 5.2.7 Battery Connector (BAT1) Pinouts LVDS Connector (LVDS2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC_LCD_COM VCC_LCD1 VCC_LCD1 LVDS_RST STBYB TX_D0N TX_D0P TX_D1N TX_D1P TX_D2N... - Page 49 AFL4-W07-RK3566 Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION V3.3 V1.8 USB_+DATA MBK_D USB_-DATA B Key B Key B Key B Key B Key B Key B Key B Key SIM_RST SIM_CLK SIM_IO SIM_VCC PCIE_RX0N PCIE_RX0P PCIE_TX0N PCIE_TX0P PCIE_PERSTn PCIE_CLKREQn...
-
Page 50: External Interface Panel Connectors
V3.3 V3.3 Table 4-9: 5.2.8 M.2 B-Key Slot (NGFF) Pinouts 4.3 External Interface Panel Connectors The table below lists the rear panel connectors on the AFL4-W07-RK3566 motherboard. Pinouts of these connectors can be found in the following sections. Connector Type... -
Page 51: Audio Connector (Audio_Jack1)
AFL4-W07-RK3566 Panel PC COM1 COM2 TXD422+ TXD422+ RS485_DATA1- RS485_DATA2- RS485_DATA1- RS485_DATA2+ Table 4-11: COM1/2 Connector Pinouts Audio Connector (AUDIO_JACK1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION MIC1_INN HPR_OUT HP_DET HPL_OUT Table 4-12: Audio Connector (AUDIO_JACK1) Pinouts Reset Button (RST1) PIN NO. -
Page 52: Sim Card (Sim1)
AFL4-W07-RK3566 Panel PC SIM Card (SIM1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION SIM_RST SIM_CLK SIM_IO Table 4-15: SIM Card (SIM1) Pinouts USB OTG Mode Switch (OTG_ID1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION HOST mode OTG mode (default) Table 4-16: USB OTG Mode Switch (OTG_ID1) Pinouts RJ45 LAN Connector (LAN1) PIN NO. -
Page 53: Usb 2.0 Connectors (Usb_Con1)
AFL4-W07-RK3566 Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION TX0P HPD_PORT HDMI_GND TX0N HDMI_GND TXCLKP HDMI_GND HDMI_GND TXCLKN Table 4-18: HDMI1 Connector (HDMI1) Pinouts USB 2.0 Connectors (USB_CON1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DATA- DATA+ Table 4-19: USB 2.0 Connectors (USB_CON1) Pinouts USB 3.0 Connectors (CON1) -
Page 54: Dc Jack (Pwr1)
AFL4-W07-RK3566 Panel PC DC Jack (PWR1) PIN NO. DESCRIPTION Table 4-22: DC Jack Connector Page 42... -
Page 55: Regulatory Compliance
AFL4-W07-RK3566 Panel PC Appendix Regulatory Compliance Page 43... - Page 56 AFL4-W07-RK3566 Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2014/30/EU) Low-Voltage Directive (2014/35/EU) RoHS II Directive (2015/863/EU) If the user modifies and install other devices in the equipment, the CE conformity declaration may no longer apply.
- Page 57 AFL4-W07-RK3566 Panel PC Česky [Czech] IEI Integration Corp tímto prohlašuje, že tento zařízení je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 2014/53/EU. Dansk [Danish] IEI Integration Corp erklærer herved, at følgende udstyr overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EU.
- Page 58 AFL4-W07-RK3566 Panel PC Malti [Maltese] IEI Integration Corp jiddikjara li dan prodott jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 2014/53/EU. Magyar [Hungarian] IEI Integration Corp nyilatkozom, hogy a berendezés megfelel a vonatkozó alapvetõ követelményeknek és az 2014/53/EU irányelv egyéb elõírásainak.
- Page 59 AFL4-W07-RK3566 Panel PC ROHS STATEMENT The label on the product indicates this product conforms to European (EU) Restriction of Hazardous Substances (RoHS) that set maximum concentration limits on hazardous materials used in electrical and electronic equipment. CHINA ROHS The label on the product indicates the estimated “Environmentally Friendly Use Period”...
- Page 60 AFL4-W07-RK3566 Panel PC FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference ...
-
Page 61: Safety Precautions
AFL4-W07-RK3566 Panel PC Appendix Safety Precautions Page 49... -
Page 62: Safety Precautions
Electric shocks can occur if the AFL4-W07-RK3566 chassis is opened when it is running. To avoid risk of electric shock, this device must only be connected to the mains supply with protective earth. -
Page 63: Anti-Static Precautions
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL4-W07-RK3566. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the AFL4-W07-RK3566 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to. -
Page 64: Product Disposal
AFL4-W07-RK3566 Panel PC Self-grounding: Before handling any electrical component, touch any grounded conducting material. During the time the electrical component is handled, frequently touch any conducting materials that are connected to the ground. Use an anti-static pad: When configuring or working with an electrical component, place it on an anti-static pad. -
Page 65: Maintenance And Cleaning Precautions
Always make sure your hands are dry when unplugging the power cable. Maintenance and Cleaning Prior to cleaning any part or component of the AFL4-W07-RK3566, please read the details below. Except for the LCD panel, never spray or squirt liquids directly onto any other components. -
Page 66: Cleaning Tools
Some components in the AFL4-W07-RK3566 may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the AFL4-W07-RK3566. ... -
Page 67: Hazardous Materials Disclosure
AFL4-W07-RK3566 Panel PC Appendix Hazardous Materials Disclosure Page 55... -
Page 68: Rohs Ii Directive (2015/863/Eu)
AFL4-W07-RK3566 Panel PC RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU). -
Page 69: China Rohs
AFL4-W07-RK3566 Panel PC China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572- 2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 57...
