Summary of Contents for Positive Grid Spark Control X

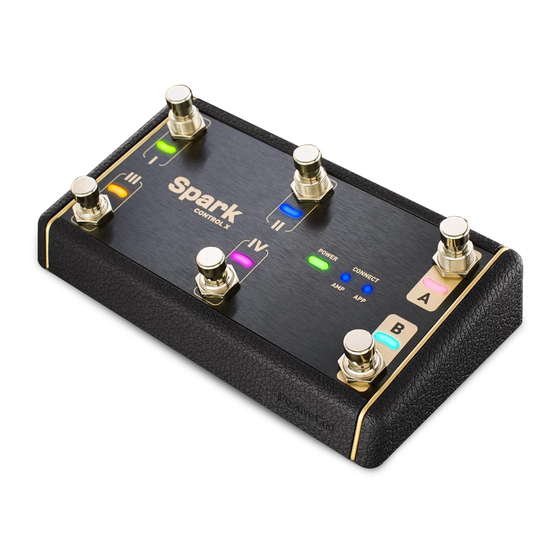

- Page 1 Spark Control X User Manual...
-
Page 2: Table Of Contents
Table of Contents Product Spec Hardware Panel Connect Directly To Spark LIVE Connect To Your Spark Amp Through The Spark App Using The Overlay Factory Default Profiles Connecting Spark Control and Control X to Spark/Spark MINI/Spark GO Customize and Assign Commands Selecting Footswitch Profile Expression Pedal Command Assignment Expression Pedal Calibration... -
Page 3: Product Spec
WIRED CONNECTIVITY INCLUDED IN THE BOX 2 x ¼” Expression Pedal Jacks 1 x USB-C Port BOX CONTENTS WIRELESS CONNECTIVITY Spark Control X Bluetooth 5.0 USB A to C Cable Overlay x 3pcs TRANSMISSION RANGE Quick Start Guide Up to 55 feet (17 meter) line-of-sight... -
Page 4: Hardware Panel
Hardware Panel Main Panel Rear Panel... -
Page 5: Connect Directly To Spark Live
Connect Directly To Spark LIVE Connect Spark Control X directly to your Spark LIVE for quick and easy wireless control. • Step1. Turn on the Spark LIVE and Spark Control X • Step2. Long press the Pair Button on the Rear Panel until both Wireless Indicator LEDs on the Front Panel light up. -
Page 6: Connect To Your Spark Amp Through The Spark App
Step3. You can now customize the switches on your Spark Control X through the Spark app. * If you are connecting to a Spark 40, Spark MINI, or Spark GO, you must connect Spark Control X through the Spark app. -
Page 7: Using The Overlay
Using The Overlays Spark Control X comes with 3 transparent Overlays that can be used to label functions assigned to the footswitches and can be swapped easily. You may also use a marker to make any other notes or diagrams on the Overlays. -
Page 8: Factory Default Profiles
Factory Default Profiles Spark Control X comes with a few pre-programmed profiles that are designed for players to use right out of the box. You can also edit the current profiles or add more profiles from the Spark App. - Page 9 Spark App User Guide...
- Page 10 Connecting Spark Control and Control X to Spark/MINI/GO To connect Spark Control or Control X with your Spark/MINI/GO (Control X will be used moving forward): Connect your phone or tablet to your Spark amp Go to the Menu and tap on “+Spark Control” on the device card Ensure that your Control X is turned on, then tap on Control X on the following page to connect...
- Page 11 Spark Control Family: Customize and Assign Commands Tap on the Control Menu on the top right of the Tone Page to enter the Command Assignment Menu. Tip: the number shown in the icon is showing which footswitch profile number you are currently on To customize which footswitch triggers which action: Tap on the footswitch you would like to customize Tap on a your desired action and tap Done...
- Page 12 Spark Control Family: Selecting Footswitch Profile To select which footswitch profile to use, tap on the Profile Title dropdown menu on the top of the page and tap on your desired profile.
-
Page 13: Expression Pedal Command Assignment
Spark Control X: Expression Pedal Command Assignment Spark Control X supports Expression Pedal inputs to control certain actions To assign a command to connected expression pedals: In the Command Assignment Menu, scroll down and tap on the EXP1 or EXP2 command slots... - Page 14 Spark Control Family: Other Functions Clear All Commands In the Command Assignment Menu, tap on Clear All Commands at the bottom to clear all assigned commands Renaming Profiles Tap on in the Command Assignment menu, then tap on Rename Type in the desired profile name, then tap on “Save” to save the naming...
- Page 15 Spark Control Family: Other Functions Deleting Profiles Tap on in the Command Assignment menu, then tap on Delete and tap on Ok when the next dialog box appears to clear all commands as well as delete the name of the selected Footswitch Profile. Reset Profile Settings Tap on the Profile Title dropdown menu on the top of the page Tap on Reset, then tap Ok to reset all Footswitch Profiles to the factory default settings.
- Page 16 Spark Control Family: Other Functions Device Detail Page Tap on in the Command Assignment menu, then tap Device Details to see information such as battery status and firmware version Control X: Updating Firmware In the Device Detail Page of the connected Control X, tap on Check for Update If an update is available, a dialog will appear to confirm whether you would like to update the firmware.
