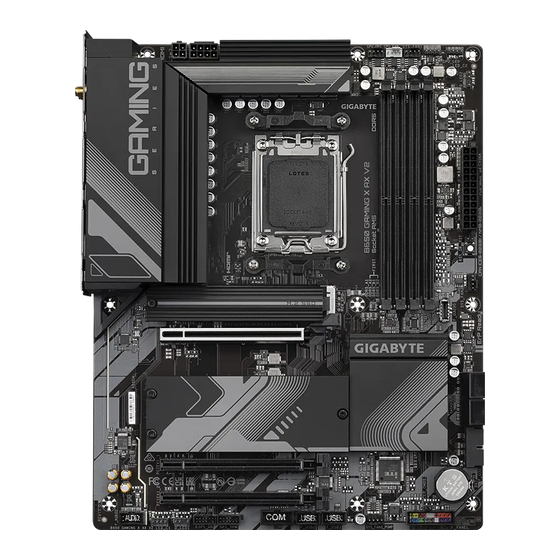

Summary of Contents for Gigabyte B650 GAMING X AX V2
Page 1
User's Manual Rev. 1101 GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page 2
The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
Box Contents 5 B650 GAMING X AX V2 or B650 GAMING X AX motherboard 5 User's Manual 5 Two antennas j 5 Two SATA cables 5 M.2 screw * The box contents above are for reference only and the actual items shall depend on the product package you obtain.
Chapter 2 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...
AMD Ryzen 7000 Series Processors/ ™ AMD Ryzen 8000 Series Processors ™ (Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD B650 Memory Support for DDR5 5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) ...
Page 8
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs ™ AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe ™...
Page 9
ATX Form Factor; 30.5cm x 24.4cm Form Factor * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Only for B650 GAMING X AX V2. & Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version of apps.
Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. j G ently press the CPU socket lever handle down and away from the socket. k C ompletely lift up the CPU socket lock- ing lever.
C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Apply an even and thin layer of thermal grease on the surface of the installed CPU.
Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •...
Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.
, make sure to insert the USB flash drive into this port first. (Note) Only for B650 GAMING X AX V2. • When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.
Page 16
7.1-channel audio, access the audio software for audio settings. & Please visit GIGABYTE's website for details on configuring the audio software. https://www.gigabyte.com/WebPage/697/realtek897-audio.html (Note) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's website for more information. - 16 -...
RST_SW The reset button provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. Status LEDs The status LEDs show whether the CPU, memory, graphics card, and operating system are working properly after system power-on.
Internal Connectors ATX_12V1/ATX_12V M2A_CPU/M2B_CPU/M2C_SB F_PANEL CPU_FAN F_AUDIO SYS_FAN1/2 F_U320G SYS_FAN3_PUMP F_U32 CPU_OPT F_USB1/F_USB2 CPU_LED SPI_TPM LED_C1/LED_C2 D_LED1/D_LED2 CLR_CMOS SATA3 0/1/2/3 Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
Page 19
1/2) ATX_12V1/ATX_12V/ATX (2x2, 2x4, 12V Power Connectors and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and The power connector possesses a foolproof design.
Page 20
The header also provides speed control for a water cooling pump. Please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Smart Fan 6" for more information.
Page 21
LED strip. For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page of GIGABYTE's website. Before installing or removing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
Page 22
LED strip header. Incorrect connection may lead to the damage of the LED strip. For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page of GIGABYTE's website. F_USB3 F_USB30 3 Before installing or removing the devices, be sure to turn off the devices and your computer.
Page 23
1.5Gb/s standard. Each SATA connector supports a single SATA device. The SATA connectors support RAID 0, RAID 1, and RAID 10. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array.
Page 24
M.2 PCIe SSDs. Please note that an M.2 PCIe SSD cannot be used to create a RAID set with a SATA hard drive. Please navigate to the "Configuring a RAID Set" page of GIGABYTE's website for instructions on configuring a RAID array.
Page 25
Connects to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch (please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Soft-Off by PWR-BTTN" for more information).
Page 26
14) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.
Page 27
16) F_U32 (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local dealer.
Page 28
F_USB3 F 18) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header. Pin No. Definition Data Output Power (3.3V) No Pin Data Input Chip Select SPI_TPM S F_ S S_F 19) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable.
Page 29
Reset The reset jumper provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW (MULTIKEY)" for more information. - 29 -...
If this occurs, try to clear the CMOS values and reset the board to default values. • Refer to the introductions of the battery/clear CMOS jumper in Chapter 2 or navigate to the "BIOS Setup" page of GIGABYTE's website and search for "Load Optimized Defaults" for how to clear the CMOS values.
Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F12>: BOOT MENU Boot Menu allows you to set the first boot device without entering BIOS Setup.
Step 1: Go to GIGABYTE's website, browse to the motherboard model's web page, download the AMD RAID Preinstall Driver file on the Support\Download\SATA RAID/AHCI page, unzip the file and copy the files to your USB thumb drive.
After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE applications via GIGABYTE Control Center (GCC). Click Install to proceed with the installation. (In BIOS Setup, make sure Settings\Gigabyte Utilities Downloader Configuration\Gigabyte Utilities Downloader is set to Enabled.)
• An Internet connected computer. • A USB thumb drive. An M.2 PCIe SSD cannot be used to set up a RAID set with a SATA hard drive. & Please visit GIGABYTE's website for details on configuring a RAID array. https://www.gigabyte.com/WebPage/918/amd600-raid.html - 34 -...
47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Name: GIGABYTE Model Number: B650 GAMING X AX V2 / B650 GAMING X V2 Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338...
Page 36
European Commission Delegated Directive (EU) 2015/863 Statement I prodotti con il marchio CE sono conformi con una o più delle seguenti GIGABYTE products have not intended to add and safe from hazardous Direttive UE, come applicabile: Direttiva EMC 2014/30/UE, Direttiva sulla substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP).
Page 37
"REV:1.0" means the revision of the motherboard is 1.0. Motherboard: Wireless module manufacturer, model name: Realtek Semiconductor Corp. RTL8852CE B650 GAMING X AX V2 rev. 1.0 AMD Corporation RZ616, MediaTek MT7922A22M B650 GAMING X AX V2 rev. 1.1 Approvals for wireless module RTL8852CE:...
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
