Summary of Contents for BDH H1SQ
- Page 1 H1SQ USER MANUAL...
- Page 3 WELCOME TO THE BDH RACE SIM HARDWARE FAMILY RACE ENGINEERING COMPETING IN A VIRTUAL WORLD HAND BUILT IN YORKSHIRE, ENGLAND...

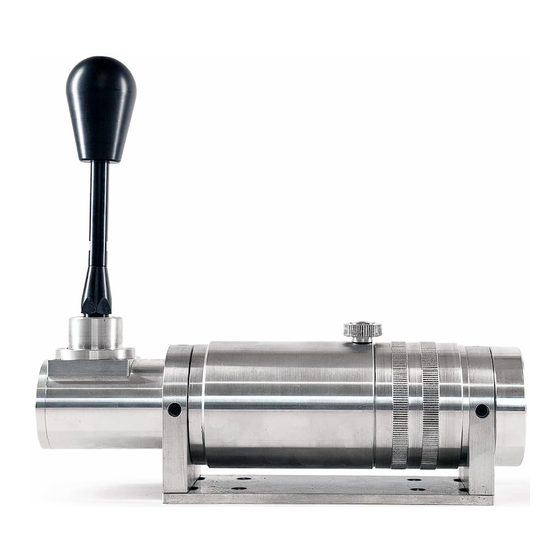

- Page 4 Introduction Congratulations and thank you for buying your BDH H1SQ Shifter. To get the most out of your purchase please review all the content in this document. Index Help Videos - Setup Register at www.bdhracesim.com to access our - Tensioner...
- Page 5 Setup Let’s get you going! Mounting the shifter Setting Up the H1SQ There are a number of shifter mounting options (see Mounting To increase efficiency our shifters are packed tightly. section). Typically, customers will mount the shifter with the The shifter is heavy, so please be careful removing it...
- Page 6 The shifter is generally mounted directly to aluminum You can rotate the end cap to your choosing, make sure to re- profile, BDH can provide a mounting plate for rigs such as attach the grub screw. Attach the other end of the USB lead Advanced Sim Racing and Trakracer chassis, sold into your PC.
- Page 7 Now it is time to attach the Gear stick and Knob. 1.Hand tighten the gear stick to the lower gear housing, DO NOT OVER TIGHTEN. Once it is hand tight, it’s time to get two spanners. 2.You will need a 10mm spanner and a 19mm spanner. Use the 19mm spanner to hold the lower gear stick part and the 10mm on the flats of the gear stick.
- Page 8 Good to go! Switch on your PC and once Windows is loaded: 1. Wait for Windows to recognise and install driver 2. You will see “BDH SHIFTER” 3. Go to “SETUP USB GAME CONTROLLERS” 4. You will see “BDH SHIFTER”...
- Page 9 Tensioner TO CHANGE MODE To change from H Pattern to Sequential, it’s simple. Our tensioning technology enables our customers to simulate their favorite gearboxes. Make sure the shifter is in neutral 2. Rotate the knurled collar fully from its current position until Tensioner it clicks CONFIGURE IN GAME...
- Page 10 Mounting 1.Release the 3 grub screws with an 3mm Alan Key on each of the two clamps 2.Rotate the shifter body to your desired alignment The shifter can be mounted in numerous ways to adapt to the driver’s style. 3.Re-tighten the grub screws. There are typically 4 mounting options on the right or left of your chassis: Once the shifter is in position, you can amend the configuration in...
-
Page 11: Maintenance
Maintenance The shifter is built for speed and durability, but like any car it can perish if abused or not looked after. The shifter comes pre lubricated, although we would recommend adding some a lithium based grease into the top of the ball joint in the lower gear stick housing. - Page 12 DIMENSIONS:...
- Page 13 WWW.BDHRACESIM.COM...
