- Page 1 POLAROID ECO-FAST Roll to Roll Printer USER MANUAL...
- Page 2 • The POLAROID Company shall not be liable for any errors or for direct or indirect acoustic or incidental damages when use this printer. •...
-
Page 3: Product Technical Parameters

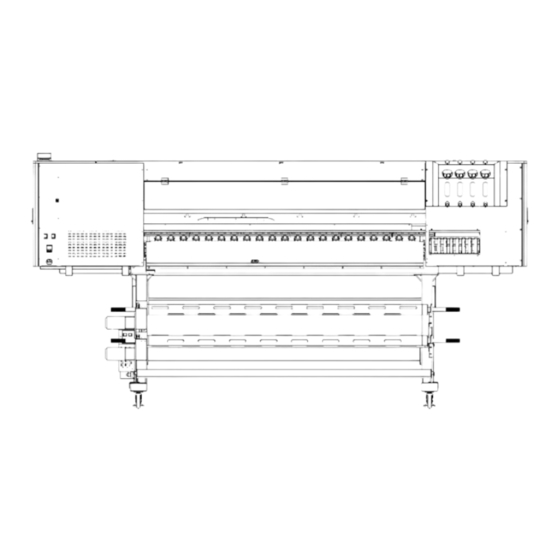

Product technical parameters model ECO-FAST Appearance Back Printhead type EPS 3200 Drop on demand piezoelectric head Printhead number Arrangement Staggered Ink type Mild solvent colors KKCCMMYY/KKKCCCMMMYYY Ink specification 1000ML Express mode Production mode Quality Precision & speed V360*600dpi 1pass V360*1800dpi... -
Page 4: Power Requirements
Operating environment requirements of equipment: Temperature: 15 to 35℃ (20 to 32℃ suggest) Humidity: 20 to 80% (40 to 60% suggest) The nature of the ink determines the operating environment of the device. Power requirements AC 100-120V or 200-240V 50-60Hz The power supply connected to the equipment shall be EPS standard voltage regulator. - Page 5 5.2 Push the equipment to the specified location, lower the foot cup, check and adjust the mechanical level. Note: machines are shipped with complete machine structure and non-complete machine structure. The installation process should refer to the following procedures: 1. Check the mounting bracket of mechanical structure. The left and right end holes of the foot bracket should be installed in low position.
- Page 6 Structural installation is completed. Description: After the structural installation is completed, the trolley fixing parts should be removed. Manually push the trolley around for one time and observe whether the mechanical structure of trolley running has obvious interference. After connecting the machine, send data and observe the automatic operation of the trolley.
- Page 7 5.10 Sprinkler wiring. 1.4720 Sprinkler wiring diagram Wiring diagram of I3200 nozzle According to the wiring diagram, connect the sprinkler head with the decoding board and sprinkler head board. When wiring, you should carefully observe the screen brush labels above the board. The line connection shall be strictly in accordance with the schematic diagram.
- Page 8 During wiring, it shall be noted that the inner core of the interface corresponds to the metal end of the data line, and the wiring sequence shall not be disordered. The interface between the nozzle and the data line should be affixed with a waterproof car to prevent ink immersion.
-
Page 9: Control Software Installation
Step 2. Choose mouse right key and choose administrator Step 3. Next Install Driver to D:\Program Files(86)\ POLAROID-cs4 \,click on "next". Explain: Win7 system disk has permission. When the software is running and the parameters are changed, it cannot be written to the software system, which may cause abnormal operation of the... - Page 10 Step 4. Next. Step 5. Choose "Create a Desktop icon", and click on "Next". Step 6. Ready to install, click on "install".
- Page 11 Step 7. Install. Explain: You can click on "cancel" to cancel setup. Step 8. Click Finish to ext. setup. Step 9. Install start driver. After the main program is installed, the installation software will automatically jump to the USB driver installation.
- Page 12 Step 12. Click on "next" Step 13. Choose files select destination location. Step 14. Ready to install.
- Page 13 Step 15. Install. Explain: You can click on "cancel" to cancel setup. Step 16. Click on 'Wuhan yili electronics Co., LTD.' box, Explain: " Wuhan yili electronics Co., LTD " is the publish...
- Page 14 Step 17. The Finish. After the installation of the control software is completed, the software can be started to test the equipment in connection with the machine. When the software is started, the computer and the system cannot be connected normally. Please refer to the "Troubleshooting Manual" in this manual to check the system and equipment accordingly.
- Page 15 7.6 Calibration of ink stack 7.6.1 Under normal circumstances, the front and rear physical positions of Mo Inn have been calibrated when leaving the factory. In reality, due to the replacement of sprinkler head and calibration, there may be a situation that the physical position before and after sprinkler head is incorrect.
- Page 16 Note: In the config.ini file below the installation program, common system parameters are saved in this file. Modification: Horz_motor_zero_pos =60 is consistent with the above parameter. 7.6.2.2 Physical change methods. In addition to changing the relationship between the left and right physical positions of the dolly through software control, the left and right physical positions of the dolly can also be changed by adjusting the physical positions of the probe back to the origin.
- Page 17 7.6.4 Working hours of ink pump. This option controls the length of time the ink pump expels and absorbs ink during the cleaning process. The larger the parameter value, the longer the ink discharge or ink absorption time. Discharge inkdischarge time - - - - - - - - - - - - I don't have time to fill ink 7.6.5 Flash spraying time.Flash spray is an important control technology to improve the...
-
Page 18: Nozzle Calibration
Description: In case of ink breakage in sprinkler head, the cleaning instruction can be executed again, and the test of state diagram can be printed repeatedly until the state diagram of sprinkler head is complete. After repeated cleaning, the ink breaking phenomenon cannot be improved. Ink-pouring method should be adopted to increase the ink output of the sprinkler head or washing liquid should be used to soak the sprinkler head for 5-10 minutes, and then the cleaning instruction should be executed to improve the ink... - Page 19 The nozzle state diagram is a test diagram reflecting the nozzle orifice state. When the nozzle hole is abnormal, the state diagram may show the phenomenon of broken needle. The main reasons for the abnormal needle breakage of sprinkler head include bad cleaning, wiping of materials or foreign bodies, damage of sprinkler head, ink, environmental impact and many other reasons.
- Page 20 The vertical status diagram is divided into three parts: 8.3.1 Observe Part A and judge whether the sprinkler head is horizontal by judging whether KCMY is on A straight line. 8.3.2 Observe part B, judge the horizontal state of the nozzle to confirm that the nozzle jack is in good condition.
- Page 21 According to the state diagram, adjust the screws on the nozzle fixing plate, and fine-tune the horizontal physical state of nozzle. After adjustment, lock the nozzle to fix the plate screw. Print the test status diagram again for further observation. If the bias still exists, repeat the process.
- Page 22 8.3.4 Calibration method of nozzle closing hole: Due to the influence of too many printhead and manufacturing precision, it is difficult to adjust the spacing between printhead to the theoretical level in the actual calibration process. In order to meet the calibration needs and improve the calibration accuracy, the system added the function of nozzle stack hole.
- Page 23 View the state diagram of the stack, observe the value of the best line coincidence and record. The switch between the filling value of the left sprinkler head and the right sprinkler head is shown in the red box. Fill the recorded value into the value of the stack hole.
- Page 24 In the pop-up dialog box [Print ADJUST PRT]-Print direction, select [Positive] Click [Horizontal Groups spacing adjustment] to print a status. The state diagram is used to calibrate the transverse space between sprinkler head and sprinkler head, which can also be understood as the same color calibration of sprinkler head.
- Page 25 Click the Group Lines Spacing to print a status. The status diagram is used to calibrate all colors of sprinkler heads, that is, taking K color as the benchmark, whether Y, C and M colors can be output in the same position as K color. Select the Group lines spacing check box.
- Page 26 Bidirectional calibration. Bidirectional calibration is to reflect the alignment status of each pass in the trolley round - trip printing process. Observe the state diagram, take 0 in the state diagram as the benchmark, find a group of lines that completely coincide, observe the parameter value of the line, add or subtract this value from the current parameter of [value] in the software, and click [Save].
-
Page 27: Use Of Equipment
The normal phenomenon is that step is too large, and step is too small. It should be noted here that it is necessary to distinguish between the phenomena of overstepping or overstepping and the phenomena of overstepping or overstepping, and the phenomena of overstepping or overstepping, and the phenomena of overstepping or overstepping. - Page 28 The starting point of printing parameter is in mm, and the parameter value is set as the starting point of the actual printing position. When the input parameter deviates greatly from the starting point of the actual print, the calibration can be carried out by adjusting the "Starting Position offset"...
- Page 29 The output velocity is divided into transverse velocity and longitudinal velocity. Normally, the default value is fast. In the nozzle state is not good, the temperature is too low or too high printing ink, should reduce the printing speed as appropriate. 9.4 The output.When all Settings are completed, click "Print"...
- Page 30 Files are added to the control software. Click the added file, click the “Print” Or click the right mouse button and select "Print", the following dialog box will pop up. In this dialog box, the corresponding parameters can be entered in "left", "right", "top", "bottom", and the output job can be truncated and printed.
- Page 31 Abnormal phenomena and solutions The fault The fault The analysis The solution Note name phenomenon reason 1. CS series ink-jet printing device driver software only supports Recommendation Windows 7 system above for computer 64BIT.Check that the computer configuration: operating system meets or is Acuity I5 CPU superior to the operating The computer...
- Page 32 4. Motor and not rebound after returning to the driver damage; origin.Solution: Replace. 3. When The optical fiber the lift sensor fails, the main is broken. phenomenon is that the car does not lift and check itself.Solution: Replace. 4. The judgment method for motor and driver damage is to push the trolley to the center of the platform and then start it up.
- Page 33 4. Ink problems. physical position of sprinkler head 5. Peristaltic and ink stack cap and modify the pump failure cleaning parameters in the software. 2. Adjust the ink absorption time and ink discharge time of the three types of cleaning in the software: moisturizing height, scraping height, cleaning height, basic height, and strong, medium and...
- Page 34 not correspond 6. Control the unified production to the physical process. Take thermal sublimation channel of ink as an example, the hair color sprinkler head. temperature is different, the 4. Ink problems. finished product color is different; Hair color time is different, the 5.
- Page 35 Check the guide rail regularly to print the unit slider, timely clean the guide surface and the contaminated oil at both ends of the slider, apply clean lubrication oil. It is advisable to use special grease, yellow wax oil for guide rail and slide block, and do not recommend the use of oil, sewing machine oil, etc.
- Page 36 3. Maintenance of ink stack Check the appearance of ink stack components regularly and clean the ink stains on the surface timely. Regular inspection of positioning nitrate, timely cleaning positioning nitrate surrounding oil, apply new grease. Periodically check the wear condition of ink stack transmission gear and synchronous belt and replace it in time if found to be deformed or seriously worn.
