- Page 1 USER MANUAL V1.0 | IK511U...
-
Page 2: Table Of Contents
Get started with your TCL LINKPORT IK511 ........6 2.1 Insert a nano SIM card ..................6 2.2 Plug the TCL LINKPORT IK511 into your host device ........... 7 2.3 Plug and Play for host devices ................7 Access the Web UI ................. 8 3.1 Log in to the Web UI ..................... -
Page 3: Please Read This First
Please read this first • Thank you for choosing the TCL LINKPORT IK511. In order to maintain your device in optimal condition, please read this manual and keep it for future reference. • Before using this document and the device it supports, ensure you read and understand the “Important safety information”... -
Page 4: Meet Your Tcl Linkport Ik511

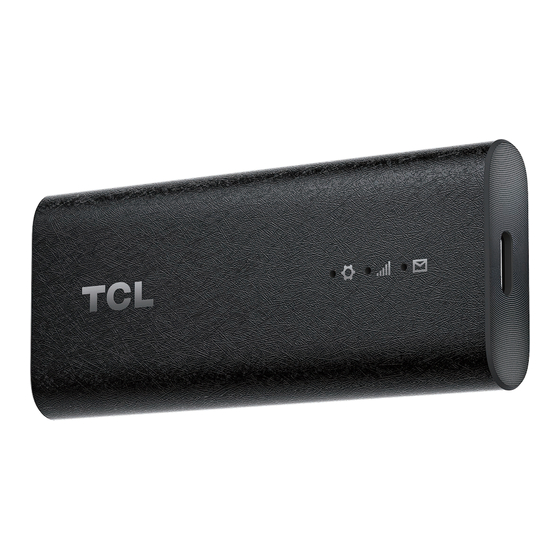

1. Meet your TCL LINKPORT IK511 1.1 Product introduction TCL LINKPORT IK511 is a 5G capable USB dongle. With its lightweight and compact design, it can be used to provide one-to-one data access for the connected host device on-the-go, as well as at home. You can connect your laptops, tablets, desktops, TVs etc. through USB, and directly access the internet according to the type of OS. - Page 5 * 5G requires capable device. Reset button Press and hold the reset button for 3 seconds to reset your TCL LINKPORT IK511. You can also reset the device via the Web UI (See “Restart & reset” on page 15).
-
Page 6: Get Started With Your Tcl Linkport Ik511
Mini-SIM (2FF) 1. Remove the back cover. Hold the TCL LINKPORT IK511 in one hand and pull the back cover outwards from the slot using the index finger of your other hand. 2. Align the SIM card cutout tab as seen in the diagram and gently slide the card into the slot with the gold metal contacts facing down. -
Page 7: Plug The Tcl Linkport Ik511 Into Your Host Device
2.2 Plug the TCL LINKPORT IK511 into your host device TCL LINKPORT IK511 uses a USB-C to USB-C cable to link the dongle to your device. USB-C to USB-C Cable Software will auto-install. Once installation is complete, the network is ready for use. -
Page 8: Access The Web Ui
3.1 Log in to the Web UI To log in to the Web UI, follow these steps: 1. Open a web browser on the device connected to the TCL LINKPORT IK511 network. 2. Go to http://192.168.0.1 and follow the on-screen instructions to finish the login process. For the default login information, refer to the Important Information Leaflet or the label on the inside of the device when you remove the back cover.. -
Page 9: Explore Web Ui Features
Home page features The Web UI is mainly comprised of the following sections: Home, Status, Services, Settings, and System. Click on each section to display more information about your TCL LINKPORT IK511. Commonly used status icons are displayed in the Web UI, which give you information about your TCL LINKPORT IK511. -
Page 10: Configure Your Tcl Linkport Ik511
4. Configure your TCL LINKPORT IK511 In this chapter, we will show you how to get the most out of your TCL LINKPORT IK511 using the Web UI, which allows you to configure network settings, check messages, view connected devices, and more. 4.1 Home This section allows you to quickly check connection status, network information, device information, and connected devices. -
Page 11: Services
4.2.1 Internet Check your internet information, such as SIM status, Connection status, Network name, Network type, Profile name, and IP address. 4.2.2 Diagnostics View the diagnostics data of the network, including Cell ID, RSRP, SINR and Band. 4.3 Services Navigate to Services, and click the SMS tab to display the information you want or change SMS settings as desired. -
Page 12: Settings
Enable SMS Click SMS settings, then enable SMS report. delivery reports Disable SMS Click SMS settings, then disable SMS report. delivery reports 4.4 Settings Prioritize the network connection, router, firewall and advanced settings. 4.4.1 Quick setup Configure network mode, enable or disable data roaming and internet profile name. 4.4.2 Mobile network Network connection Configure and manage connection mode, enable or disable mobile data, and data roaming. Profile management Set up a new APN profile, and edit or delete existing profiles. 1. Click New. 2. - Page 13 WAN IP address is needed when some functions of your TCL LINKPORT IK511 are enabled. If the WAN IP address of your TCL LINKPORT IK511 changes, these functions may not work properly. The Dynamic Domain Name Server (DDNS) function allows you to map a dynamic WAN IP address (public IP address) to a static domain name, helping internet users (WAN side) access the TCL LINKPORT IK511 network by static domain name.
-
Page 14: Advanced Settings
Click M2M status to enable M2M mode, and then click Apply. At this time, the Web UI will be unavailable. Connect your TCL LINKPORT IK511 to the terminal you want to use it in M2M mode. * When your TCL LINKPORT IK511 is working, press the Reset button for 3 seconds or through AT commands to reset your TCL LINKPORT IK511 back to the Web UI. -
Page 15: System
IP address, LAN Domain, software version and hardware version. 4.5.2 Login password Enter your current password and confirm a new password. Your chosen password must be between 4-16 characters long. The default password can be found on the label located on the rear of the TCL LINKPORT IK511 when you removed the back cover and also on the Important Information Leaflet included with your device. 4.5.3 System time Time zone: Change the local time zone here. - Page 16 Enable Allow automatic updates to automatically update the device when a new update is available. If this option is disabled, you can still update the device via Check for updates. Note: Do not disconnect the TCL LINKPORT IK511 during the update process. Your internet connection may be unavailable during the update process.
-
Page 17: Important Safety Information
This product complies with all applicable standards and regulations regarding exposure to electromagnetic fields. Disposal and recycling information At TCL, we continually strive to improve our operations and products, in order to minimize our impact on the environment. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. - Page 18 This symbol on your device and/or its accessories indicates that this device should not be disposed of with household waste. When this device reaches its end of life, take it to a collection point designated by local authorities. For more detailed information about device recycling, contact your local authorities, household waste disposal centers, or retail stores.
- Page 19 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For the receiver devices associated with the operation of a licensed radio service (e.g. FM broadcast), they bear the following statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • T his device may not cause harmful interference.
-
Page 20: Troubleshooting
2. Enter the login information as required. Find the default login information on the label located on the rear of the TCL LINKPORT IK511 when you removed the back cover. I can’t log in to the Web UI. • Make sure 192.168.0.1 is entered correctly in the web browser. - Page 21 • If a PIN code is required, enter the PIN code, and try again. • If no network is available, place the TCL LINKPORT IK511 in an area with better signal (for example near a window), and try again. • Reboot your TCL LINKPORT IK511, and try again.
