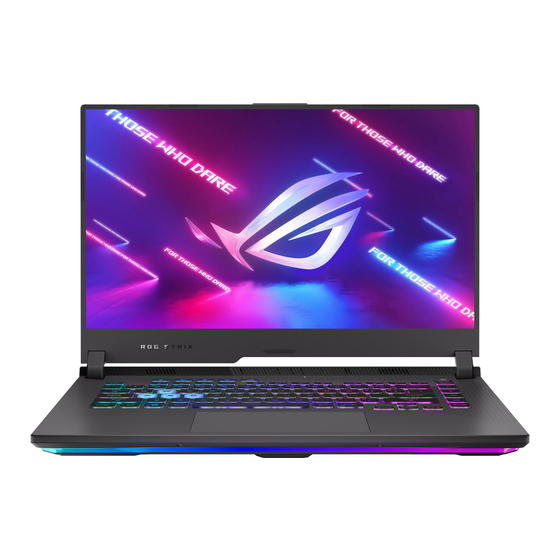

ASUS ROG STRIX G15 (G513) series

ASUS STRIX SCAR 15 (G533) series

Service Guide

Table of Contents

Need help?

Do you have a question about the ROG STRIX G15 G513 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Asus ROG STRIX G15 G513 Series

Page 1 ASUS ROG STRIX G15 (G513) series ASUS STRIX SCAR 15 (G533) series Service Guide...
Page 2 LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property;...
Page 3 Disclaimer ASUS is not responsible for direct, indirect, intentional or unintentional damages resulting from improper installation and operation. Safety precautions • Keep liquids or moisture away from your Notebook PC before installing or removing any components. • Ensure to place your Notebook PC on a stable surface before installing or removing any components.
Page 4: Table Of Contents
⚫ Service Overview ⚫ ASUS ROG STRIX G15 (G513) series Overview ⚫ ASUS ROG STRIX G15 (G513QY) series Overview ⚫ ASUS ROG STRIX SCAR 15 (G533) series Overview ⚫ Components Top View ⚫ Components Bottom View ⚫ Repair Overview ⚫...
Page 5: Service Overview
Service Overview • Carefully read through this Service Guide for a look at various components of the device before performing any service and repairs. • To provide the best service, we have provided the below information for technicians from distributors and resellers to perform the complete device disassembly and assembly.
Page 6: Asus Rog Strix G15 (G513) Series Overview
ASUS ROG STRIX G15 (G513) series Overview Top View Bottom View ❶ Display panel ❶ Air vents ❷ Status indicators ❷ Audio speakers ❸ Capital lock indicator ❸ Compartment cover ❹ Power button ❺ Keyboard ❻ Touchpad Left View ❶ Air vents ❷...
Page 7: Asus Rog Strix G15 (G513Qy) Series Overview
ASUS ROG STRIX 15 (G513QY) series Overview Top View Top View (lid closed) Bottom View ❶ Display panel ❷ Status indicators ❸ Capital lock indicator ❹ Power button ❺ Keyboard ❻ Touchpad/NumberPad(On selected models) ❶ Customizable Armor Cap ❶ Air vents ❷...
Page 8: Asus Rog Strix Scar 15 (G533) Series Overview
ASUS ROG STRIX SCAR 15 (G533) series Overview Top View Top View (lid closed) Bottom View ❶ Display panel ❷ Status indicators ❸ Capital lock indicator ❹ Power button ❺ Keyboard ❻ Touchpad/NumberPad(On selected models) ❶ Customizable Armor Cap ❶ Air vents ❷...
Page 9: Components Top View
Components Top View LCD COVER MODULE THERMAL MODULE MAIN BOARD LED RUBBER SCAR LIGHT OP LB FFC SCAR LIGHT OPMAIN KB BRKT LED BD (20P 0.5 L31mm) FFC (30P 0.5 L50mm) CONDUCTIVE TAPE LCD BEZEL IR BOARD ABSORBER IR BOARD FFC LED FFC (6P 0.5 L77mm) (14P 0.5 L160mm)
Page 10: Components Bottom View
Components Bottom View LCD COVER MODULE KEYBOARD MODULE TOP CASE SPONGE CLICK PAD MYLAR MAIN BOARD LCD ADHESIVE R&L BASE CASE SOUL KEY BD LCD BEZEL ADHESIVE UP HOOK RUBBER R&L LCD BEZEL POWER SWITCH BD THERMAL MODULE ASSY INDICATOR BOARD BTM U BAR SIDE SPONGE LCD BEZEL ADHESIVE LCD PANEL...
Page 11: Repair Overview
Repair Overview This chapter describes disassembly and assembly (Assemble document please look up from the last page), please follow the information provided in this section to perform the complete disassembly procedure. Precautions: Before you perform any service or repair on the notebook, please pay special attention to the cautions prevent any damages to the notebook. 1.
Page 12: Appropriate Tools
Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ASUS ROG Strix SCAR 15 (G533) / ROG Strix G15 (G513) series notebook. Screwdriver Alcohol 95% Glove Dust-free Cloth Please accord to different screw specification to choose different screwdriver and head.
Page 13 Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ROG STRIX G15(G513) / ROG STRIX SCAR 15(G533) series notebook. ❾ ❿ ⓫ ❺ ❼ ❶ ❸ ⓭ ❷ ❹ ❻ ❽ ⓬ ⓮ Tooling Type Item Part Name Memo ❶...
Page 14: Bottom Case
BOTTOM CASE (For G513 Series tail code is C/E/H) Disassembly Notice There are cables which connected to MB, so please do not Screws Spec Torque (kgf-cm) pull out the bottom case directly. Step 1 : Remove screws *10pcs. Please disconnect the cables and then remove the bottom case. M2.5*9L(4.6,0.85)(K) #1 2.5±0.2 Step 2 : Use plastic blade to pry the bottom case.
Page 15 BOTTOM CASE Disassembly Notice Assembly Notice Step 1 : Remove BTM U bar Mylar *2pcs. If FFC is damage during disassembly, Please follow red mark below to tidy FFC. Step 2 : Remove screw*2 pcs and LED module. please replace new one. Here are Step 3 : Disconnect LED R and LED L FFC*2 pcs.
Page 16: Battery
BATTERY Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Before disassembly battery connector, please be sure to pull out adapter and disconnect the battery more than ten seconds in order to IC damage. Step 1 : Disconnect the battery connector. Screws Spec Torque(kgf-cm)
Page 17: Ssd And Ddr
SSD and DDR Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove the screws *2pcs. Assembly Notice Screws Spec Torque (kgf-cm) Step 2 : Remove SSD at left side. M2*3L (5.6,0.8) (K) #1 2.0±0.2 Step 3 : Remove SSD Thermal Pad.
Page 18: Indicator Board
INDICATOR BOARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the FFC connector. Screws Spec Torque (kgf-cm) Step 2 : Remove NFC FFC on the Mainboard. M2*3L (5.6,0.8) (K) #1 2.0±0.2 Step 3 : Remove screw *2pcs and remove INDICATOR BOARD.
Page 19: Wifi Card
WIFI CARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the RF CABLE connector *2pcs. Screws Spec Torque (kgf-cm) Assembly Notice Step 2 : Remove the screw *1pc. Step 3 : Remove WIFI CARD. M2*3L (5.6,0.8) (K) #1 2.0±0.2 Please according to below image to assemble RF cable.
Page 20: Speaker
SPEAKER Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Release the L side tape and R side tape. Step 2 : Disconnect the SPEAKER woofer connector. Assembly Notice Step 3 : Remove SPEAKER woofer. For Speaker assembly, please follow yellow and red mark below to tidy cable.
Page 21: Fan (With Thermal Module And Main Board)
FAN (with THERMAL MODULE and MAIN BOARD) Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Assembly Notice Screws Spec Torque (kgf-cm) Step 1 : Disconnect (yellow mark) connector. If FFC is damage during disassembly, please Step 2 : Remove TP FFC.
Page 22: Thermal Module
THERMAL MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Screws Spec Torque (kgf-cm) Step 1 : Please follow the reverse screws numbers to remove screws *8pcs. Step 2 : Remove the THERMAL MODULE from MB. M2*3L (5.6,0.8) (K) #1 2.0±0.2 Recommend that the force point is at green block, and pull up thermal module to take...
Page 23 THERMAL MODULE (FOR G513QY) Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Screws Spec Torque (kgf-cm) Retention Screw 2.0±0.2 Step 1 : Please follow the reverse screws numbers to loosen the retention screws *8pcs without removing form the thermal module. Step 2 : Remove the THERMAL MODULE from MB.
Page 24: Main Board
MAIN BOARD Mainboard connector placement BATTERY EDP CABLE VGA FAN LOGO BACK LIGHT U LIGHT BAR L FFC Supports using JIG BOARD to refresh F1 BIOS U LIGHT BAR R FFC SPEAKER CPU FAN SPEAKER WOOFER NFC FFC WIFI ANTENNA LED FFC SCAR LIGHT SCAR LIGHT...
Page 25 MAIN BOARD FOR G513QY Mainboard connector placement VGA FAN BATTERY EDP CABLE CPU FAN U LIGHT BAR R FFC SPEAKER LED FFC KB FPC WIFI ANTENNA U LIGHT BAR L FFC K/B LED FPC TP FFC Supports using JIG BOARD to refresh F1 BIOS Back...
Page 26 MAIN BOARD • Materials on mainboard For G513QC_QE (Other series,X60/Scar/G513QY) G532LWS CPU BKT ASSY G513QC MB AL+ABSORBER G533QS CPU ABSORBER(X50 (G513 Series) GPU) For G513QC_QE • G513QC HDMI G513QY CPU BKT ASSY GASKET|LONGYANG (only G513QY) (G513 Series tail code is C/E/H, X50) •...
Page 27: Power Switch Bd_Indicator Bd_Touchpad Module
POWER SWITCH BD_INDICATOR BD_TOUCHPAD MODULE Assembly Notice Disassembly Notice Please be sure to pull out adapter and disconnect the battery. For TouchPad assembly, please follow the steps below. Step 1-1 : Tear off KB BRKT LED BD CONDUCTIVE TAPE*2pcs Screws Spec Torque (kgf-cm) Step 1-2 : Disconnect FFC connector.
Page 28: Ir Sensor Bd (For G513Qy)
IR SENSOR BD (FOR G513QY) Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1: Disconnect FFC connector. Screws Spec Torque (kgf-cm) Assembly Notice Step 2: Remove screw*1pc. M2*2.5L(5,0.5) (K) #1 2.0±0.2 Step 3: Remove IR board. If FFC is damage during disassembly, please Step 4: Flip up IR board and disconnect IR BOARD FFC.
Page 29: Keyboard Module
KEYBOARD MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screws *4pcs. Assembly Notice Step 2 : Slip Thermal cover*1pc. Screws Spec Torque (kgf-cm) Step 3 : Remove screw*1pc. Please follow the yellow mark to tidy cable. M2.5*5.5L(4.5,0.8) (K)#1 2.0±0.2 Step 4 : Remove hinge cover*1pc.
Page 30 KEYBOARD MODULE Assembly Notice When replace Keyboard module, please make sure When assembly the WIFI ANTENNA, please follow to paste below parts. mark to tidy cable. Washer for NumberPad SKU(*2pcs) Back...
Page 31: Mic Board
MIC BOARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Flip up Hinge COVER. Screws Spec Torque (kgf-cm) Assembly Notice Step 2 : Disconnect the FFC and remove the screws*2pcs. M2*2L(8,0.8) (K)#1 2.0±0.2 Step 3 : Remove MIC RUBBER.
Page 32: Lcd Bezel
LCD BEZEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove LCD BEZEL. Step 1-4 Due to some tapes behind the lower edge of bezel, please using plastic blade to teardown the bezel. Please follow the direction shown in the red arrow, to move plastic blade from left to right and peel the bezel away slowly.
Page 33: Lcd Panel
LCD PANEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screws *8pcs,then remove R hinge. Screws Spec Torque (kgf-cm) Step 2 : Unlock hinge cap hook ,then remove L hinge. Step 3 : Pull out LCD adhesive *2pcs. M2*3L (4.5,0.5) (K)#1 2.5±0.2 kgf-cm Step 4 : Remove LCD PANEL.
Page 34 LCD PANEL Assembly Notice Please be sure to pull out adapter and disconnect the battery. When reassembly Hinge, please make sure to paste the hook rubber. (2pcs) Before assembly L HINGE, please follow the steps to tidy up EDP cable, hinge cap and L HINGE.
Page 35 LCD COVER Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the EDP CABLE then remove it. Assembly Notice Step 2 : Tear off LOGO BACK LIGHT MODULE. (For Scar G533 Series) Step 3 : Remove V Cut lighting.
