FULLY RECESSED, WALL MOUNTED ELECTRIC DRINKING FOUNTAIN
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
For current Warranty click hyperlink
Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.
7020-994-001
Date: 07/17/2024 A
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
AL81.8 Series

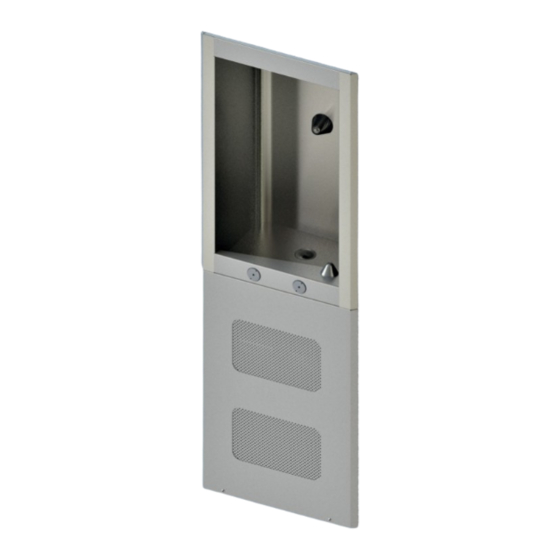

AL81408S-BF, SHOWN
AL81408S & AL81408S-BF
1.800.743.8259
Technical Assistance E-Mail: Fieldservice@acorneng.com
Product Warranty
NSF/ANSI/CAN 61
DRINKING FOUNTAINS
or visit: www.murdockmfg.com/terms-and-warranty
(220V Compressor Only)
Federal
Public Law
111-380
(No Lead)
ANSI/ASHRAE 18
15125 Proctor Ave,
Member of
City of Industry, CA
Phone 800-453-7465
www.murdockmfg.com
91746 U.S.A.
626-333-2543
Advertisement
Related Manuals for Murdock AL81 8 Series
Summary of Contents for Murdock AL81 8 Series
- Page 1 3. Check your installation for compliance with plumbing, electrical and other applicable codes. For current Warranty click hyperlink Product Warranty or visit: www.murdockmfg.com/terms-and-warranty Murdock assumes no responsibility for use of void or suspended data. © Copyright Murdock, City of Industry, CA Member of Morris Group International. Please visit www.murdockmfg.com for most current specifications.
- Page 2 *2. DIMENSIONS SHOWN ARE FOR RECOMMENDED ADULT HEIGHT. ADJUST VERTICAL DIMENSIONS AS NECESSARY TO COMPLY WITH FEDERAL, STATE, & LOCAL CODES 3. STOP VALVE NOT PROVIDED MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com...
-
Page 3: Prior To Installation
7. This unit must be grounded per the requirements of applicable electrical codes. 8. Warranty is voided if installation is not followed per current Murdock Mfg. installation instructions and if components are assembled to the fixture that are not approved by Murdock Mfg. -
Page 4: Installation
IMPORTANT! Thoroughly, inspect all unit connections for water leaks. 9. Install Ventilation Panel and secure with Provided Vandal Resistant Hardware. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com... - Page 5 *2. DIMENSIONS SHOWN ARE FOR RECOMMENDED ADULT HEIGHT. ADJUST VERTICAL DIMENSIONS AS NECESSARY DIMENSIONS AS NECESSARY TO COMPLY WITH FEDERAL, STATE, & LOCAL CODES MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-994-001...
- Page 6 Housing 9 engages onto Frame Mounting Angle 10. Secure Drinking Fountain Housing 9 to Frame Cross Member 11 with provided Screws 12. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 •...
- Page 7 VALVE ASSEMBLY FOR OPTIONAL BOTTLE / CUP FILLER WATER SUPPLY LR BUBBLER PUSHBUTTON CARTRIDGE VALVE ASSEMBLY CHILLER MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-994-001 Date: 07/17/2024 A AL81.8...
- Page 8 Drinking Fountain Housing 9. Secure Ventilation Panel 13 to Mounting Frame 1 provided Vandal Resistant Fasteners 14. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-994-001...
-
Page 9: Troubleshooting
A restriction or moisture in the system will also cause intermittent cycling. A certified refrigeration mechanic should be contacted in this situation. d. Change the Overload or Relay if defective. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com... - Page 10 MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com...
- Page 11 While holding the collet in, pull on the PE tubing to remove from the push-in fitting. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com...
- Page 12 Filter Strap 7. Activate Bubbler and check for leaks, tighten if required. Reinstall Ventilation Panel per page (8). Flush Filter as noted above. MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com...
- Page 13 AL8408S PARTS BREAKDOWN: NOTE: See next page for corresponding parts table below -MF19 SHOWN FOR REFERENCE ONLY MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-994-001 Date: 07/17/2024 A AL81.8...
- Page 14 COMPLETE 110 VAC CHILLER, FOR PARTS REFER TO 7008-010-001 MANUAL 7020-900-001 COMPLETE 220 VAC CHILLER, FOR PARTS REFER TO 7008-701-001 MANUAL 7020-900-001 MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA Member of Phone 800-453-7465 or 626-333-2543 • www.murdockmfg.com 7020-994-001 Date: 07/17/2024 A AL81.8...
