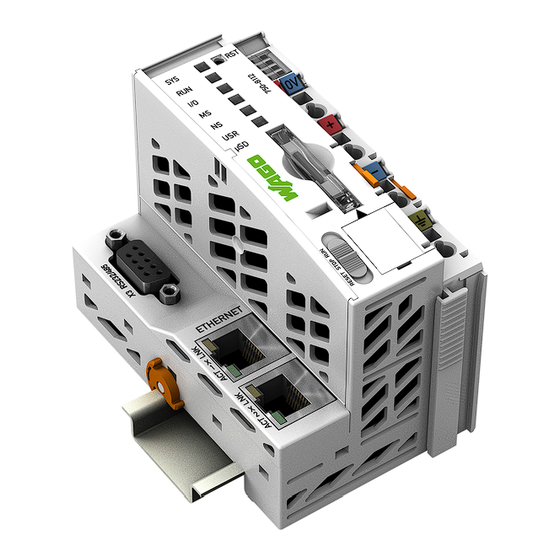

- Page 1 WAGO I/O System 750/753 Controller PFC100; 2nd Generation; 2 x ETHERNET, RS-232/-485 750-8112/xxxx-xxxx Product manual | Version 1.0.0 /WAGO/...
- Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Product manual | Version: 1.0.0 750-8112/xxxx-xxxx...
-
Page 3: Table Of Contents
750-8112/xxxx-xxxx Table of Contents Table of Contents 1 Provisions ........................ 4 Scope of Applicability .................... 4 2 Overview ........................... 5 3 Properties ......................... 7 View ......................... 7 Connections...................... 8 3.2.1 Power Supply .................... 8 3.2.2 Network Interfaces.................. 8 3.2.3 Service Interface .................... 9 3.2.4 Communication Interface ................ -
Page 4: Provisions
1 Provisions 1.1 Scope of Applicability This document applies to the following products: 750-8112 (PFC100; G2; 2ETH RS) PFC100 Controller; 2nd generation; 2 × ETHERNET, RS-232/-485. ü http://www.wago.com/750-8112 Product detail page Version Firmware 04.04.03(26) and above 750-8112/025-000 (PFC100; G2; 2ETH RS; T) PFC100 Controller;... -
Page 5: Overview
The controller can be used for applications in mechanical and systems engineering, in the processing industry and in building technology. All available I/O modules of the WAGO I/O System 750/753 can be connected to the con- troller. The controller can process any analog and digital signals from the automation en- vironment internally or provide them to other devices through one of the available inter- faces. - Page 6 Overview 750-8112/xxxx-xxxx Note No direct access from fieldbus to the process image for I/O modules! Required data from the local bus process image must be mapped explicitly in the CODESYS program to the data in the fieldbus process image and vice versa! Direct ac- cess is not possible! Fieldbus configuration can be performed with the CODESYS V3 controller configuration.
-
Page 7: Properties
750-8112/xxxx-xxxx Properties 3 Properties 3.1 View 01 02 24V 0V µSD ETHERNET — — Figure 1: View LED Indicators – System/Fieldbus 8 System/Fieldbus LED Indicators [} 11] Slot for Mini-WSB (optional) & System Manual I/O System 750/753 Reset button (in hole) 8 Reset Button [} 13] LED Indicators –... -
Page 8: Connections
Properties 750-8112/xxxx-xxxx 3.2 Connections 3.2.1 Power Supply Figure 2: Wiring Interface Connection Designation Description 24 V System power supply voltage: +24 V Field supply voltage U − Field supply voltage: 0 V Ground Field supply voltage ground 0 V System power supply voltage: 0 V Field supply voltage U −... -
Page 9: Service Interface
Figure 4: Service Interface (Cover Flap Open) It is used for communication with “WAGO-I/O-CHECK” and “WAGO Ethernet Settings.” The connection is made via the WAGO communication cable (see Requirements for Wiring and Accessories). 3.2.4 Communication Interface The communication interface is designed as a 9-pole SUB-D socket. -
Page 10: Power Jumper Contacts/Field Supply
Properties 750-8112/xxxx-xxxx Contact RS-232 (DCE) RS-485 Signal Description Signal Description Not assigned Not assigned Housing Shield Shield Shield Shield 3.3 Power Jumper Contacts/Field Supply The self-cleaning power jumper contacts on the housing side have a spring-contact de- sign. The field supply voltage is passed on to downstream I/O modules via these contacts. Figure 6: Power Jumper Contacts Contact Type... -
Page 11: Indicators
Red/green/orange/off PLC program status Red/green/orange/off Local bus status Red/green/orange/off Module status Red/green/orange/off No function Red/green/orange/off User LED, programmable using function blocks from the WAGO li- braries for LED control The meanings of the indicated states are described in 8 Diagnostics via LED Indica- tors –... -
Page 12: Memory Card Slot Led Indicator
Properties 750-8112/xxxx-xxxx Designation Color Description Yellow/off ETHERNET data exchange 8 Diagnostics via LED Indica- The meanings of the indicated states are described in tors – Network Connections [} 21]. 3.5.4 Memory Card Slot LED Indicator Figure 11: LED Indicator – Memory Card Slot Designation Color Description... -
Page 13: Reset Button
750-8112/xxxx-xxxx Properties 3.6.2 Reset Button Figure 13: Reset Button The reset button is installed within a recess to prevent accidental operation. It is a short- travel button with a low actuating force of 1.1 … 2.1 N (110 … 210 gf). The button can be pressed with suitable object (e.g., a pen). -
Page 14: Functions
Functions 750-8112/xxxx-xxxx 4 Functions 4.1 Function Overview System Functions • Product and system status • Real-time clock • CODESYS V3 runtime environment Hardware Functions • Mode selector switch/reset button • Service interface • RS-232/RS-485 Communication Interface Configuration Functions • Web-based Management (WBM) Network Functions •... -
Page 15: Planning
(see [} 23]). Only use memory cards available from and recommended by WAGO, as these are speci- fied for industrial applications under adverse environmental conditions and for use in this device. Compatibility with other commercially available memory cards cannot be guaran- teed. -
Page 16: Use As An Rs-485 Interface
Planning 750-8112/xxxx-xxxx RxD (in) RxD (out) TxD (out) TxD (in) FB_GND FB_GND RTS (out) RTS (in) CTS (in) CTS (out) Figure 15: Termination with DTE-DCE Connection (1-to-1) For a DCE-to-DCE connection, the signal connections are crossed. RxD (out) RxD (out) TxD (in) TxD (in) FB_GND FB_GND... -
Page 17: Figure 17 Rs-485 Bus Termination
750-8112/xxxx-xxxx Planning Master 450 Ω ... 650 Ω 120 Ω 120 Ω 1/2 W 1/2 W FB_GND 450 Ω ... 650 Ω Slave 1 Slave n Figure 17: RS-485 Bus Termination Note Transmission errors in the event of inappropriate RS-485 configuration! For baud rates lower than 115200 baud, configure the RS-485 interface with two stop bits and parity enabled (even or odd) to avoid transmission errors. -
Page 18: Diagnostics
Diagnostics 750-8112/xxxx-xxxx 6 Diagnostics 6.1 Diagnostics via Indicators 6.1.1 Diagnostics via LED Indicators – Power Supply Figure 18: LED Indicators – Power Supply The “A” (system power supply) LED indicates the following diagnostics: Table 4: Diagnostics LED – System Power Supply Status Explanation Remedy Green... -
Page 19: Table 7 "Run" Diagnostic Led
IDE. 2. If the application cannot be started, restart the controller. 3. Contact WAGO Support if the er- ror occurs again. Orange/green, flashing Load above threshold value 1 •... -
Page 20: Table 8 "I/O" Diagnostic Led
1 ... 2 seconds. A hardware fault is present. • Contact WAGO Support. Red, flashing (2 Hz) An error is present which it may be 1. First, try to eliminate the error by possible to eliminate. -
Page 21: Diagnostics Via Led Indicators - Network Connections
750-8112/xxxx-xxxx Diagnostics 6.1.3 Diagnostics via LED Indicators – Network Connections Figure 20: Network Connection LED Indicators The “LNK” LED displays ETHERNET connection status with the following diagnostics: Table 10: “LNK” Diagnostic LED Status Explanation Remedy Data transmission rate: 10 Mbit/s Green Data transmission rate: 100 Mbit/s The “ACT”... -
Page 22: Service
Service 750-8112/xxxx-xxxx 7 Service 7.1 Inserting and Removing a Memory Card Inserting a Memory Card 1. Use an operating tool or screwdriver to open the transparent cover flap by folding it upwards. An error indicates where to apply the tool. 2. -
Page 23: Appendix
“FW:01.02.xx(03)”). 8.3 Technical Data, Approvals, Guidelines and Standards Note Subject to changes! Please also observe the further product documentation! You can generate the current ü www.wago.com datasheet at any time at: /<item number>. See also 2 Data Sheet 750-8112 [} 24] 2 Data Sheet 750-8112/025-000 [} 27] Product manual | Version: 1.0.0... - Page 24 Controller PFC100; 2. Generation; 2 x ETHERNET, RS-232/-485 https://www.wago.com/750-8112 Der Controller PFC100 ist eine kompakte Steuerung an dem modularen WAGO I/O System. Neben den Netzwerk- und Feldbusschnittstellen unterstützt er digitale und analoge Module sowie Sondermodule der Serien 750/753. Die zwei ETHERNET-Schnittstellen und der integrierte Switch ermöglichen die Verdrahtung in Linientopologie.
- Page 25 Datenblatt | Artikelnummer: 750-8112 https://www.wago.com/750-8112 Technische Daten Speicherkarten-Steckplatz Push/Push-Mechanismus; Abdeckungsklappe plombierbar Anzahl Module pro Knoten max. Anzahl Module ohne Busverlängerung max. Ein- und Ausgangsprozessabbild (intern) max. 1000 Worte/1000 Worte Ein- und Ausgangsprozessabbild (Modbus®) max. CODESYS V3: 32000 Worte/32000 Worte Anzeigeelemente LED (SYS, RUN, I/O, USR) rot/grün/orange: Status System, Programm, Lokalbus, durch...
- Page 26 Feuchte 75 % 25 ppm Environmental Product Compliance RoHS Compliance Status Compliant,With Exemption RoHS Exemption 6(c) 7(a) 7(c)-I 7(c)-II Änderungen vorbehalten. Bitte beachten Sie auch die weitere Produktdokumentation! Aktuelle Adressen finden sie unter: w w w.wago.com Seite 3/3 Stand 30.01.2024...
- Page 27 Controller PFC100; 2nd Generation; 2 x ETHERNET, RS-232/-485; Ext. Temperature https://www.wago.com/750-8112/025-000 The PFC100 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the 750/753 Series.
- Page 28 Data Sheet | Item Number: 750-8112/025-000 https://www.wago.com/750-8112/025-000 Technical data Memory card slot Push-push mechanism; cover lid (sealable) Number of modules per node (max.) Number of modules without a bus extension (max.) Input and output process image (internal) max. 1000 words/1000 words Input and output process image (Modbus®) max.
- Page 29 75 % 25 ppm Environmental Product Compliance RoHS Compliance Status Compliant,With Exemption RoHS Exemption 6(c) 7(a) 7(c)-I 7(c)-II Subject to changes. Please also observe the further product documentation! Current addresses can be found at:: w w w.wago.com Page 3/3 Version 30.01.2024...
-
Page 30: List Of Tables
List of Tables 750-8112/xxxx-xxxx List of Tables Table 1 Pin Assignment of Communication Interface ..............Table 2 Mode Selector Switch ......................Table 3 Function of RS-232 Signals for DTE/DCE ................. Table 4 Diagnostics LED – System Power Supply ................. Table 5 Diagnostics LED –... -
Page 31: List Of Figures
750-8112/xxxx-xxxx List of Figures List of Figures Figure 1 View ..........................Figure 2 Wiring Interface......................Figure 3 Network Interfaces (RJ45) .................... Figure 4 Service Interface (Cover Flap Open) ................Figure 5 Communication Interface ....................Figure 6 Power Jumper Contacts ....................Figure 7 Memory Card Slot ...................... - Page 32 WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Copyright – WAGO GmbH & Co. KG – All rights reserved. The content and structure of the WAGO websites, catalogs, videos and other WAGO media are subject to copyright. Distri- bution or modification of the contents of these pages and videos is prohibited. Furthermore, the content may neither be copied nor made available to third parties for commercial pur-...
