Station Assignment Procedure Status Check Site Survey/Comm Check Installation Manual Solenoid Test Factory Reset Replacing a Wireless Valve Output Module Troubleshooting Need more helpful information on SCAN your product? Find tips on installation, for help controller programming, and more. hunter.help/WVL...

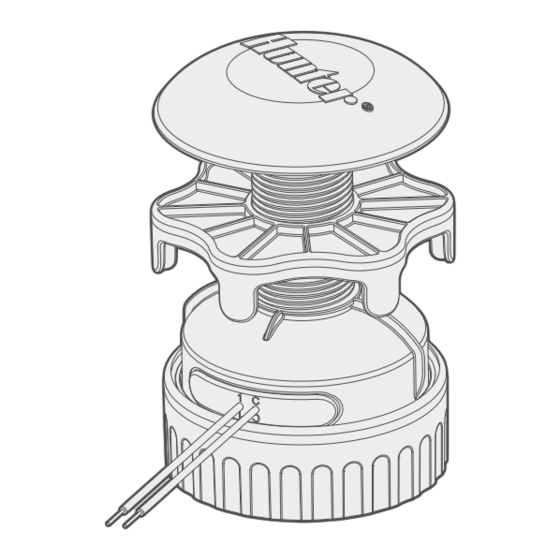

Introduction Introduction • Works with Hunter ICC2 and HCC Controllers and is The Hunter Wireless Valve Link System eliminates some of compatible with Centralus and Hydrawise Software ™ ® the biggest contractor costs in irrigation installations: copper • Adds up to 54 valves (+P/MV) up to 600 m line-of-sight wire and unnecessary excavation to connect or repair distant valves.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG Inc. and any use of such marks by Hunter Industries is under licence. Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. Google, the...
Page 5
1. Verify that the WVOM-E is installed in the controller. option for Hunter ICC2 and HCC Controllers. The WVL requires 2. Make sure the Hunter WVL App is installed on your installation of a Hunter Wireless Valve Output Module smartphone.
Functions and Features | Station Assignment Station Assignment The WVL has two buttons and two LED lights in the battery compartment. These can perform the following functions, in Bring the WVL to be programmed near the controller order of importance. Station Assignment and Comm Check location (before installing in the valve box).
Status Check Within 5 minutes, use the Hunter WVL App to add a 4. Use the app to select the controller station numbers new station, and allow it to scan for stations while in to assign to the WVL. Click Done for each station after Assignment Mode.
Send a manual station start command to any WVL in the system: • from the controller panel with a helper • with a Hunter ROAM or ROAM XL Remote • from a smartphone via central if that is an option The LED will turn green if it hears the LoRa radio commands from the WVOM-E.
Page 9
2. Determine the center point for the WVL, and drill or use the Connect the station output wires to the Hunter DC-Latching 38 mm hole saw (supplied with each WVOM-E) into the valve box lid on the center of the WVL location.
Installation | Manual Solenoid Test Manual Solenoid Test Solenoids (P/N 458200) in the valve box. The WVL outputs will operate a DC-Latching Solenoid at up to 30 m wiring distance. Test connected solenoid operation with the local Manual start Observe wire colour-coding for these solenoids: black to black, button in the battery compartment.
Factory Reset Push the battery cap back on firmly, and hand tighten the retaining ring to complete the installation. Make sure the large O-rings remain in place to seal the enclosure. Replace valve box lid with the installed antenna, and verify + –...
If all WVLs were found, the WVOM-E will be ready to choose the Recover Database feature. irrigate again without further field addressing. Troubleshooting In most cases, troubleshooting is best done with the Hunter WVL App open on a smartphone. Problem Causes Solution WVL not watering Dead batteries.
Page 13
Notices Certificate of Conformity to European Directives Hereby, Hunter Industries declares that the radio equipment type WVL-100-E, WVL-200-E, AND WVL-400-E are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://subsite.hunterindustries.com/compliance.
Page 14
