Summary of Contents for vantiva BGW620-700

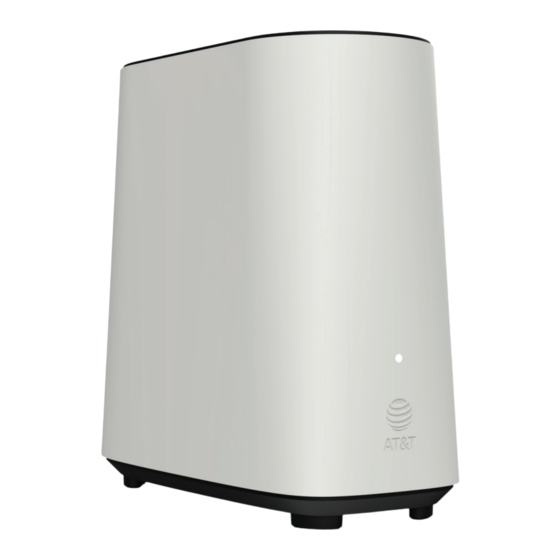

- Page 1 BGW620-700 Residential Gateway User Guide...
-
Page 2: Table Of Contents
SERVICE AND WARRANTY REQUIREMENTS ..............11 © 2024 Vantiva USA LLC. All rights reserved. Vantiva and the Vantiva logo are registered trademarks of Vantiva USA LLC. All other company and product names mentioned are trademarks of their respective owners. BGW620-700 Data Gateway User Guide Issue 2... -
Page 3: Front Panel
Once configured, remove the sticker. Indicator See the LED function table for details. Power rating label The model number, serial number, and electrical rating are on a label on the base of the device. BGW620-700 Data Gateway User Guide Issue 2... -

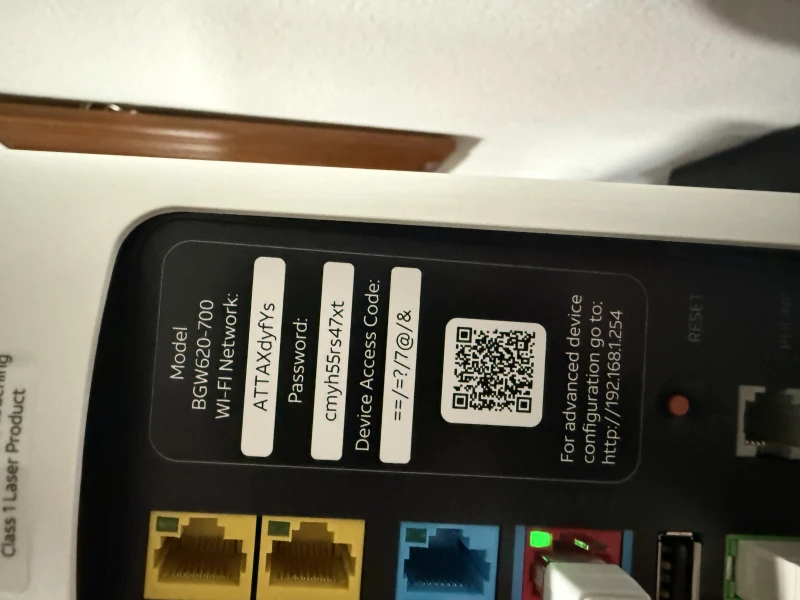

Page 4: Rear Panel
LED indicator See the LED function table for details. BGW620-700 Data Gateway User Guide Issue 2... -
Page 5: Powering And Initial Cabling
1. Connect a RJ-11 terminated telephone cable to the PHONE port on the back of your residential gateway. 2. Connect the other end of the telephone cable to a telephone or fax machine. Note: To connect two telephones, connect the telephone cable to a splitter and then to the telephones. BGW620-700 Data Gateway User Guide Issue 2... -
Page 6: Technical Specifications
Safety Approvals: United States – UL 62368, Third Edition Approvals • EMC: United States – FCC Part 15 Class B, Subparts B, C, and E • Telecom: United States – CFR Part 68 BGW620-700 Data Gateway User Guide Issue 2... -
Page 7: Led Functionality
The BGW620 software is being updated. Security Blue A security issue observed during reboot Fibre / XFP+ incorrectly fitted / not connected Connection fault BGW620 is overheating Factory reset Green Factory reset in progress BGW620-700 Data Gateway User Guide Issue 2... -
Page 8: Accessories
The power supplier holder can be removed if space is short. • Placing the power supply in any position other than below the BGW620 may impact Wi-Fi performance. • Do not block the BGW620 vent holes otherwise it may overheat. BGW620-700 Data Gateway User Guide Issue 2... -
Page 9: Mounting Instructions
The installer is responsible for ensuring proper installation of this equipment. PA8#-18X20C3MC Screw Installation 1. Read the BGW620-700 safety sheet before installing the shelf. 6X300 Zip tie 2. Select an appropriate wall location near the fiber and power connections. The location must provide Caution clearance on all sides of the Residential Gateway. -
Page 10: Important Safety And Regulatory Information
(1) This device may not cause harmful interference is prohibited for control of or communications with (2) this device must accept any interference received, unmanned aircraft systems. including interference that may cause undesired operation. BGW620-700 Data Gateway User Guide Issue 2... -
Page 11: Service And Warranty Requirements
Note: This product was tested for FCC compliance under conditions that included the use of shielded cables and connectors between system components. Changes or modifications to this product not authorized by the manufacturer could void your authority to operate the equipment. BGW620-700 Data Gateway User Guide Issue 2... - Page 12 www.vantiva.com...
