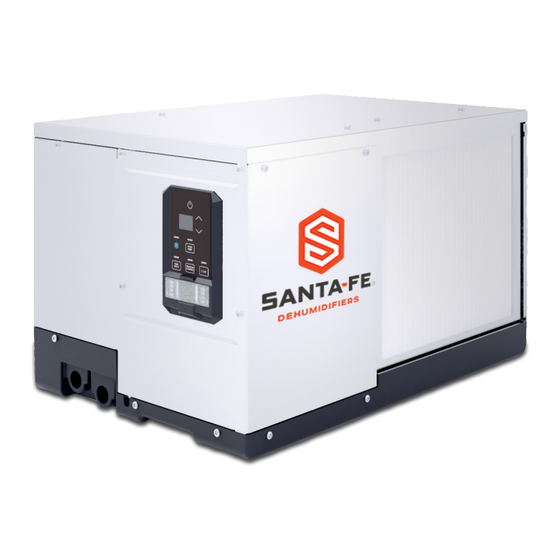

SANTA FE OASIS™105
Installation & Operation Instructions
Our most versatile and energy-efficient dehumidifier,
the Santa Fe Oasis105, is perfect for a wide range of
applications, including basements, attics, and crawl
spaces. It features onboard digital controls, variable
speed fan, dew point cut out, and a low maintenance
positive pressure condensate drain.
Santa-Fe-Products.com | 800.533.7533
Serial Number
Install Date
Sold By
Patent: thermastor.com/patents
TS-2093 09/24 Rev A
Advertisement
Related Manuals for Therma-Stor SANTA-FE OASIS 105
Summary of Contents for Therma-Stor SANTA-FE OASIS 105
- Page 1 SANTA FE OASIS™105 Installation & Operation Instructions Our most versatile and energy-efficient dehumidifier, Serial Number the Santa Fe Oasis105, is perfect for a wide range of applications, including basements, attics, and crawl Install Date spaces. It features onboard digital controls, variable speed fan, dew point cut out, and a low maintenance Sold By positive pressure condensate drain.
-
Page 2: Table Of Contents
Ducting to Finished Areas (Optional) ............11 Attaching Supply Duct Collar ..............11 Recommended Installations ..............11 Service ....................13 Troubleshooting ..................17 Electrical Requirements .................18 Warranty ....................19 4201 Lien Rd. Madison, WI 53704 1-800-533-7533 www.Thermastor.com | www.Santa-Fe-Products.com © 2016 Therma-Stor LLC... -
Page 3: Safety Instructions
Safety Instructions READ THE INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND OPERATING THIS DEVICE. PROPER ADHERENCE TO THESE INSTRUCTIONS IS ESSENTIAL TO OBTAIN MAXIMUM BENEFIT FROM YOUR SANTA FE DEHUMIDIFIER. WARNING! THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN RESULT IN SERIOUS INJURY OR DEATH. CAUTION! THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. -
Page 4: Intended Applications
Intended Applications The Santa Fe Oasis105 is registered with the DOE as a portable dehumidifier with a capacity greater than 50 pints per day. It is a stand-alone dehumidifier intended to operate within the dehumidified space, such as basements: however, the unit can be placed in almost any residential setting where dehumidification is desired. The Santa Fe Oasis105 is designed to operate in temperatures between 49° and 95°F. This unit works most effectively between 56° and 95°. In order to efficiently control humidity levels, the area in which the dehumidifier is to be operated must be free of water intrusion or excessive fresh (outside) air infiltration. Before installing the Santa Fe Oasis105, water intrusion and air infiltration problems should be addressed. Registrations & Certifications The Santa Fe Oasis105 conforms to unified standard UL 60335-2-40 and CSA standard C22.2.60335-2-40. The Santa Fe Oasis105 is certified as a “Portable Dehumidifier” per 10CFR430 - Energy Conservation Program for Consumer Products Brand Name Individual Basic Model Rating... -
Page 5: Dehumidifier Set Up
Dehumidifier Set Up Location Considerations • L ocate the dehumidifier near a suitable drain (8' drain hose included). Allow for proper drainage and routing of needed drain pipes. • L ocate the dehumidifier in an area where the cord’s length (9') easily reaches a 115 VAC electrical outlet with a minimum of a 15 Amp circuit capacity. • The unit is designed to operate while level. If the unit is placed on an unlevel surface, refer to section below (Installing Leveling Feet). Failure to level the unit may result in leakage or improper drainage. • T he unit should be suspended with a hang kit from the floor joists if there is any possibility of flooding. A flooded unit is not covered by warranty. Feet will be installed as a securing measure after the hang kit is put on the dehumidifier. DO NOT hang the dehumidifier from its’ cabinet. -
Page 6: Drain Installation
Drain Installation The Santa Fe Oasis105 dehumidifier generates condensate. The Santa Fe Oasis105 features a positive pressure drain that does not require a P-Trap. The unit features an industry exclusive dedicated float switch port (float switch is not provided and must be purchased separately) to shut the Oasis105 off in the event the main drain port clogs or fails. -
Page 7: Operation
Operation Controller Instructions Control Functions Name Notes Power button Press and Hold to turn off the unit Display Displays, RH set point, Error Codes and Fan Setting Up button Press to raise RH set point Down button Press to lower RH set point Defrost indicator When lit indicates unit is in defrost Filter indicator When lit indicates a filter change is needed Filter button Press Filter button after filter is changed to reset Dark Mode indicator When lit indicates unit is in Dark Mode Dark Mode button Press to enter or leave Dark Mode (no lights on) Terminal Control indicator Indicates unit is looking for external input signals... -
Page 8: Modes Of Operation
Operation (Continued) Modes of Operation Using Onboard Control The Santa-Fe Oasis is designed for plug and play operation. Simply plug in the unit and route a condensate line to a drain. Press the Power button to turn on the unit. The unit is factory set at 55%RH. To change the RH% settings press the up and down arrows to adjust target RH%. The unit is factory set to the most efficient operating speed. When the unit is ducted to ensure no loss in performance, increase the fan speed. This is done by pressing the holding both arrow key for > 3 seconds. This will enter the service menu and display “Er” (Errors). Use the arrow down arrow key to navigate to the “SF” (Set Fan) menu. Press the FILTER RESET button to set the fan speed. The current speed will be flashing. Use the up and down arrow to adjust the fan speed. When desired fan speed is displayed press FILTER RESET to save the setting, the display will stop flashing. Then... -
Page 9: Air Filtration
Air Filtration The Santa Fe Oasis105 dehumidifier is equipped with MERV-13 air filter (89-90% ASHRAE dust spot). The filters should be checked and replaced every three to six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency. DO NOT operate the unit without a MERV-8, MERV-11 or MERV-13 filter. Filter non-compliance voids the product warranty. CAUTION! MAKE SURE UNIT IS OFF BEFORE CHANGING THE FILTER. FAILURE TO FOLLOW FILTER HANDLING INSTRUCTIONS MAY RESULT IN IMPROPER FUNCTION OF THE DEHUMIDIFIER AND CAUSE PREMATURE FILTER WEAR OR UNIT DAMAGE. Changing the Filter For greatest filtration and efficiency of the Santa Fe Oasis105 dehumidifier, it is recommended the air filters be replaced every three to six months. -
Page 10: Basement/Crawl Space Installation
Basement/Crawl Space Installation 1. The Oasis105 must operate in an enclosed area to be most effective. Close all exterior vents, doors, windows, and other outside openings to the space. The effectiveness of the dehumidifier depends on the rate at which new moisture-laden air enters the room. 2. Place dehumidifier in a central location that does not restrict the airflow of the air intake and air outlet. 3. The dehumidifier must be installed on a level floor to ensure water drains out of the unit correctly. 4. There should be a minimum of 14 inches clearance around the dehumidifier. The unit will produce heat while in operation and should not be operated in an enclosed small space like a closet unless it is ducted. The Oasis105 is designed to operate between 49 °F and 115 °F. -
Page 11: Ducting To Finished Areas (Optional)
Ducting To Finished Area (Optional) A supply duct collar is an optional accessory for the Santa Fe Oasis105 and not included with the unit. Attaching Supply Duct Collar Supply Air Outlet A 10" diameter supply plenum and duct collar (sold separately) can be attached to the Oasis105. Output of Dehumidified Air Input of Humid Air 800.533.7533 | Santa-Fe-Products.com... -
Page 12: Recommended Installations
Ducting To Finished Area (Optional) Recommended Installations • P lace the Santa Fe dehumidifier in the unfinished area of the basement, near a drain access (condensate will drain via gravity or with an optional pump kit). Installation of a Supply Kit Only • Using the supply duct collar, supply the dry air from the dehumidifier into a large, open room in the finished section of the basement. -
Page 13: Service
Service WARNING! SERVICING THE DEHUMIDIFIER WITH ITS HIGH PRESSURE REFRIGERANT SYSTEM AND HIGH VOLTAGE CIRCUITRY PRESENTS A HEALTH HAZARD WHICH COULD RESULT IN DEATH, SERIOUS BODILY INJURY, AND/OR PROPERTY DAMAGE. ONLY QUALIFIED SERVICE PEOPLE SHOULD SERVICE THIS UNIT. Warranty A warranty certificate has been enclosed in this manual; read it before any repair is initiated. If a warranty repair is required, call the factory first at 1-877-420-1330 for warranty claim authorization and technical assistance. - Page 14 Service The following checks shall be applied to installations using FLAMMABLE REFRIGERANTS: • W here electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times Therma-Stor’s maintenance and service guidelines shall be followed. If in doubt, consult Therma-Stor’s technical department for assistance. • T he actual REFRIGERANT CHARGE is in accordance with the room size within which the refrigerant containing parts are installed; • The ventilation machinery and outlets are operating adequately and are not obstructed;...
-
Page 15: Charging Procedures
Service Detection of Flammable Refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used. The following leak detection methods are deemed acceptable for all refrigerant systems: • E lectronic leak detectors may be used to detect refrigerant leaks but, in the case of FLAMMABLE REFRIGERANTS, the sensitivity may not be adequate, or may need re-calibration. -
Page 16: Refrigerant Recovery
Service Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its details. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. -
Page 17: Troubleshooting
Service - Troubleshooting CAUTION! TROUBLESHOOTING SHOULD BE PERFORMED BY A QUALIFIED HVAC TECHNICIAN. Display Service Error Name Possible Reason Troubleshooting Procedure Code Required • Dehumidifier fan will circulate air for 1 minute. 1. Defective sensor Ambient sensor • Dehumidifier compressor will activate for 2. Unplugged sensor 15 minutes. • This process will repeat every 15 minutes. •... -
Page 18: Electrical Requirements
Electrical Requirements The Santa Fe Oasis105 dehumidifier plugs into a common grounded 115VAC outlet. The Oasis105 draws 9.1 Amps at 104°F and 36% RH. Locate the dehumidifier in an area where the cord’s length (9') easily reaches a 115 VAC electrical outlet with a minimum of 15 Amp circuit capacity. If used in an area that may become wet, a GFCI protected circuit is recommended. The unit should not be used in areas prone to flooding. Consult local electrical codes for any further information. An optional remote dehumidistat is available for use with the Santa Fe Oasis105 dehumidifier and is to be located remotely from the dehumidifier. CAUTION! ELECTRICAL SHOCK HAZARD: Electrical power must be present to perform some tests. These tests should be performed by a qualified service person. -
Page 19: Warranty
Limited Warranty. Any delay or failure by Therma-Stor to exercise any right or remedy will not constitute a waiver of Therma-Stor to thereafter enforce such rights. -
Page 20: Warranty Registration Card
Warranty Registration Card IMPORTANT WARRANTY INFORMATION - DO NOT DISCARD REGISTER YOUR PRODUCT. SERIAL NUMBER PART NUMBER www.thermastor.com/registration Register your product using the serial number and part number above at www.thermastor.com/registration This is important Warranty Information. Please DO NOT DISCARD! Santa-Fe-Products.com 1.800.533.7533...
