CONGRATULATIONS!
Your new Alarm Lock Trilogy electronic digital lock is a rugged entry
lock of advanced design with several programmable features. The
2700 series features two models that are identical in operation but
with different keypad types: The traditional DL2700 with a standard
keypad and the TL2700 with a flat illuminated touchpad.
Three "maintenance levels" are provided: Master (can perform ALL
functions), Manager (can perform MOST functions plus entry), and
Basic User (entry only). The lock includes 100 User Codes
(consisting of Managers and Basic Users), plus three "one-time entry"
Service Codes. The Manager/Basic User Codes are organized simi-
lar to a grid--ten banks of ten Access Codes.
Take the time to read through this guide to familiar-
ize yourself with the features and operations of the
lock, and its quick and easy programming proce-
dures.
Features
• 1 Master Code (all functions including entry)
• 10 Manager Codes (perform SOME programming
functions plus entry)
• 90 Basic User Access Codes (Entry Only)
• 3 Service Codes ("One-Time Entry" Codes)
• Two User Disable Modes:
• All User Codes Disabled Except Master Code
• All User Codes in a Bank Disabled Except
Manager Codes
• 30-Second Keypad Anti-Tamper Lockout:
(Keypad Lockout After 3 Unsuccessful User Code
Entries)
• Programmable Relay Functions:
(Relay may be keypad programmed to energize on
any keypress 0-9 or on unlock).
Model TL2700 Touchpad Features
Identical to the DL2700 above, but includes:
• Touch-sensitive instant-on back-lit screen
• Extremely resistant to dirt, water and most
chemicals
• Designed for effortless, long-lasting operation
© ALARM LOCK 2024
Trilogy T2 DL2700 & TL2700
Programming Instructions
Mortise, Cylindrical & Exit Trim Locks

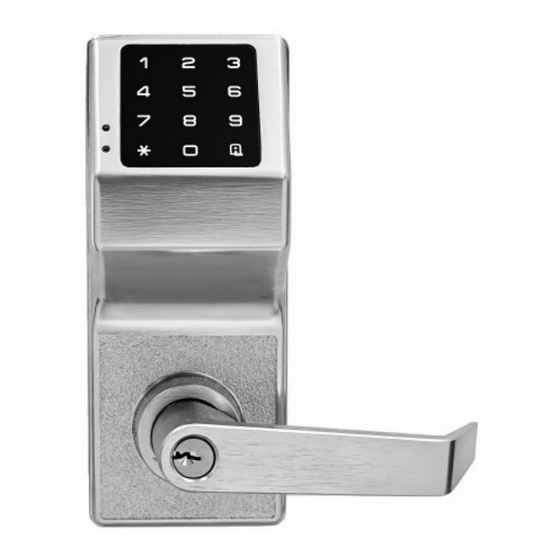

DL2700
(Cylindrical with
Standard Keys)
QUICK LOOKUP
Wiring ........................................................................ 2
Quick Start ........................................................... 2-3
Testing Codes ........................................................... 3
Manager & User Location Worksheet ...................... 4
Manager & User Location Example ........................ 5
Programming Worksheet: Functions ........................ 6
Change Existing Master Code............................... 7
Add/Change Manager Codes ................................ 7
Add/Change User Codes ...................................... 7
Deleting Codes ...................................................... 7
Disable/Enable Users ............................................ 7
Disable/Enable All ................................................. 8
Code Location Function ........................................ 8
Next Free Code Address Locator .......................... 8
Add/Delete Service Codes ................................... 9
Enable/Disable Passage Mode ............................. 9
Disable/Enable Groups ......................................... 9
Disable/Enable Users in Bank ............................. 10
Keypress Sound Options ..................................... 10
AUX Relay Functions .......................................... 10
Lock Identifier ...................................................... 10
Enable / Disable Emergency Chirp ..................... 11
Passage Mode ............................................. 11
Audible and LED Indications .................................. 11
Battery Replacement .............................................. 12
Erase All Programming ........................................... 12
Extra Manager & User Location Worksheets ... 13-15
Limited Warranty ..................................................... 16
OI209CLF 8/24
TL2700
(Cylindrical with
Touch keypad)
1
Advertisement
Related Manuals for Alarm Lock Trilogy T2 DL2700
Summary of Contents for Alarm Lock Trilogy T2 DL2700
-
Page 1: Table Of Contents
© ALARM LOCK 2024 OI209CLF 8/24 CONGRATULATIONS! Your new Alarm Lock Trilogy electronic digital lock is a rugged entry lock of advanced design with several programmable features. The 2700 series features two models that are identical in operation but with different keypad types: The traditional DL2700 with a standard keypad and the TL2700 with a flat illuminated touchpad. -
Page 2: Wiring
Wiring See the Installation Instructions for more information. Aux Relay: Aux Relay allows up to 300mA @ 60VDC Maximum. Batteries: See page 10 for programming options for the Use only 1.5 volt Duracell Alkaline size-AA batteries. Relay ("AUX Relay Functions"). External Power: BLUE = Common, YELLOW = N/O, GREEN = N/C. -
Page 3: Testing Codes
Quick Start (cont’d) Enter a Manager Code Manager Codes are located at locations 00, 10, 20, 30, 40, 50, 60, 70, 80, and 90 (see grid on page 4). Note: New Manager Codes MUST use the same number of digits as the (new) Master Code. Enter as follows. 1. -
Page 4: Manager & User Location Worksheet
Manager & User Location Worksheet The lock provides three "maintenance levels": Master (can perform ALL functions), Manager (can perform SOME programming functions plus entry), and Basic User (entry only). In total, there are 104 "locations" inside the lock: one Master Code, 10 Man- ager and 90 User Access Codes, and three "one-time entry"... -
Page 5: Manager & User Location Example
Manager & User Location Example User Access Codes allow access only; Manager Codes allow more: Manager Codes have the ability to program and delete User Access Codes within that Manager's Bank (column). The lock can hold up to 10 Manager Codes, one for each Bank (locations (00), (10), (20), (30), (40), (50), (60), (70), (80), (90)), and are all found at the top row of the grid below. -
Page 6: Programming Worksheet: Functions
Programming Worksheet: Functions Directions: The Factory Master Code (1-2-3-4-5) must first be reprogrammed as a new Master Code before any other programming can take place. All new Access Codes must have the same number of digits as the new Master Code. Choose new Access Codes and write them in spaces provided (in pencil) before programming the lock. -
Page 7: Programming Functions
Programming Functions Change Existing Master Code* ; 1 ; For new locks, follow the "Quick Start" on page 2. Factory Master Code MUST be re-programmed; allows lock configuration, passage and user management functions. __ __ __ __ __ __ ; 1 ; __ __ __ __ __ __ __ __ __ __ __ __ Old (or "Factory") Master Code... -
Page 8: Disable/Enable All
Programming Functions (cont'd) Enable/Disable All Disable All: If Master Code is used, disables all 100 User\Manager Codes and clears all 3 Service Codes. If a Manager Code is used, disables all Users (even across multiple Banks) under that Manager. Disable Users Only: If Master Code is used, disables all 90 Users and clears all 3 Service Codes, while Manag- ers remain active. -
Page 9: Add/Delete Service Codes
Programming Functions (cont'd) Add/Delete Service Codes Service Codes are one-time-only Codes; once entered into the keypad, it is deleted. Use the same Code up to 3 times by programming all three Service Codes with the same Code. Note: Service Codes are lost if power is removed. -
Page 10: Disable/Enable Users In Bank
Lock Identifier To aid in distinguishing your lock model from earlier Alarm Lock versions, your lock model will respond to any two digits plus the : key by (1) lighting the green LED and (2) playing a musical scale of 8 notes. -
Page 11: Enable / Disable Emergency Chirp
Programming Functions (cont'd) Enable / Disable Emergency Chirp For "LD" Lock models with Emergency Lockdown functions only, the lock can be made to sound a chirp when an Emergency command is in effect. Chirp on Emergency __ __ __ __ __ __ ;... -
Page 12: Battery Replacement
Battery Replacement When the batteries are weak and a key is entered, the lock will alert you by flashing the RED LED accompanied by a high/low sounder. The lock uses five AA-size 1.5 volt alkaline batteries; although the lock will function with weak batteries, be sure to replace them with fresh batteries as soon as possible. -
Page 13: Extra Manager & User Location Worksheets
Manager & User Location Worksheet The lock provides three "maintenance levels": Master (can perform ALL functions), Manager (can perform SOME programming functions plus entry), and Basic User (entry only). In total, there are 104 "locations" inside the lock: one Master Code, 10 Man- ager and 90 User Access Codes, and three "one-time entry"... - Page 14 Manager & User Location Worksheet The lock provides three "maintenance levels": Master (can perform ALL functions), Manager (can perform SOME programming functions plus entry), and Basic User (entry only). In total, there are 104 "locations" inside the lock: one Master Code, 10 Man- ager and 90 User Access Codes, and three "one-time entry"...
- Page 15 Manager & User Location Worksheet The lock provides three "maintenance levels": Master (can perform ALL functions), Manager (can perform SOME programming functions plus entry), and Basic User (entry only). In total, there are 104 "locations" inside the lock: one Master Code, 10 Man- ager and 90 User Access Codes, and three "one-time entry"...
-
Page 16: Limited Warranty
This warranty shall not apply to any equipment, or any In no event shall ALARM LOCK be liable for an amount part thereof, which has been repaired by others, improp- in excess of ALARM LOCK's original selling price of the... - Page 17 Press Master or Manager Code ; 9 4 For Technical Service 1-800-645-9440 Enable All Publicly traded on NASDAQ Symbol: NSSC Press Master or Manager Code ; 9 5 Disable Users 0 ; (Reset with Function 944) Only © ALARM LOCK 2017 OI216B 2/17...
- Page 18 QUICK REFERENCE GUIDE TO PROGRAMMING CODES INSTRUCTIONS: To program desired function, follow procedure in right column. FUNCTION PRESS THESE BUTTONS ON KEYPAD 1. Remove the battery pack, and with the batteries disconnected, press any numeric key for 10 seconds and release. Restore Factory Default 2.
- Page 19 MODEL DL 2700WP IC INTERCHANGEABLE CORE LEVER SETS PARTS LIST Standard Cylinder and Interchangeable Core Models Item S Part# Description Item Part # S6105-US3 Battery Cover 1 + 8 HW592-US3 S6105-US5 Battery Cover 1 + 8 HW592-US5 S6105-26D Battery Cover 1 + 8 HW592-26D S6105-26...
-
Page 20: Startup Procedure
Factory Master Code has been changed (see User Guide OI209A to change the factory Master Code). When the factory Master Code has been changed, you can then enter new manager/user codes and program other functions. © ALARM LOCK 2005 WI1453 9/05... - Page 21 IMPORTANT Seal all connectors with Dielectric Grease (part MX959) or Silicone Lubricant (supplied) ALARM LOCK © ALARM LOCK 2009 WI1822A 8/09...
- Page 22 INSIDE HOUSING FROM SPINDLE 345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 (Note: Technical Service is for alarm professionals only) © ALARM LOCK 2010 WI1871 5/10 Publicly traded on NASDAQ Symbol: NSSC CATCH SPINDLE...
