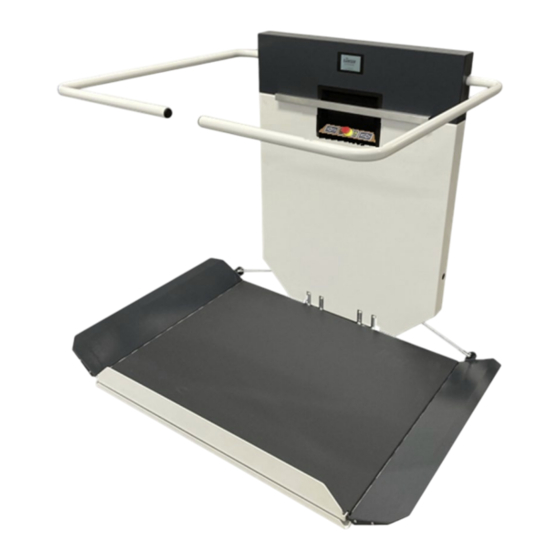

GANSER LIFTSYSTEME GTLE Original Operating Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

ATTENTION

Read the operating manual carefully before using this stairlift. Every operator must have

read and understood these instructions.

The contents of this documentation do not constitute a basis for rights of any kind.

Ganser Maschinen GmbH

Markt 26

4171 St. Peter a. Wbg.

AUSTRIA

ORIGINAL OPERATING MANUAL

info@bestplatformlift.com

GTLE

+421 905 649 546

Table of Contents

Need help?

Do you have a question about the GTLE and is the answer not in the manual?

Questions and answers

Summary of Contents for GANSER LIFTSYSTEME GTLE

Page 1 ORIGINAL OPERATING MANUAL GTLE ATTENTION Read the operating manual carefully before using this stairlift. Every operator must have read and understood these instructions. The contents of this documentation do not constitute a basis for rights of any kind. Ganser Maschinen GmbH Markt 26 4171 St.
Page 2 OPERATING MANUAL GTLE 06 | 2022 Your Ganser Liftsysteme dealer:...
Page 3: Table Of Contents
Table of contents Preface ........................... 1 Intended area of application ................... 2 2.1. Ambient conditions: ....................2 2.2. Provisions for transport ................... 3 2.3. Exclusion of warranty and liability ................3 Operator qualifications ....................3 3.1. Fitter ........................3 3.2. Operator ........................
Page 4 11.3. Battery charger ....................18 11.3.1. Operating states of the charger ..............18 Safety devices ......................19 12.1. Safety barriers and access ramp ................19 12.2. Side switch-off ....................19 12.3. Safety catch ......................19 12.4. Contact base ......................19 12.5. Contact switch on the access ramps ..............19 12.6.
Page 5 List of figures Figure 1: Control on the lift ....................8 Figure 2: Fixed mounted external remote control..............8 Figure 3: Remote control ....................... 8 Figure 4: Additional cable remote control for folding seat ............8 Figure 5: Stairlift structure ..................... 9 Figure 6: Service cover on the rear of the lift unit..............10 Figure 7: Emergency crank threaded in ................15 Figure 8: Reset button ......................17...
Page 6: Preface
1. Preface Dear Reader, we would like to congratulate you on the purchase of this modern stairlift type Ganser GTLE and at the same time thank you for your confidence in our product. To operate this platform stairlift safely, simple knowledge is required, which is provided by these original operating instructions.
Page 7: Intended Area Of Application
2. Intended area of application The GTLE from Ganser Liftsysteme may only be used in the sense of its intended use. Intended use also includes the maintenance instructions in point 17. These must be followed by the operator to the best of their ability.
Page 8: Provisions For Transport
3.3. Service technician Maintenance or service work may only be carried out by service technicians from Ganser Liftsysteme or a partner who has been trained by Ganser Liftsysteme and is familiar with the lift. GTLE Operating Manual Version 1.2...
Page 9: General Product Description
A safety catch prevents uncontrolled movement of the platform stairlift along the track in the event of a defect in a drive element. Page 4 of 35 Version 1.2 GTLE Operating Manual...
Page 10: Safety Regulations
5. Safety regulations Ganser Liftsysteme stairlifts are manufactured in accordance with the applicable regulations and standards. Nevertheless, in the event of incorrect operation or misuse, there is a risk to life and limb of the operator or third parties, the unit and other material assets of the operator.
Page 11 It is not permitted to leave, store or park materials in the path of travel. The carriage and track must be adequately illuminated by daylight or electric lighting. The electric lighting must not be dependent on timer circuits. Page 6 of 35 Version 1.2 GTLE Operating Manual...
Page 12 (breakage of a drive element, power failure, malfunction). Technical safety devices and their associated proper use result in a relatively safe system. Nevertheless, the user is required to operate the system conscientiously. GTLE Operating Manual Version 1.2 Page 7 of 35...
Page 13: Stairlift Structure & Operating Options
Emergency stop button After actuation, the stairlift stops. To unlock, the button must be turned. Key switch The system can only be put into operation with the key Table 1: List of controls Page 8 of 35 Version 1.2 GTLE Operating Manual...
Page 14: Platform Stairlift Structure
Intelligent display Control on the lift Service access (rear) 15.1 Main switch 15.2 Platform emergency opening 15.3 Main battery fuse Side switch-off Reset button Safety catch Table 2: Platform stairlift structure GTLE Operating Manual Version 1.2 Page 9 of 35...
Page 15: Service Access
6.3. Service access The GTLE is exclusively battery-powered. The main switch is located directly on the load- carrying device under a cover on the back of the lift unit. The power supply can be interrupted by turning the main switch to -0-. In this position, the main switch can be shut off.
Page 16: Operation By Means Of Remote Control
If the password has been entered correctly, the green LED flashes and the user now has 20 seconds to operate the lift. If you do not press any button for 20 seconds, the remote control will lock again. GTLE Operating Manual Version 1.2 Page 11 of 35...
Page 17: Operation On The Platform Stairlift
7.3. Operation on the platform stairlift Every GTLE platform stairlift is equipped with a user interface as standard (cf. Figure 1). Controls located directly on the stairlift are given priority over wireless controls. The following...
Page 18: Driving Onto The Platform
When the movement is complete, release the button and leave the platform. Hold on tightly to the handle at all times while driving to avoid falling off the platform. GTLE Operating Manual Version 1.2 Page 13 of 35...
Page 19: Moving The Platform Into The Parking Position
9. Functionality of the display The GTLE is equipped with an intelligent control system as standard, which includes a display. The capacitive display (Figure 5, Pos. 13) is a great help for service purposes and problem solving.
Page 20: Procedure After An Unplanned Shutdown
The lower stopping point should always be approached, as the effort required downhill is significantly lower. The respective direction of rotation is indicated on the undercarriage. This activity requires a lot of time and effort from the user. GTLE Operating Manual Version 1.2 Page 15 of 35...
Page 21: Evacuating A Person From The Stairlift
If the safety catch has responded, the stairlift must be inspected by an authorised specialist company. The safety catch may only be unlocked by an authorised specialist company. Page 16 of 35 Version 1.2 GTLE Operating Manual...
Page 22: Information About Charging
11. Information about charging The GTLE platform stairlift is powered exclusively by the batteries in the carriage. The batteries are automatically charged after the stairlift is parked at a stopping point. DC voltage must always be present at the charging points to ensure that the batteries are charged. The batteries used are maintenance-free and overcharging is not possible.
Page 23: Battery Charger
If the voltage drops below 27.6 V, the charging process starts again and the LED changes colour to orange. If the charger does not detect a battery, the LED also lights up green. Page 18 of 35 Version 1.2 GTLE Operating Manual...
Page 24: Safety Devices
12.7. Emergency call via acoustic signal on the lift An acoustic signal can be generated via the buttons marked in yellow (cf. Figure 1, Pos. 5), which are provided with Braille lettering. GTLE Operating Manual Version 1.2 Page 19 of 35...
Page 25: Accessories
13.4. Cable remote control Optionally, the platform stairlift can additionally be equipped with a cable remote control (cf. Figure 4), which promises ergonomic operation when using a folding seat. Page 20 of 35 Version 1.2 GTLE Operating Manual...
Page 26: Front Access Ramp
The folding seat allows the operator to travel while seated. It is finished with a pleasant plastic surface. If the folding seat is not needed, it can be folded up to save space. GTLE Operating Manual Version 1.2 Page 21 of 35...
Page 27: Possible Faults
Emergency-end left side (S8) (loading point) on the left-hand side. appears on the display 3. Approach the stop again. If this error occurs again, please contact a service technician immediately. Error list Page 22 of 35 GTLE GTLE Operating Manual...
Page 28 Check the connections at the motor controller to see if a plug is error at motor controller (A2) There is a fault in the motor controller. loose there. Error list Page 23 of 35 GTLE GTLE Operating Manual...
Page 29 Feedback from contactor K9 does not match the Error on the motherboard. Switch the lift off and on again. If the Relay error K9 control. error persists, contact your service technician. Error list Page 24 of 35 GTLE GTLE Operating Manual...
Page 30 The two limit switches of the ramp motor are Motor ramp both limit switches active Check if a limit switch is stuck. actuated at the same time. Error list Page 25 of 35 GTLE GTLE Operating Manual...
Page 31 Contact switch S14.1 on the upper side of the lift S14.1 Top cover pressed (S14.1) Check if the contact switch is pressed and remove the obstacle. has triggered Error list Page 26 of 35 GTLE GTLE Operating Manual...
Page 32 An internal error has occurred in the circuit board Contact your service technician 10004 Initialized Error Buffer An internal error has occurred in the circuit board Contact your service technician Error list Page 27 of 35 GTLE GTLE Operating Manual...
Page 33: Disassembly And Disposal
Any national regulations must be observed when disposing of the product. 16. Installation and commissioning Installation may only be carried out by instructed and authorised Ganser Liftsysteme personnel or by authorised partner companies. The sufficient static load capacity of the masonry or the substrate must be ensured. Ganser Liftsysteme accepts no liability whatsoever in this matter.
Page 34: Maintenance Instructions
To ensure the safety and reliability of this product, repairs and other maintenance or adjustments should only be carried out by Ganser authorised dealers using only genuine Ganser spare parts. Operating Manual GTLE Version 1.2 Page 29 of 35...
Page 35: Maintenance Manual
Search for break-outs and deformations Rail tube end caps and screw covers If present ☐ ☐ 2.4.1 Check for completeness, replace covers if necessary ☐ ☐ 2.4.2 Check for tight fit Page 30 of 35 Maintenance manual GTLE Operating Manual...
Page 36 Check for noise and wear, lubricate bearings S1 / S2 / S3 ☐ ☐ 3.1.5 Remove contamination ☐ 3.1.6 Check the preservation of the bearings and moving parts, if necessary spray the areas with preservative. Operating Manual Maintenance manual GTLE Page 31 of 35...
Page 37 Check function and tight fit of platform motor ☐ 3.5.4 Check the preservation of bearings and moving parts, if necessary spray the areas with preservative. Drive-up ramps ☐ ☐ 3.6.1 Check for corrosion, noises and deformations. Page 32 of 35 Maintenance manual GTLE Operating Manual...
Page 38 ☐ 3.12.2 Check the preservation of the internal housing parts, frame parts and K1 / K2 frame part screw connections, if necessary spray the areas with 3.13 Emergency crank Operating Manual Maintenance manual GTLE Page 33 of 35...
Page 39 Mains connection housing: Check fastening If present ☐ ☐ Test drive: Check all important functions and driving behaviour ☐ ☐ Radio receiver: Check function If present conducted on _______________________ Client's signature _______________________ Page 34 of 35 Maintenance manual GTLE Operating Manual...
Page 40 The manufacturer accepts no liability for damage caused by the use of non-original parts and accessories. Operating Manual Maintenance manual GTLE Page 35 of 35...
