SETUP, PARTS & MAINTENANCE
MANUAL BZT 2000 SERIES
Models:

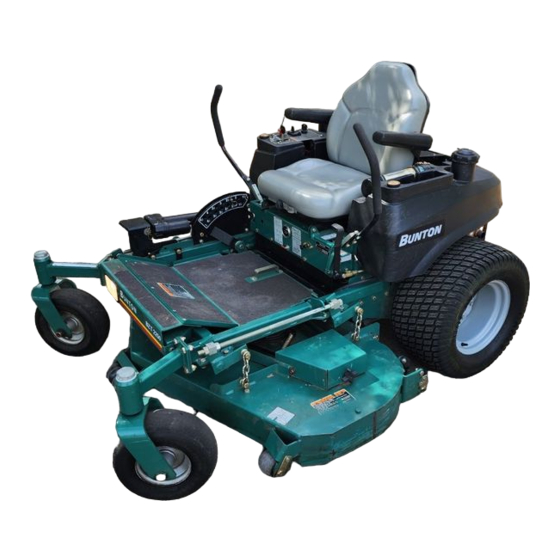

642220A BZT 2190 19HP KAW W/48 SIDE DISCHARGE
642221A BZT 2190 19HP KAW W/52 SIDE DISCHARGE
642222A BZT 2230 23HP KAW W/52 SIDE DISCHARGE
642223A BZT 2230 23HP KAW W/61 SIDE DISCHARGE
642227A BZT 2230LC 23HP KLR W/52 SIDE DISCHARGE
642228A BZT 2230LC 23HP KLR W/61 SIDE DISCHARGE
642233A BZT 2250 25HP KAW W/61 SIDE DISCHARGE
642237A BZT 2270 27HP KLR W/61 SIDE DISCHARGE
WARNING: If incorrectly used this machine can cause severe injury. Those who use
and maintain this machine should be trained in its proper use, warned of its dangers
and should read the entire manual before attempting to set up, operate, adjust or
service the machine.
Operation & Safety Manual: 4122816
4122815 REV D
