Summary of Contents for Snow Peak Land Lock Pro

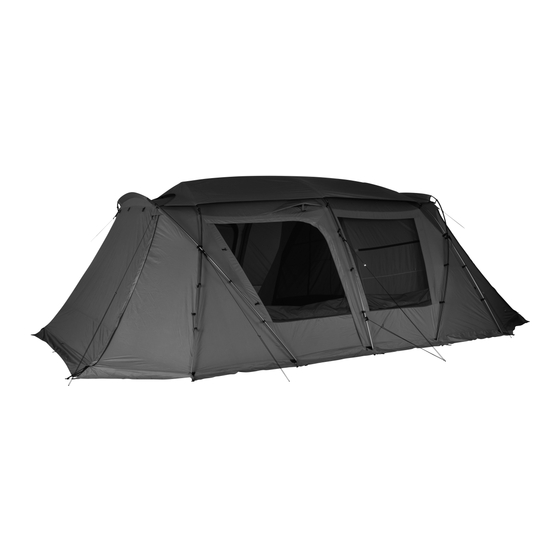

- Page 1 Instruction Manual : Ver 1.00 FES-197 Land Lock Pro. Air Shield Roof Set...
- Page 2 Thank you very much for purchasing a Snow Peak product. This product is a shelter designed for camping. To use this product safely and correctly, please carefully read these instructions. After reading these instructions, keep this manual in a safe place for future reference. If you find anything in...
- Page 3 Pole configuration Navy blue sticker Navy blue sticker A pole x 2 Navy blue sticker Navy blue sticker C pole x 2 Black sticker Black sticker Center pole x 1 Red sticker Red sticker Navy blue tip Navy blue tip Ridge pole x 1...
- Page 4 Safety Precautions: Before use, please read thoroughly to ensure safety and avoid accidents. DANGER: Misuse could easily result in a serious accident or death. ●Do not use combustion-based heat sources such as lanterns, stoves or heaters, or open flames such as matches, candles, lighters or cigarettes, inside the shelter. The use of such heat or light sources inside a small enclosed space is very dangerous and may result in fire, oxygen deficiency, or carbon monoxide poisoning.
-
Page 5: Name Of The Parts
In the unlikely event that there is a problem or a missing accessory, please contact the dealer you purchased the product from, or Snow Peak Customer Service. ●This product does not include pegs or hammers. - Page 6 Rope with rope tensioner, peg down position Fix the rope and determine the peg down positions as shown below. A pole C pole C pole Center A pole pole The ideal position to insert the peg is the place where the rope is at a 45° angle to the ground when set up.
-
Page 7: Setup Procedure
Setup procedure: Make sure that two or more people take part in the setup. Spread the main body on a flat area. Consider the orientation of the two doorway panels. * Make sure all three building tapes are buckled. If it is disconnected, make sure to connect them before setup. - Page 8 Hold the ring pin with the dark blue peg down loop on the hem of the body and insert it into the A pole. (4 places) Adjust the tension of the tape by pulling the belt with center rings on both sides. At this time, please hook the plastic hook in the upper part of the A pole beforehand.
- Page 9 Connect the center pole with red stickers on both tips little by little, and pass it through the center sleeve with a red tape in the center of the main body. Next, insert the ring pins (with a red string) into the pole ends at both tips in the same way as in step ③. When you pass the pole through Red tape the sleeve, it is convenient to...
- Page 10 Place the peg through the loop attached to the ring pin on the hem and peg down all the loops inside the room. Peg down the rope firmly. Use the sold separately upright pole (TP-080) to lift the entrance / exit door panel. Adjust the direction of the rope so that no wrinkles remain. * When it rains, the door panel tends to fill with water, so either tilt the pole and make a gradient or use a short pole and pull down the center of the front with a large V-shaped rope so that water can escape.
- Page 11 If necessary, unbuckle the building tape and store the tape in the pocket. If you remove the building tape after setting up, be sure to peg down inside and apply tension. Center building tape Y-Shaped building tape Building tape pocket Y-Shaped building tape Setting up the inner room * Please hang the inner room in the room on the side of the Land Lock without the side door.
- Page 12 Hook the hooks and rubber loops on each bottom corner of the inner room to the O-rings and pegs on the main body (fly). Peg down A pole Dark blue tape tape with hook Inner bottom Peg down loop O-ring on (dark blue) The peg-down tape at the rear two A pole...
- Page 13 Use of safety rings This product has a safety ring that maintains stability during strong winds. Set up your rope inside the center pole, as shown below. The safety ring is only a supplementary measure and cannot withstand all bad weather. Please use this WARNING product only when there is a temporary strong win or when it is difficult to disassemble immediately.
- Page 14 Attaching the shield roof: This procedure should always be carried out by two or more people. [Name of each part] Connection hook Shield roof body Setting cord with hook Connection hook Land Lock body pole hook Pole Shield roof connection Setting cord with hook hook Fasten the shield roof connection hook to the tape...
- Page 15 Hang the shield roof connection hook and the rope with a rope tensioner to each of the tape connections of the upper hooks of the C pole, A pole, and center pole on one side of the Land Lock body. (For details about the hooking position of the Land Lock body, refer to the figure below.) ■Hooking position of the Land Lock body Hooking to the tape connection of...
- Page 16 Finally, hang the shield roof connection hook to each of the upper hooks of the C pole, A pole, and center pole on the other side of the Land Lock body, and make adjustments to complete the procedure. After setting, remove the setting cord with a hook. Precautions for disassembly / storage □Before storage, the product should be cleaned and dried sufficiently.
- Page 17 How to store (When storing, be sure to disassemble the main body after removing the shield roof and inner room from the main body.) Fold the main body in half with the center sleeve as centered on top. Fold the sides inward to form a rectangle.
- Page 18 Fold the rectangular main body (fly) to a Leave the zipper at the bottom of the width that fits into the carry bag. inner room door panel open to allow air to escape easily. As with the main body (fly), please fold it After reaching the width of the carrying to fit into the carry bag.
- Page 19 Regarding Condensation Mist is a collection of water droplets suspended in the air that Water droplets turns into condensation in rapidly falling temperatures. (Condensation) In smaller spaces such as the inside of a tent or shelter, water vapor concentration is higher than in an ordinary room and frequently results in more condensation.
- Page 20 ●When using the product again after not using it for a long period of time, inspect the product and its included items. If you have any questions, please contact Snow Peak Customer Service. ●A polyester fabric blend is used for this product. Considering the material characteristics, we have adopted processing and color patterns that will result in less color migration.
-
Page 21: Warranty
Snow Peak Customer Service. If there are apparent defects in the product's manufacturing, the defective product will be repaired or exchanged free of charge. In other cases, Snow Peak will repair the product for an appropriate fee. The decision to repair or replace the product will be at our discretion. -
Page 22: Specifications
●Carry bag size: 74 x 30 x 35 (h) cm / 29.1" x 11.8" x 13.8" (h) ●Weight: 20.7kg / 45.6 lbs If you have any questions or concerns, please contact your retailer or Snow Peak customer service. +1(503)461-0781 Snow Peak...
