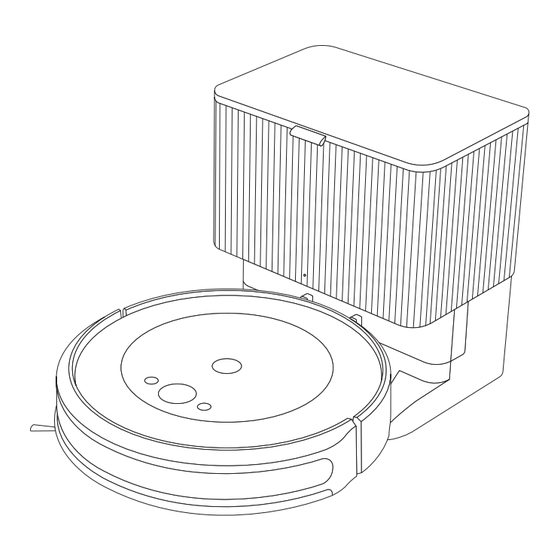

iRobot Roomba Combo 2 Essential Owner's Manual

Robot + autoempty dock

Hide thumbs Also See for Roomba Combo 2 Essential:

Quick start and safety manual (44 pages)

Quick start manual (80 pages)

Table Of Contents

Quick Links

Download this manual

2 Essential

robot

Auto Empty dock

Owner's Guide

Table of Contents

Need help?

Do you have a question about the Roomba Combo 2 Essential and is the answer not in the manual?

Questions and answers

April 17, 2025

i don't use computers or smart phones, how do you start it manually??

-1

Summary of Contents for iRobot Roomba Combo 2 Essential

Page 1 2 Essential robot Auto Empty dock Owner’s Guide...
Page 2: Important Safety Information
Safety information Important safety information This owner’s guide includes information for Regulatory Model(s): Robot: RCC-Y1 | Dock: ADO-Ny (y=1-3) | Battery: ABL-G | Robot Radio Module: ESP32-S3-WROOM-1 SAVE THESE INSTRUCTIONS WARNING: When using an electrical appliance, basic precautions should always be taken, including the following: READ ALL INSTRUCTIONS WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using and maintaining your robot.
Page 3 Dual Multi-Surface Rubber Brushes (beater • Be aware that floors may be slippery after wet cleaning with your robot. bars) on your robot. Using your robot on a carpet or rug that is not For more information, visit global.irobot.com...
Page 4 compatible could result in damage to your carpet or rug. Contact your • Use only as described in this manual. NOTICE carpet or rug manufacturer with questions on compatibility. WARNING DOCK • This product may not be used with any type of power converter. Use of power converters will immediately void the warranty.
Page 5 This symbol on the battery indicates that the battery must not be disposed authorised iRobot Service Centre for disposal. of with unsorted common municipal waste. As the end user, it is your •...
Page 6: Getting Started
Getting started Install the drip tray Position the dock Good Wi-Fi® coverage 0.5 m (1.5 ft) 1.2 m (4 ft) both sides from stairs 1.2 m (4 ft) in front Gently place the dock on its back. Align the attachment points on the drip tray and dock.
Page 7 Remove the anti-collision protection strips on both sides of the robot and the Plug the power cord into the wall. Wrap the cord back so it won’t get in the way of protective film from the robot before first use. the robot as it comes and goes. For more information, visit global.irobot.com...
Page 8 Install the Edge-Sweeping Brush Wake up your robot Align the Edge-Sweeping Brush and press down until you hear a click. Place your robot in front of the dock, then slide it towards the dock, lining up the metal charging contacts. After a few minutes, a sound will let you know it’s awake. NOTE: Your robot comes partially charged, but we recommend that you charge the robot for 4 hours prior to starting the first cleaning job.
Page 9 Download the iRobot Home App Scan the QR code with the camera on your mobile device or find the iRobot Home App in your app store. • Follow the step-by-step instructions to set up your robot. • Set an automatic cleaning schedule and customise cleaning preferences.
Page 10: About Your Robot
About your robot Top view Bottom view Power icon light indicator Dust Bin Cliff Sensor Caster wheel Home Button Debris evacuation port Edge-Sweeping Brush Pad plate attachment Charging contact CLEAN button Brush frame release tab Multi-Surface Brush Tank cap Spot Clean Button Wheel Brush frame Water tank...
Page 11: Front View
About your dock Front view Top view Canister lid Debris evacuation port Bag guide rails Pull tab Exhaust vent Cleaning brush LED indicator IR window Blower cover Charging contact For more information, visit global.irobot.com...
Page 12: Standby Mode
Charging Power icon indicator Charging during a cleaning job Solid white: fully charged You robot will return to the dock whenever it needs to recharge. Once the robot is Pulsing white: charging sufficiently charged, it will then resume the cleaning job where it left off. Standby mode The robot uses a small amount of power whenever it is on the dock.
Page 13: Button Controls
After 90 minutes of inactivity off the dock, the robot will automatically end its cleaning job. If you are unsure if the robot has finished or paused, visit the iRobot Home App to check on its status.
Page 14 Vacuuming Vacuuming and mopping Empty the robot tank. Your robot is able to both vacuum and mop at the same time when the mopping pad plate and mopping pad are installed. Before starting a vacuum and mop job, prepare the room by rolling up/removing any carpets in the area you want to mop.
Page 15 If your robot needs water in the middle of a job, tap the CLEAN button to pause. Remove the bin and add water. Reinstall the bin and press the CLEAN button again to resume. Reinstall the pad plate on the bin. For more information, visit global.irobot.com...
Page 16: Emptying The Bin
To keep your robot at optimal performance, make sure that you regularly perform the following basic care and maintenance. There are additional instructional videos in the iRobot Home App. If you notice the robot picking up less debris from your floor, empty the bin, clean the filter and clean the brushes.
Page 17: Cleaning The Filter
Reinsert the filter and place the bin back in the robot. NOTE: The filter can be rinsed with water. Make sure that it is completely dry before reinstalling it. Frequent rinses are not recommended. For more information, visit global.irobot.com...
Page 18 Cleaning the Edge-Sweeping Brush Cleaning the Multi-Surface Brush Pull to remove the Edge-Sweeping Brush. Remove any Press the brush frame release tabs and lift to Remove any hair or debris from the Multi-Surface hair or debris using the cleaning brush, then reinstall remove the brush frame Brush using the cleaning brush the Edge-Sweeping Brush.
Page 19 IMPORTANT: A front wheel clogged with hair and debris could result in damage to your floor. If the wheel is not spinning freely after you have cleaned it, please contact Customer Care. For more information, visit global.irobot.com...
Page 20 * Replacement frequency may vary. Parts should be replaced if there is any visible wear and tear. If you think you need a replacement part, please contact iRobot Customer Care for more information. IMPORTANT: Do not spray cleaning solution or water onto the sensors or sensor openings.
Page 21: Replacing The Bag
Pull up on the card to remove the bag from the canister. Install a new bag by sliding the card into the guide rails. This will seal the bag so that dust and debris cannot escape. For more information, visit global.irobot.com...
Page 22: Troubleshooting Your Robot
Home App. If the dock is not performing as Home App for further support. expected, check the iRobot Home app for errors. If you are unsure if the robot has finished cleaning or has paused, consult the iRobot LED indicator Common error How to fix Home App to check on its status.
Page 23: Regulatory Information
Regulatory information Hereby, iRobot Corporation declares that this robot vacuum and mop Regulatory Model RCC-Y1 contains the Espressif radio module model: cleaner model RCC-Y1 is in compliance with the EU Radio Equipment ESP32-S3-WROOM-1, which operates in the WLAN 2.4 GHz band. For the EU and Directive 2014/53/EU.
Page 24 Recycle your end-of-life iRobot product responsibly as per local regulations. The following is a list of the WEEE recycling organisations contracted by iRobot at the time of product sale. Location Organisation http://www.elektro-ade.at/elektrogeraete- Austria sammeln/liste-der-sammelstoesterreich/ https://www.recupel.be/en/where-to-go/?sea Belgium Recupel rchcollectionPoints=&categories=1%2C2%2 C3%2C4# https://www.ear-system.de/ear verzeichnis/...
Page 25 Roomba Combo are registered trademarks of iRobot Corporation. AutoEmpty is a trademark of the iRobot Corporation. Wi-Fi and the Wi-Fi logo are registered trademarks of Wi-Fi Alliance. Apple and App Store are trademarks of Apple Inc., registered in the U.S. and other countries.
Page 27 Don’t return the robot to a shop. Let us help. iRobot USA Customer Care hours Download the iRobot Home App or visit global.irobot.com for product support or to contact Monday to Friday, 9 AM–6 PM Eastern Time your local support centre. If you need further assistance, call the Customer Care team on Saturday and Sunday, 9 AM–6 PM Eastern Time...

This manual is also suitable for:

Rcc-y1
