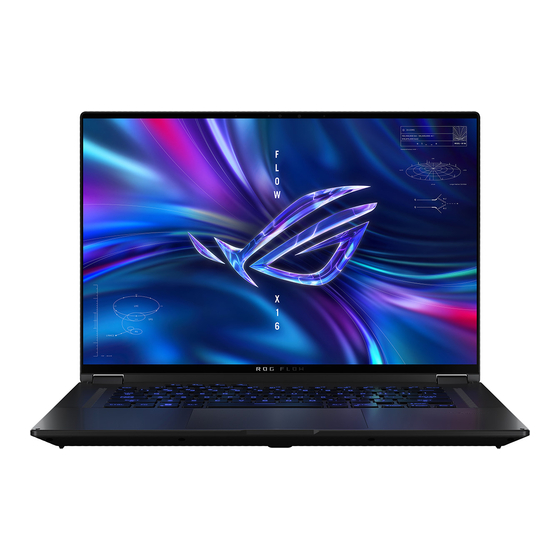

- Page 1 ROG Flow X16 (GV601V) Series Service Guide...
- Page 2 LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property;...
- Page 3 Disclaimer ASUS is not responsible for direct, indirect, intentional or unintentional damages resulting from improper installation and operation. Safety precautions • Keep liquids or moisture away from your Notebook PC before installing or removing any components. • Ensure to place your Notebook PC on a stable surface before installing or removing any components.
-
Page 4: Table Of Contents
Table of Contents ⚫ Service Overview ⚫ ASUS ROG Flow X16 (GV601V) Series Overview ⚫ Components Top View ⚫ Components Bottom View ⚫ Repair Overview ⚫ Appropriate Tools ⚫ Keyparts and Related Parts ⚫ Disassembly Steps : • BOTTOM CASE •... -
Page 5: Service Overview
Service Overview • Carefully read through this Service Guide for a look at various components of the device before performing any service and repairs. • To provide the best service, we have provided the below information for technicians from distributors and resellers to perform the complete device disassembly and assembly. -
Page 6: Asus Rog Flow X16 (Gv601V) Series Overview
ASUS ROG Flow X16 (GV601V) Series Overview Bottom View Top View Cover ❶ Array microphones ❷ Camera/ IR Camera ❸ Camera indicator ❹ 360 ͦ - adjustable touch screen panel ❺ Audio speakers ❻ Capital lock indicator ❼ Keyboard ❽ Touch pad ❶... -
Page 7: Components Top View
Components Top View BATTERY TOUCH PAD TWEETER CAMERA FHD RGB/HD IR ARRAY MIC CR LCD COVER ASSY HALL SENSOR FFC (CAMERA LED SPONGE) (CAMERA LED SPONGE R) MAIN BOARD THERMAL MODULE ASSY WOOFER HALL SENSOR BOARD LCD Panel (MIC RUBBER) IRCAMMIC FPC POWERKEY FPC G SENSOR FPC... - Page 8 Components Top View SODIMM CONN ABSORBER WIFI MAIN ANTENNA WIFI AUX ANTENNA GC CONNECTOR RUBBER TWEETER TAPE LCD SPONGE CAM TOUCH CABLE CABLE TAPE NR2203RM BATTARY GASKET SSD ABSORBER NR2203RM BATTERY GASKET 2 LCD CONDUCTIVE TAPE GV601VU BATTERY GASKET Back...
-
Page 9: Components Bottom View
Components Bottom View LCD PANEL LCD ADHESIVE Overview KEYBOARD MODULE GV302NF TP GLASS UP ADHESIVE 2 GV601VU LCD ADHESIVE TOP 2 GV601VU LCD ADHESIVE TOP 1 LCD COVER ASSY BOTTOM CASE ASSY GV601VU LCD ADHESIVE R JS GV601VU LCD ADHESIVE L JS GV601VU LCD ADHESIVE BOT 1 GV601VU LCD ADHESIVE BOT 3 THERMAL MODULE ASSY... -
Page 10: Repair Overview
Repair Overview This chapter describes disassembly and assembly (Assemble document please look up from the last page), please follow the information provided in this section to perform the complete disassembly procedure. Precautions: Before you perform any service or repair on the notebook, please pay special attention to the cautions prevent any damages to the notebook. 1. -
Page 11: Appropriate Tools
Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ROG Flow X16 (GV601V) Series notebook. Screwdriver Alcohol 95% Glove Dust-free Cloth Please accord to different screw specification to choose different screwdriver and head. Plastic Blade PLASTIC CARD T=0.35mm PLASTIC PICK T=0.5mm Thermal Pad PTM7958 Plastic Tweezers... - Page 12 Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ASUS ROG Flow X16 (GV601V) Series notebook. ❺ ❼ ❶ ❸ ❻ ❷ ❹ Item Part Name Memo ❶ Silicone scraping pen Please store it in the environment of 10 ~ 40 ℃.
-
Page 13: Bottom Case
BOTTOM CASE The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Screws Spec Torque (kgf-cm) Step 1 : Remove screws *13pcs. Step 2 : Using plastic blade to pry the bottom case. M2*9.5L (4.5,0.8) (K) #1 2.0±0.1 M2*3.5L (4.5,0.8) (K) #1 2.0±0.1... -
Page 14: Disconnect Battery Connector
DISCONNECT BATTERY CONNECTOR The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Before disassembly battery connector, please be sure to pull out adapter and disconnect the battery more than ten seconds in order to avoid IC damage. Step 1 : Use the non-conductive pry tool to push iron sheet. -
Page 15: Ssd
The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Remove the screw *2pcs. Assembly Notice Screws Spec Torque (kgf-cm) Step 2 : Remove SSD module (SSD1). Step 3 : Remove SSD module (SSD2). M2*3.5L (4.5,0.8) (K) #1 1.5±0.1 When required install SSD, please follow the... - Page 16 The device has an Ambient Light Sensor (ALS) for power-off protection function. Assembly Notice When installing SSD, please follow the steps below. 1. Align and paste ABSORBER on SSD Card for both side of front and rear. When installing the SSD, please keep the SSD less then 15 degrees 2.
-
Page 17: Ddr
The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Open up SODIMM CONN ABSORBER, then unlock and remove the RAM module. Step 2 : Open up SODIMM CONN ABSORBER, then unlock and remove the RAM module. Remove Remove Back... - Page 18 The device has an Ambient Light Sensor (ALS) for power-off protection function. Assembly Notice When installing DDR, please follow the steps below. 1. First open up SODIMM CONN ABSORBER, align and insert RAM Module at 30° into the memory slot. After inserted properly, push down the RAM Module until it clicks in place, then cover SODIMM CONN ABSORBER back.
-
Page 19: Battery
BATTERY The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Before disassembly battery connector, please be sure to pull out adapter and disconnect the battery more than ten seconds in order to avoid IC damage. Step 1 : Remove the screws *4pcs. -
Page 20: Wifi Card
WIFI CARD The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Tear off the CABLE Tape . Screws Spec Torque (kgf-cm) Step 2 : Disconnect WIFI ANTENNA Cables and remove the screw *1pc, then remove WIFI Card. M2*3.5L (4.5,0.8) (K) #1 1.7±0.1 Tear off (Red mark) -
Page 21: Sys Fan (With Main Board、Thermal Module & Fan)
SYS FAN (with Main Board、Thermal Module & FAN) The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Disconnect SYS FAN connector and remove screws *2pcs, then remove SYS FAN. Screws Spec Torque (kgf-cm) Step 2 : Release GA503QS Cable Tape *1 pc. - Page 22 SYS FAN (with Main Board、Thermal Module & FAN) The device has an Ambient Light Sensor (ALS) for power-off protection function. Assembly Notice When reconnect CAM Touch Cable, please follow the location below to When Main-Board and Thermal module assembly, please follow the paste GA503QS Cable Tape.
-
Page 23: Thermal Module & Fan
THERMAL MODULE and FAN The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Screws Spec Torque (kgf-cm) Step 1 : Please follow the reverse screw numbers to remove screws *8pcs, then remove Thermal Module from Main-board. Step 2 : Disconnect FAN connector *2pcs. -
Page 24: Main Board
MAIN BOARD Mainboard connector placement CPU FAN GPU FAN SYS FAN EDP CABLE CAM TOUCH CABLE TWEETER POWER KEY K/B FPC TP FFC HALL SENSOR B/L FPC WOOFER Supports using JIG BOARD to refresh F1 BIOS. Back... - Page 25 MAIN BOARD Materials on mainboard GV301QE GPU BKT ASSY GU603ZX CPU BRACKET ASSY GU603ZX CPU TOP ABSORBER NR2203RM THERMAL WASHER ASSY GA503QS MB TOP RUBBER2 GA503QE GN20-P GPU ABSORBER GV601VU MB TOP GPU CU FILM GV601VU MB TOP B MYLAR R GV601VU MB TOP B MYLAR L GA503QS MB TOP RUBBER2 NR2203RM MB SODIMM ABSORBER...
- Page 26 MAIN BOARD Materials on mainboard 2Pcs NR2203RM BTM POWER BOSS MYLAR GU603ZX CPU MYLAR GV601VU BTM POWER BOSS MYLAR GV601VU MB BOT CPU SPONGE GV601VU GN21X2 GPU ABSORBER NR2203RM MB BOT GPU SPONGE GV601VU MB ALS SPONGE GV601VU MB BOT DIODE MYLAR NR2203RM MB BOT DIMM SPONGE NR2203RM MB SODIMM ABSORBER NR2203RM MB EC MYLAR...
-
Page 27: Tweeter And Woofer
TWEETER and WOOFER The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Release Tweeter Tapes *2pcs and Cable tape *1pc. Step 2 : Take out the TWEETER and remove it. Assembly Notice Step 3 : Remove WOOFER. -
Page 28: Hall Sensor Board
HALL SENSOR BOARD The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Remove HALL SENSOR BOARD and FFC, then disconnect HALL SENSOR FFC *1pc. Assembly Notice Step 2 : Remove POWERKEY FPC and POWER KEY BRKT ASSY *1pc. Step 3 : Remove POWERKEY *1pc. -
Page 29: Keyboard Module
KEYBOARD MODULE The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Tear off Cable Tape and disconnect TP FFC. Screws Spec Torque (kgf-cm) Step 2 : Remove screws *3pcs, and then remove TOUCHPAD. Step 3 : Remove screws *6pcs, and release ACETATE Clothes and CONDUCTIVE Tape. - Page 30 KEYBOARD MODULE The device has an Ambient Light Sensor (ALS) for power-off protection function. Assembly Notice When assembly the KEYBOARD Module, please follow the image below to tidy When assembly the WIFI ANTENNA, please follow the location below to tidy up cables up cables, and paste ACETATE Clothes and CONDUCTIVE Tape.
-
Page 31: Lcd Bezel
LCD BEZEL The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Use plastic blade to pry the LCD BEZEL. Move the plastic blade to pry and separate the Bezel Pry the Bezel Start (BEZEL) Back... - Page 32 LCD BEZEL Assembly Notice The device has an Ambient Light Sensor (ALS) for power-off protection function. Please follow the yellow mark to tidy up EDP cable and TOUCH Cable. When LCD BEZEL assembly, please follow the location below to Please make sure both cables are laid out into HINGE CAP. paste LCD SPONGE first.
-
Page 33: Lcd Panel
LCD PANEL The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Pull out LCD adhesive *2pcs. Step 2 : Using plastic blade to separate and teardown the panel. Step 3 : Remove LCD PANEL and EDP Cable. Due to some adhesive (Yellow mark) behind the panel, please separate panel by using plastic blade start from the bottom left and right side. - Page 34 LCD PANEL The device has an Ambient Light Sensor (ALS) for power-off protection function. Assembly Notice When reuse the LCD PANEL or LCD Cover: When reuse the LCD COVER: Please use the fingertip to clean the residual adhesive on back side of PANEL Please paste below new LCD ADHESIVE *7pcs on LCD COVER.
- Page 35 LCD PANEL The device has an Ambient Light Sensor (ALS) for power-off protection function. Assembly Notice When assembly the LCD PANEL: When replace LCD PANEL, please follow the location below to paste TP GLASS UP Step 1 : Remove release paper of LCD Adhesive *7pcs. ADHESIVE.
-
Page 36: G Sensor Fpc
G SENSOR FPC The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Disconnect GSENSOR FPC. Step 2 : Take it out from panel backside. Disconnect (GSENSOR FPC) Back... -
Page 37: Lcd Cover
LCD COVER The device has an Ambient Light Sensor (ALS) for power-off protection function. Disassembly Notice Step 1 : Disconnect CAM TOUCH Cable, and remove it. Step 2 : Remove IRCAMMIC FPC *1pc, and then remove LCD RUBBER. Step 3 : Remove CAMERA HD RGB/IR ARRAY MIC CR, MIC RUBBER *2pcs, and CAMERA LED SPONGE from LCD COVER. Remove (CAMERA LED SPONGE) (CAMERA LED SPONGE R) - Page 38 LCD COVER The device has an Ambient Light Sensor (ALS) for power-off protection function. Assembly Notice When IRCAMMIC FPC assembly, please follow the location below to fix FPC. When replace IRCAMMIC FPC, please follow the location below to fix LCD RUBBER. When replace LCD COVER, please follow the location (Align at middle of camera ) below to paste TP GLASS UP ADHESIVE2.
