- Page 1 ELEMENT Installation instructions English (en-US) Date: 04-2019 Document number: 87360-3 © 2019 Raymarine UK Limited...
- Page 3 Software updates Check the Raymarine website for the latest software releases for your product. www.raymarine.com/software Product documentation The latest versions of all English and translated documents are available to download in PDF format from the website: www.raymarine.com/manuals.
-
Page 5: Table Of Contents
Product documentation ......................14 Document illustrations ......................15 2.2 Applicable products......................16 2.3 Product overview ....................... 17 2.4 Compatible transducers - Element HV displays ............. 18 HyperVision™ transducers..................... 18 Third party transducers......................18 Compatible legacy transducers .................... 18 2.5 Compatible transducers - Element S displays ............... 20 High CHIRP sonar transducers .................... - Page 6 4.3 Power connection ......................38 In-line fuse and thermal breaker ratings ................38 Grounding — Dedicated drain wire..................39 Power distribution.........................39 4.4 Element™ HV transducer connection ................43 HV–100 transducer extension cable..................44 HV–300 transducer extension cable..................44 Cable routing ........................45 4.5 Element™ HV legacy transducer connection..............46 Legacy transducer extension cables ..................46...
- Page 7 8.1 Element technical specification..................72 8.2 HyperVision™ technical specification................73 8.3 Internal GNSS (GPS / GLONASS) receiver specification ..........74 8.4 Conformance specification ....................75 Chapter 9 Spares and accessories ................77 9.1 Spares..........................78 9.2 Element accessories......................79 High CHIRP sonar transducers .....................79 HyperVision™...
-
Page 9: Chapter 1 Important Information
Raymarine is not responsible for damages or injuries caused by your use or inability to use the product, by the interaction of the product with products manufactured by others, or by errors in chart data or information utilized by the product and supplied by third parties. -
Page 10: Rf Exposure
RF exposure This equipment complies with FCC / IC RF exposure limits for general population / uncontrolled exposure. The wireless LAN / Bluetooth antenna is mounted behind the front facia of the display. This equipment should be installed and operated with a minimum distance of 1 cm (0.39 in) between the device and the body. -
Page 11: Declaration Of Conformity
In addition, our policy of continuous product improvement may change specifications without notice. As a result, Raymarine cannot accept liability for any differences between the product and this document. Please check the Raymarine website (www.raymarine.com) to ensure you have the most up-to-date version(s) of the documentation for your product. -
Page 13: Chapter 2 Document And Product Information
2.2 Applicable products on page 16 • 2.3 Product overview on page 17 • 2.4 Compatible transducers - Element HV displays on page 18 • 2.5 Compatible transducers - Element S displays on page 20 • 2.6 Optional additional components on page 21 •... -
Page 14: Document Information
• install and connect your product as part of a wider system of connected marine electronics; • troubleshoot problems and obtain technical support if required. This and other Raymarine product documents are available to download in PDF format from www.raymarine.com/manuals. -
Page 15: Document Illustrations
• Further manuals will be added to the Print Shop over the coming months for both new and legacy products. • Raymarine user manuals are also available to download free-of-charge from the Raymarine website, in the popular PDF format. These PDF files can be viewed on a PC / laptop, tablet, smartphone, or on the latest generation of Raymarine multifunction displays. -
Page 16: Applicable Products
Product part numbers Part number Description E70532 Element™ 7 HV — HyperVision™ sonar / GPS combo with Wi-Fi. E70607 Element™ 7 HV — HyperVision™ sonar / GPS combo. E70531 Element™ 7 S — Conical sonar / GPS combo with Wi-Fi. -
Page 17: Product Overview

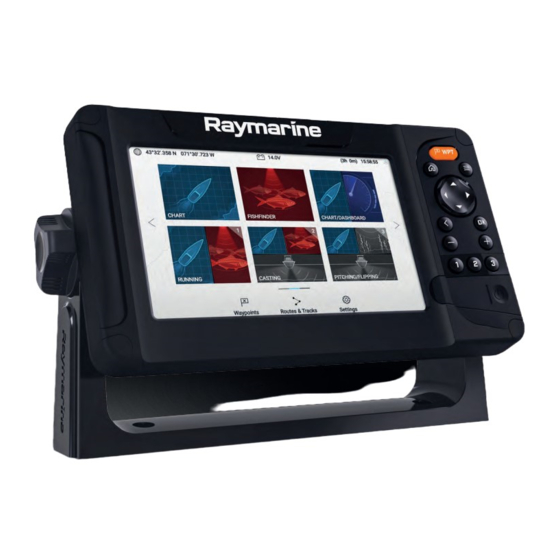

2.3 Product overview Element™ displays are combination fishfinder / chartplotting displays that can be connected to a NMEA 2000 or SeaTalkng ® network and display vessel data and data from compatible sensors and devices. Element displays are available with either a built-in HyperVision™ sonar module (Element™... -
Page 18: Compatible Transducers - Element Hv Displays
HV-300THP-S Split, Starboard side, Thru-hull, Plastic transducer (Requires ‘Y’ cable (A80605) to connect split pair transducers, and extension cable (A80562) to connect to display). Third party transducers The third party transducers listed below can be connected to Element™ HV using adaptor cables. Adaptor cable Transducer A80560 MinnKota Embedded, 83 kHz /200 kHz transducer. - Page 19 High CHIRP sonar transducers The following conical beam, high CHIRP sonar transducers can be connected to Element™ HV displays using the CPT-S/DownVision 9–pin adaptor cable (A80559): Part number Description E70342 CPT-S High CHIRP, Transom mount, Plastic transducer. E70339 CPT-S High CHIRP, 0° angled element, Flush mount, Thru-hull, Plastic transducer.
-
Page 20: Compatible Transducers - Element S Displays
2.5 Compatible transducers - Element S displays High CHIRP sonar transducers The following conical beam, high CHIRP sonar transducers can be connected to Element™ S displays: Part number Description E70342 CPT-S High CHIRP, Transom mount, Plastic transducer. E70339 CPT-S High CHIRP, 0° angled element, Flush mount, Thru-hull, Plastic transducer. -
Page 21: Optional Additional Components
2.6 Optional additional components The following optional products and devices can be used with or connected to your display. • MicroSD memory / electronic cartography card — Inserting a compatible memory card into the card reader enables: – display of compatible electronic cartography. –... -
Page 22: Compatible Tank Level Sensors
When connected to an NMEA 2000 / SeaTalkng ® backbone, tank level sensor data can be displayed. The majority of NMEA 2000-compliant tank level sensors are supported. If in doubt as to whether your level sensor is compatible, contact Raymarine product support. Data can be displayed for: •... -
Page 23: Parts Supplied
The following parts are supplied in the box. Unpack your product carefully to prevent damage or loss of parts. Check the box contents against the list below. Retain the packaging and documentation for future reference. Element™ display. 2. Surface mount gasket. 3. Suncover. -
Page 25: Chapter 3 Installation
Chapter 3: Installation Chapter contents • 3.1 Selecting a location on page 26 • 3.2 Product dimensions on page 29 • 3.3 Mounting options on page 30 • 3.4 Trunnion bracket mounting on page 31 • 3.5 Surface mounting on page 32 Installation... -
Page 26: Selecting A Location
3.1 Selecting a location Warning: Switch off power supply Ensure the vessel’s power supply is switched OFF before starting to install this product. Do NOT connect or disconnect equipment with the power switched on, unless instructed in this document. Warning: Potential ignition source This product is NOT approved for use in hazardous/flammable atmospheres. -
Page 27: Gps/Gnss Location Requirements
(e.g. a channel not in use or one used by the least number of devices). EMC installation guidelines Raymarine equipment and accessories conform to the appropriate Electromagnetic Compatibility (EMC) regulations, to minimize electromagnetic interference between equipment and minimize the effect such interference could have on the performance of your system Correct installation is required to ensure that EMC performance is not compromised. - Page 28 – More than 2 m (6.6 ft) from the path of a radar beam. A radar beam can normally be assumed to spread 20 degrees above and below the radiating element. • The product is supplied from a separate battery from that used for engine start. This is important to prevent erratic behavior and data loss which can occur if the engine start does not have a separate battery.
-
Page 29: Product Dimensions
3.2 Product dimensions Trunnion mount dimensions Element 7 Element 9 Element 12 263.85 mm (10.39 in) 308.40 mm (12.14 in) 373.40 mm (14.70 in) 162.59 mm (6.40 in) 171.00 mm (6.73 in) 225.19 mm (8.87 in) 149.40 mm (5.88 in) 60.84 mm (2.40 in) -
Page 30: Mounting Options
3.3 Mounting options Element displays can be either trunnion mounted or surface mounted. Trunnion mounted. 2. Surface mounted. -
Page 31: Trunnion Bracket Mounting
Fixing type will be determined by the mounting location, and the material type and thickness of the mounting surface. • Element™ 7: Requires 4 x fixings. The Trunnion bracket’s mounting hole diameter is 4.2 mm (0.17 in). -
Page 32: Surface Mounting
3.5 Surface mounting The supplied mounting gasket and fixings can be used to surface mount the display. Before mounting the display, ensure that you have: • chosen a suitable location, using the guidance provided; • identified the required cable connections and routed the cables to the mounting location. 1. - Page 33 6. Ensure that the unit fits into the removed area and then file around any rough edges until smooth. 7. Drill 4 holes as indicated on the template to accept the fixings. 8. Place the gasket onto the rear of the display and press firmly onto the flange. 9.
-
Page 35: Chapter 4 Connections
4.3 Power connection on page 38 • 4.4 Element™ HV transducer connection on page 43 • 4.5 Element™ HV legacy transducer connection on page 46 • 4.6 Element™ S transducer connection on page 47 • 4.7 SeaTalkng ® connection on page 48 •... -
Page 36: Connections Overview
• NMEA 2000 or SeaTalkng ® backbone. Refer to: SeaTalkng ® connection , page 48 HyperVision™ transducer connector HyperVision transducer’s cable or available on Element™ HV variant a compatible transducer extension displays. cable. 15–pin connector. Refer to: Element™ HV transducer... -
Page 37: General Cabling Guidance
• Unless otherwise stated only use cables supplied by Raymarine. • Where it is necessary to use non-Raymarine cables, ensure that they are of correct quality and gauge for their intended purpose. (e.g.: longer power cable runs may require larger wire gauges to minimize voltage drop along the run). -
Page 38: Power Connection
• The suitable fuse rating for the thermal breaker is dependent on the number of devices you are connecting. If in doubt consult an authorized Raymarine dealer. • Your product’s power cable may have an in-line fuse fitted, if not then you must add an in-line fuse / breaker to the positive wire of your product’s power connection. -
Page 39: Grounding - Dedicated Drain Wire
• The information provided below is for guidance only, to help protect your product. It covers common vessel power arrangements, but does NOT cover every scenario. If you are unsure how to provide the correct level of protection, please consult an authorized Raymarine dealer or a suitably qualified professional marine electrician. - Page 40 Positive (+) bar Negative (-) bar Circuit breaker Waterproof fuse holder containing a suitably-rated inline fuse must be fitted. In-line fuse and thermal breaker ratings For suitable fuse rating, refer to: Important: Observe the recommended fuse / breaker ratings provided in the product’s documentation, however be aware that the suitable fuse / breaker rating is dependent on the number of devices being connected.
- Page 41 Waterproof fuse holder containing a suitably-rated inline fuse must be fitted. In-line fuse and thermal breaker ratings For suitable fuse rating, refer to: Product power cable. Drain wire connection point. Battery connection scenario A: Suitable for a vessel with a common RF ground point. In this scenario, if your product’s power cable is supplied with a separate drain wire then it should be connected to the vessel’s common ground point.
- Page 42 • NMEA 0400 Installation Standard • ABYC E-11 AC & DC Electrical Systems on Boats • ABYC A-31 Battery chargers and Inverters • ABYC TE-4 Lightning Protection Warning: Product grounding Before applying power to this product, ensure it has been correctly grounded, in accordance with the instructions provided.
-
Page 43: Element™ Hv Transducer Connection
4.4 Element™ HV transducer connection HV-series transducers can be connected directly to Element™ HV displays. HV-100 connection HV-300THP (all-in-one) connection Connections... -
Page 44: Hv-100 Transducer Extension Cable
HV-300THP-P and HV-300THP-S (split pair) connection Extension cable (supplied with split pair sets of transducers). 2. Y-cable (supplied with split pair sets of transducers). You can extend the length of transducer cables using a transducer extension cable. HV–100 transducer extension cable For best performance, cable runs should be kept to a minimum. -
Page 45: Cable Routing
Caution: Transducer cable • Do NOT use the transducer cable to lift or suspend the transducer; always support the transducer body directly during installation. • Do NOT cut, shorten, or splice the transducer cable. • Do NOT remove the connector. If the cable is cut, it cannot be repaired. -
Page 46: Element™ Hv Legacy Transducer Connection
4. Example legacy transducer — Connects to adaptor cable or extension cable. Legacy transducer extension cables When connecting a compatible legacy transducer to an Element display, using an adaptor cable: if the cable run requires extending, you must use an extension cable which is compatible with your transducer. -
Page 47: Element™ S Transducer Connection
4.6 Element™ S transducer connection Conical high CHIRP sonar transducers can be connected directly to Element™ S variant displays. You can extend the length of CPT-S transducer cables using a transducer extension cable A80273 (4 m (13.1 ft) CPT-S transducer extension cable). -
Page 48: Seatalkng ® Connection
4.7 SeaTalkng ® connection The display can be connected to a SeaTalkng ® backbone, using the DeviceNet connector included in the Power/NMEA 2000 cable and an adaptor cable (not supplied). Supplied power/NMEA 2000 cable. 2. DeviceNet (Micro-C 5–pin male) cable connector. 3. -
Page 49: Seatalkng ® System Example
8. DeviceNet connection on display’s power / NMEA 2000 cable. 9. AIS700. 10. Element™ display. 11. SeaTalkng ® / NMEA 2000 VHF DSC Radio (GPS / GNSS position data can be transmitted from the display and used by a compatible VHF DSC radio). - Page 50 • SeaTalkng ® instrument displays and pilot controllers can be present on the same backbone; however data will NOT be synchronized with the Element display. • Up to 2 Element displays can be present on the same backbone; however data will NOT be synchronized between Element displays.
-
Page 51: Chapter 5 Maintaining Your Display
Chapter 5: Maintaining your display Chapter contents • 5.1 Service and maintenance on page 52 • 5.2 Product care on page 53 Maintaining your display... -
Page 52: Service And Maintenance
Warning: FCC Warning (Part 15.21) Changes or modifications to this equipment not expressly approved in writing by Raymarine Incorporated could violate compliance with FCC rules and void the user’s authority to operate the equipment. -
Page 53: Product Care
5.2 Product care Caution: Sun covers • If your product is supplied with a sun cover, to protect against the damaging effects of ultraviolet (UV) light, always fit the sun cover when the product is not in use. • Sun covers must be removed when travelling at high speed, whether in water or when the vessel is being towed. -
Page 55: Chapter 6 Troubleshooting
Chapter 6: Troubleshooting Chapter contents • 6.1 Troubleshooting on page 56 • 6.2 Power up troubleshooting on page 57 • 6.3 GPS / GNSS troubleshooting on page 59 • 6.4 Sonar troubleshooting on page 60 • 6.5 Wi-Fi troubleshooting on page 62 Troubleshooting... -
Page 56: Troubleshooting
If after referring to this section you are still having problems with your product, please refer to the Technical support section of this manual for useful links and Raymarine Product Support contact details. -
Page 57: Power Up Troubleshooting
2. Press and hold the Power button until the display beeps. 3. Let go of the Power button. 4. When the Raymarine logo appears, let go of the Home button. 5. Use the Down button to highlight Wipe data/factory reset. - Page 58 9. Ensure Reboot system now is highlighted. 10. Press the OK button.
-
Page 59: Gps / Gnss Troubleshooting
6.3 GPS / GNSS troubleshooting Potential problems with the GPS / GNSS receiver and possible causes and solutions are described here. Problem Possible causes Possible solutions “No Fix” status icon is Geographic location or Check periodically to see if a fix is obtained displayed. -
Page 60: Sonar Troubleshooting
6.4 Sonar troubleshooting Problems with the sonar and their possible causes and solutions are described here. No transducer connected message displayed Possible causes Possible solutions No transducer connected. Connect a transducer and reboot the display. Wrong transducer type selected Try selecting a sonar channel: during initial start up wizard. - Page 61 Possible causes Possible solutions Damaged connectors/cabling Check that the transducer connector pins on the back of the display are not bent or broken. 2. Check that the transducer cable connector is correctly orientated and fully inserted into the display connector and locked in position.
-
Page 62: Wi-Fi Troubleshooting
6.5 Wi-Fi troubleshooting Before troubleshooting problems with your Wi-Fi connection, ensure that you have followed the Wi-Fi location requirements guidance provided in the relevant installation instructions and performed a power cycle/reboot of the devices you are experiencing problems with. Cannot find router network Possible cause Possible solutions Router out of range or signal blocked. - Page 63 Possible cause Possible solutions Interference caused by other devices that use Temporarily switch off each device in turn until the 2.4 GHz frequency. See following list of you have identified the device causing the some common devices that use the 2.4 GHz interference, then remove or reposition the frequency: offending device(s).
-
Page 65: Chapter 7 Technical Support
Chapter 7: Technical support Chapter contents • 7.1 Raymarine product support and servicing on page 66 • 7.2 Learning resources on page 69 Technical support... -
Page 66: Raymarine Product Support And Servicing
You can obtain this product information using diagnostic pages of the connected MFD. Servicing and warranty Raymarine offers dedicated service departments for warranty, service, and repairs. Don’t forget to visit the Raymarine website to register your product for extended warranty benefits: http://www.raymarine.co.uk/display/?id=788. Region... -
Page 67: Viewing Hardware And Software Details (Lighthouse™ Sport)
• Tel: +45 437 164 64 Russia • E-Mail: info@mikstmarine.ru (Authorized Raymarine distributor) • Tel: +7 495 788 0508 Viewing hardware and software details (LightHouse™ Sport) The Getting started tab in the homescreen Settings menu provides hardware and software information about your display. - Page 68 1. Select the Settings icon from the Homescreen. 2. Select the This display tab. 3. Select About this product from the DIAGNOSTICS section. 4. If the Save data button is highlighted press the Left button. 5. Use the Up button and Down button to scroll through the available information. Saving product information The information displayed on the Product information page can be saved to memory card.
-
Page 69: Learning Resources
7.2 Learning resources Raymarine has produced a range of learning resources to help you get the most out of your products. Video tutorials Raymarine official channel on YouTube: • YouTube LightHouse™ 3 tips and tricks: • Raymarine website Video Gallery: •... -
Page 71: Chapter 8 Technical Specification
Chapter 8: Technical specification Chapter contents • 8.1 Element technical specification on page 72 • 8.2 HyperVision™ technical specification on page 73 • 8.3 Internal GNSS (GPS / GLONASS) receiver specification on page 74 • 8.4 Conformance specification on page 75... -
Page 72: Element Technical Specification
8.1 Element technical specification Power Element™ 7 Element™ 9 Element™ 12 Nominal supply 12 V dc voltage: Operating voltage 8 V dc to 16 V dc (protected up to 32 V dc) range: Fuse requirements: • Inline fuse = 5 Amp, or •... -
Page 73: Hypervision™ Technical Specification
8.2 HyperVision™ technical specification The following specification only applies to HyperVision™ products. Power • 1.2 MHz (Hyper) = 1000 W • 350 kHz (Standard) = 700 W • 200 kHz (Conical high CHIRP sonar) = 100 W Frequencies • 1.2 MHz CHIRP •... -
Page 74: Internal Gnss (Gps / Glonass) Receiver Specification
8.3 Internal GNSS (GPS / GLONASS) receiver specification Channels Multiple — ability to simultaneously track up to 28 satellites Cold start <2 minutes Receiver IC Sensitivity • 165 dBm (Tracking) • 160 dBm (Acquisition) • 148 dBm (Cold start) GNSS compatibility •... -
Page 75: Conformance Specification
8.4 Conformance specification The display conforms to the following specifications: • EN 60945:2002 • EMC Directive 2014/30/EU • Australia and New Zealand C-Tick compliance level 2 • Canadian RSS 247 • FCC rules part 15 Technical specification... -
Page 77: Chapter 9 Spares And Accessories
Chapter 9: Spares and accessories Chapter contents • 9.1 Spares on page 78 • 9.2 Element accessories on page 79 • 9.3 Compatible legacy transducers on page 80 • 9.4 SeaTalkng ® cables and accessories on page 82 Spares and accessories... -
Page 78: Spares
R70648 Element 9” trunnion kit R70649 Element 12” trunnion kit R70727 Element 7” suncover R70728 Element 9” suncover R70729 Element 12” suncover A80553 Element 7” surface mount kit A80554 Element 9” surface mount kit A80555 Element 12” surface mount kit... -
Page 79: Element Accessories
MotorGuide Embedded, 83 kHz / 200 kHz transducer E70096 EV-1 heading sensor E70227 ECI-100 engine gateway High CHIRP sonar transducers The following conical beam, high CHIRP sonar transducers can be connected to Element™ S displays: Part number Description E70342 CPT-S High CHIRP, Transom mount, Plastic transducer. E70339 CPT-S High CHIRP, 0°... -
Page 80: Compatible Legacy Transducers
9.3 Compatible legacy transducers DownVision™ transducers The following DownVision™ transducers can be connected to Element™ HV displays using the CPT-S / DownVision 9–pin adaptor cable (A80559): Part number Description A80507 CPT-90 DVS — DownVision™, Transom mount, Plastic transducer. A80351 CPT-100 DVS — DownVision™, Transom mount, Plastic transducer. - Page 81 Legacy transducer Compatible extension cable Dragonfly® transducers A80312 — 4 m (13.1 ft) Dragonfly® transducer extension cable. Note: Power supply wires should be isolated and protected from shorting or water ingress. DownVision™ transducers E66074 — 3 m (9.84 ft) DownVision™ transducer extension cable.
-
Page 82: Seatalkng ® Cables And Accessories
9.4 SeaTalkng ® cables and accessories SeaTalkng ® cables and accessories for use with compatible products. Part No Description Notes T70134 Starter kit Includes: • 1 x 5 Way connector (A06064) • 2 x Backbone terminator (A06031) • 1 x 3 m (9.8 ft) spur cable (A06040) •... - Page 83 Part No Description Notes A22164 SeaTalk to SeaTalkng ® spur cable 1 m (3.3 ft) A06048 SeaTalk2 (5 pin) to SeaTalkng ® adaptor cable 0.4 m (1.3 ft) A06045 SeaTalkng ® to DeviceNet Allows the connection of NMEA 2000 (Female) adaptor cable 0.4 m devices to a SeaTalkng ®...
-
Page 85: Appendix A Nmea 2000 Pgns
Appendix A NMEA 2000 PGNs Transmit (Tx) / Receive Description (Rx) 59392 ISO Acknowledgement Tx / Rx 59904 ISO Request Tx / Rx 60160 ISO Transport Protocol, Data Transfer 60416 ISO Transport Protocol, Connection Management — BAM group function 60928 ISO Address Claim Tx / Rx 65240... - Page 86 Transmit (Tx) / Receive Description (Rx) 129041 AIS Aids To Navigation (AtoN) Report 129044 Datum Tx / Rx 129283 Cross Track Error Tx / Rx Navigation Data 129284 Tx / Rx 129285 Navigation — Route / WP information Tx / Rx 129291 Set &...
-
Page 87: Appendix B Document Change History
Appendix B Document change history Document details Changes 87360–3 • Updated to include details of ‘S’ variant displays Date: 04–2019 and part numbers for non wi-fi enabled variant Software version: LHS: 3.9.40 displays. • Updated to include details for expanded hardware compatibility i.e.: AIS700, iTC-5, Wind vane transducers and RS150 external GPS. - Page 89 Index Installation Best practice ............41 Surface mounting..........32 Accessories ............. 79 surface requirements...........26 Additional components ........... 21 Trunnion mounting ..........31 Ventilation ............26 Interference .............26 See also Compass safe distance Cable extension ............44 Electrical ..............26 Cable protection............37 RF.................28 Cable routing.............26, 45 Cleaning ..............53 Screen..............53 Compass safe distance ...........26...
- Page 90 Radio Frequency (RF) interference......28 Recovery mode ............57 Routine checks ............53 SeaTalkng System example ..........49 SeaTalkng cables ............82 Service and maintenance ........52 Service Center............66 Servicing..............52 Sonar transducers High CHIRP ............20, 79 Strain relief, Cable protection Support forum ............69 Tank sensors compatibility............22 Technical specification ..........
- Page 92 Raymarine UK Limited, Marine House, Cartwright Drive, Fareham, PO15 5RJ. United Kingdom. Tel: +44 (0)1329 246 700...
