TOKIT AkuaPure U2 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TOKIT AkuaPure U2
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AkuaPure U2 and is the answer not in the manual?

Questions and answers

Related Manuals for TOKIT AkuaPure U2

Summary of Contents for TOKIT AkuaPure U2

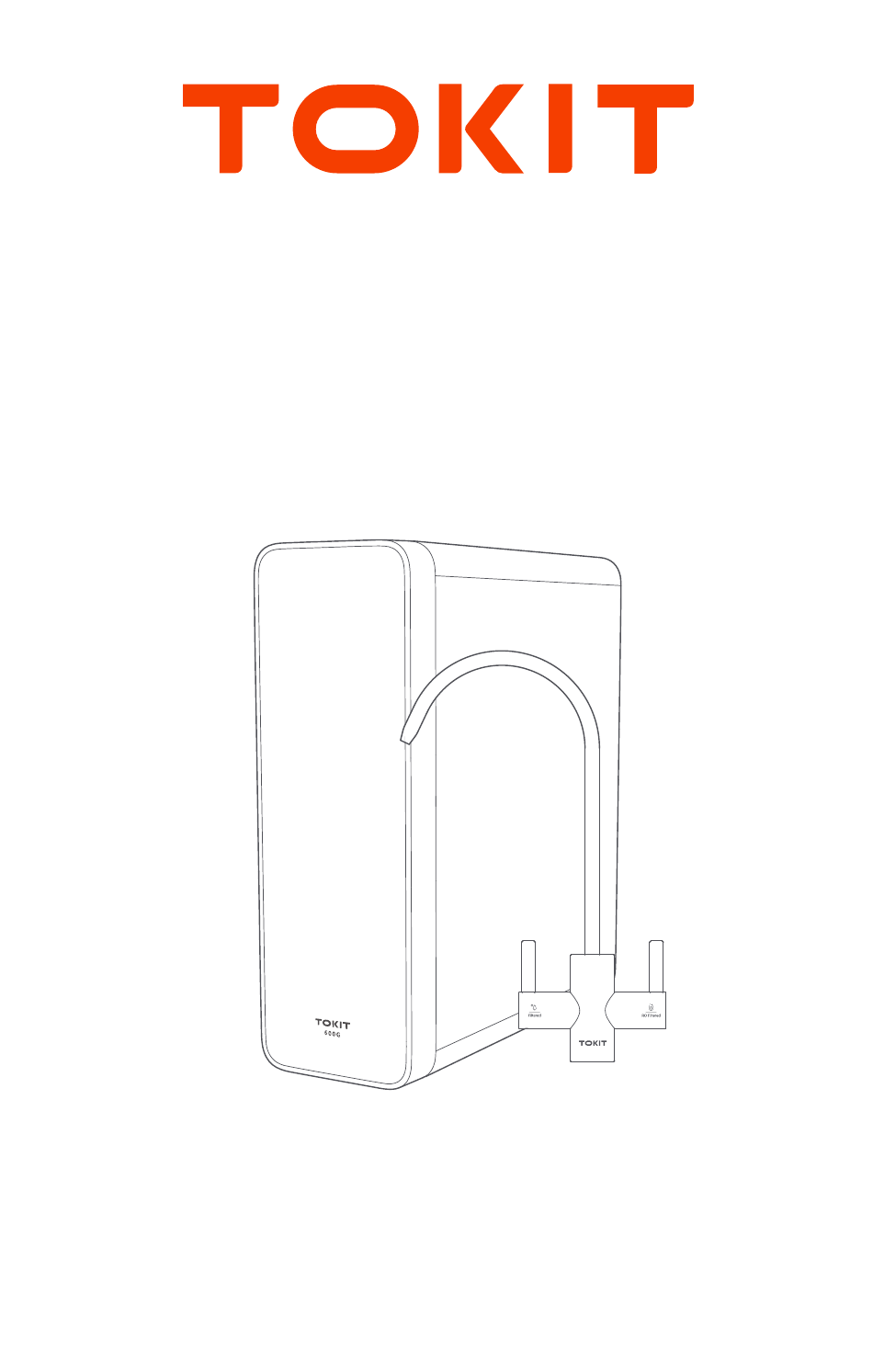

  • Page 1 TOKIT AkuaPure U2 User Manual...

  • Page 2: Important Safeguards

    Prior to installation, it's highly recommended to watch the video "TOKIT AkuaPure U2 RO Installation"on YouTube. IMPORTANT SAFEGUARDS Prevent the product from freezing ・ Do not store the product in an environment below 4°C /39°F. Daily Maintenance ・ Use duster cloth dipped in water containing flexible detergent for cleaning the water purifier, avoiding the use of strong volatile solvents such as gasoline.
  • Page 3 Water Supply and Pressure ・ This water purifier is suitable for filtering city tap water, for daily drinking of consumers or users. Do not use it for other purposes. ・ In order to ensure water quality, please use this product under city tap water with the water pressure of 14-58 PSI/0.1-0.4Mpa.
  • Page 4 When the water quality is relatively poor, and the tap water temperature and water pressure are low, the flow of direct drinking water may be reduced. This is a normal phenomenon when direct drinking water is taken. When the product is making direct drinking water, it may generate slight vibration and noise, which is caused by the work of the booster pump.
  • Page 5 Accessories and Filter Element In order to ensure the normal operation of the product and the safety of purified water, please use the accessories and filter elements provided by the manufacturer. Other Safeguards The RO system must be connected to the COLD water supply ONLY.
  • Page 6 Water quality, inlet water pressure, inlet water temperature, use time and use habits of the water purifier all have a certain impact on the Purified-Waste ratio. Use the new water pipe assemblies provided together with the product, but no any used water pipe assemblies. Calculate the lifetime of filter elements starting from their use, including the time without purifying water.

  • Page 7: Product Overview

    PRODUCT OVERVIEW Parts Front Cover RO Filter Element PCT Filter Element Power Input Drain RO Filtered Filtered 1/3"PE Tube × 1 Drain Saddle × 1 Lock Clip × Several 1/4"PE Tube × 3 Teflon Tape × 1 Decoration Ring × 1 Big Washer ×...

  • Page 8: Description Of Indicators

    Description of Indicators Name State Description Normal on in blue Working Slow blinking in blue Flushing/Replacing The lifetime of the filter element expires In red Working Normal on in blue Flushing/Replacing Slow blinking in blue The lifetime of the filter element expires In red Working Abnormal device...
  • Page 9 3. After 20 hours of standby, the water purifier starts the flushing function. The automatic flushing duration is 30 seconds. Manual flushing In the standby state, press the FLUSH key to start the flushing function. The manual flushing duration is 30 seconds. Tip: There is no feedback when any key is pressed during the flushing process.

  • Page 10: Quick Installation

    If no operation is performed for 10 seconds, the water purifier automatically exits from the resetting state and returns to the standby state. Tip: If the filter element is not reset, every time you start purifying water the buzzer beeps for prompting you to reset it.
  • Page 11 2. Put the decoration ring around the wired tube, pass the wired tube through the table, and then put the big and small washers into the wired tube for the purified water faucet in turn; 3. Fix the nut on the short wired tube with the socket wrench; put the socket wrench around the long wired tube, fix the nut on the long wired tube;...

  • Page 12: Concealed Installation

    Concealed Installation Place the water purifier properly connected with the pipeline on a flat plane under the table, and as much as possible against the inner wall of the cabinet, to avoid the water purifier against dumping. Finally complete the concealed installation as shown in the figure below. Install the Drain Saddle 1.
  • Page 13 Operating Instructions Replace filter element 1.Disconnect the power supply and close the 2.Remove the front cover three-way ball valve 3.Turn counterclockwise and pull out the old 4.Remove the packaging on the new filter filter element element, insert the new filter element into Tip: You may use the wrench for filter elements to the corresponding position, rotate it disassemble and install filter elements.

  • Page 14: Troubleshooting

    Troubleshooting Fault Cause Solution The water purifier continuously works After removing the fault, power on the The Fault indicator overtime and enters the protection state water purifier again. If the fault persists, is blinking in red contact the after-sales service for further treatment.
  • Page 15 Rated Total Capacity of Purified Water 6000L Product dimensions 135 × 376 × 395mm Manufacturer: Chunmi Technology (Shanghai) Co., Ltd. Address: Building 11, 1333 Jiangnan Avenue, Changxing Science and Technology Park, Lingang, Shanghai Website: http://www.tokit.com Email: service@tokitglobal.com User Manual Version: V1.0...
