RadioMaster ER8G User Manual

2.4
FRONT
GHZ
CH1
CH2
CH3
CH4
CH5
TX & RX WIFI INFO
WIFI Network : ExpressLRS TX
WIFI Password: expresslrs
URL: http://10.0.0.1/ (Open in browser)
The Radiomaster ER8GV re ce ive r has been specially designed for glider
pilots who require a compact and slim receiver with a built in vario function.
It can drive up to 8 servos and has built-in receiver voltage telemetry and
flight battery telemetry with the ability to automatically detect which voltage
input to use. The ER8GV features a dual-antenna with telemetry power up
to 100mw. The ER8GV can work with a 1S Lipo receiver batteries.
SET-UP
1. The recommended ELRS LUA settings on the remote-control end are:
Standard servos:
Packet Rate 100Hz Full
Telem Ratio Std (1:32) ʢ default
IMPORTANT
Switch Mode 8ch
2. The maximum input voltage for the EXT-V (external voltage input) telemetry
reading is 35V. Do not exceed 35V or the receiver will be damaged.3:
The voltage acquisition of the external battery is connected to the positive pole
of the battery (welded to the positive pole of the ESC). Please be sure to confirm
that the external voltage cannot be connected separately without connecting
to the BEC.
3. The EXT-V of the ER8GV is accessed via the EXT-V solder pad on the PCB.
A single wire must be soldered to this pad and connected to the positive wire
of the battery or ESC. If no EXT-V power source is found, the ER8GV will default
to reading the voltage on the receiver pins, only one voltage input can be used
at the any given time.
4. Calibration of the telemetry voltage will be required on your radio. Navigate
to the TELEMETRY page on your radio and locate the RxBt sensor. Edit the
SENSOR settings and adjust the offset until the displayed reading matches
the actual voltage of the battery in the model. If there is a large difference,
adjustment of the ratio may also be required.
5: Channel 6 on the receiver must not be used as the power input channel and may
out be used as a servo output channel. Power from an ESC or Receiver battery
must only be applied on Channels 1 to 5. *For best results calibrate the voltage
of your radio using a fully charged battery of the correct cell count intended for
use in the model.
6. ExpressLRS Arming requirements and the use of Channel 5: CH5 is required by
ExpressLRS to set the Arm state of the RF module in your radio. It is recommended
to assign CH5 to a switch such as your throttle cut switch as this will provide benefits
such as dynamic power. Using the ExpressLRS LUA or the Wifi WebUI, you can
assign different channels to the CH5 output of your receiver. See example to the
right: Please visit https://www.expresslrs.org/ to learn more on the importance of
setting up arming.
1 1 Recommended: ELRS Lua
EXT-v
CH1
CH2
CH3
CH4
Expres sLRS 2 .4
CH5
boot
TX RX
DC3.5-8.4V
+
TX RX
Performance servos:
Packet Rate 333Hz Full
Telem Ratio Std (1:128)
ʣ
Switch Mode 8ch
5 Calibration: Telemetry
ER8G Receiver User Manual
TOP
60mm
13.5mm
SIDE
Expres sLRS 2 .4
Battery
-
3.5-8.4V

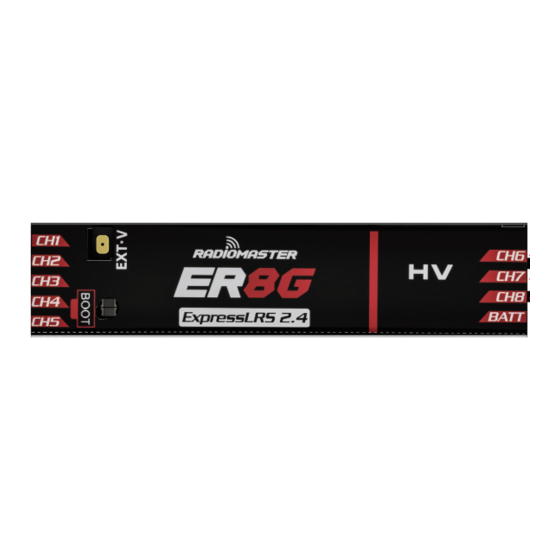

SPECIFICATIONS
•
Size: 60*13.5*13mm
•
Weight: 12g
•
Power Supply: DC 3.5 - 8.4V
•
Antenna Type: 20cm (High Sensitivity Antenna)
•
Wireless Protocol: ExpressLRS 3.3.0 (pre-installed)
• Output Channel: 8CH PWM
•
Telemetry Power: max. 100mw (LUA Adjustable)
•
Built-in high-precision air pressure sensor (Vario)
•
External Battery voltage detection range: DC 4.0 - 35V
FIRMWARE
Device Category: Radiomaster 2.4Ghz | Device: RadioMaster ER8G/ER8GV 2400 PWM RX
PASSPHRASE BINDING
(*Note: Bind phrases are not secret and can be read.)
1. OPEN the ExpressLRS LUA and navigate to the Wifi Connectivity page. Select the
Enable WIFI option and connect to your radios wifi with a mobile phone, tablet or PC
(See TX WIFI info above). OPEN the ExpressLRS web page at (http://10.0.0.1/)
and choose a unique bind phrase. Save and Reboot.
2. Power ON the receiver and wait 60 seconds for the LED to blink rapidly to indicate
WIFI mode. Connect your phone, tablet or PC to the receivers WIFI (See RX WIFI
info above). OPEN the ExpressLRS web page at (http://10.0.0.1/) and enter the
matching bind phrase previously entered on your radio. Save and Reboot. Once both
radio and receiver have the same bind phrase set they will automatically bind.
TRADITIONAL BINDING
1. The first time you power on your receiver,
which indicates the receiver is in bind mode.
button for 10 seconds to reset the receiver.
2. Power ON your transmitter/radio and use the [BIND] button on the ExpressLRS Lua
script, which sends out a binding pulse.
3. If the receiver has a solid light, it's bound!
*Note: To bind receiver a second time or to another radio, power cycle the
receiver 3 times. On the third power cycle, the LED will double blink indicating
bind mode. If you cannot successfully enter bind mode with the 3 power cycle
method, you can hold down the boot button for 10 seconds to reset the receiver to
bind mode or use the passphrase method.
receiver will be erased and need to be re-entered when using the reset button.
5 Calibration: Sensors
12
GRAMS
CH6
CH7
CH8
BATT
ANTENNA
(20cm length)
BACK
the LED is doing a quick double blink,
If this is not the case, hold down the boot
WARNING: All previous settings in the
CH1 : C H1
2
Bind
CH2 : C H2
CH3 : C H3
CH4 : C H4
CH5 : C H9
CH6 : C H6
CH7 : C H7
CH8 : C H8
