Regency MONTROSE L850B-1 Owners & Installation Manual

Wood fireplace
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

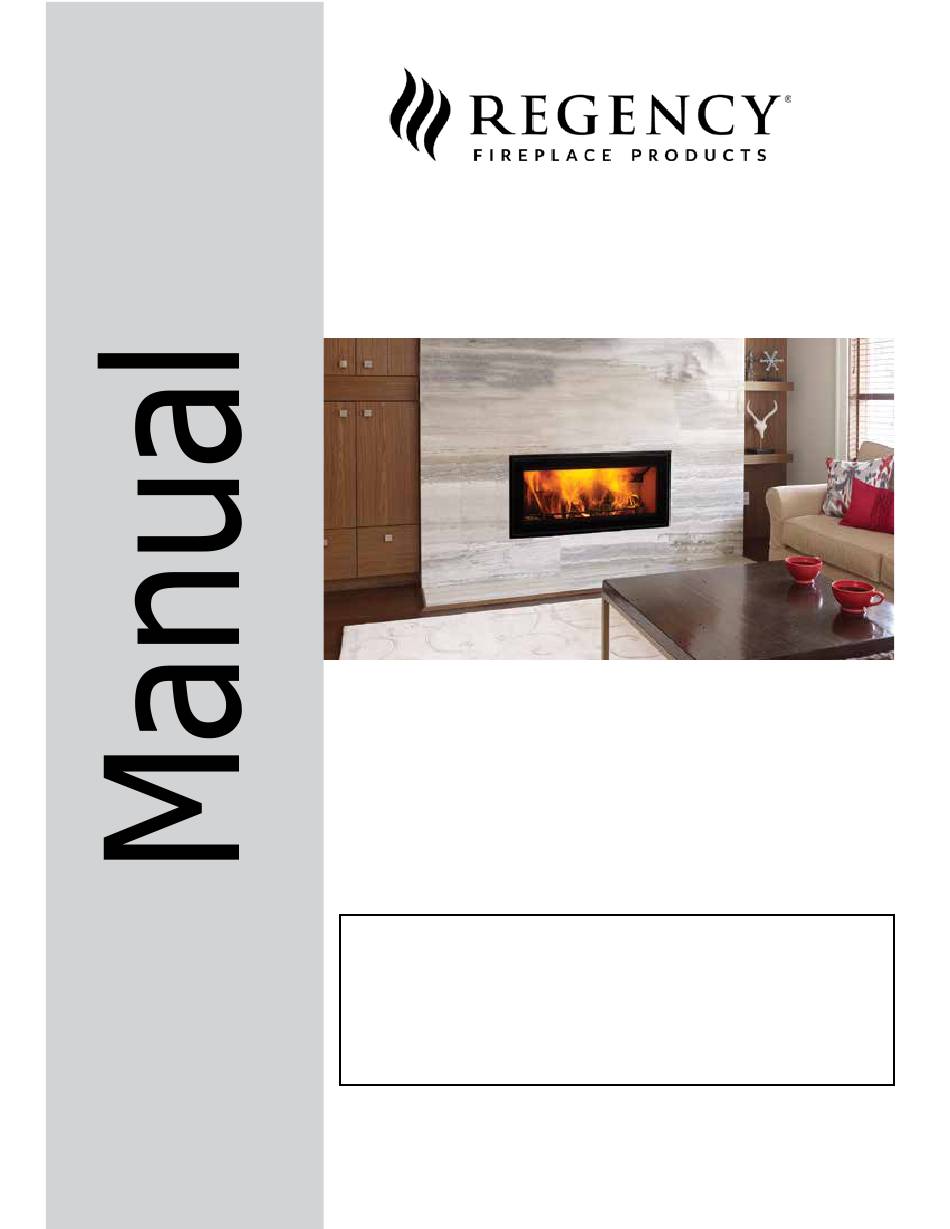

Owners &
Installation
MONTROSE WOOD FIREPLACE
Model: L850B-1
PLEASE KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE
WARNING:
Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to this manual. For assistance
or additional information consult an authorised installer, service agency
or the distributor.
It is highly recommended for protection of infants and infirm to place
a secure safety guard in front of this appliance when in operation.
FPI - FIREPLACE PRODUCTS AUSTRALIA PTY LTD.
99 COLEMANS ROAD, DANDENONG SOUTH
920-372d
April-13-2023
VICTORIA 3175

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MONTROSE L850B-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Regency MONTROSE L850B-1

Summary of Contents for Regency MONTROSE L850B-1

  • Page 1 Owners & Installation MONTROSE WOOD FIREPLACE Model: L850B-1 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult an authorised installer, service agency or the distributor.
  • Page 2 The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area. Keep those REGENCY FIRES burning.

  • Page 3: Table Of Contents

    table of contents APPLIANCE MAINTENANCE Compliance Plate ..............4 Unit Dimensions ...............5 Creosote ................ 23 Ash Removal ..............23 INSTALLATION Glass Installation ............23 Before Installing Your Fireplace ......... 6 Glass Maintenance ............23 Safety Guidelines and Warnings......... 7 Door Latch Adjustment ........... 23 Wood Fireplace Specifications ..........

  • Page 4: Compliance Plate

    This is a copy of the data badge that accompanies NOTE: Regency units are constantly being each L850B Fireplace. We have included a copy of improved. Check the data badge on the unit the contents here for your review.

  • Page 5: Unit Dimensions

    dimensions UNIT DIMENSIONS 1. Reduced Clearance Box Dimensions 1069 1097 共用项目 数量 未注公差:ISO2768mK 图框:A4 未注光洁度Rz63 锐角倒钝，去除毛刺， 未注尺寸参考3D造型 投影标记: 必检尺寸: 标记 更改描述 仅用于实验室图纸 设计 王 从 坦 1066 0～30mm ±0.2mm； ＞30～100mm ±0.5mm； ＞100～500mm ±1.0mm； 审核 ＞500～1000mm±2.0mm； ＞1000mm ±5.0mm； 批准 ALL HOLES ±0.2mm。...

  • Page 6: Installation

    Regency Fireplaces are constructed with the highest quality materials and assembled under strict quality control procedures that ensure years of trouble free and reliable performance. It is important that you read this manual thoroughly and fully understand the safe installation and operating procedures. The more you understand the way your Regency Fireplace operates, the more enjoyment you will experience from knowing that your unit is operating at peak performance.

  • Page 7: Safety Guidelines And Warnings

    CAUTION: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES MAY RENDER THE INSTALLATION UNSAFE. 7) Your Regency heater can be very hot. You may be seriously burned if you touch the heater while it is operating, keep children, clothing and WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS furniture away.

  • Page 8: Wood Fireplace Specifications

    The outside dimensions of the Montrose L850 including the Reduced 150mm ducting to a max run of cowling. Regency approved flue Clearance Box is as follows: 9 meters kit to be used.

  • Page 9: Wood Fireplace Specifics-Minimum Clearances

    installation WOOD FIREPLACE SPECIFICS AND MINIMUM CLEARANCES TO COMBUSTIBLES Enclosure Ventilation Hearth / Floor Protection Requirements Unit cavity to have a minimum of two 20,000mm air vents must Hearth needs to be 6mm thick, 1475mm wide and 1,100mm deep to allow for 550mm be installed, one 300mm from the top of the enclosure and one leading edge.

  • Page 10: Optional Base Frame

    installation OPTIONAL BASE FRAME CONSTRUCTING YOUR OWN BASE FRAME WHEN BUILDING YOUR OWN BASE FRAME OR PEDESTAL BASE PLEASE ENSURE THE FOLLOWING CONDITIONS ARE MET: 1. MINIMUM HEIGHT OF THE BASE FRAME IS 300MM FROM THE FLOOR PROTECTOR / HEARTH TO THE UNDERSIDE OF THE REDUCED CLEARANCE BOX.

  • Page 11: Flue And Flue Requirements

    installation FLUE AND CHIMNEY REQUIREMENTS PLEASE READ AND REFER TO INSTALLATION INSTRUCTIONS UNIT PREPARATION ON PAGE 16 Top of Unit prior to installation of the flue. The packaging material has been 3. 8” and 10” galvanised skin fitted Air cooled bracket positions 8” inside shell removed.
  • Page 12 installation 6. Top of 8” and 10” galvanized flue skins. Note: Ventilation at top of outer flue where it meets cowl – must be vented to allow heat escape. Note: 8” skin will be shorter than 10” at top – this is fine as allows 8” to vent into outer and cowl.
  • Page 13 installation FLUE REQUIREMENTS 3000 Min 3000 Min 6000 3000 Min 3000 Min Increase as necessary until nothing within 6000 6000 of flue top 3000 Min 3000 Min 3000 Min 3000 Min. THE FLUE PIPE SHALL EXTEND NOT LESS THAN 4.6 M ABOVE THE TOP OF THE FLOOR PROTECTOR / HEARTH. NOTE: INSTALLATION MUST BE CARRIED OUT BY A LICENSED INSTALLER IN ACCORDANCE WITH AS/NZS 2918:2018 Montrose Woodfire...
  • Page 14 installation FLUE REQUIREMENTS Typical Example of a Sloped Ceiling Penetration See clause 4.8 - AS/NZ 2918:2018 Example of Roof Penetration Montrose Woodfire...

  • Page 15: Installation Instructions

    installation INSTALLATION INSTRUCTIONS UNIT PREPARATION/FRAMING/30MM-50MM FINISHING TRIM BEFORE INSTALLING ENSURE THE FOLLOWING: 7. Install Approved Flue as per pages on Optional Base Frame and Flue & Chimney Requirements (pages 10-11), complete the installation of your optional kits such as fan and/or outside air kit, as per pages on Optional READ THE ENTIRE MANUAL Fan Kit Installation (pages 18-19).
  • Page 16 installation INSTALLATION INSTRUCTIONS UNIT PREPARATION/FRAMING/30MM-50MM FINISHING TRIM Install the support strips. The unit comes with four support strips. The left and right sides are the same, and top and bottom are unique. Install the top and side support strips with the slotted side on the unit. Top support flange - The left and right should NOT be touching the floor.
  • Page 17 installation INSTALLATION INSTRUCTIONS UNIT PREPARATION/FRAMING/30MM-50MM FINISHING TRIM 9. Position the support flanges to the pre-determined thickness of the fin- ish material. The non-combustible finish materials and non-combustible board are to sit up to the clean edge trim with standoff brackets. Using the scrap pieces as a gauge position them so they are flush with the front edge of the clean edge frame.

  • Page 18: Optional Fan Kit Installation

    installation L850 OPTIONAL FAN KIT INSTALLATION OPTIONAL FAN KIT INSTALLATION LISTINGS AND CODE NOTE: Airflow through the duct system is affected Item No. Description Description by the duct length and number of bends. Keep APPROVALS 240V Fan Aluminum Flex 4.5m the length and bends to a minimum to maximize Assembly Long x 150 mm Round...

  • Page 19: Fan Kit Installation

    installation L850 OPTIONAL FAN KIT INSTALLATION OPTIONAL FAN KIT INSTALLATION 9) Secure the collar within to the three tabs using the NOTE: Installation of Fan Kit should be done prior Air Duct screws provided. to installation of the wall. Fan Housing 2) Mount and secure the fan housing assembly to Round to Oval Adapter...

  • Page 20: Fan Duct Extension Kit

    L850 OPTIONAL FAN KIT INSTALLATION installation FAN DUCT EXTENSION KIT OPTIONAL FAN KIT INSTALLATION In order to use the fan extension duct kit, you must have fan kit. This kit allows you to extend the fan duct to 9m. FAN DUCT EXTENSION KIT 2.

  • Page 21: Optional Outside Air Kit Installation

    installation L850 Cascade OPTIONAL OUTSIDE AIR KIT INSTALLATION OUTSIDE AIR KIT INSTALLATION When installing the outside air kit please ensure your pedestal base the unit 3. Install the adapter ensuring it is centred on the primary air opening. sits on is hollow in the centre. The outside adapter attaches to the bottom of Secure in place with the provided screws.

  • Page 22: Brick Installation

    installation BRICK INSTALLATION Firebricks are not in place at time of delivery to prevent damage. Place 3 rear bricks at back of fireplace firstly. Then place 2 side bricks in position left and right. 3 x Baffle Bricks need to be placed in position at top of fire. Finally insert 2 firebricks on the base of the firebox.

  • Page 23: Appliance Maintenance Creosote

    Regency Wood heater. They should be inspected on a regular basis and replaced 1. Close all draft and damper controls.

  • Page 24: Troubleshooting

    installation TROUBLESHOOTING Symptom Possible Cause Solution Symptom Possible Cause Solution The combustion air control Ensure that the air control is open The door may have been Ensure that the door is properly is closed, or insufficient and that the air inlet is free from left open, or the door latch closed and that when latched that combustion air is reaching...

  • Page 25: Operating Instructions

    operating instructions OPERATING AIR SLIDE CONTROL FUEL REQUIREMENTS INSTRUCTIONS Both the primary and air wash drafts are controlled BURN ONLY HARDWOOD TIMBER THAT HAS BEEN by the control rod located at the bottom of the unit SEASONED AND THE MOISTURE CONTENT OF THE With your unit now correctly installed and safety (when facing the unit).

  • Page 26: Lighting The Appliance

    If you also have a fireplace in CAUTION: Never leave unit unattended if door is left open. This procedure your home, a downdraft may be created by your Regency Heater causing a draft down your flue. If this occurs, slightly open a window near your unit.

  • Page 27: Parts List

    parts list MAIN ASSEMBLY Item # Description Item # Description 1565000 Firebox Shell* 1560100A Cleaning Trim with Standoffs 1561000 Firebox Assembly* 1562500 Door Handle Set 1566000 Door Hinge 1567000 Air Damper Inlet 1560500 Back Secondary Air Tube 1560030 Top (3) and Rear (3) Bricks 1563000 Front Secondary Air Tube 1560040...
  • Page 28 parts list Part Description 910-169/P Replacement Fan Motor 946-001 Duct Flange 946-002 Round to Oval Adapter 946-007 Angle Bracket 946-004 Junction Box 946-005-AWT Wall Adapter Plate White 948-357 Adapter Round 946-093F Duct Mounting Plate 946-000 Duct Flange Collar 946-006 Side Grill White 904-687 Connector Clamp Montrose Woodfire...

  • Page 29: Installation Of Appliance Checklist

    warranty INSTALLATION OF APPLIANCE CHECKLIST For future reference and to assist in any warranty claim please complete the following information. In the unlikely event of a problem, contact your installer or dealer for assistance: APPLIANCE WAS PURCHASED FROM Name: Address: Telephone Number: MODEL DETAILS Date Installed:...

  • Page 30: Warranty

    FPI Fireplace Products International Ltd. (“the manufacturer”) through its wholly owned subsidiary, Fireplace Products Australia Pty Ltd (for Australia and New Zealand customers) and sold under the Regency® brand of fireplace products (collectively referred to herein as “FPI”), extends this Limited Warranty to the original purchaser of this appliance provided the product remains in the original place of installation.
  • Page 31 Limited Warranty. Revision Date: February 2023 Regency Wood Products Warranty – Montrose L850B Montrose Woodfire...
  • Page 32 (a) To the extent that goods supplied by the supplier are not goods of a kind ordinarily acquired for personal, domestic or household use and the customer is deemed to be a consumer for the purposes of section 64A of the Revision Date: February 2023 Regency Wood Products Warranty – Montrose L850B Montrose Woodfire...
  • Page 33 Please note Fireplace Products Australia Pty Ltd does not provide installation services. Fireplace Products Australia Pty Ltd 99 Colemans Road Dandenong South, VIC Australia, 3175 Phone: +61 3 9799 7277 Fax: +61 3 9799 7822 Revision Date: February 2023 Regency Wood Products Warranty – Montrose L850B Montrose Woodfire...
  • Page 34 Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form at http://www.regency-fire.com.au/Customer-Care/Warranty-Registration.aspx...
  • Page 35 Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
  • Page 37 notes Montrose Woodfire...
  • Page 38 notes Montrose Woodfire...
  • Page 39 Montrose Woodfire...
  • Page 40 Installer: Please complete the following information Dealer Name & Address: _______________________________________ ___________________________________________________________ Installer: ___________________________________________________ Phone #: ___________________________________________________ Date Installed: _______________________________________________ Serial #: ____________________________________________________ © Copyright 2023, FPI Fireplace Products International Ltd. All rights reserved. Printed in Canada...
