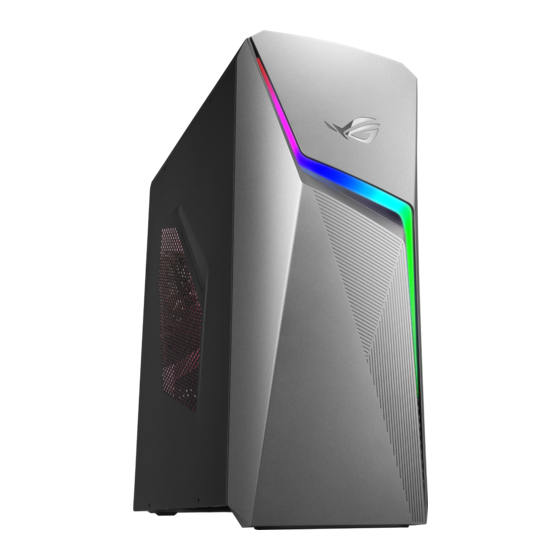

- Page 1 Desktop ROG Strix (G10CE) Service Manual...
- Page 2 INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR INTHIS MANUAL OR PRODUCT.
- Page 3 ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement. This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
- Page 4 Disclaimer ASUS is not responsible for direct, indirect, intentional or unintentional damages resulting from improper installation and operation. Safety precautions • Before handling components, use a grounded wrist strap or touch a safely grounded object to avoid damaging them due to static electricity.
-
Page 5: Table Of Contents
Table of Contents ⚫ ASUS Desktop ROG Strix (G10CE) Overview ⚫ Components Top View ⚫ Components Bottom View ⚫ Appropriate Tools ⚫ Disassembly steps : • SLIDE DOOR • VGA CARD • • DDR & SSD CARD • M.2 SSD •... -
Page 6: Asus Desktop Rog Strix (G10Ce) Overview
ASUS Desktop ROG Strix (G10CE) Overview Front & Top View Rear Panel View ❶ PS/2 mouse port ❷ PS/2 keyboard port ❸ HDMI™ port ❹ Display port ❺ USB 3.2 Gen 1 ports ❻ USB 3.2 Gen 2 ports(teal blue,Type ❼... -
Page 7: Components Top View
Components Top View ♦ WIFI ANTENNA ♦ VGA CARD ♦ SYS FAN ♦ LED BD. CR ♦ HDD SATA CABLE ♦ POWER SWITCH ♦IO: 6USB/2DP/HDM/LAN// ♦ SIDE DOOR PLATE HOLDER AJ:3AUDIO/2PS2/IO00N961239C ♦GL10DH SATA CABLE 15P ♦ CABLE USB3.0 FIO TO MB ♦... -
Page 8: Components Bottom View
Components Bottom View ♦ VGA Card ♦ SYS FAN ♦ LED BD CR ♦ LED BD. SIDEDOWN ♦ CPU COOLER ♦ DDR ♦ LED BD. UP ♦ LED BD. DOWN ♦ CPU ♦ ♦ WIFI CARD ♦ FRONT IO BD ♦... -
Page 9: Appropriate Tools
Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ROG Strix (G10CE) desktop. ♦ Screwdriver ♦ Alcohol 95% ♦ Glove ♦ Dust-free Cloth Please accord to different screw specification to choose different screwdriver and head. #1 #2 ♦... -
Page 10: Slide Door
SLIDE DOOR Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screws *4pcs. Screws Spec Torque (kgf-cm) Step 2 : Pull the side doors *2pcs. #6-32*6.3L (7.3,2.45)(B)//KL,MACHINE NY B-ZN #2 8.0± 0.5 Pull SLIDE DOOR (L) Pull... -
Page 11: Vga Card
VGA CARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect (yellow mark) connector *1pcs. Screws Spec Torque(kgf-cm) Step 2 : Open the door. Step 3 : Remove screws *4pcs. M3*6L (5.5,2.15) (P) #2 6.0±... -
Page 12: Fan
Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect (yellow mark) FAN connector *1pcs. Screws Spec Torque (kgf-cm) Step 2 : Remove 4 screws on the outside of iron grid. M5*10L (F) W-NI (TP5) 8.0±... -
Page 13: Ddr & Ssd Card
DDR & SSD CARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Screws Spec Torque (kgf-cm) Step 1 : Unlock then remove DDR *4pcs. Step 2 : Remove screw *1pcs then take out the SSD *1pcs. M2*3L(4.6,0.8) (K)#1 2.0 ±... - Page 14 M.2 SSD Assembly Notice Please be sure to pull out adapter and disconnect the battery. Screws Spec Torque (kgf-cm) Please follow the below criteria to assemble 2 M.2 SSD. Step-1 : Install stand off to lock*1pc (yellow mark). 3.0 ± 0.3 Step-1 D640MB STAND OFF M2*4.6H*4.75D Step-2 : Install M.2 SSD *1pc.
-
Page 15: Cpu Cooler
CPU COOLER Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect CPU_FAN connector. Step 2 : Unscrew *4pcs CPU buckle. Step 3 : Remove the CPU Cooler. Disconnect Unscrew(Rotate in the direction of the arrow) Take it out If the CPU COOLER is hard to disassemble, please move the COOLER left and right to separate... -
Page 16: Main Board & Wifi Card & Cpu
MAIN BOARD & WIFI CARD & CPU Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect (yellow mark) connectors *6pcs. Screws Spec Torque (kgf-cm) Step 2 : Remove screws *8pcs (Red & Blue mark). M3*4L (6.3,2.05) (P) #2 6.0±... - Page 17 MAIN BOARD Assembly Notice Please follow the below image to Add sponge *4pcs (red mark)on motherboard DIMM Area. D700TD MB SPONGE L35 W8 T8//L35 W8 T8...
- Page 18 MAIN BOARD with CPU COOLER & CPU Assembly Notice Please be sure to pull out adapter and disconnect the battery. Please make sure that re-smear thermal material on CPU Die, if thermal module have to be reassembled. Step-1 : Using dust-free cloth with 95% alcohol to clean up the residual thermal grease on CPU& GPU Die. Step-2 : Please use plastic tool (Plastic stick) to get Thermal Grease, and smear over CPU around 0.2~0.3mm thick.
-
Page 19: Front Cover And Led Board
FRONT COVER AND LED BOARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Pull the latch slightly away. Screws Spec Torque (kgf-cm) Step 2 : Turn over the front case and disconnect the connectors *3pcs of the cable inside. M3*8L (X) W-NI 4.0±... - Page 20 LED CR BD for (Metal side door) SKU only Assembly Notice Before assemble cable on LED CR BD, Please add 2pcs ACETATE tape on the LED CR BD Pin as below picture. Spec G35CA PINHEADER ACETATE FABRIC...
- Page 21 4D(Plastic side door) Cable for 2D(Metal side door) and only Assembly Notice Before assemble two cables, please follow below to paste ACETATE TAPE. Spec G15DK USB CABLE ACETATE TAPE Note: The two cables are GL10DH SATA CABLE 15P F/P 430MM and CABLE USB2.0 CRB TO Step1-1 : Winding the two cables with ACETATE TAPE to increase the insulation layer.
-
Page 22: Power Switch
POWER SWITCH Disassembly Notice Please be sure to pull out AC POWER CORD. Assembly Notice When need to reuse old POWER SWITCH HOLDER, please Step 1 : Push hooks then take out POWER SW CABLE with POWER SWITCH HOLDER from CHASSIS. make sure the hooks no broken or deformation. -
Page 23: Top Cover And Front Io Bd And Led
TOP COVER AND FRONT IO BD AND LED BD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect connectors *1pcs and remove screws *3pcs located on the LED BD. SIDEUP. Screws Spec Torque (kgf-cm) Step 2 : Remove screws *2pcs. -
Page 24: Fio Usb Cable
FIO USB CABLE Assembly Notice Please be sure to pull out adapter and disconnect the battery. STAND OFF Please follow the below criteria to assemble FIO USB CABLE. Step-1 : Make sure the acetate is attached to the Cable plug. Step-2 : Make sure the acetate is attached to the connector. -
Page 25: Hdd
Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove screws *4pcs. Screws Spec Torque (kgf-cm) Step 2 : Disconnect the connectors *2pcs. Step 3 : Take out the HDD. SCREW #6-32*6L(7.1,2.3) (B) #2 6.5±... -
Page 26: Power Supply
POWER SUPPLY Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the connector *1pcs. Torque (kgf-cm) Screws Spec Step 2 : Remove screws *4pcs. Step 3 : Take out the POWER SUPPLY. #6-32*6L(7.1,2.3) (B) #2 8.0±... -
Page 27: Wifi Main Antenna
WIFI MAIN ANTENNA Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Tear off the Gasket and ANTENNA*2pcs. Step 2 : Take out ANTENNA. Assembly Notice Please follow the red and yellow mark to paste Tear off the Antenna and gasket. -
Page 28: Cable Assembly
CABLE ASSEMBLY Assembly Notice Please be sure to pull out adapter and disconnect the battery. Tidy up the cable of the back mainframe as illustrated. Back...
