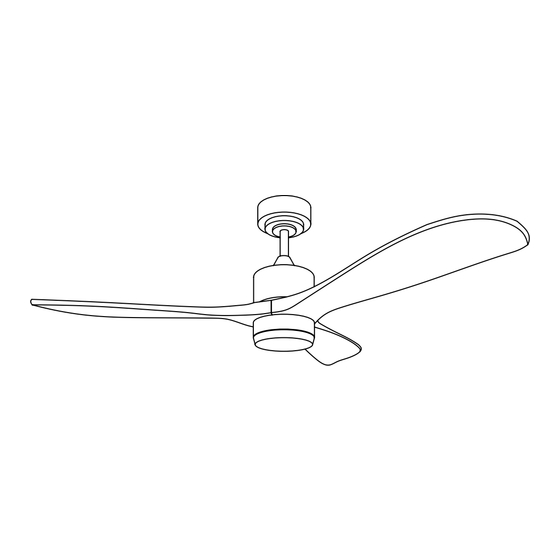

- Page 1 V20231205 Ceiling Fan and Light Instruction Manual Make A House Home C F N - 1 3 1 3 - 0 0 C F N - 1 3 1 3 - N I...
-
Page 2: Table Of Contents
Contents Introduction ......................1 Package List......................2 Safety Information ....................3 Preparation......................4 Installation ......................5 Mounting Bracket.................... 5 Fan Blades ..................... 6 Downrod and Motor ..................6 Wiring ......................10 Canopy ......................11 Light ......................12 Remote Control Operation ................13 Pairing Methods.................... - Page 3 To ensure successful installation, please read this manual carefully before starting your work. For the latest PDF version, scan the left QR code using the appropriate app on your smartphone. For video form, go to our YouTube channel Vonluce and search for “CFN 1313” or simply scan the right QR code.
-
Page 4: Introduction
Introduction Before installing this product, read the package list on Page 2 and ensure all parts are present and display no defects. If any part is missing or damaged, contact customer service and do not attempt to install the product. Read all of the safety information on Page 3 before installation or use. -
Page 5: Package List
Package List Mounting Bracket Canopy Coupling Cover Grommet Fan Blades (×3) Fan Motor Assembly 5″ Downrod 10″ Downrod LED Light Kit Shade Remote Control Receiver Mounting Screws (×4) Spring Washers (×4) Steel Screws (×2) Wire Nuts (×4) Blade Bolts (×7) Mounting Bolts (×2) Star Washers (×2) Plastic Anchors (×2) -
Page 6: Safety Information
Safety Information Warning! 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring MUST be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. -
Page 7: Preparation
Preparation 1. Turn off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death. -
Page 8: Installation
Installation Mounting Bracket 1. Pass the supply wires through the central hole of the mounting bracket. 2. Secure the mounting bracket to your junction box with appropriate fasteners. For wood or other thinner and weaker ceilings, partially fasten the bracket using the mounting bolts and star washers. -
Page 9: Fan Blades
Fan Blades 1. Place one blade underneath the fan motor assembly, aligning their holes. 2. Making sure the blade is straight, attach 2 sets of blade washers and bolts to secure it in place. 3. Repeat for the remaining blades. Metal Washer Blade Bolt Downrod and Motor... - Page 10 Attaching a Downrod to the Motor 1. Select either the 5″ or the 10″ downrod to match the height of your ceiling. Then, pass the downrod through the coupling cover as shown. 2. Feed the lead wires and safety cable loop from the fan motor assembly through the downrod. 3.
- Page 11 Reassembling the Downrod Kit 1. Slide down the coupling cover. Place the grommet and canopy onto the downrod’s top and then slide them to the coupling cover as shown. 2. Replace the downrod’s mount, passing the lead wires and safety cable loop through it. 3.
- Page 12 Hanging the Downrod and Motor 1. Release the cable lock by loosening its Phillips bolt. Unwind the safety cable loop, wrap the cable around the mounting bracket, and thread it back through the lock. Retighten the bolt to re-secure the lock. 2.
-
Page 13: Wiring
Wiring Again, ensure that the power has been cut before working with the wiring. Use the wire nuts provided with your fan. Ensure there are no loose wires or connections and secure connectors with electrical tape. 1. Connect the plugs of the receiver to those Junction Box from the fan motor assembly as shown. -
Page 14: Canopy
Canopy 1. Slide the canopy up to the mounting bracket and place the key holes over the bolts preinstalled on the bracket. Rotate the canopy until the bolts’ heads lock in place at the narrow sections of the key holes. Tighten these bolts as needed. Key Hole Canopy Bolt... -
Page 15: Light
Light 1. Remove the bolts from the bottom of the fan motor assembly. 2. Feed the wire plug of the fan motor assembly through the middle of the LED light kit. 3. Connect the wire plug to the socket on the LED light kit. 4. -
Page 16: Remote Control Operation
Remote Control Operation This remote operates within a range of 30 feet (10 m). It uses two 1.5V AAA batteries (not included). If the remote will not be used for a prolonged period, it is recommended to remove the batteries for better service life. If needed, install the remote control holder onto a wall or any other suitable flat surface using appropriate fasteners. -
Page 17: Pairing Methods
Pairing Methods 1. Turn on the power switch. 2. When you will hear a "beep" sound, immediately press the key in the upper left corner of the remote control. When you hear "beep, beep, beep" three times, the remote control is successfully paired. Tips: Please ensure to follow the above steps and the entire process must be completed within 10 seconds after turning the power on. -
Page 18: Troubleshooting
Troubleshooting DO NOT bend the blade during ANY of the following procedures. Potential Problems Common Solutions Reconnect the fan to power. Within 10 seconds, hold until you hear 3 consecutive beeps to successfully pair the remote control. Check fuses and/or circuit breakers and reset if needed. Cut off power to the fan and check its internal electrical connections. -
Page 19: Disposal
Disposal Electrical products should not be disposed of with household products. In the EU and UK, according to the European Directive 2012/19/EU for the disposal of electrical and electronic equipment and its implementation in national laws, used electrical products must be collected separately and disposed of at the collection points provided for this purpose. -
Page 20: Customer Support And Policies
Guaranteed Response Within 24 Hours We are dedicated to ensuring your satisfaction. At Vonluce, no inquiries are left unanswered for more than 24 hours. We treat each inquiry with the utmost seriousness, going above and beyond to provide a satisfactory response.
