Gardener's Stack-n-Grow Light System Assembly Instructions

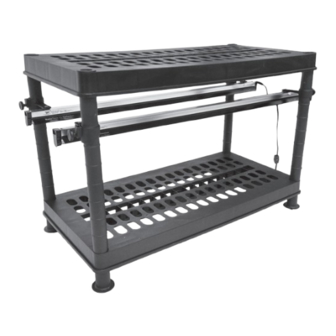

Stack-n-Grow Light System
Includes Assembly Instructions for:
– Base Unit (SECTION 1)
– Add -On Unit (SECTION 2)
– 2-Tier System (SECTIONS 1 & 2)
Our Stack-n-Grow Light System features energy-efficient, full-spectrum
T5 fluorescent bulbs for maximum plant growth. Adjust the height of the
bulbs as seedlings grow. This modular system grows with you — add
more shelves and lights without taking up more floor or countertop space.
Breaks down in minutes for space-saving storage when not in use.
Parts Included
2 Shelves
4 Legs
4 Feet
4 Corner Caps
2 Light Fixtures
4 Light Brackets (2 Left, 2 Right)
2 Wall Brackets
SECTION 1: Assembling the Stack-n-Grow Light Base Unit
Step 1. Open all packages and identify all parts before beginning assembly. Place one Shelf upside down on a level surface. Insert
four Feet into round holes in corners of Shelf. Turn Shelf right side up.
Step 2. Push the wider ends of the four Legs into the round holes in the corners of the Shelf until they are fully seated in the Feet. Do
not add the top shelf yet.
Step 3. Affix Light Fixture Clips to Light Brackets (Figure 2). Place a Small Nut into the hex-shaped hole in the Light Bracket. Flip the
Light Bracket over and place a Light Fixture Clip over the hole with the "prongs" facing out and oriented as shown. Insert a Bolt
and tighten with a Phillips screwdriver.
Step 4. Insert a Large Nut into the slot on the side of the Light
Bracket (Figure 2). Push the Large Nut all the way to the
bottom of the slot. Twist a Knob into the hole, catching the
Large Nut. Do not tighten until Step 5.
Step 5. Note: The assembled Light Brackets have a Knob on either
the left or right side. With the metal Light Fixture Clips facing
down and the Knobs oriented to the outside of the unit, slide
one Light Bracket onto each Leg, as shown in Figure 3. Adjust
the Light Brackets until they are level with each other, then
lightly tighten the knobs. Tip: Position each Light Bracket just
above a ridge on the Leg to make leveling easy.
Step 6. Remove bulbs from the Light Fixtures to avoid breakage during assembly. Twist the
bulb gently until the pins at either end of the bulb can pop out of the fixture. Examine the
ends of the Light Fixtures and note that one end is male and the other female. Important:
Install the two Light Fixtures so that both female ends are at the same end of the unit.
Step 7. Snap the Nano Reflectors onto the Light Fixtures and then snap the Light Fixtures
into the Light Fixture Clips. Tip: Place your thumb on top of the Light Bracket and press
down as you rock and snap the Light Fixture up into the brackets.
Step 8. Insert the ends of the Light Cord into the open, oval ends of the Light Fixtures.
Reinstall the bulbs.
Step 9. Place the top Shelf, right side up, onto the Legs. Push Shelf down.
Insert a Corner Cap into each hole in the corners of the top Shelf.
Please see other side for Stack-n-Grow Add-On Unit assembly instructions.
#SKU 8590139, 8590134
4 Light Fixture Clips, metal
4 Large Nuts
4 Small Nuts
1 Light Cord
4 Bolts
4 Knobs, threaded
2 Nano Reflectors
8% of our profits
Learn more at gardeners.com/
Figure 2: Light Bracket Assembly
Small Nut
Large Nut
Knob
go back to our communities.
FoRCE-FoR-GoOD
1-800-876-5520 • gardeners.com
info@gardeners.com
Leg
Foot
Figure 1
Light
Fixture Clip
Small Nut fits
into hole on
other side
Figure 3
Light
Fixture Clip
Nano Reflector
Light
Light
Fixture,
Cord
female end
0669G Rev 5/2023
Bolt
