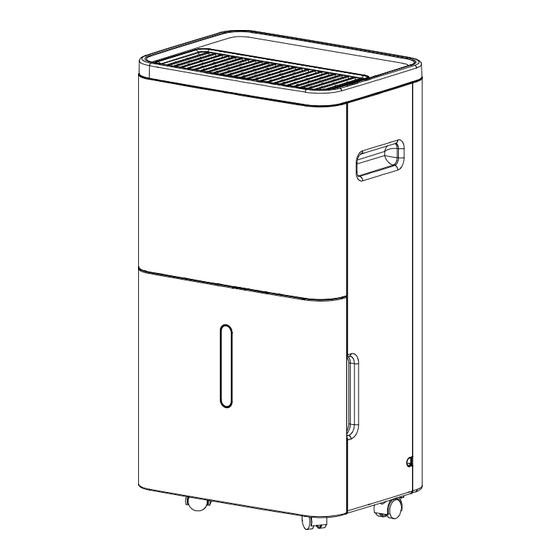

DEHUMIDIFIER
USER MANUAL
PD15R-01AE
Please read this manual before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD15R-01AE and is the answer not in the manual?

Questions and answers

Summary of Contents for COLAZE PD15R-01AE

  • Page 1 DEHUMIDIFIER USER MANUAL PD15R-01AE Please read this manual before use.
  • Page 2: Table Of Contents

    CONTENTS SAFETY INFORMATION 01-04 OPERATING INSTRUCTION CONTROL PANEL DESCRIPTION OPERATING INSTRUCTION USAGE OF WATER TANK CONTINUOUS DRAINAGE FILTER REMOVAL MAINTENANCE INSTRUCTION TROUBLESHOOTING...
  • Page 3: Safety Information

    SAFETY INFORMATION 1. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. 2. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.) 3.
  • Page 4 9. Please read the manual carefully before the first time using this product, and storage the unit in safe place to avoid electricity leakage, flaming or person injure. 10. Do not put this product in the water or any other liquids.
  • Page 5 20. Please keep the product from the wall or other barriers in a minimum distance of 50 cm. 21. The appliance shall be installed in accordance with national wiring regulations. 22. The applicable operating temperature range for this unit is 5-35 . 23.
  • Page 6 maximum number of pieces of equipment permitted to be stored together will be determined by local regulations. 6. The appliance shall be stored so as to prevent mechanical damage from occurring. 7. General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out.
  • Page 7: Operating Instruction

    OPERATING INSTRUCTION 1. 7-Segment Display 2. Control panel 3. Air outlet 4. Top Cover 5. Front Case 6. Water Tank 7. Water Level Window 8. Castors 9. Right Case 10. Filter Case 11. Air Inlet 12. Drain Hole 13. Back Case 14.
  • Page 8: Control Panel Description

    CONTROL PANEL DESCRIPTION INSTRUCTION ICON Operating Water Full Defrosting Drying mode Auto Mode Fan Mode Dehumidifying Timer High Fan Speed Low Fan Speed Panel Lock The Display The 7-Segment Display: Indicates the setting humidity with "RH %” by side; indicates timer’s timing time without "RH %” . Light Bar “Red”...
  • Page 9 1 POWER key: Press POWER key to turn on/ turn off the unit. The Operating light illuminates while the unit is working. The operating light goes dim while the unit is turned off to stand-by mode. 2 FUNCTION key: Switch from three modes: Clothes-Drying, Auto or Fan mode. In Clothes-Drying or Auto mode, the compressor indicating light illuminates when compressor is working;...
  • Page 10 After setting the humidity, the display switch back to show the ambient humidity after 5 seconds. 4 FAN SPEED/ LOCK key: The key has two functions: switch high/ low speed, and panel lock. Switch the high/ low fan speed with the related light illuminates. Deep press the LOCK key 3 seconds to activate the panel lock, the indicating light illuminates, and then the panel cannot be controlled.
  • Page 11 7. Defrosting indicating light: When the unit is defrosting, the indicating light illuminates. The motor keeps operating but the compressor stops working. WARNING 1. When operating the dehumidifier, please do not set the humidity higher than ambient humidity. 2. When “Water Full” indicating light illuminates, please pour the water out of the tank and put it back.
  • Page 12: Usage Of Water Tank

    8. The unit shows the ambient humidity when it’s operating. If the ambient humidity is higher than RH90%, the display shows “HI”; if the ambient humidity is lower than RH30%, the display shows “LO” DRAINING INSTRUCTION Draining water can be storage in the water tank, or be continuous drained by PVC tube.
  • Page 13: Maintenance Instruction

    1. Take the filter case and filter out together. 2. Remove the filter from filter case. 3. Wash the filter with cool water (cooler than 40 ) every two weeks, and put filter back after it air-dried naturally. MAINTENANCE INSTRUCTION 1.The unit is not allowed to be placed on surface which is soft or not flat.
  • Page 14: Troubleshooting

    Troubleshooting 1. Information on servicing 1) Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
  • Page 15 around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed. 6) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work.
  • Page 16 Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used.
  • Page 17 detection equipment. Intrinsically safe components do not have to be isolated prior to working on them. 3. Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.
  • Page 18 confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.
  • Page 19 the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available. 8. Charging procedures In addition to conventional charging procedures, the following requirements shall be followed. – Ensure that contamination of different refrigerants does not occur when using charging equipment.
  • Page 20 • All personal protective equipment is available and being used correctly; • The recovery process is supervised at all times by a competent person; • Recovery equipment and cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
  • Page 21 and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.
  • Page 22 5 -35 Applicable temperature Water Tank Capacity Website link: https://www.colaze.com Facebook homepage: Colaze Home Email: colazevip@163.com This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible hazards to the environment or human health from uncontrolled waste disposal, please recycle it to prove the sustainable reuse of material resources.
