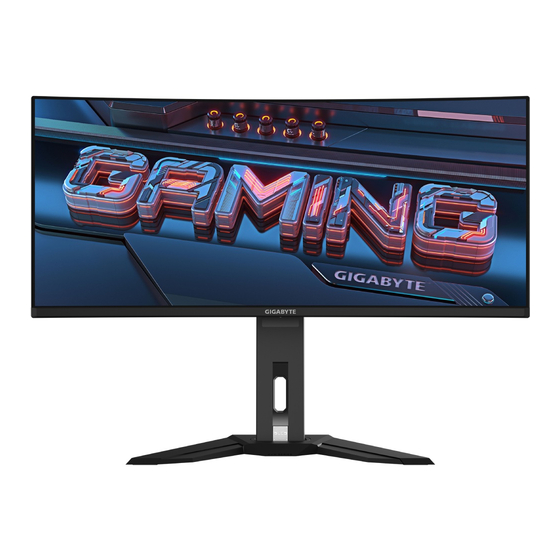

Gigabyte MO34WQC User Manual

Gigabyte MO34WQC User Manual

Gaming monitor
Hide thumbs Also See for MO34WQC:
Table of Contents

Advertisement

Quick Links

Download this manual
GAMING MONITOR
U SE R GUI DE
MO34WQC2 / MO34WQC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MO34WQC and is the answer not in the manual?

Questions and answers

Related Manuals for Gigabyte MO34WQC

Summary of Contents for Gigabyte MO34WQC

  • Page 1 GAMING MONITOR U SE R GUI DE MO34WQC2 / MO34WQC...
  • Page 2 Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE’s prior written permission. •...

  • Page 3: Table Of Contents

    GIGABYTE Service Information . . . . . . . . . . . . . . . . . . .

  • Page 4: Introduction

    INTRODUCTION Package Contents The following items come with your packaging box. If any of them is missing, please contact your local dealer. Monitor Monitor Base Stand Power Cable HDMI Cable DP Cable USB Cable Quick Start Guide Warranty Card Note: Please keep the packaging box and packing materials for possible transportation of the monitor.

  • Page 5: Peeling Off The Screen Protective Film Using The Peel Tab

    Peeling off the Screen Protective Film Using the Peel Tab Instructions on Using the Peel Tab: The peel tab is located as indicated by the red arrow in the picture below. Remove the screen protective film in the direction indicated by the red arrow in the picture below. Note: To prevent damage to the screen, please avoid using fingernails or any sharp objects to peel off the protective film.

  • Page 6: Product Overview

    Product Overview Front View Control button Power LED KVM switch Tactical switch Rear View USB 3.2 HDMI-1 HDMI-2 TYPE-C AC IN jack HDMI ports (x2) DisplayPort USB Type-C port USB upstream port USB 3.2 ports (x2) Microphone jack Headphone jack - 6 -...

  • Page 7: Preparing Your Monitor For Wall-Mounting

    Preparing your Monitor for Wall-Mounting Note: Use only a 100 x 100 mm VESA compatible wall mount kit to mount the monitor on the wall. Refer to the installation guide included in the wall-mount bracket kit. VESA mounting screw quantity and size: 4 x M4 x 10mm minimum. USING THE DEVICE Turning the Power On/Off Power On...

  • Page 8: Selecting The Input Source

    Selecting the Input Source Input Control Move the button right ( ) to enter the Input menu. HDMI 1 Control Move the button up/down ( ) to select the desired input source. Then press HDMI 2 Control button to confirm. DisplayPort Type-C Select Exit OPERATIONS Quick Switch Menu...
  • Page 9 • Control button down ( ) to enter the Picture Mode menu. Move the Control Move the button up/down ( ) Picture Mode to select the desired option and press the Control button to confirm. Standard MOBA Racing Select Exit • Control button left ( ) to enter the Volume menu.

  • Page 10: Function Key Guide

    Function Key Guide • Control Press the button to display the Main menu. Settings OLED Care Game Assist Exit Power Off Control Then use the button (up/down/left/right) to select a function page and configure the related settings. - 10 -...
  • Page 11 OLED Care • When the Main menu appears on the screen, move the Control button left ( ) to enter the OLED Care menu. OLED Care Status Pixel Clean Settings Static Control Pixel Shift APL Stabilize Sub-Logo Dim Corner Dim Reset Settings Exit Select •...
  • Page 12 Game Assist • When the Main menu appears on the screen, move the Control button right ( ) to enter the Game Assist menu. GAME ASSIST GAME INFO Gaming Timer Crosshair Gaming Counter Tactical Switch Refresh Rate Eagle Eye Info Location Dashboard Info Size Display Alignment Exit...
  • Page 13 Configure the Device Settings When the Main menu appears on the screen, move the Control button up ( ) to enter the Settings menu. Exit Move/Adjust Enter/Confirm Button Guide - 13 -...
  • Page 14 Gaming Configure the game related settings. MO34WQC2 3440 x 1440 / 240 Hz AMD FreeSync Premium Pro Gaming Black Equalizer Picture Super Resolution Display Display Mode PIP/PBP AMD FreeSync Premium Pro System Language Reset All Exit MODE GAMMA Move/Adjust DisplayPort DisplayPort Standard Normal Enter/Confirm...
  • Page 15 Picture Configure the image related settings. MO34WQC2 3440 x 1440 / 240 Hz AMD FreeSync Premium Pro Gaming Standard Picture Display MOBA PIP/PBP System Racing Language Movie Reset All Reader Exit MODE GAMMA Move/Adjust DisplayPort DisplayPort Standard Normal Enter/Confirm Item Description Picture Select different predefined settings to optimize the visual...
  • Page 16 Display Configure the display screen related settings. MO34WQC2 3440 x 1440 / 240 Hz AMD FreeSync Premium Pro Gaming Input Picture Display RGB Range PIP/PBP Apply Picture Mode System Language Reset All Exit MODE GAMMA Move/Adjust DisplayPort DisplayPort Standard Normal Enter/Confirm Item Description...
  • Page 17 PIP/PBP Configure the Picture-In-Picture and Picture-By-Picture related settings. MO34WQC2 3440 x 1440 / 240 Hz AMD FreeSync Premium Pro Gaming Picture Display PIP/PBP System Language Reset All Exit MODE GAMMA Move/Adjust DisplayPort DisplayPort Standard Normal Enter/Confirm Note: PIP/PBP function cannot be enabled when receiving HDR and FreeSync signals.
  • Page 18 System Configure the system related settings. MO34WQC2 3440 x 1440 / 240 Hz AMD FreeSync Premium Pro Gaming Audio Picture OSD Settings Display Quick Switch PIP/PBP Other Settings System Language Reset All Exit MODE GAMMA Move/Adjust DisplayPort DisplayPort Standard Normal Enter/Confirm Item Description...
  • Page 19 Language Select the desired language for the OSD menu. MO34WQC2 3440 x 1440 / 240 Hz AMD FreeSync Premium Pro Gaming Picture Display PIP/PBP System Language Reset All Exit MODE GAMMA Move/Adjust DisplayPort DisplayPort Standard Normal Enter/Confirm Reset All Restore the monitor to its factory default settings. MO34WQC2 3440 x 1440 / 240 Hz AMD FreeSync Premium Pro...

  • Page 20: Appendices

    APPENDICES Specifications Item Specifications Model MO34WQC2 MO34WQC Panel Size 34-inch Aspect Ratio 21:9 Curvature 1800R Resolution WQHD (3440 x 1440) LED Life 30,000 hours (min.) Pixel Pitch 231.5 x 231.5 um Brightness SDR 250nits Contrast Ratio 1.5M:1 Color Depth 1.07B (10 Bit) Active Display Area 800.06 (H) x 337.06 (V) mm...

  • Page 21: Supported Timing List

    Supported Timing List Model MO34WQC2 MO34WQC Timing List HDMI 1 HDMI 2 DP(TYPE-C) HDMI 1 HDMI 2 DP(TYPE-C) 640 x 480 / 60Hz 640 x 480 / 67Hz 640 x 480 / 72Hz 640 x 480 / 75Hz 720 x 400 / 70Hz...
  • Page 22 Model MO34WQC2 MO34WQC Timing List HDMI 1 HDMI 2 DP(TYPE-C) HDMI 1 HDMI 2 DP(TYPE-C) 2560 x 1440 / 60Hz 2560 x 1440 / 120Hz 2560 x 1440 / 175Hz 2560 x 1440 / 240Hz 3440 x 1440 / 50Hz...

  • Page 23: Troubleshooting

    • Make sure that the cloth is damp, but not wet. • When wiping, avoid applying excessive pressure on the screen. • Acidic or abrasive cleaners can damage the screen. GIGABYTE Service Information More service information, please visit GIGABYTE official website. https://www.gigabyte.com/ - 23 -...

  • Page 24: Safety Information

    SAFETY INFORMATION Safety Precautions Read through the following Safety Precautions before using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that cannot be reached by children.

  • Page 25: Stability Hazard Precautions

    • Eye exercise can help reduce eye strain. Repeat these exercises frequently: (1) look up and down (2) slowly roll your eye (3) move your eyes diagonally. This model has passed Flicker Free and Low Blue Light verification by TÜV Rheinland. To learn more: https://www.gigabyte.com/tw/Support/FAQ/4310 - 25 -...

  • Page 26: Regulatory Information

    European Union (EU) RoHS (recast) Directive 2011/65/EU & the European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
  • Page 27 European Union (EU) Community Waste Electrical & Electronic Equipment (WEEE) Directive Statement GIGABYTE will fulfill the national laws as interpreted from the 2012/19/EU WEEE (Waste Electrical and Electronic Equipment) (recast) directive. The WEEE Directive specifies the treatment, collection, recycling and disposal of electric and electronic devices and their components. Under the Directive, used equipment must be marked, collected separately, and disposed of properly.
  • Page 28 CE declaração de conformidade Este produto estão em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/UE; Diretiva CEM 2014/30/UE; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP 2011/65/CE e a Diretiva (UE) 2015/863 que altera o Anexo II. A conformidade com estas diretivas é verificada utilizando as normas europeias harmonizadas.
  • Page 29 CE Declaraţie de conformitate Acest aparat este conform cu: Compatibilitatea electromagnetică Directiva 2014/30/ UE, Directiva privind echipamentele de joasă tensiune 2014/35/UE, Directiva privind proiectarea ecologică 2009/125/CE, Directiva RoHS 2011/65/UE & Directiva (UE) 2015/863 de modificare a Anexei II. Conformitatea cu aceste directive este evaluatăutilizând Standardele europene armonizate aplicabile.
  • Page 30 CE Vyhlásenie o zhode Toto zariadenie vyhovuje nasledujúcim smerniciam: Smernica elektromagnetickej kompatibility 2014/30/EÚ, Smernica o nízkom napätí 2014/35/EÚ, Smernica o výrobkoch týkajúcich sa energie 2009/125/ES, Smernica RoHS 2011/65/EÚ & Smernica (EÚ) 2015/863 ktorou sa mení príloha II. Zhoda s týmito smernicami sa hodnotí použitím príslušných európskych harmonizovaných štandardov.
  • Page 31 China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球 ， 当用户不再需要此产品或产品寿命终止时 ， 请遵守国家废弃电 器电子产品回收处理相关法律法规， 将其交给当地具有国家认可的回收处理资质的厂商进 行回收处理。 环保使用期限 Environment-friendly use period 此标识指期限（十年），电子电气产品中含有的有害物质不会发生外泄或突 变、电子电气产品用户正常使用该电子电气产品不会对环境造成严重污染或 对其人身、财产造成严重损害的期限。 产品中有害物质的名称及含量: 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 印刷电路板及其电子组件 × ○ ○ ○ ○ ○ 面板 × ○ ○ ○...
